DVID-H Series
Optical Workstation

  • Overview
  • Features
  • Performance
  • Specifications
  • Order
  • Accessories

The DVID-H series is a high-performance, ergonomic workstations with optical breadboards providing
structural damping and vibration isolation. Options and accessories are available for
building a custom optical workstation to equipment specifications.


  • Structural damping by honeycomb core breadboard

  • Excellent vibration isolation performance

  • Automatic leveling system

  • Ergonomic design for seated users

  • Optional accessories can be designed into the optical workstation

  • Custom-build to equipment / individual specifications




80% - 90% vibration isolation at 10 Hz


DVID-C-Series-Performance-

Construction Performance
Core Steel honeycomb core,
0.25mm (1 in.) thick foil
Isolation System Pneumatic Isolation
Surface Flatness ±0.1mm (±0.004in.) over 600mm² (2ft.) Isolator Type ISO-S
Top Skin 430 series ferro magnetic stainless steel 4.0mm thick Resonant Frequency Vertical/Horizontal 1.5 - 3.0 Hz
Bottom Skin 4.5mm thick carbon steel plate Vibration Isolation at 10Hz 80 - 90 %
Mounting Holes M6-1.0 (1/4-20) Maximum Load Capacity 300kg
Mounting Hole Patterns 25mm (1 in.) grid Automatic Leveling Yes
Mounting Hole Borders 37.5mm (1.5in.) Leveling Repeatability Standard Leveling Valve = ±1.0 mm
Precision Leveling Valve = ±0.05
Mounting Hole Sealing 21mm deep chemical resistant nylon cap Required Air Supply 3-5kg/cm² nitrogen or compressed air
Damping Broadband damping Height Adjustment ±20mm

Ordering Information

DVID-H-Order

Ordering Chart

* Custom dimensions and configurations are avallable upon request.
Model No. Vibration Isolated Area W1xD1(mm) Dimensions WxDxH(mm) Weight (kg)
DVID-H-0907M/E-50t/100t-(H) 900 x 700 955 x 785 x H 232 / 252
DVID-H-0908M/E-50t/100t-(H) 900 x 800 955 x 885 x H 255 / 280
DVID-H-0909M/E-50t/100t-(H) 900 x 900 955 x 985 x H 280 / 308
DVID-H-1008M/E-50t/100t-(H) 1000 x 800 1055 x 885 x H 297 / 314
DVID-H-1009M/E-50t/100t-(H) 1000 x 900 1055 x 985 x H 305 / 336
DVID-H-1208M/E-50t/100t-(H) 1200 x 800 1255 x 885 x H 320 / 356
DVID-H-1209M/E-50t/100t-(H) 1200 x 900 1255 x 985 x H 353 / 391

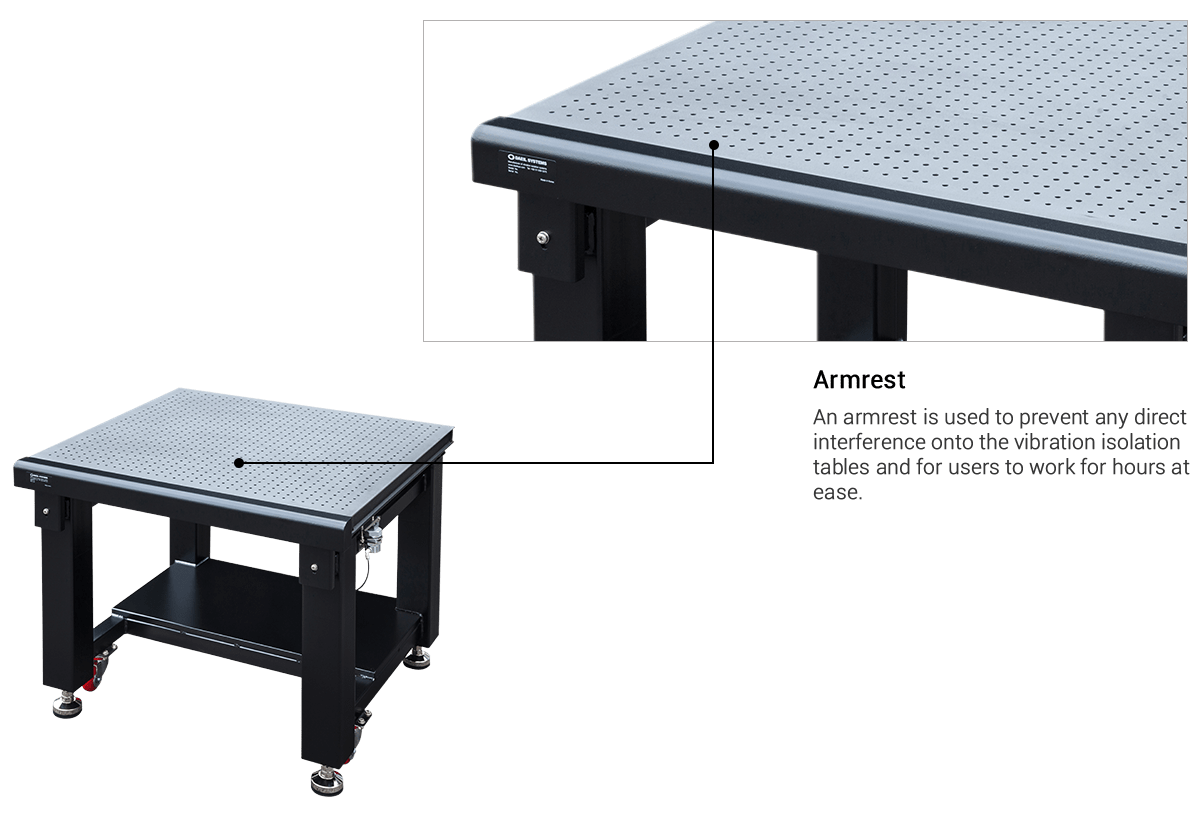

DVID-H-with-front-armrest

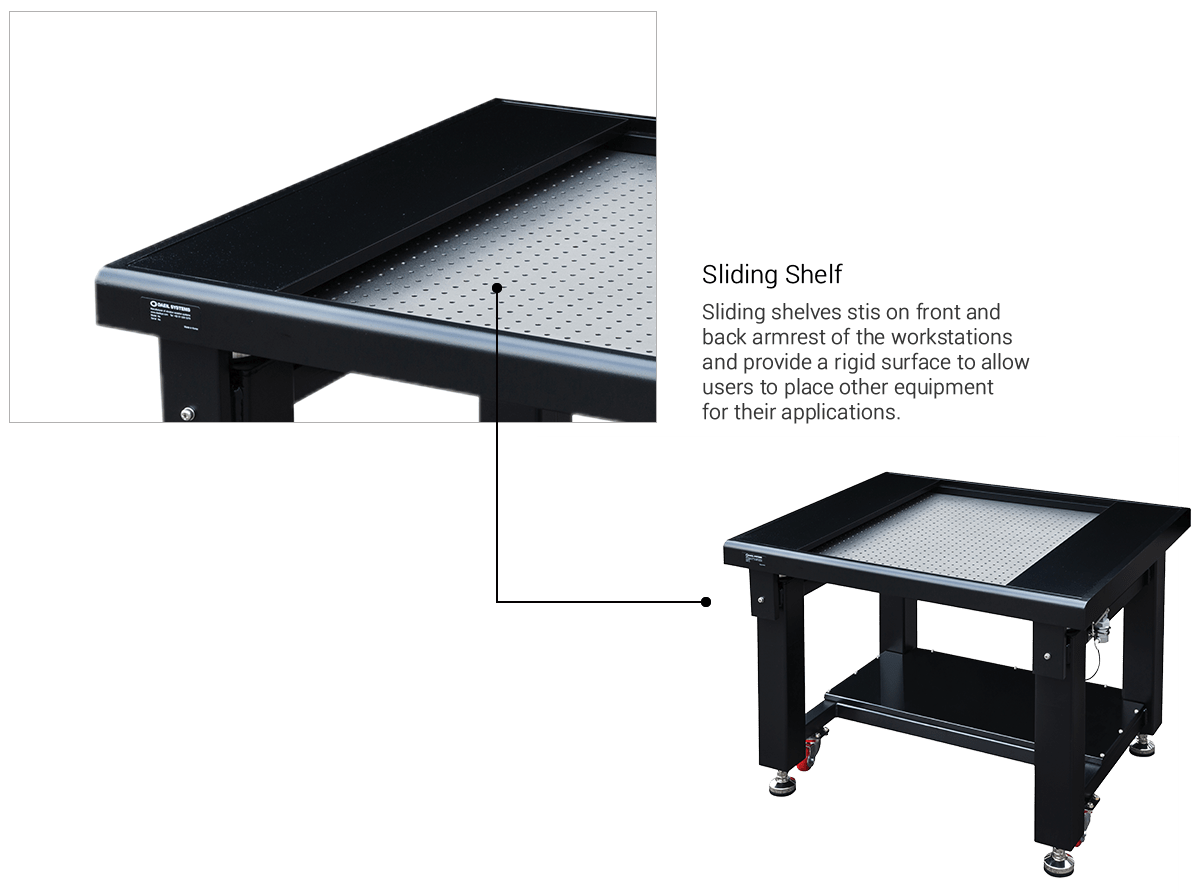

DVID-H-with-sliding-shelves

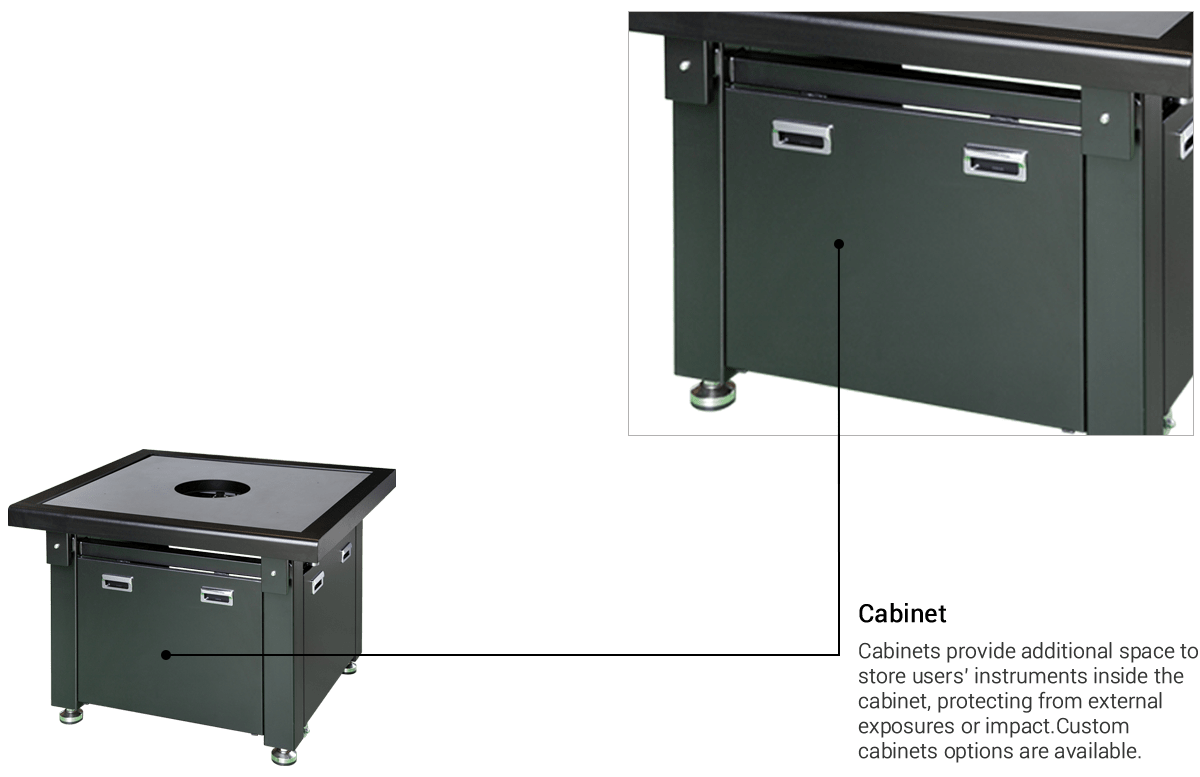

DVID-H-Custom-with-Doors
