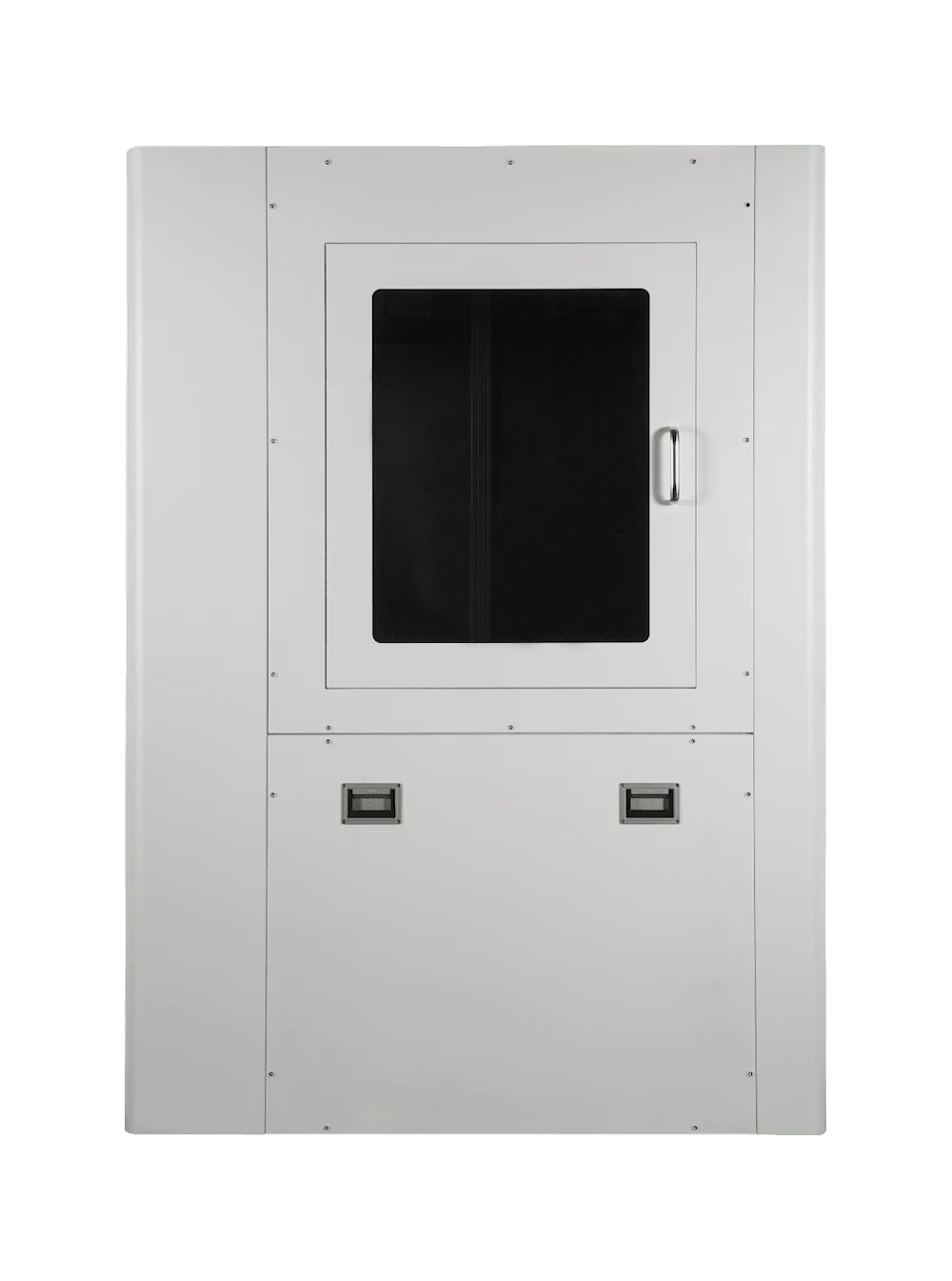

DSE Series
EM Acoustic Enclosure

  • Overview
  • Performance
  • Accessory

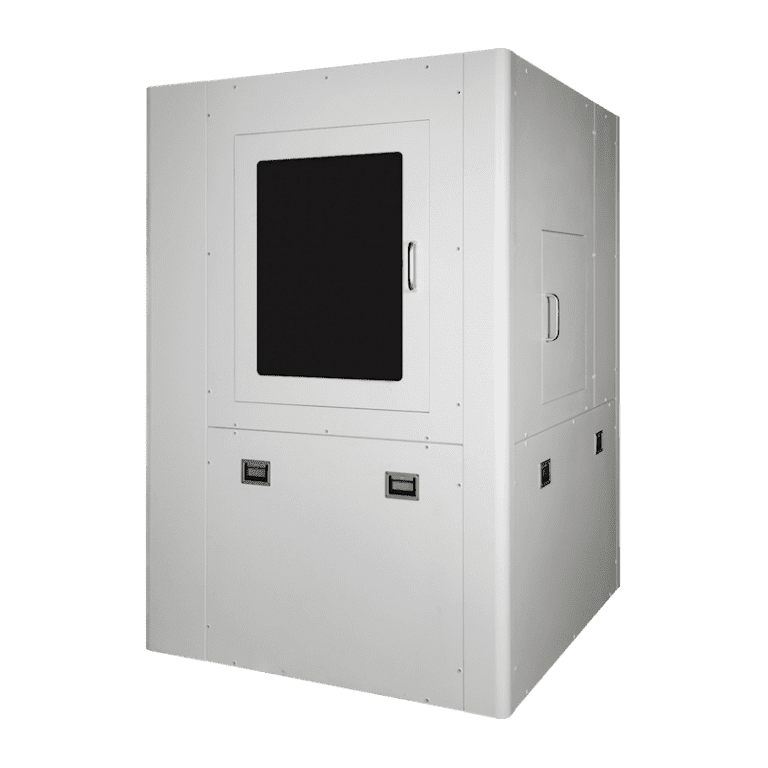

As electron microscopy advances, a quite and noise controlled environment is essentially required.
Our EM acoustic enclosures are specifically designed for electron microscopes to provide an optimal
environment that acoustic noise cannot be transmitted to electron microscopes inside the enclosure.

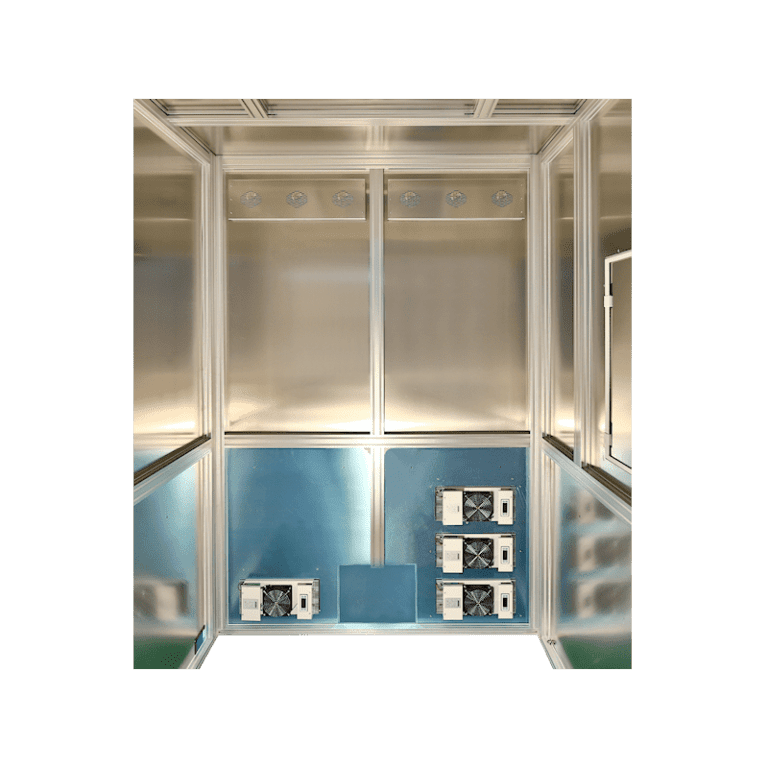

The EM enclosure has a cooling control system to prevent rising temperatures inside the enclosure,
and the enclosure isolates electron microscopes from acoustic noises as well. In addition, users can
add custom configurations and accessories according to specifications and purpose.

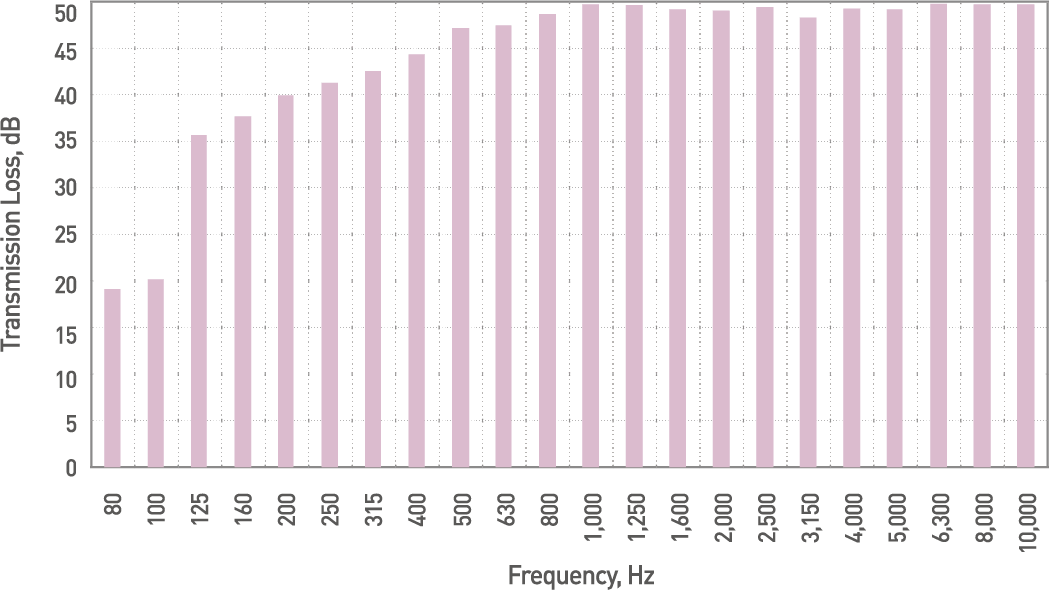

18 dB of noise reduction at 80 Hz

20 dB of noise reduction at 100 Hz

40 dB of noise reduction at 200 Hz

50 dB of noise reduction at 1000 Hz

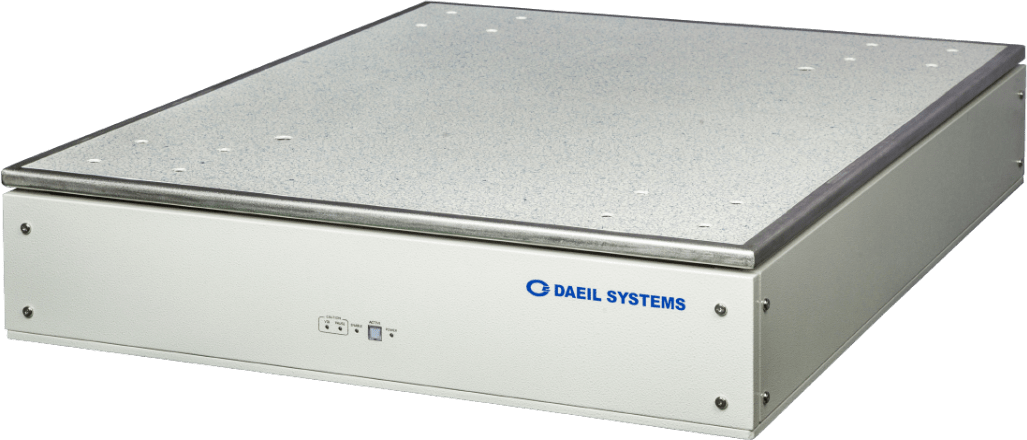

DVIA-MB Series
Base Active Vibration Isolation Platform
