DVID-C Series
Cleanroom Workstation - Workspace Type

  • Overview
  • Features
  • Performance
  • Specifications
  • Order


All stainless steel cleanroom vibration isolation workstations are high-performance pneumatic vibration
isolation tables, designed to provide the maximum cleanroom compatibility and vibration isolation.
The vibration isolated surface is separate from the workspace where users can place appliances.


  • Maximum cleanroom compatiability

  • Excellent vibration isolation performance

  • Automatic leveling system

  • Ergonomic design for seated users

  • Optional accessories can be designed into the cleanroom workstation

  • Custom-build to equipment / individual specifications



80% - 90% vibration isolation at 10 Hz


DVID-C-Series-Performance-


Construction
Material 304 series Stainless Steel
Workspace
Performance
Isolation System Pneumatic Isolation
Isolator Type ISO-S ISO-S1
Resonant Frequency Vertical/Horizontal
1.5 - 3.0 Hz
Vertical/Horizontal
1.5 - 3.0 Hz
Vibration Isolation at 10Hz 80 - 90 % 80 – 90%
Maximum Load Capacity 300kg 600kg
Automatic Leveling Yes
Leveling Repeatability Standard Leveling Valve = ±1.0 mm
Precision Leveling Valve = ±0.05 mm
Required Air Supply 3-5kg/cm² nitrogen or compressed air
Height Adjustment ±20mm

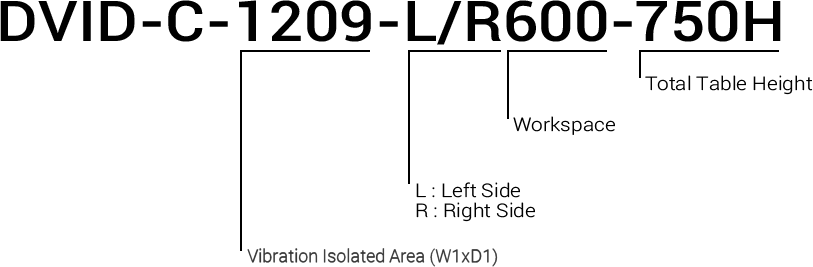

Ordering Information

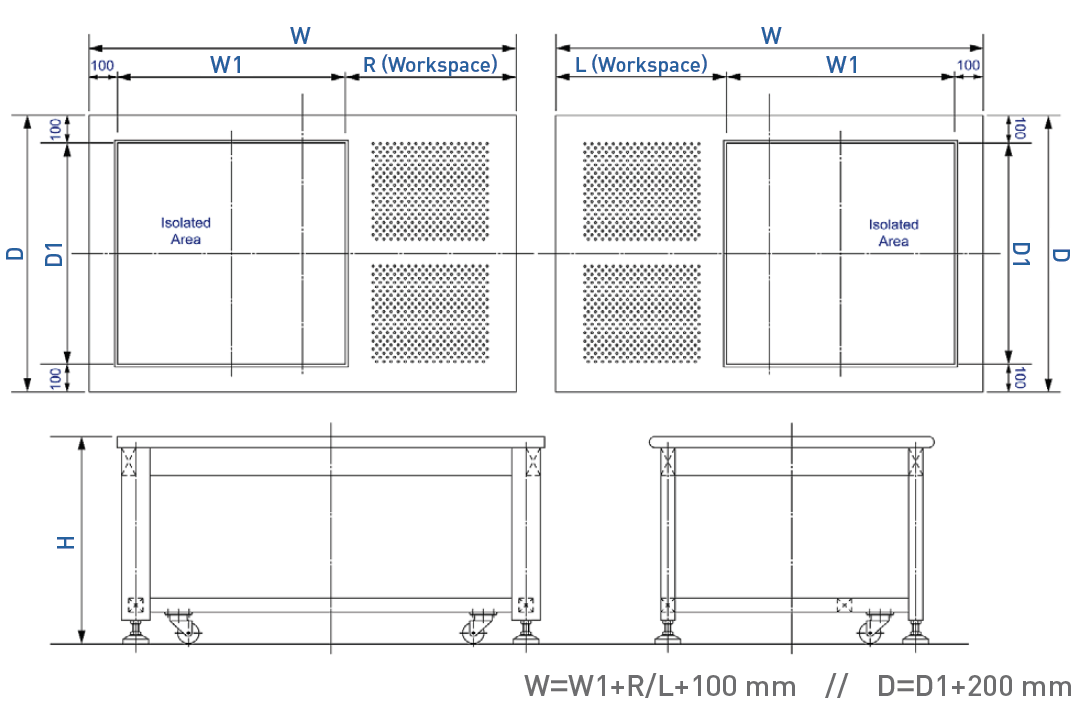

DVID-C-Order-1

DVID-C-Workspace-Type

Ordering Chart

* Custom dimensions and configurations are avallable upon request.
Model No. Vibration Isolated Area W1xD1(mm) Dimensions WxDxH(mm) Weight (kg)
DVID-C-0405-L/R600-(H) 400 x 500 1100 x 700 x H 93
DVID-C-0406-L/R600-(H) 400 x 600 1100 x 800 x H 97
DVID-C-0465-L/R600-(H) 400 x 650 1100 x 850 x H 101
DVID-C-0407-L/R600-(H) 400 x 700 1100 x 900 x H 104
DVID-C-0506-L/R600-(H) 500 x 600 1200 x 800 x H 105
DVID-C-0507-L/R600-(H) 500 x 700 1200 x 900 x H 110
DVID-C-0606-L/R600-(H) 600 x 600 1300 x 800 x H 120
DVID-C-0607-L/R600-(H) 600 x 700 1300 x 900 x H 136
DVID-C-0608-L/R600-(H) 600 x 800 1300 x 1000 x H 146
DVID-C-0609-L/R600-(H) 600 x 900 1300 x 1100 x H 161
DVID-C-0707-L/R600-(H) 700 x 700 1400 x 900 x H 153
DVID-C-0806-L/R600-(H) 800 x 600 1500 x 800 x H 151
DVID-C-0808-L/R600-(H) 800 x 800 1500 x 1000 x H 182
DVID-C-0906-L/R600-(H) 900 x 600 1600 x 800 x H 165
DVID-C-0907-L/R600-(H) 900 x 700 1600 x 900 x H 180
DVID-C-0908-L/R600-(H) 900 x 800 1600 x 1000 x H 195
DVID-C-0909-L/R600-(H) 900 x 900 1600 x 1100 x H 213
DVID-C-1006-L/R600-(H) 1000 x 600 1700 x 800 x H 175
DVID-C-1007-L/R600-(H) 1000 x 700 1700 x 900 x H 194
DVID-C-1075-L/R600-(H) 1000 x 750 1700 x 950 x H 204
DVID-C-1207-L/R600-(H) 1200 x 700 1900 x 900 x H 213
DVID-C-1208-L/R600-(H) 1200 x 800 1900 x 1000 x H 239
DVID-C-1209-L/R600-(H) 1200 x 900 1900 x 1100 x H 265
DVID-C-1508-L/R600-(H) 1500 x 800 2200 x 1000 x H 276

DVID-C Series
Cleanroom Workstation - Armrest Type

  • Overview
  • Features
  • Performance
  • Specifications
  • Order


All stainless steel cleanroom vibration isolation workstations are high-performance pneumatic vibration
isolation tables, designed to provide the maximum cleanroom compatibility and vibration isolation.
An armrest mounted on the edge of the top plate, allowing users to lean on and perform various experiments.
The armrest type DVID–C is ergonomically designed with open front and armrest to improve efficiency
and bring a comfort in the work environment


  • Maximum cleanroom compatibility

  • Excellent vibration isolation performance

  • Automatic leveling system

  • Ergonomic design for seated users

  • Optional accessories can be designed into the cleanroom workstation

  • Custom-build to equipment / individual specifications



80% - 90% vibration isolation at 10 Hz


DVID-C-Series-Performance-


Construction
Material 304 series Stainless Steel
Armrest Front Side / Front+Left+Right Sides / All Sides
Performance
Isolation System Pneumatic Isolation
Isolator Type ISO-S ISO-S1
Resonant Frequency Vertical/Horizontal
1.5 - 3.0 Hz
Vertical/Horizontal
1.5 - 3.0 Hz
Vibration Isolation at 10Hz 80 - 90 % 80 – 90%
Maximum Load Capacity 300kg 600kg
Automatic Leveling Yes
Leveling Repeatability Standard Leveling Valve = ±1.0 mm
Precision Leveling Valve = ±0.05 mm
Required Air Supply 3-5kg/cm² nitrogen or compressed air
Height Adjustment ±20mm


Ordering Information

DVID-C-Order-2

DVID-C-Armrest-Type

Ordering Chart

* Custom dimensions and configurations are avallable upon request.
Model No. Vibration Isolated Area W1xD1(mm) Dimensions WxDxH(mm) Weight (kg)
DVID-C-0506-(H) 500 x 600 555 x 685 x H 110
DVID-C-0607-(H) 600 x 700 655 x 785 x H 136
DVID-C-0707-(H) 700 x 700 755 x 785 x H 158
DVID-C-0709-(H) 700 x 900 755 x 985 x H 180
DVID-C-0808-(H) 800 x 800 855 x 885 x H 182
DVID-C-0907-(H) 900 x 700 955 x 785 x H 180
DVID-C-0908-(H) 900 x 800 955 x 885 x H 195
DVID-C-0909-(H) 900 x 900 955 x 985 x H 213
DVID-C-1008-(H) 1000 x 800 1055 x 885 x H 210
DVID-C-1009-(H) 1000 x 900 1055 x 985 x H 232
DVID-C-1010-(H) 1000 x 1000 1055 x 1085 x H 250
DVID-C-1208-(H) 1200 x 800 1255 x 885 x H 243
DVID-C-1209-(H) 1200 x 900 1255 x 985 x H 265
DVID-C-1210-(H) 1200 x 1000 1255 x 1085 x H 288
