DVID-L Series
Lab Workstation - Workspace Type

  • Overview
  • Features
  • Performance
  • Specifications
  • Order
  • Accessories


The melamine laminate or phenolic laminate finish workspace of Lab vibration isolation workstations is separate from
the vibration isolated surface, enabling users to place appliances and perform daily tasks efficiently.



  • All-in-one lab workstation with integrated workspace and vibration isolated working surface

  • Excellent vibration isolation performance

  • Automatic leveling system

  • Ergonomic design for seated users

  • Optional accessories can be designed into the lab workstation

  • Custom-build to equipment / individual specifications




80% - 90% vibration isolation at 10 Hz


DVID-C-Series-Performance-


Construction
Top Plate Stainless Steel
Workspace Melamine Laminate / Phenolic Laminate
Performance
Isolation System Pneumatic Isolation
Isolator Type ISO-S ISO-S1
Resonant Frequency Vertical/Horizontal
1.5 - 3.0 Hz
Vertical/Horizontal
1.5 - 3.0 Hz
Vibration Isolation at 10Hz 80 - 90 % 80 - 90%
Maximum Load Capacity 300kg 600kg
Automatic Leveling Yes
Leveling Repeatability Standard Leveling Valve = ±1.0 mm
Precision Leveling Valve = ±0.05 mm
Required Air Supply 3 - 5kg/cm² nitrogen or compressed air
Height Adjustment ±20mm


Ordering Information

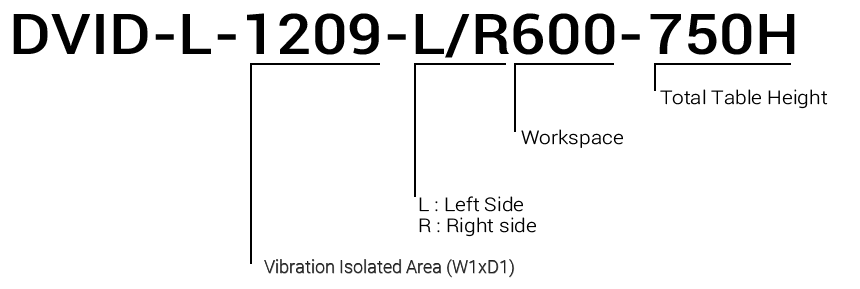

DVID-L-Order-1

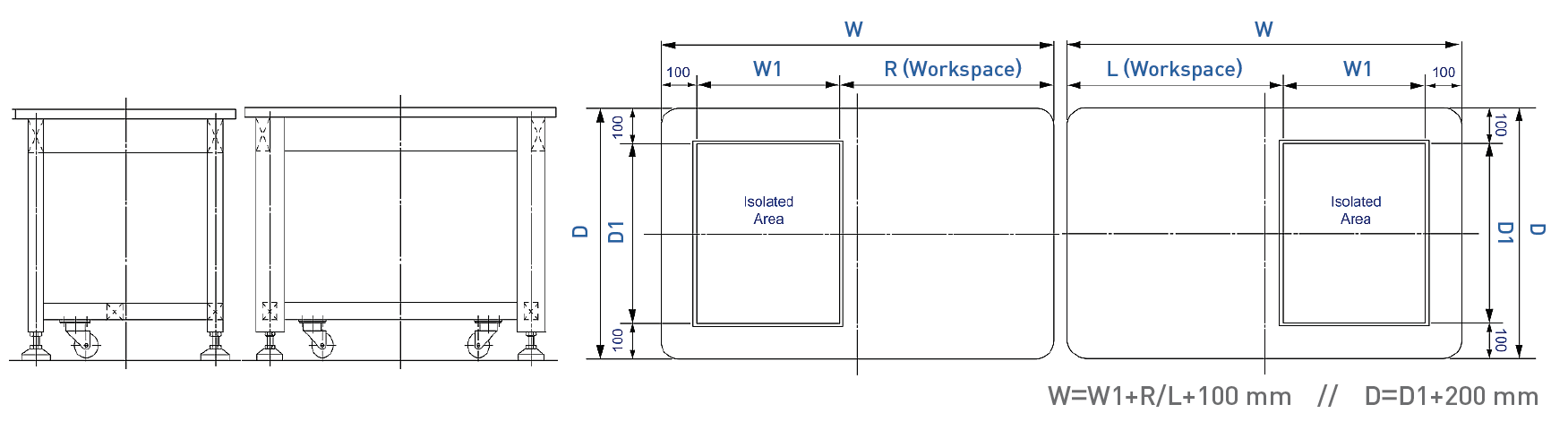

DVID-L-Workspace-Type

Ordering Chart

* Custom dimensions and configurations are avallable upon request.
Model No. Vibration Isolated Area W1xD1(mm) Dimensions WxDxH(mm) Weight (kg)
DVID-L-0405-L/R600-(H) 400x500 1100 x 700 x H 100
DVID-L-0506-L/R600-(H) 500x600 1200 x 800 x H 118
DVID-L-0507-L/R600-(H) 500x700 1200 x 900 x H 126
DVID-L-0606-L/R600-(H) 600x600 1300 x 800 x H 127
DVID-L-0607-L/R600-(H) 600x700 1300 x 900 x H 141
DVID-L-0608-L/R600-(H) 600x800 1300 x 1000 x H 152
DVID-L-0609-L/R600-(H) 600x900 1300 x 1100 x H 163
DVID-L-0707-L/R600-(H) 700x700 1400 x 900 x H 153
DVID-L-0806-L/R600-(H) 800x600 1500 x 800 x H 155
DVID-L-0808-L/R600-(H) 800x800 1500 x 1000 x H 183
DVID-L-0906-L/R600-(H) 900x600 1600 x 800 x H 163
DVID-L-0907-L/R600-(H) 900x700 1600 x 900 x H 198
DVID-L-0908-L/R600-(H) 900x800 1600 x 1000 x H 210
DVID-L-0909-L/R600-(H) 900x900 1600 x 1100 x H 233
DVID-L-1006-L/R600-(H) 1000x600 1700 x 800 x H 196
DVID-L-1007-L/R600-(H) 1000x700 1700 x 900 x H 210
DVID-L-1075-L/R600-(H) 1000x750 1700 x 950 x H 219
DVID-L-1207-L/R600-(H) 1200x700 1900 x 900 x H 226
DVID-L-1208-L/R600-(H) 1200x800 1900 x 1000 x H 252
DVID-L-1209-L/R600-(H) 1200x900 1900 x 1100 x H 278
DVID-L-1508-L/R600-(H) 1500x800 2200 x 1000 x H 283

DVID-L-Drawer

DVID-L-Customized


DVID-L Series
Lab Workstation - Armrest Type

  • Overview
  • Features
  • Performance
  • Specifications
  • Order


Laboratory vibration isolation workstations with armrest mounted on the edge of the top plate enables users to lean on
and conduct various experiments.The top plate is stainless steel surface finish and supported by pneumatic vibration
isolators to filter floor vibrations and provides damping. The lab vibration isolation workstations are ergonomically
designed with open front and armrest to improve efficiency and bring a comfort in the work environment.


  • Excellent vibration isolation performance in both vertical and horizontal axis

  • Automatic leveling system

  • Ergonomic design for seated users

  • Optional accessories can be designed into the lab workstation.

  • Custom-build to equipment / individual specifications



80% - 90% vibration isolation at 10 Hz


DVID-C-Series-Performance-


Construction
Top Plate Stainless Steel
Armrest Front Side / Front+Left+Right Sides / All Sides
Performance
Isolation System Pneumatic Isolation
Isolator Type ISO-S ISO-S1
Resonant Frequency Vertical/Horizontal
1.5 - 3.0 Hz
Vertical/Horizontal
1.5 - 3.0 Hz
Vibration Isolation at 10Hz 80 - 90 % 80 - 90%
Maximum Load Capacity 300kg 600kg
Automatic Leveling Yes
Leveling Repeatability Standard Leveling Valve = ±1.0 mm
Precision Leveling Valve = ±0.05 mm
Required Air Supply 3 - 5kg/cm² nitrogen or compressed air
Height Adjustment ±20mm


Ordering Information

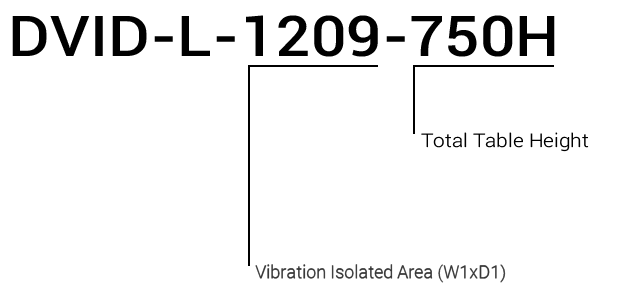

DVID-L-Order-2

DVID-L-Armrest-Type

Ordering Chart

* Custom dimensions and configurations are avallable upon request.
Model No. Vibration Isolated Area W1xD1(mm) Dimensions WxDxH(mm) Weight (kg)
DVID-L-0506-(H) 500 x 600 555 x 685 x H 102
DVID-L-0607-(H) 600 x 700 655 x 785 x H 126
DVID-L-0608-(H) 600 x 800 655 x 885 x H 139
DVID-L-0707-(H) 700 x 700 755 x 785 x H 153
DVID-L-0709-(H) 700 x 900 755 x 985 x H 175
DVID-L-0808-(H) 800 x 800 855 x 885 x H 178
DVID-L-0907-(H) 900 x 700 955 x 785 x H 175
DVID-L-0908-(H) 900 x 800 955 x 885 x H 192
DVID-L-0909-(H) 900 x 900 955 x 985 x H 210
DVID-L-1008-(H) 1000 x 800 1055 x 885 x H 207
DVID-L-1009-(H) 1000 x 900 1055 x 985 x H 226
DVID-L-1010-(H) 1000 x 1000 1055 x 1085 x H 246
DVID-L-1208-(H) 1200 x 800 1255 x 885 x H 239
DVID-L-1209-(H) 1200 x 900 1255 x 985 x H 260
