Vibration Isolation Case Studies

DVIA-M-UST1 vibration isolation installation report for Unisoku USM1400SA STM with serial M-UST1 230426R1-3. Good Performance noted on the remark line; administrative dates reflect an August 2024 onsite report and legacy business-trip dates shown on the same form layout. Publication includes aligned M-UST1 internal program measurement plots by axis (Vertical, Left to Right, Front to Back).

DVIA-M1000 (serial 240207R3) installation report for Guiyang Zhenhua Technology in Guiyang City, China. Equipment: Thermo Fisher Scientific Helios 5 FIB-SEM. Equipment condition per report: uninstalled. Chaewon Lee, tuning date August 8, 2024. The source report includes transmissibility plots for vertical, left-to-right, and front-to-back axes only (no VC curves or narrow-band autospectrum figures). Reference publishes the standard VC criteria as a markdown table.

DVIA-M1000 installation report (serial 240207R3) for Thermo Fisher Scientific Helios 5 FIB-SEM, prepared for Guiyang Zhenhua Technology in Guiyang City, China. Overview states the platform is appropriately installed and functioning as intended. Equipment condition: The equipment is uninstalled. UI-program transmissibility (vertical, left-to-right, front-to-back); Reference uses the standard Generic Vibration Criteria markdown table (no separate reference graphic).

GRGT Shanghai — Thermo Fisher Helios G5 CX FIB-SEM on DVIA-M1000 (SN 221107R1); internal program measurement plots for Vertical, Left to Right, and Front to Back.

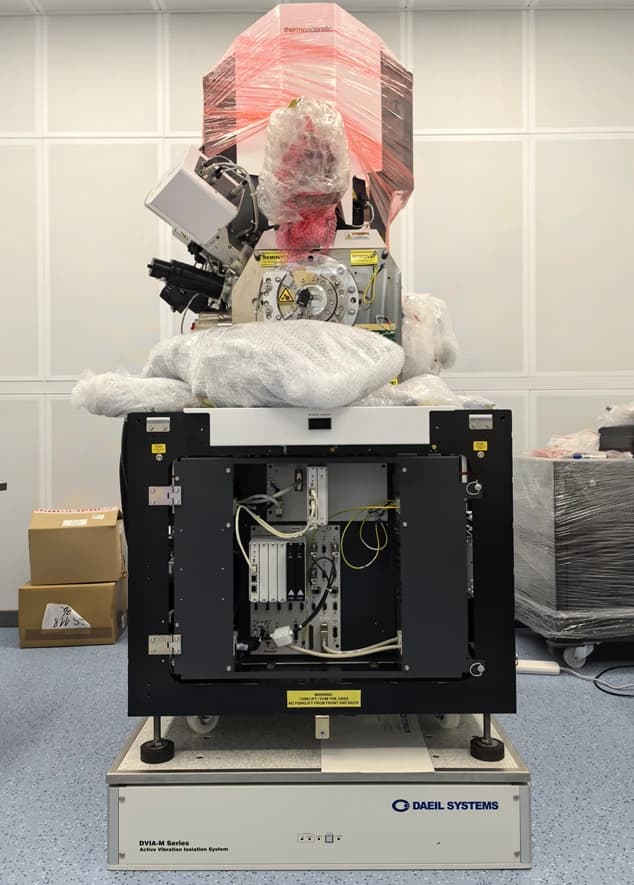

DVIA-M1000 installation report (serial 240507R6) for Shenzhen Weiguang in Shenzhen, China. Thermo Fisher Scientific Cryo FIB-SEM Aquilos. Overview states the platform is appropriately installed and functioning as intended. The published form has no separate vibration specification section or measurement summary table. Equipment condition: The equipment is installed. Tuning request UI capture; vertical, left-to-right, and front-to-back transmissibility; on-site equipment photo; Reference uses the standard Generic Vibration Criteria markdown table (no separate reference graphic).

DVIA-U1000 compact installation worksheet (serial 230330R1) at Shanghai Public Security Bureau with HITACHI SU7000 in Shanghai. Setup 24.08.05, reporting 24.08.07; Overview measurement dated 2024.08.05 (Monday); operator Chaewon Lee from DAEIL SYSTEMS; business-trip line 17.12.27~17.12.29. Publication includes installation photograph plus U1000 internal-program Vertical / Left to Right / Front to Back screenshots in Word segment order.
