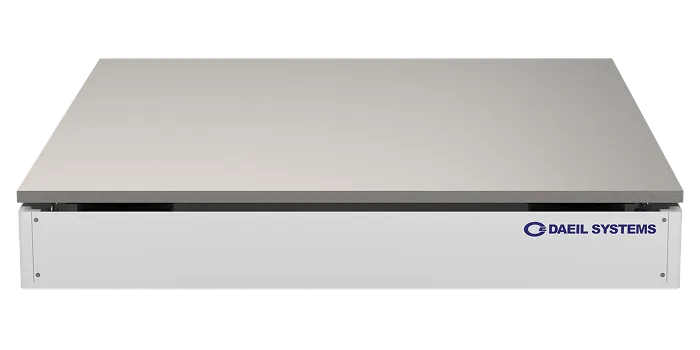

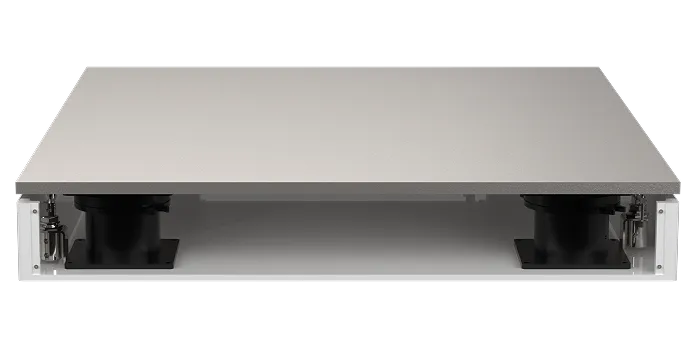

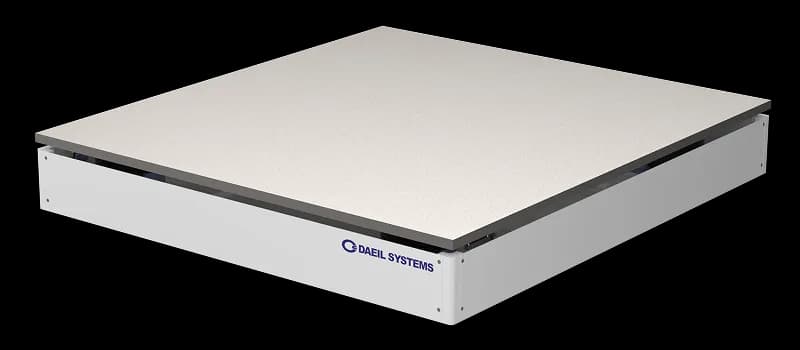

Pneumatic Isolation Base
The DVIP-B Series is a specialized pneumatic isolation base designed to maximize the resolution of SEM, TEM, and metrology tools. Custom-tailored to your equipment’s specific footprint, it creates a stable, vibration-free foundation that decouples floor noise, ensuring sharper imaging, superior data integrity, and reliable performance during critical high-magnification analysis.
Optimized for Electron Microscopy (SEM/TEM)
Engineered with a low resonant frequency (1.2–3.0 Hz), the DVIP-B targets and neutralizes the specific low-frequency floor vibrations that interfere with electron beam stability. This aggressive damping capability preserves image clarity and resolution at the nanometer scale.
Custom-Profiled Equipment Interface
Metrology tools and electron microscopes vary significantly in footprint and mass distribution. We custom-design the DVIP-B chassis to match the exact dimensions, weight, and caster points of your specific instrument, ensuring a seamless, rigid integration that eliminates structural overhang or instability.
High Center-of-Gravity Stability
Electron microscope columns are often tall and top-heavy. The DVIP-B is structurally optimized to manage high centers of gravity, providing a rigid platform that prevents "sway" and maintains the vertical alignment necessary for precise beam focus and sample manipulation.
High-Load Capacity for Heavy Instrumentation
Designed to support the substantial weight of vacuum chambers and electromagnetic columns, the DVIP-B accommodates payloads from 400 kg to 6,000 kg. Its high-stiffness construction ensures zero static deflection, providing a solid, unyielding base for heavy-duty metrology assets.

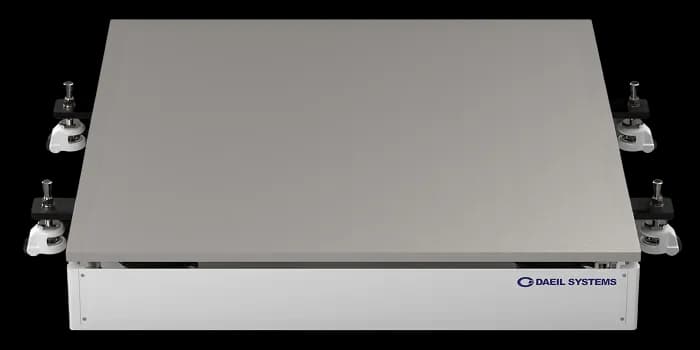

Ultra-Precision Leveling Control
Maintaining a perfectly horizontal plane is critical for optical alignment. The system offers Precision Leveling Valves with a repeatability of ±0.05 mm, ensuring the microscope remains perfectly leveled relative to the column axis, even during stage motion or load shifts.
