Vibration Isolation Case Studies

DVIA-ML1000 installation report (serial 240603R6) for ZEISS FIB-SEM Crossbeam 550. Overview matches the published form. Equipment condition: The equipment is turned on/IDLE. The source has no measurement summary table. Tuning Request field is blank (N/A). Published figures: vibration specification UI capture plus vertical, left-to-right, and front-to-back autospectrum and transmissibility from the UI program; decorative header raster omitted. Equipment picture is marked Photo Not Allowed in the handout (no equipment image published). Reference uses the standard Generic Vibration Criteria markdown table only (reference EMF not republished).

DVIA-MB1000 serial 160706R1 installation report for a ZEISS FE-SEM Sigma 300VP — tuning 2025-12-24, report written 2026-01-07 by Chaewon Lee (DAEIL SYSTEMS). Published plots follow DOCX §2a mapping: vibration specification capture under **Vibration Specification**, vertical / left-to-right / front-to-back transmissibility under **Data and Image**, then equipment photograph. Decorative letterhead raster after the website line (image1) is omitted; Reference uses the standard VC markdown table only (no Generic Vibration Criteria bitmap — image7.emf).

DVIA-MB1000 (serial 161213R2) tuning and vibration measurements for a TESCAN CLARA FE-SEM relocated to the Tier-1 Electronics Component Manufacturer Busan site A6 building 3F incoming inspection room. Tuning on 2026-01-06; report written 2026-01-07. The public page publishes nine measurement plots (VC curves, autospectra, transmissibility for vertical, left-to-right, and front-to-back). The decorative banner image above the title block and the Generic Vibration Criteria bitmap under 참고자료 are omitted in favor of the standard VC reference markdown table.

DVIA-ML1000 installation report (serial 241104R1).

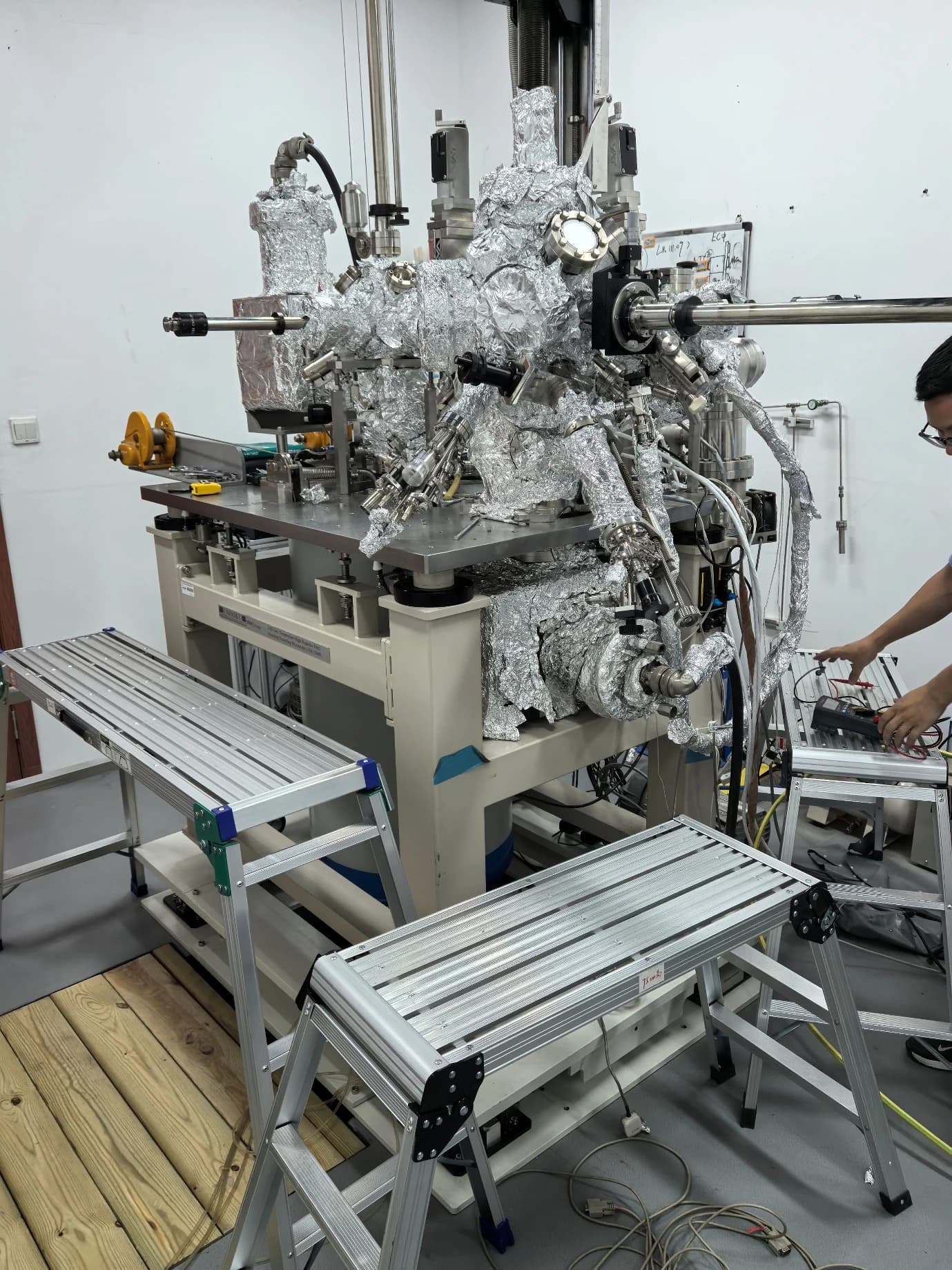

DVIA-ML1000 installation report (serial 250331R2) for Unisoku STM — 3rd tuning on January 7, 2026 after oscillation and re-tuning. Engineer Chaewon Lee (DAEIL SYSTEMS). End User and Location N/A on the form; equipment model field N/A. Vibration Specification N/A; equipment condition The equipment is turned on/IDLE; Tuning Request N/A. Published UI-program autospectra and transmissibility (vertical, left-to-right, front-to-back) and equipment photo. No measurement summary table or VC curves on the form. Reference uses the standard Generic Vibration Criteria markdown table only.

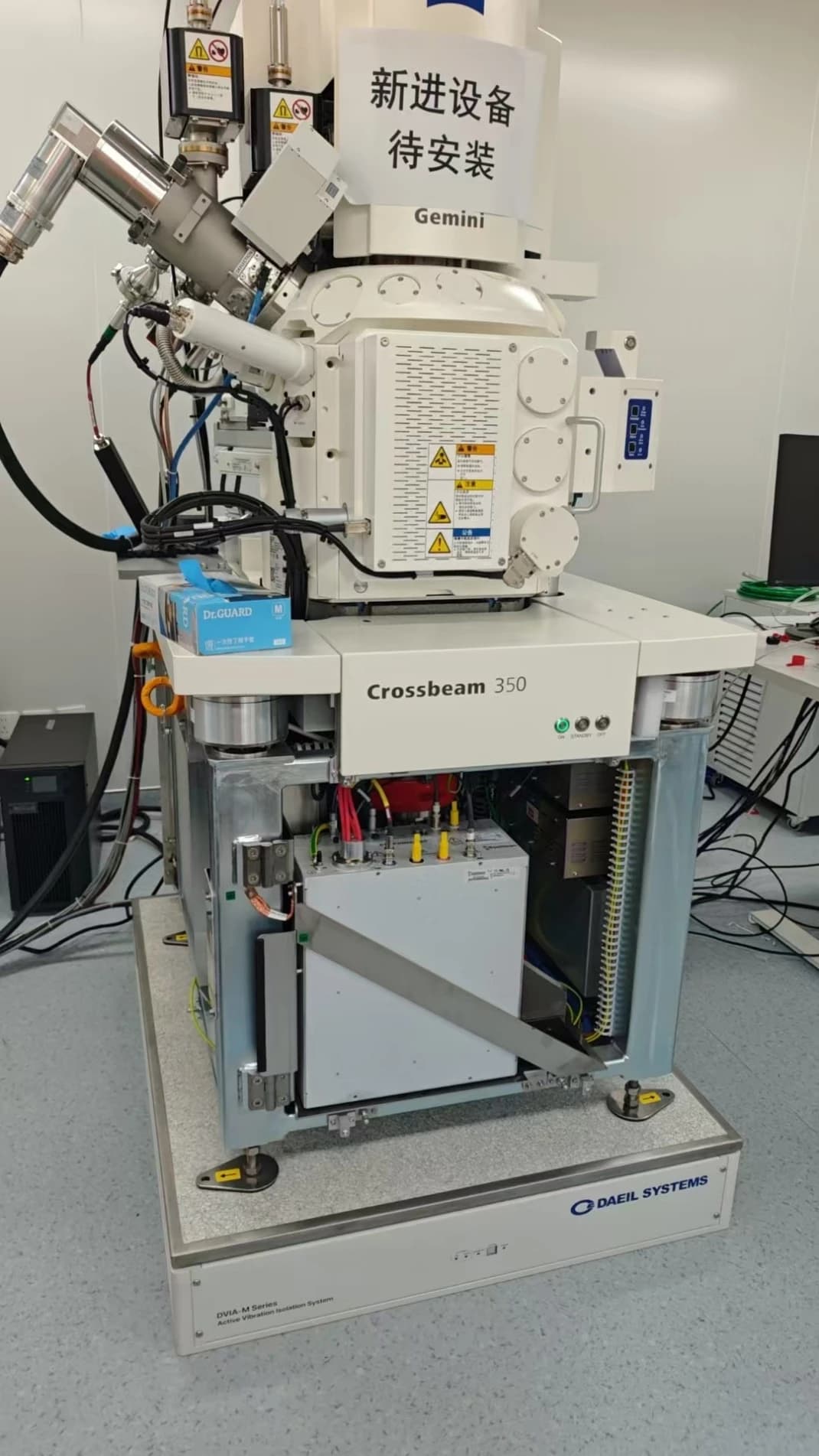

DVIA-ML1000 installation report — ZEISS Crossbeam 350 FIB-SEM (serial 250806R2). Overview states the platform is appropriately installed and functioning as intended. Vibration-spec UI capture under Vibration Specification; Prepared for / End User / Location N/A. Manufacturer line in the report form reads ZEIS. Equipment Condition Turned on/IDLE; Tuning Request N/A. UI-program Autospectrum and Transmissibility per axis and equipment photo.
