Installation Report
DVIA-ML Series
03-06-2026

Gränges Aluminum Thermo Fisher Spectra 200 Cryo-STEM DVIA-ML3000 (250211R4-1) Installation Report

DVIA-ML Series
Installation Report
Thermo Fisher Scientific
Cryo-STEM
Spectra 200
Gränges Aluminum
DVIA-ML3000
250211R4-1

Contents

Prepared by

Engineer: Chaewon Lee

Tuning date: 26.03.06

Report written date: 26.03.24

Overview

The DVIA-ML3000 active vibration isolation platform is appropriately installed and functioning as intended.

Vibration Isolation System Information

Model: DVIA-ML3000

Serial Number: 250211R4-1

Engineer

Chaewon Lee DAEIL SYSTEMS

Tuning Date

March 06, 2026

End User

Gränges Aluminum

Number of Tuning Trial

1st

Location

Shanghai, China

Equipment

Manufacturer: Thermo Fisher Scientific

Equipment: Cryo-STEM

Model: Spectra 200

Vibration Specification

VerticalHorizontal
1 – 10 HzVC-FVC-F
Above 10 HzVC-EVC-F

Equipment Condition

The equipment is turned on/IDLE

Tuning Request

N/A

Measurement Summary

Measurement PointStatusAxisVibration SpecificationFloorDVIA-ML3000FloorDVIA-ML3000
1.Floor
2.DVIA-ML3000		Equipment is Turned on/IDLEVerticalUp to 10 Hz: VC-F
Above 10 Hz: VC-E		VC-D @ 2.5 HzVC-G @ 2.5 Hz✗ FAIL✓ PASS
Left to RightVC-FVC-D @ 1.6 HzVC-F @ 1.6 Hz✗ FAIL✓ PASS
Front to BackVC-C @ 1.6 HzVC-G @ 1.6 Hz✗ FAIL✓ PASS

Measurement Data Obtained via UI Program

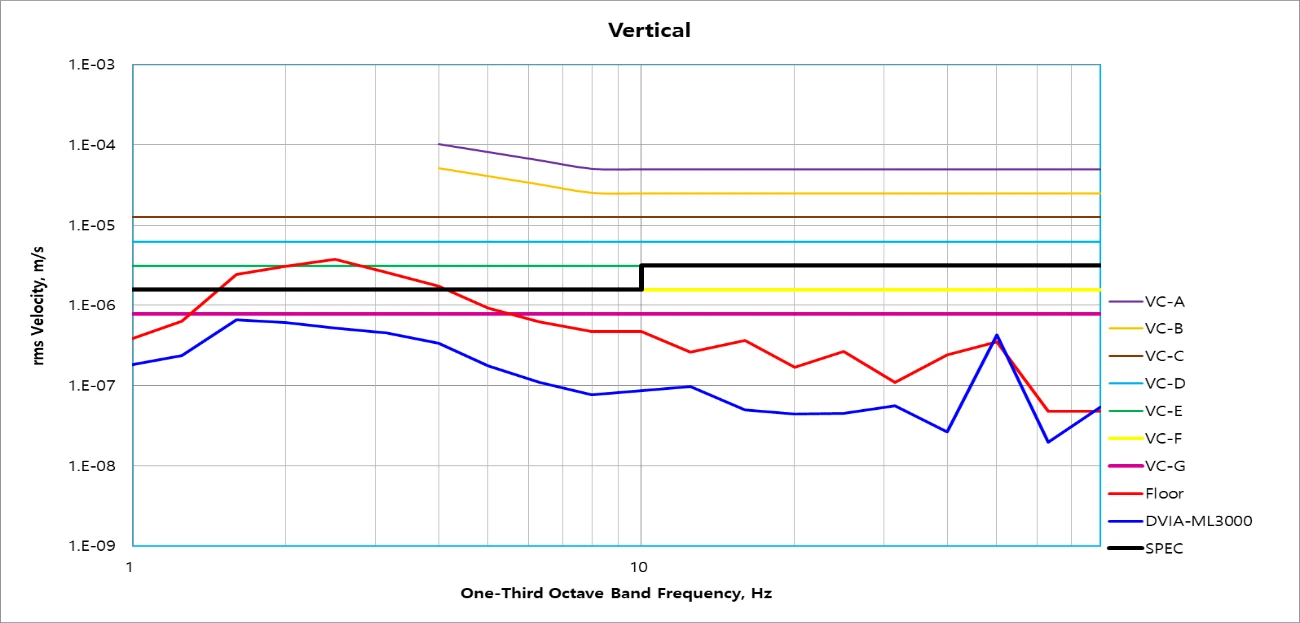

Vertical VC Curves

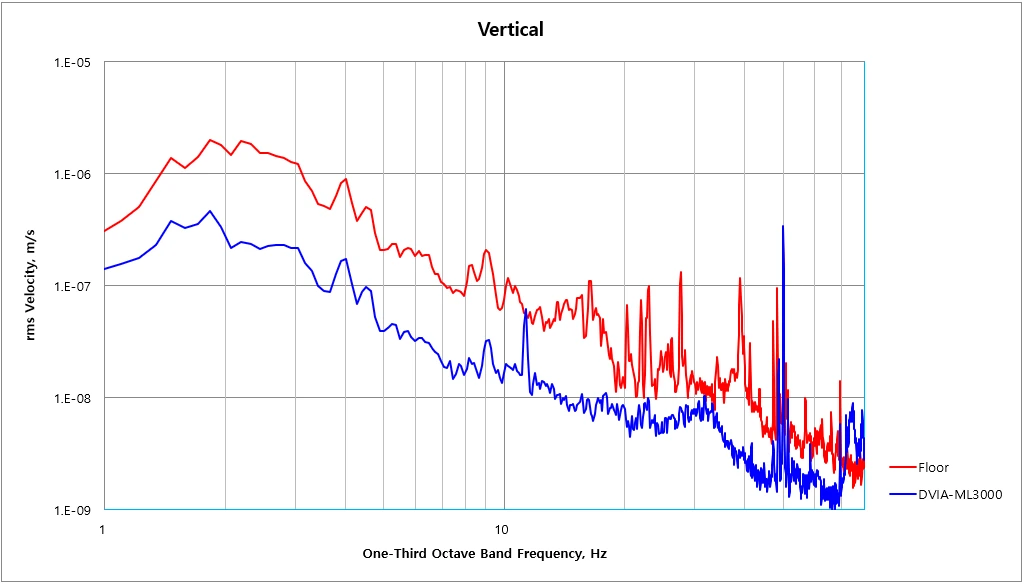

Vertical Autospectrum

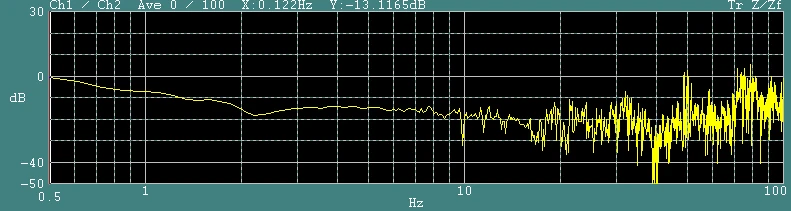

Vertical Transmissibility

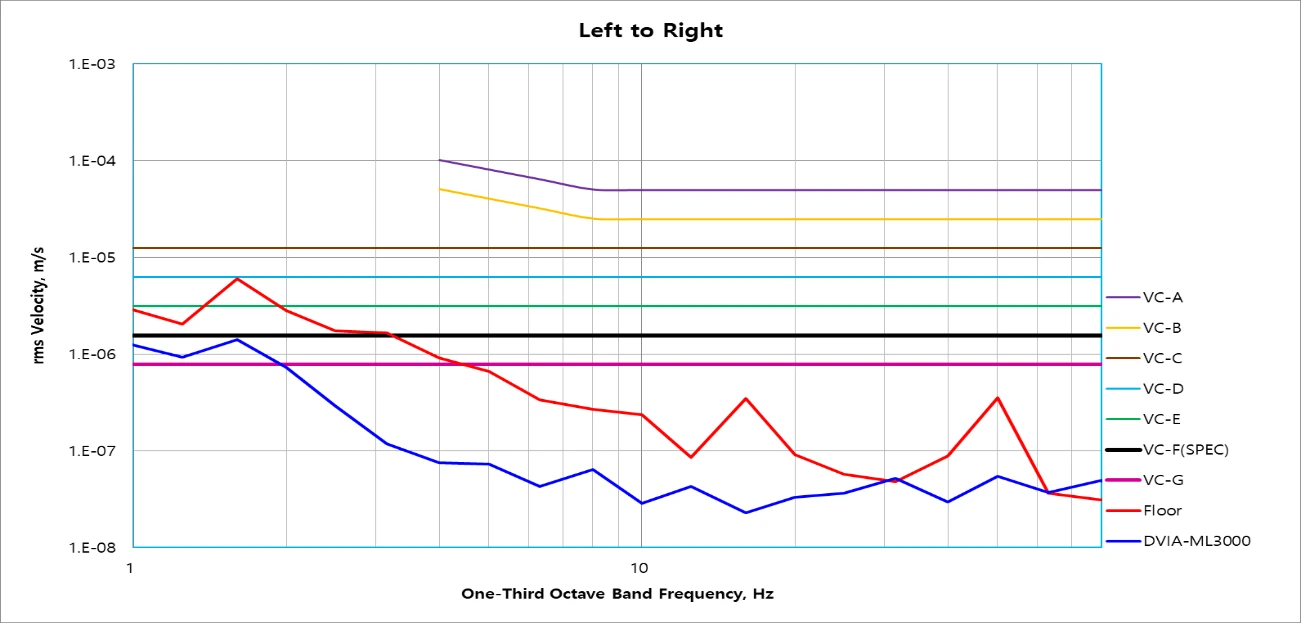

Left to Right VC curves

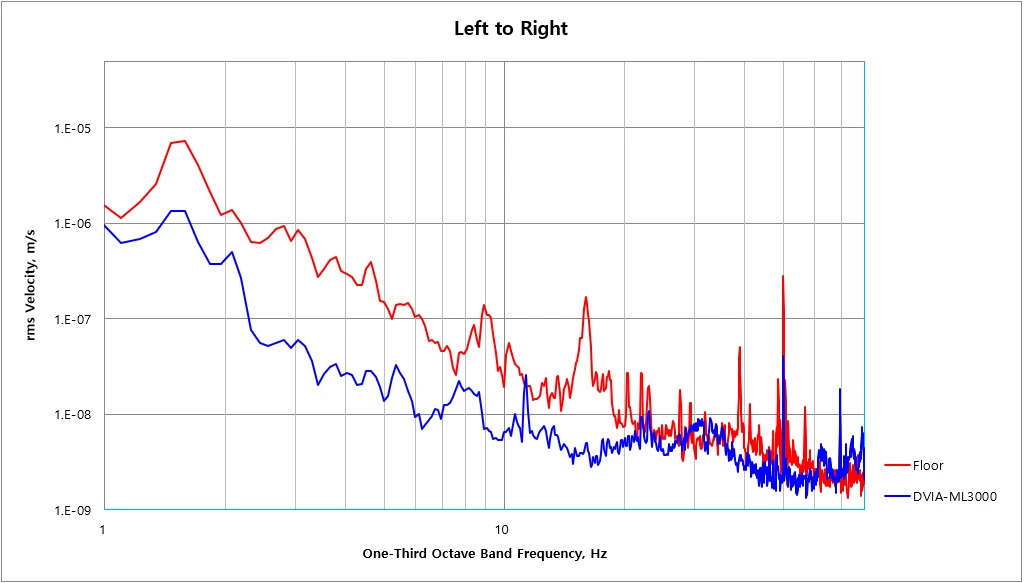

Left to Right Autospectrum

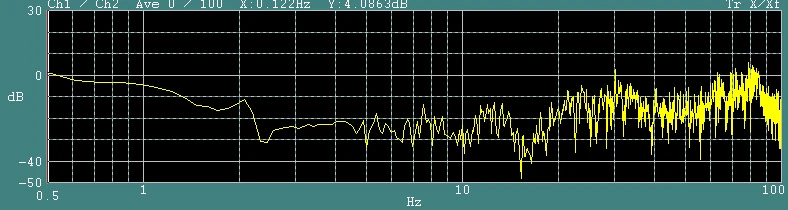

Left to Right Transmissibility

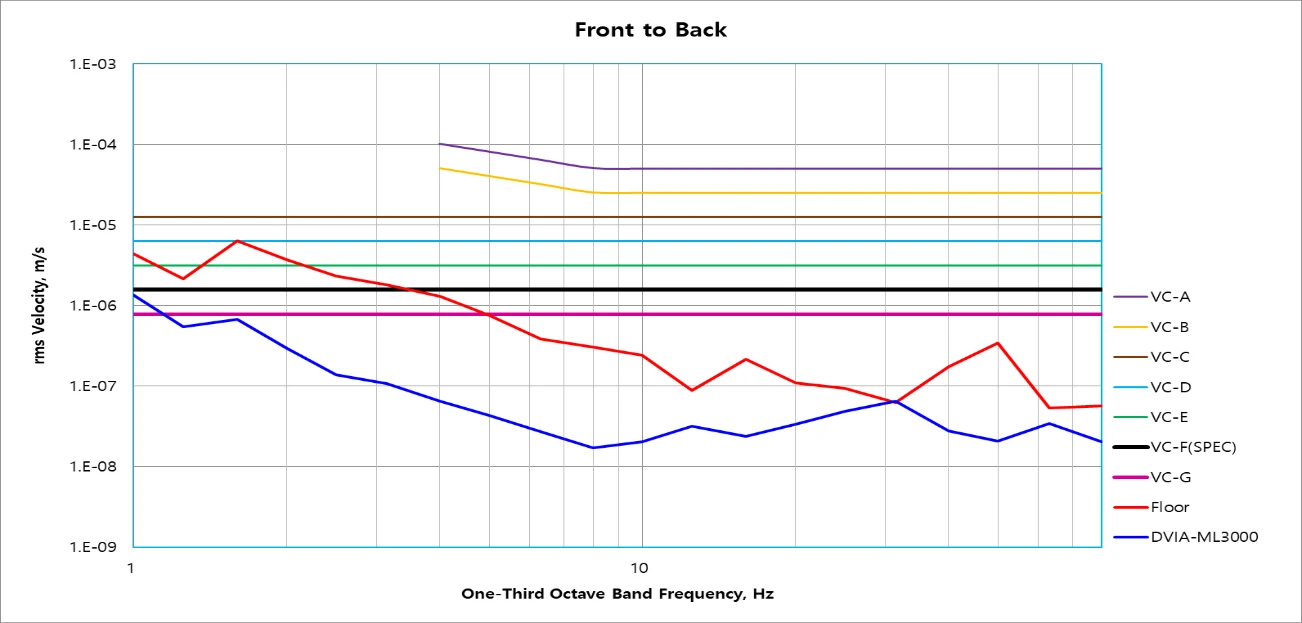

Front to Back VC Curves

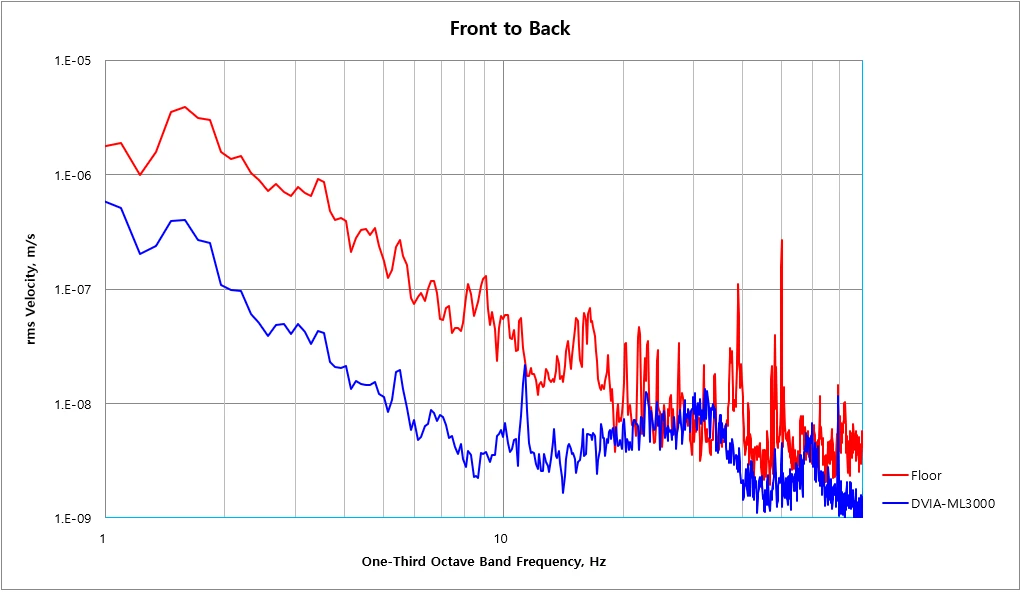

Front to Back Autospectrum

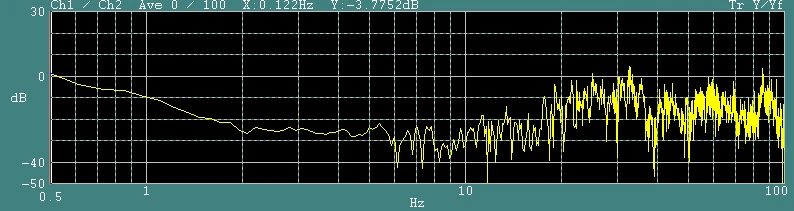

Front to Back Transmissibility

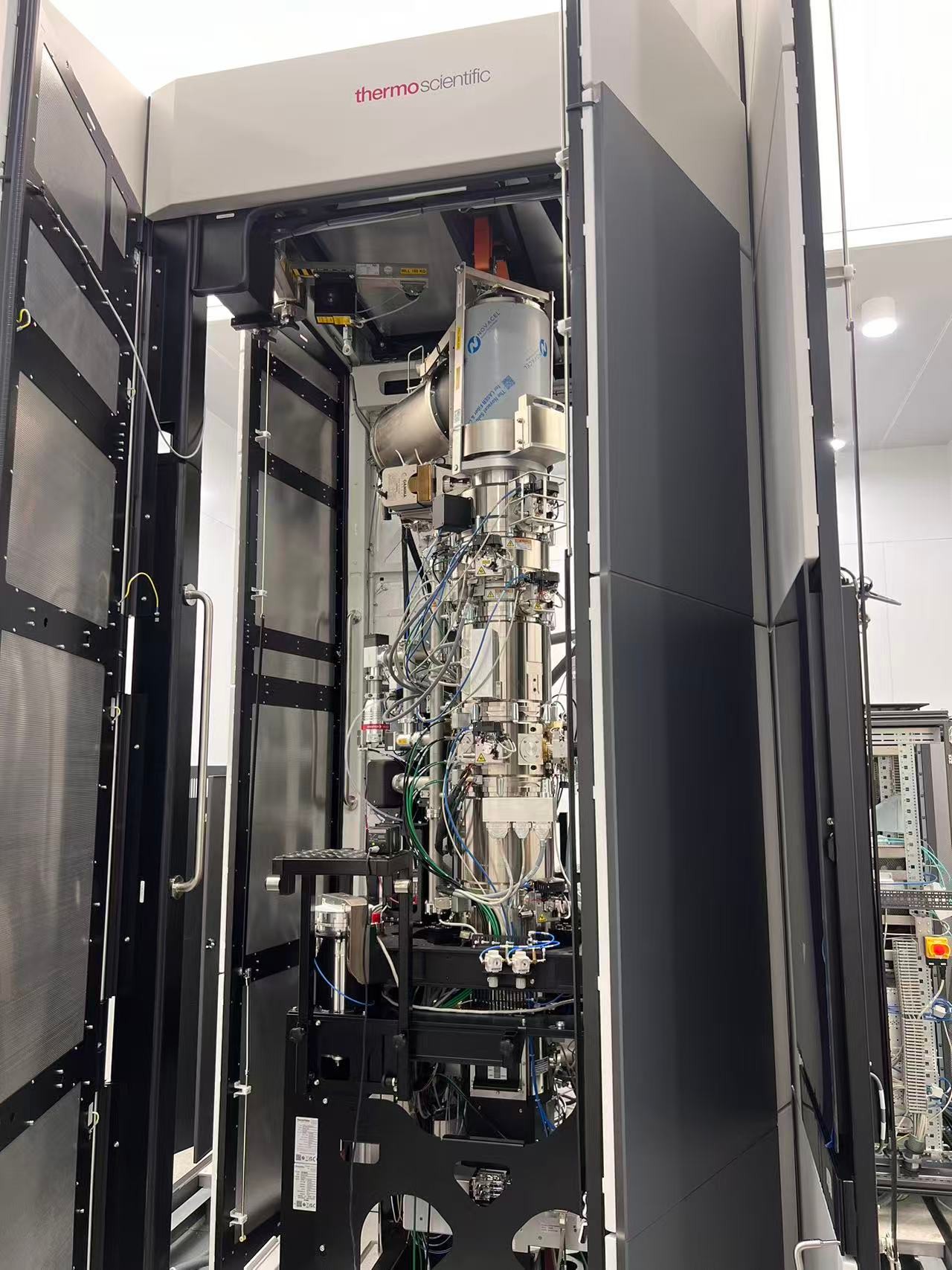

Equipment picture

Reference

Generic Vibration Criteria

Criterion CurveDescriptionAmplitude
μm/s (µin/s)		Detail Size
μm
Workshop (ISO)Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.800 (32,000)N/A
Office (ISO)Perceptible vibration. Appropriate to offices and non-sensitive areas.400 (16,000)N/A
Residential Area (ISO)Barely perceptible vibration. Appropriate to sleep areas in most instances.200 (8,000)75
Operating Theatre (ISO)Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.100 (4,000)25
VC-AAdequate for optical microscopes to 400x, microbalances, optical balances.50 (2,000)8
VC-BAppropriate for inspection and lithography equipment to 3μm line widths.25 (1,000)3
VC-CAppropriate for optical microscopes to 1000x, lithography equipment to 1μm.12.5 (500)1 - 3
VC-DSuitable for demanding equipment including electron microscopes (SEMs/TEMs).6.25 (250)0.1 - 0.3
VC-EFor the most demanding systems including E-Beam lithography at nanometer scales.3.12 (125)< 0.1
VC-FFor extremely quiet research spaces. Not recommended as design criterion.1.56 (62.5)N/A
VC-GFor extremely quiet research spaces. Not recommended as design criterion.0.78 (31.25)N/A

Notes:

- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

- Detail size refers to width in microelectronics fabrication or particle size in medical research.
