Installation Report

DVIA-ML Series

03-04-2026

QRT DVIA-ML3000 (251111R3) Installation Report — 2026.03.04

DVIA-ML Series

Installation Report

QRT

Korea Institute of Nano Technology

Thermo Fisher Scientific

Cryo-TEM

Spectra 200

DVIA-ML3000

251111R3

Customer

QRT

Engineer

대일시스템 필드엔지니어 이채원

Measurement date

26.03.04

Report written date

26.03.05

Overview

Tuning and vibration measurement were performed on the DVIA-ML3000 installed in the 1F QRT laboratory of the Korea Institute of Nano Technology.

Tuning and vibration measurement were performed with the customer equipment Turned on/IDLE.

Vibration isolation platform

Model: DVIA-ML3000

Serial Number: 251111R3

Inspection date

2026년 03월 05일

Installation site

한국나노기술원 1층 QRT 연구실

End user

QRT

Customer equipment

Manufacturer: Thermofisher Scientific

Equipment: Cryo-TEM

Model: Spectra 200

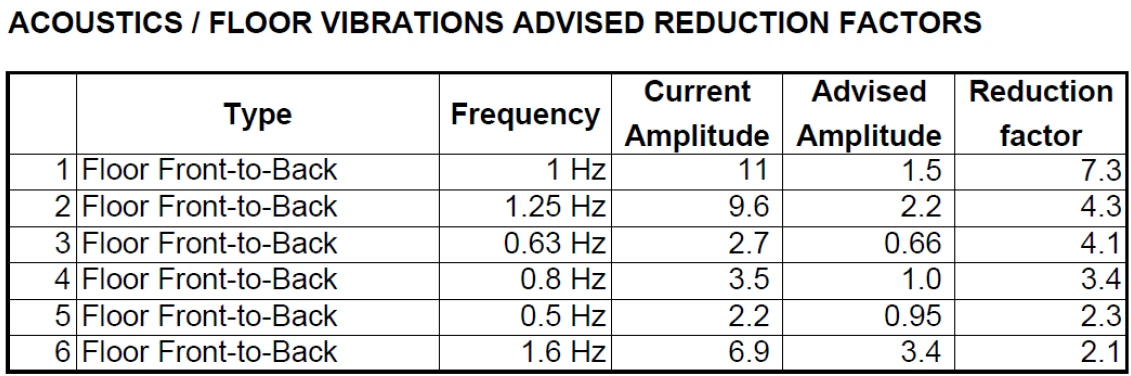

Equipment specification

Equipment status

장비 설치 및 Turned On/IDLE

Vibration measurement instruments

10.1) Data Physics DAQ

Hardware: QUATTRO, Serial Number: 22436

Software: SignalCalc ACE

10.2) Accelerometer

PCB Accelerometer

Model: 393B05

Measurement setup

F Span: 200 Hz

Lines: 3200

Averaging: Spectrum Averaging

Engineering Units: m/s

Window: Hanning

Overlap: Max

Conclusion

The vibration specification stated in the Thermo Fisher Scientific Site Survey report is given only for the Front to Back direction over the 0.5 - 1.6 Hz range, so this report lists the specification only for that range.

With the DVIA-ML3000 On, the equipment vibration specification was confirmed to be met in all directions.

Measurement data

Measurement site	Direction	Vibration spec	Floor vibration (μg)	DVIA-ML3000 (μg)	Floor result	DVIA-ML3000 result
한국나노기술원 1F QRT 연구실 1. 바닥진동 2. DVIA-ML3000	Vertical	확인 불가	411 @ 31.5 Hz	47.9 @ 31.5 Hz	✓ PASS	✓ PASS
	Left to Right	확인 불가	108 @ 31.5 Hz	41 @ 31.5Hz	✓ PASS	✓ PASS
	Front to Back	9번 항목 참조	49.5 @ 80 Hz	1.52 @ 40 Hz	✓ PASS	✓ PASS

Data and Image

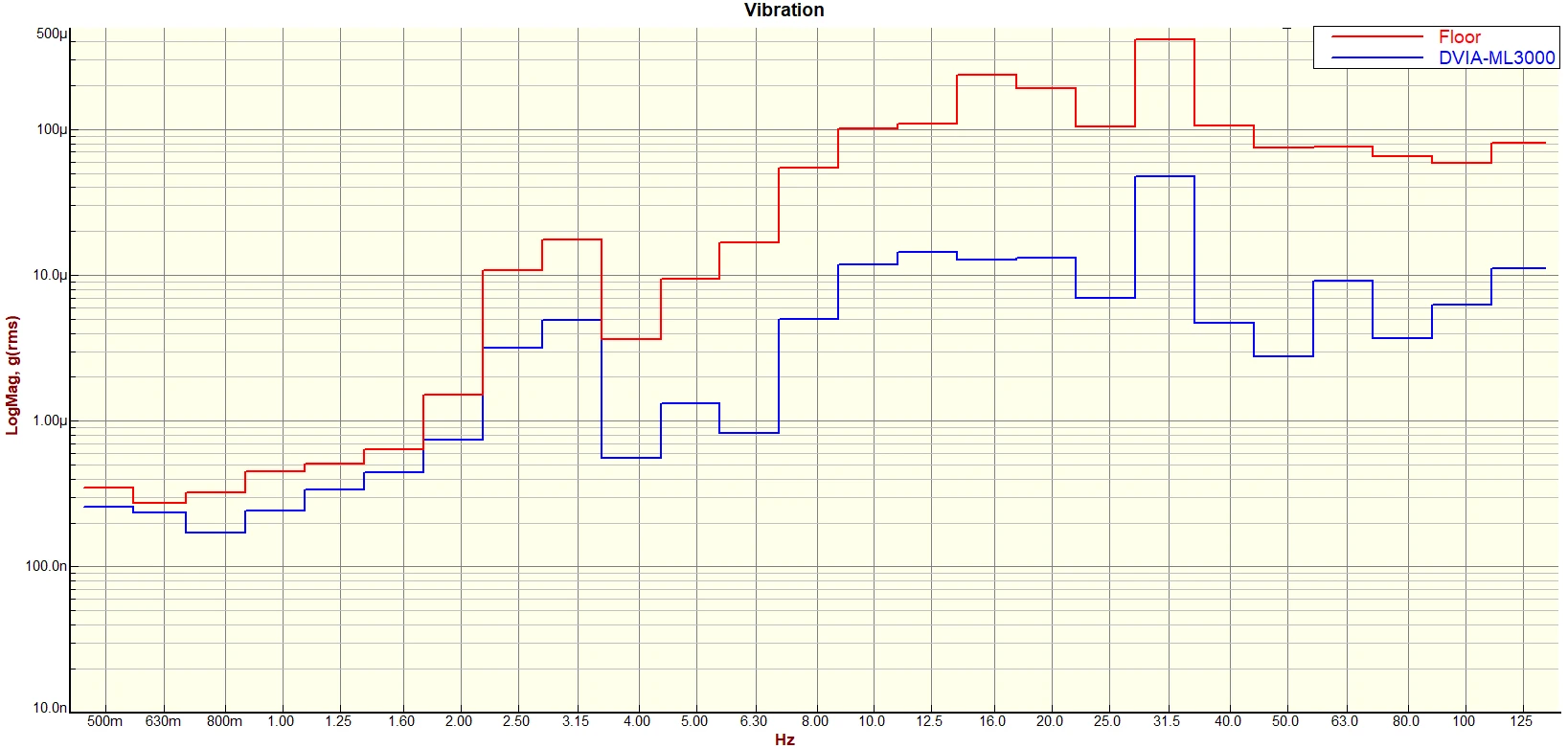

Vertical VC Curves

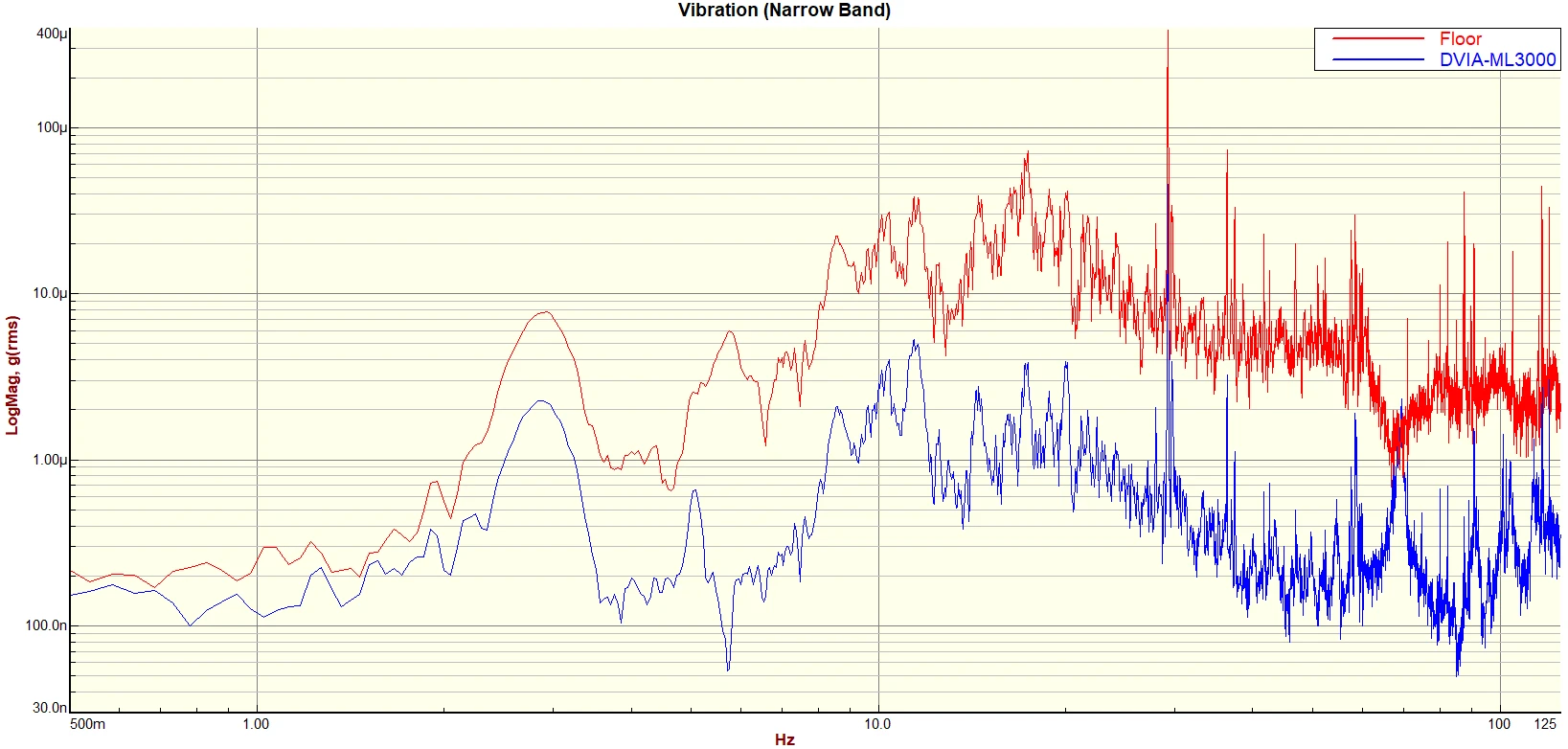

Vertical Autospectrum

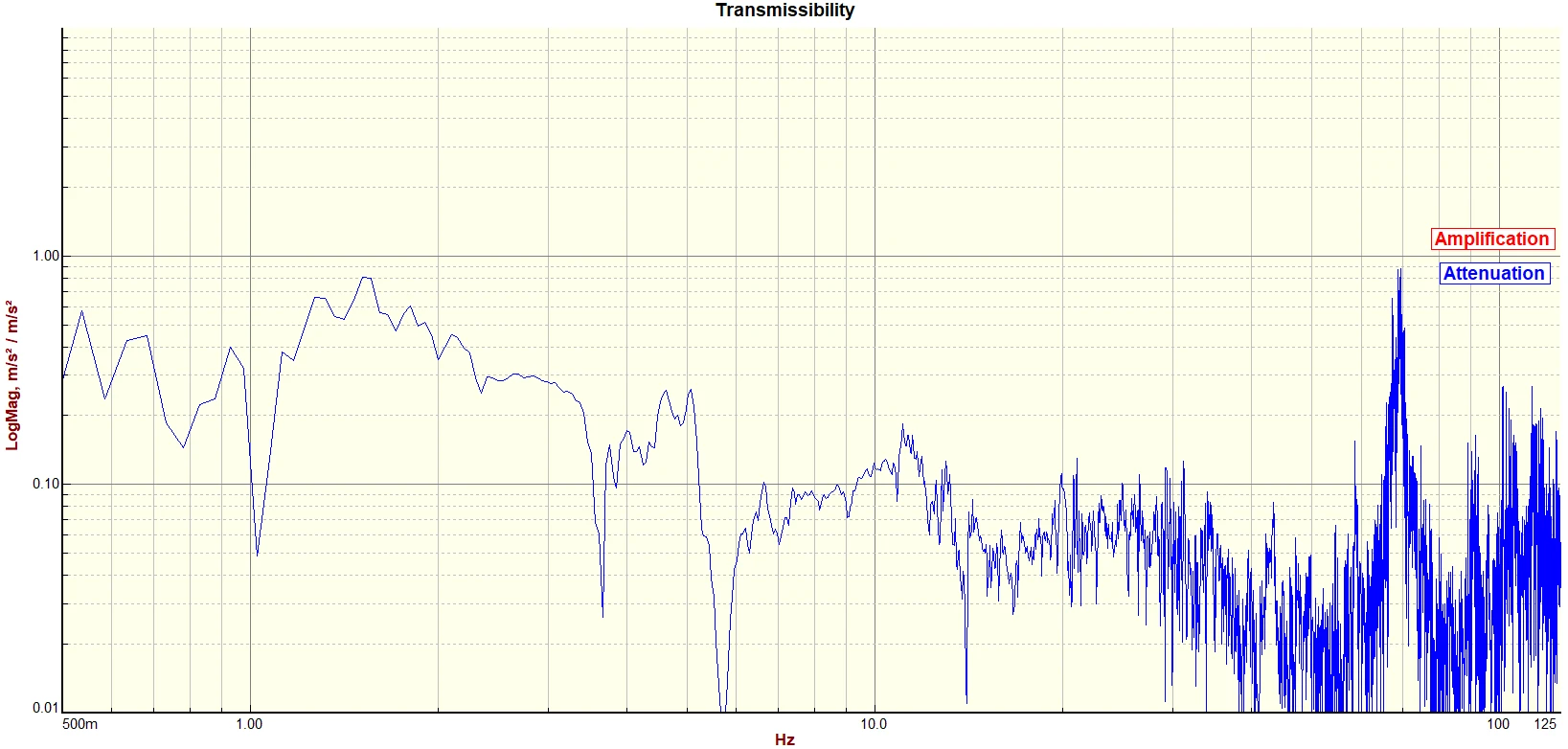

Vertical Transmissibility

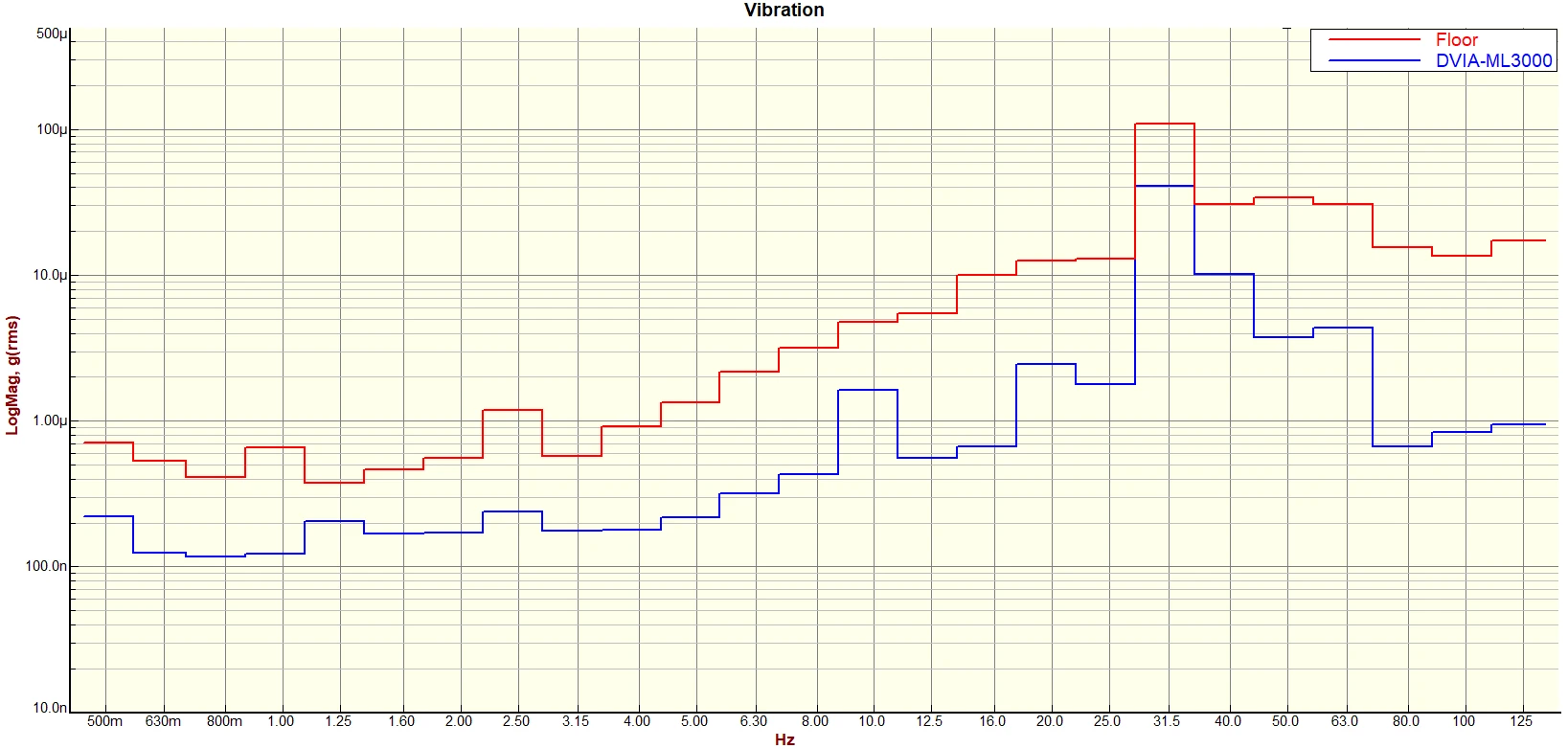

Left to Right VC Curves

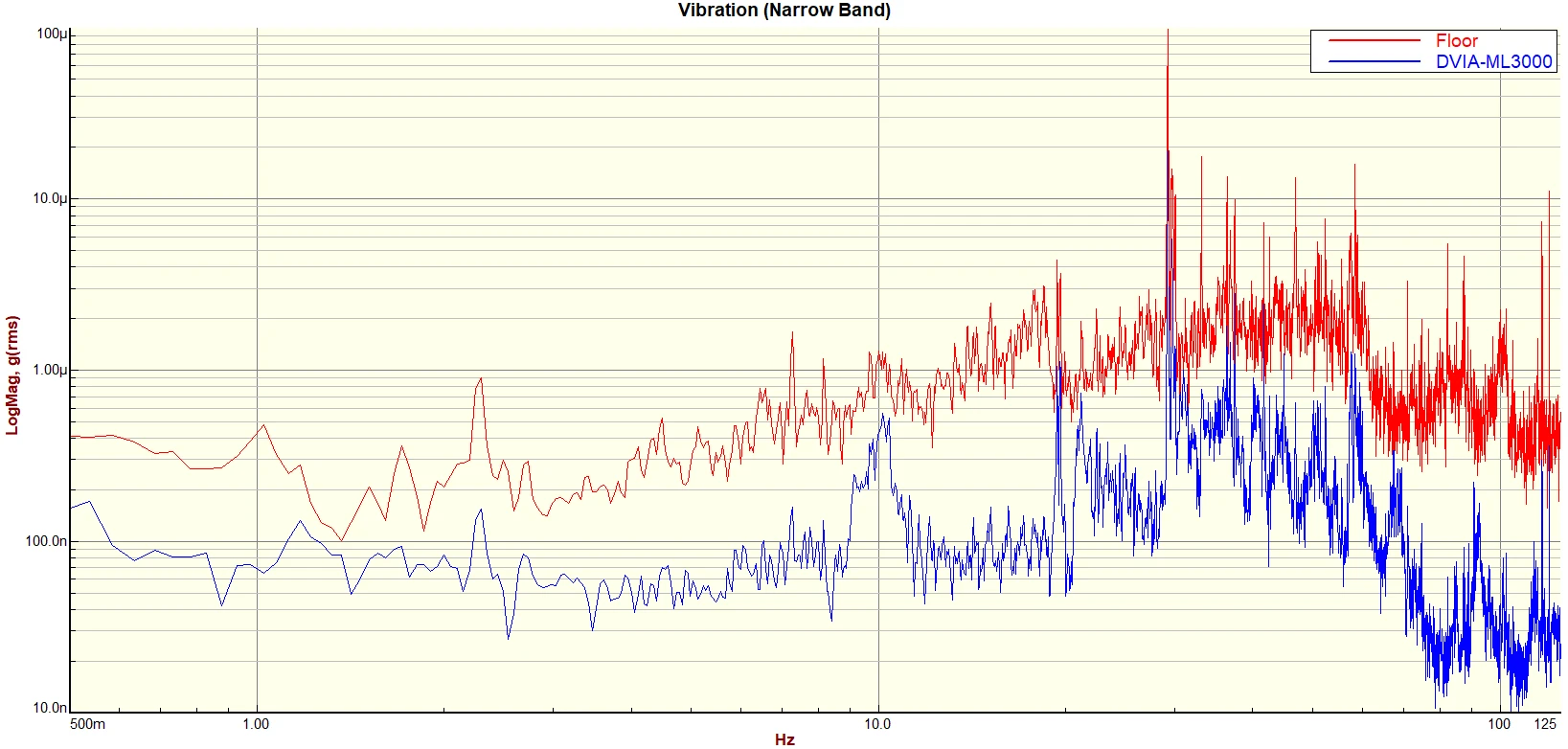

Left to Right Autospectrum

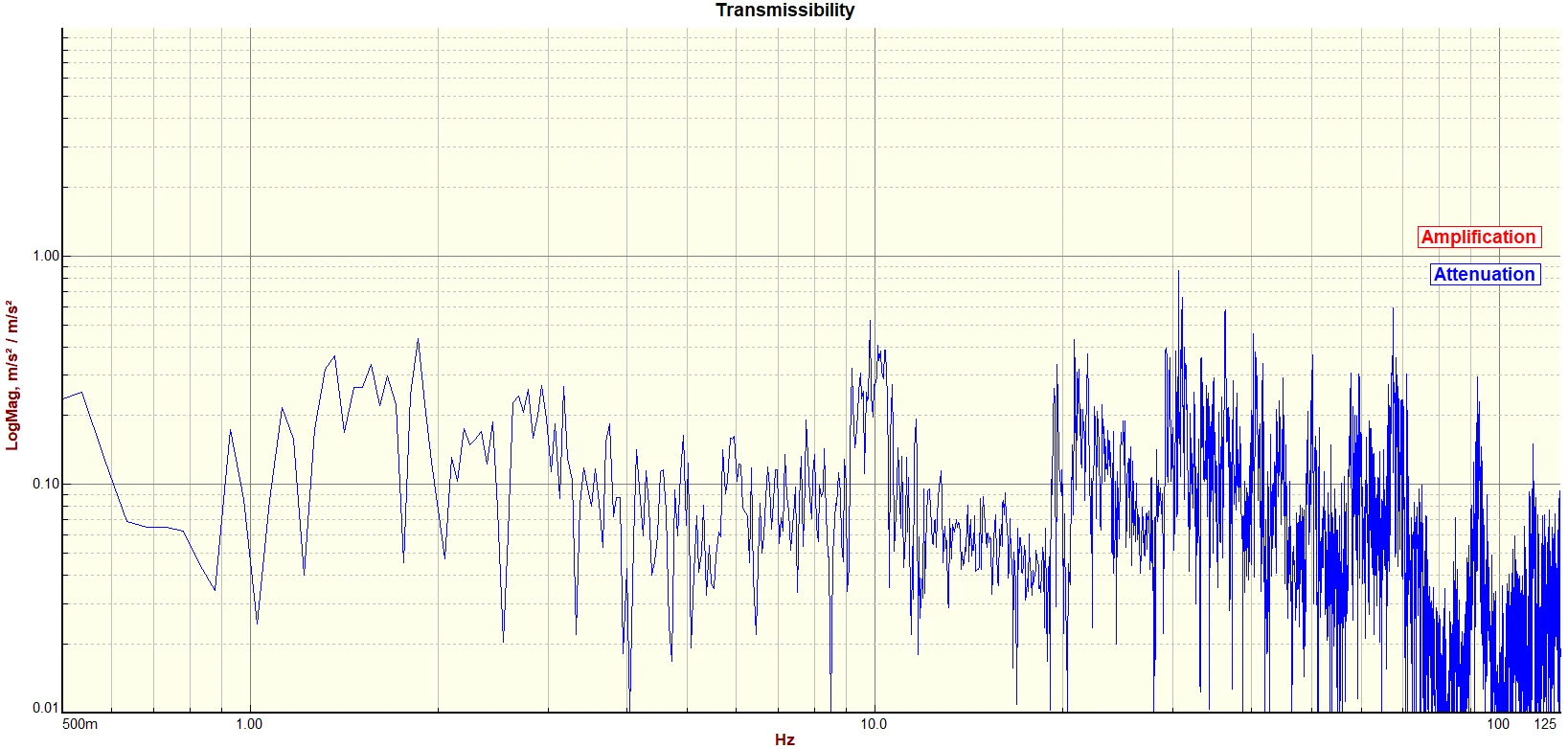

Left to Right Transmissibility

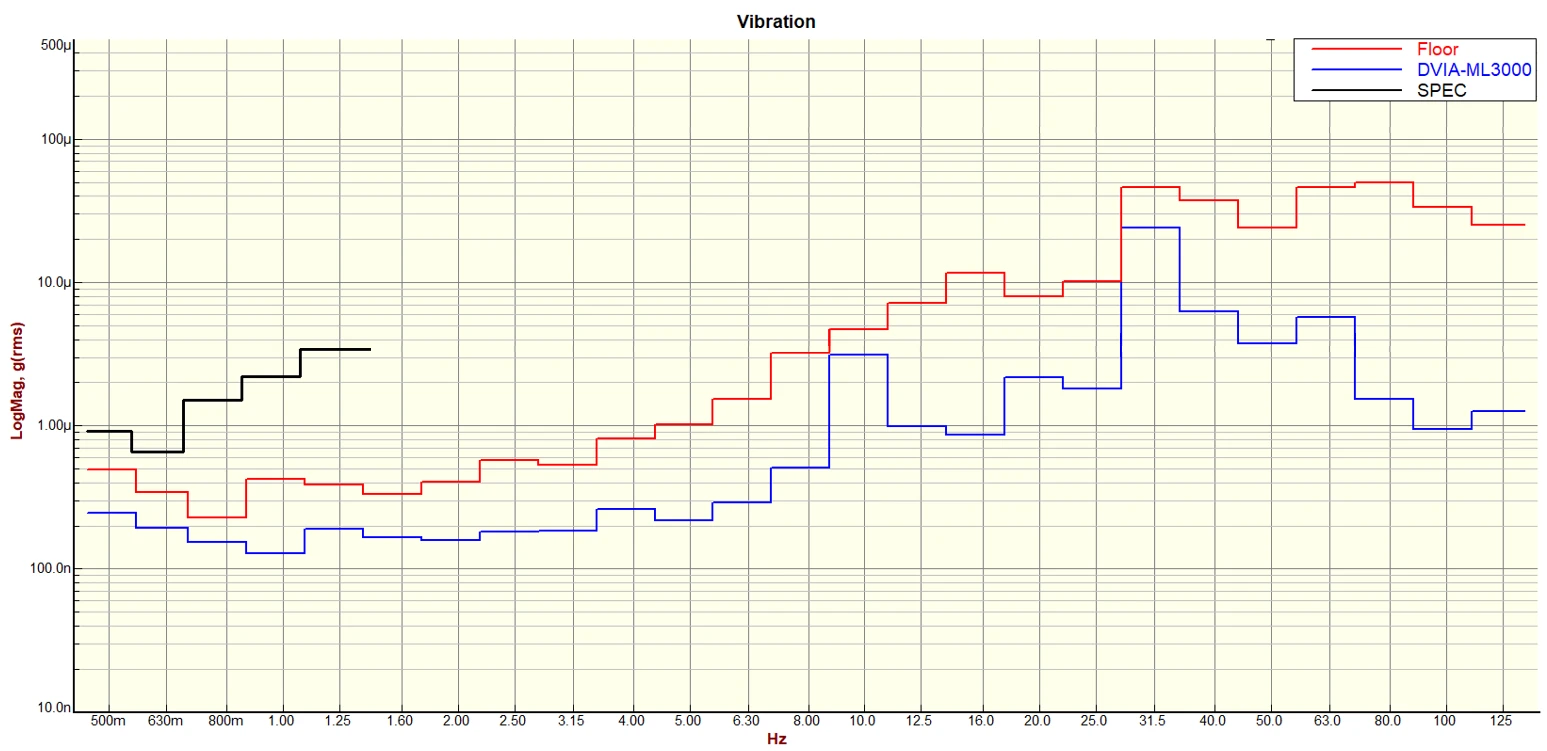

Front to Back VC Curves

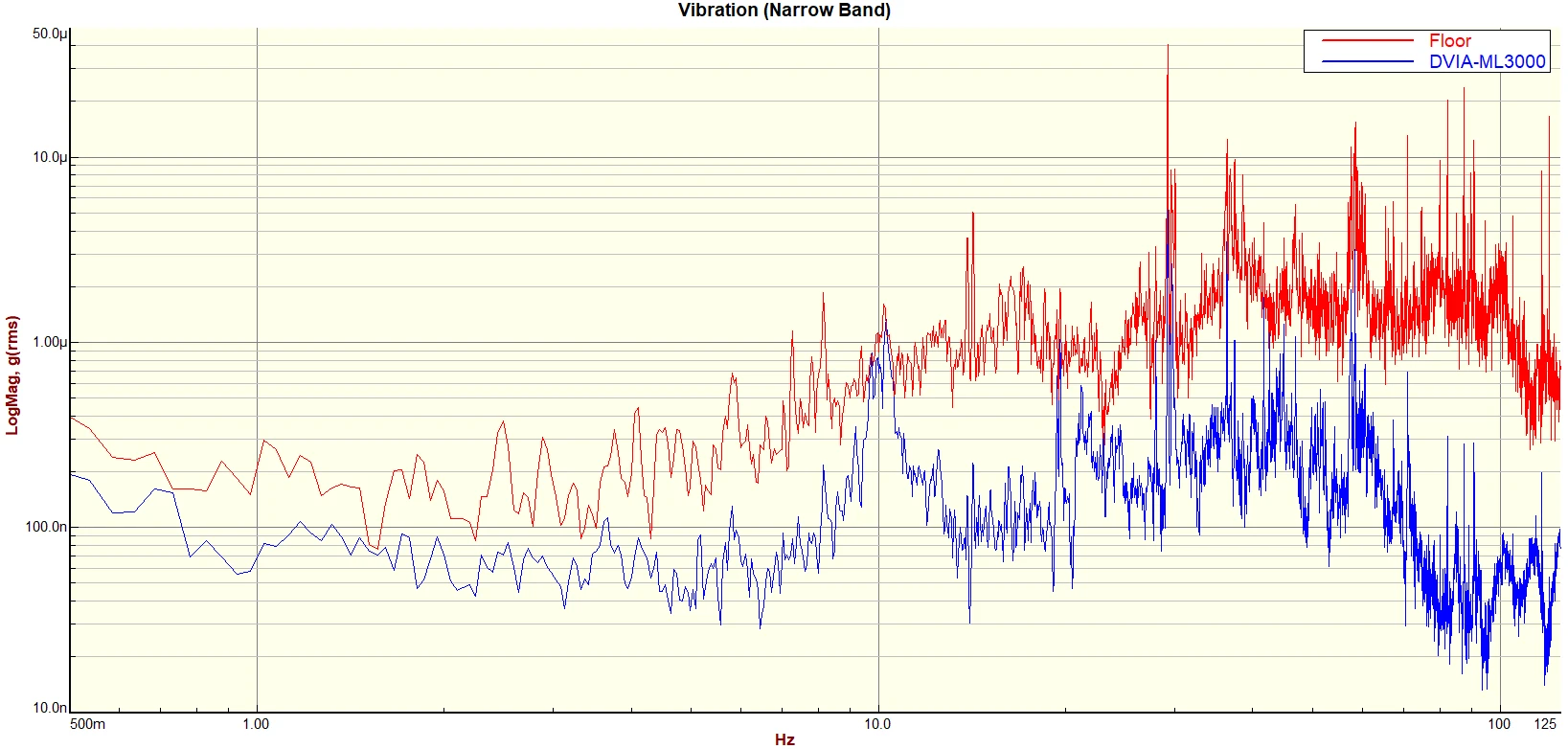

Front to Back Autospecturm

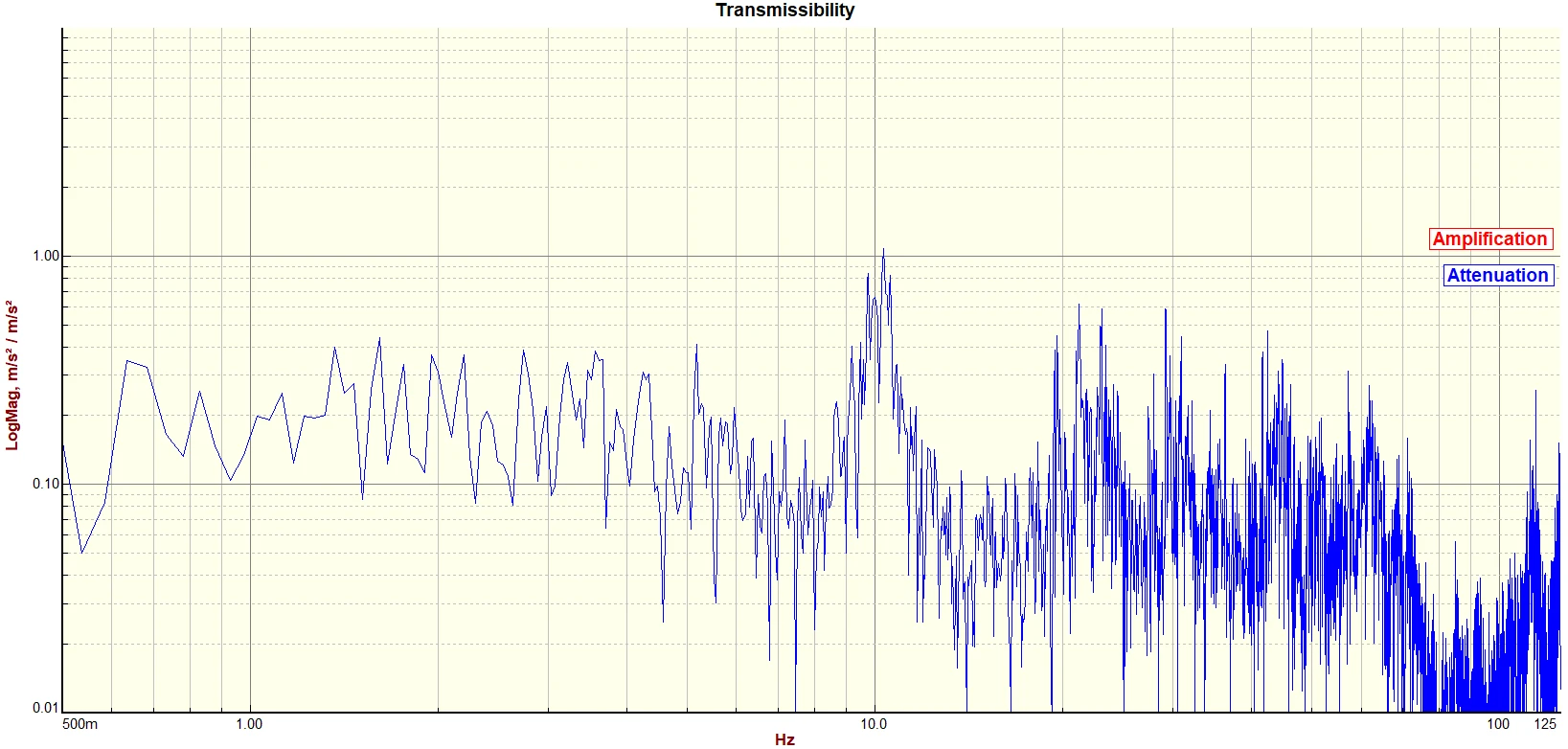

Front to Back Transmissibility

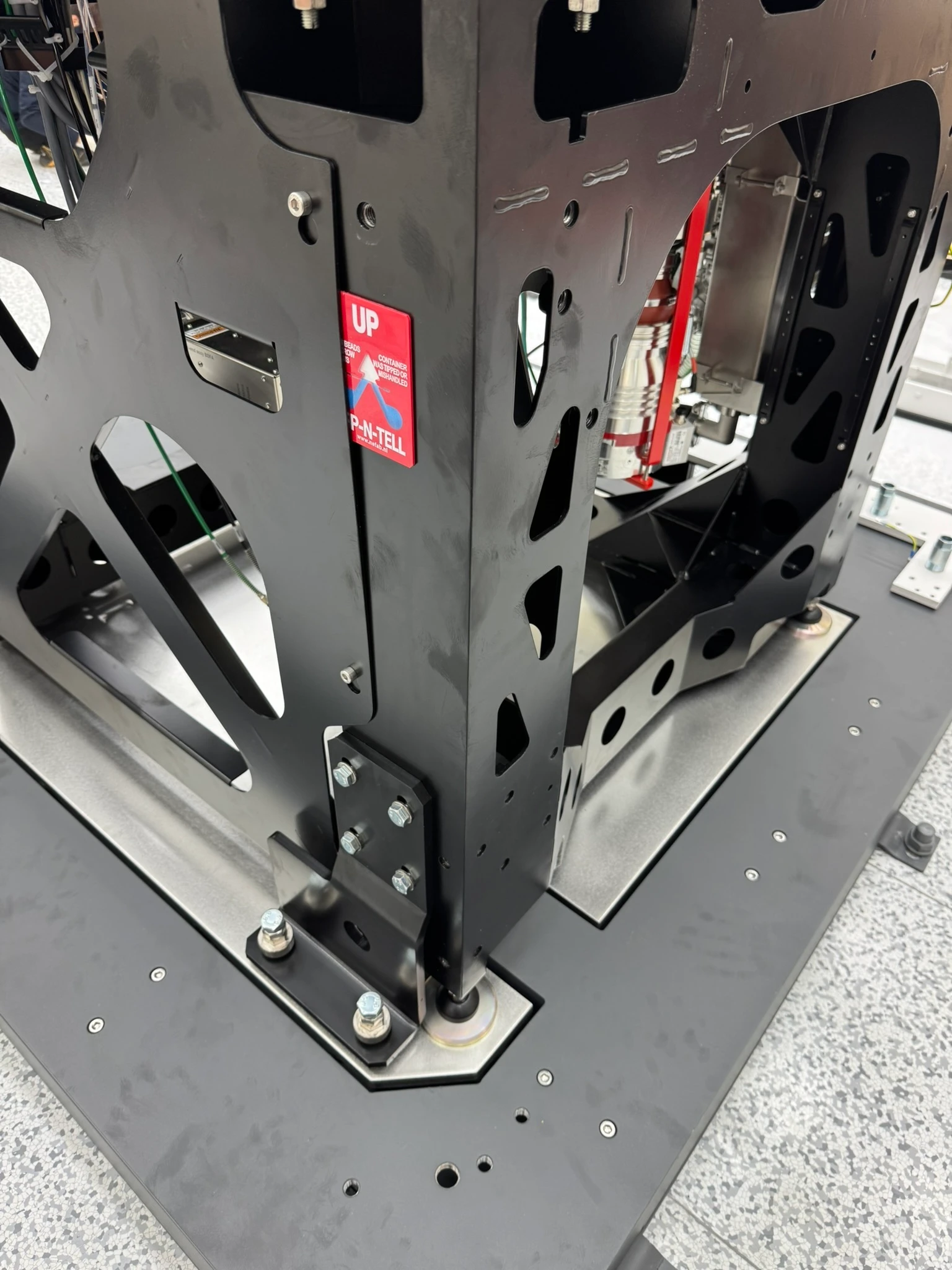

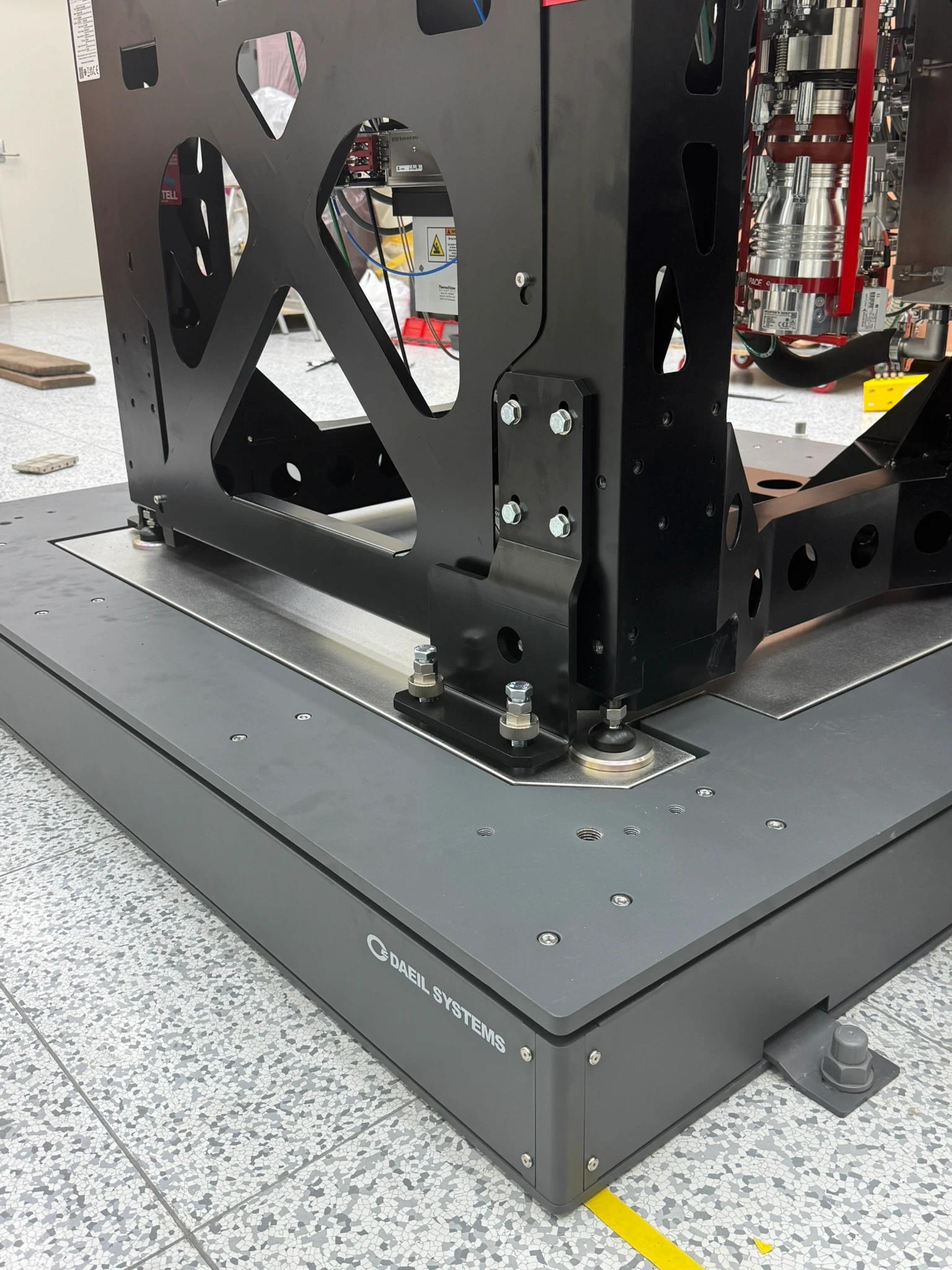

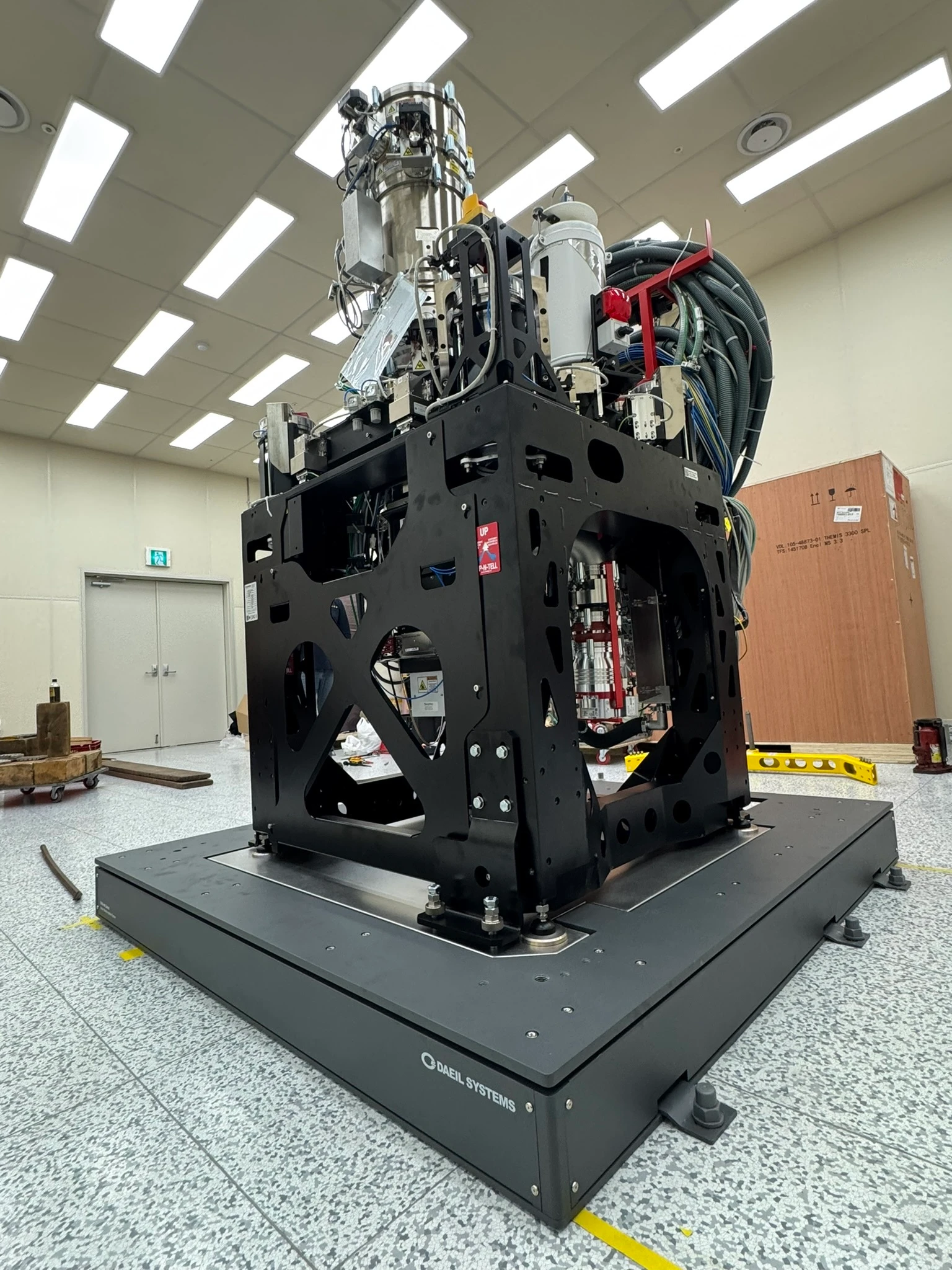

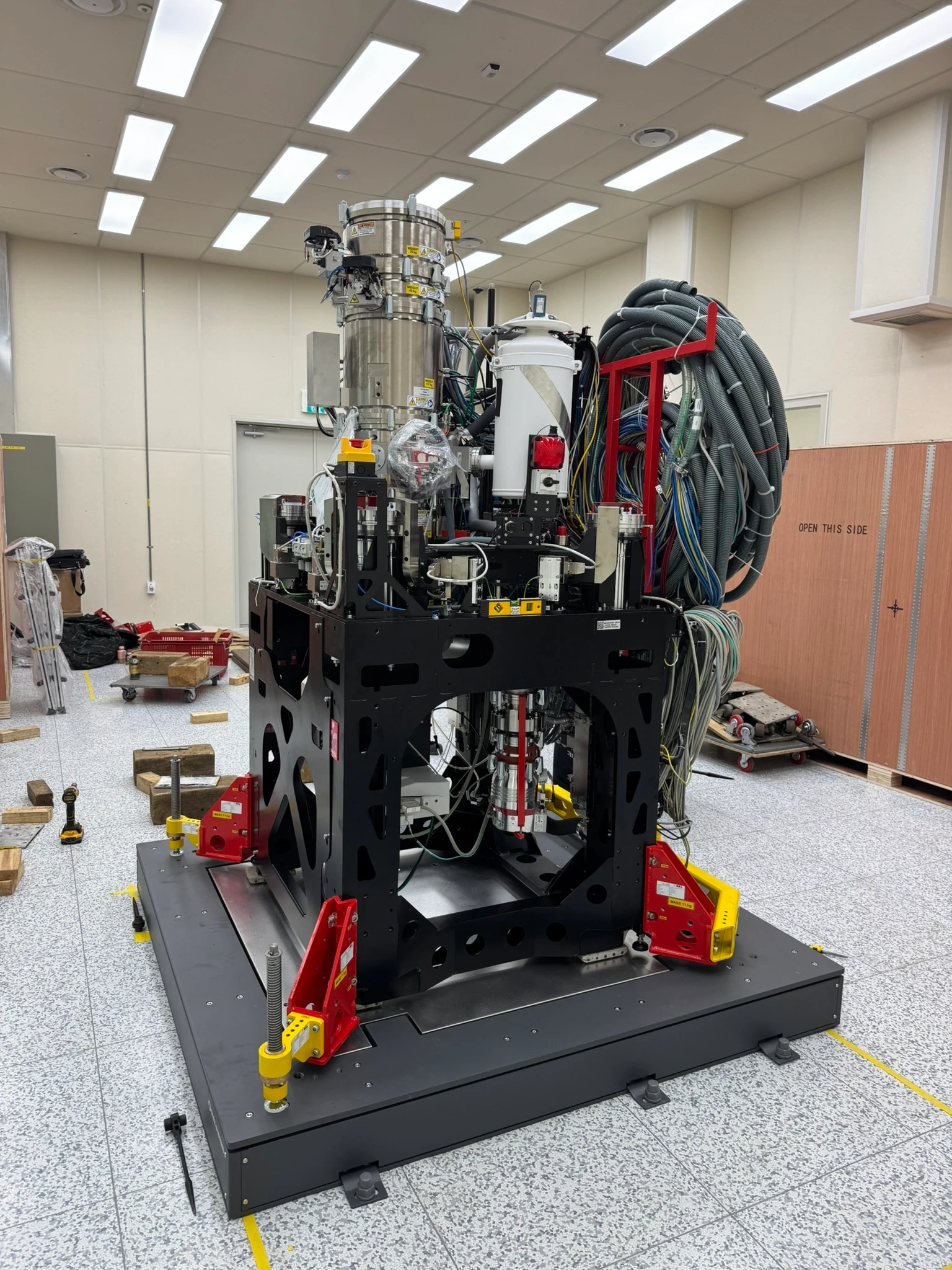

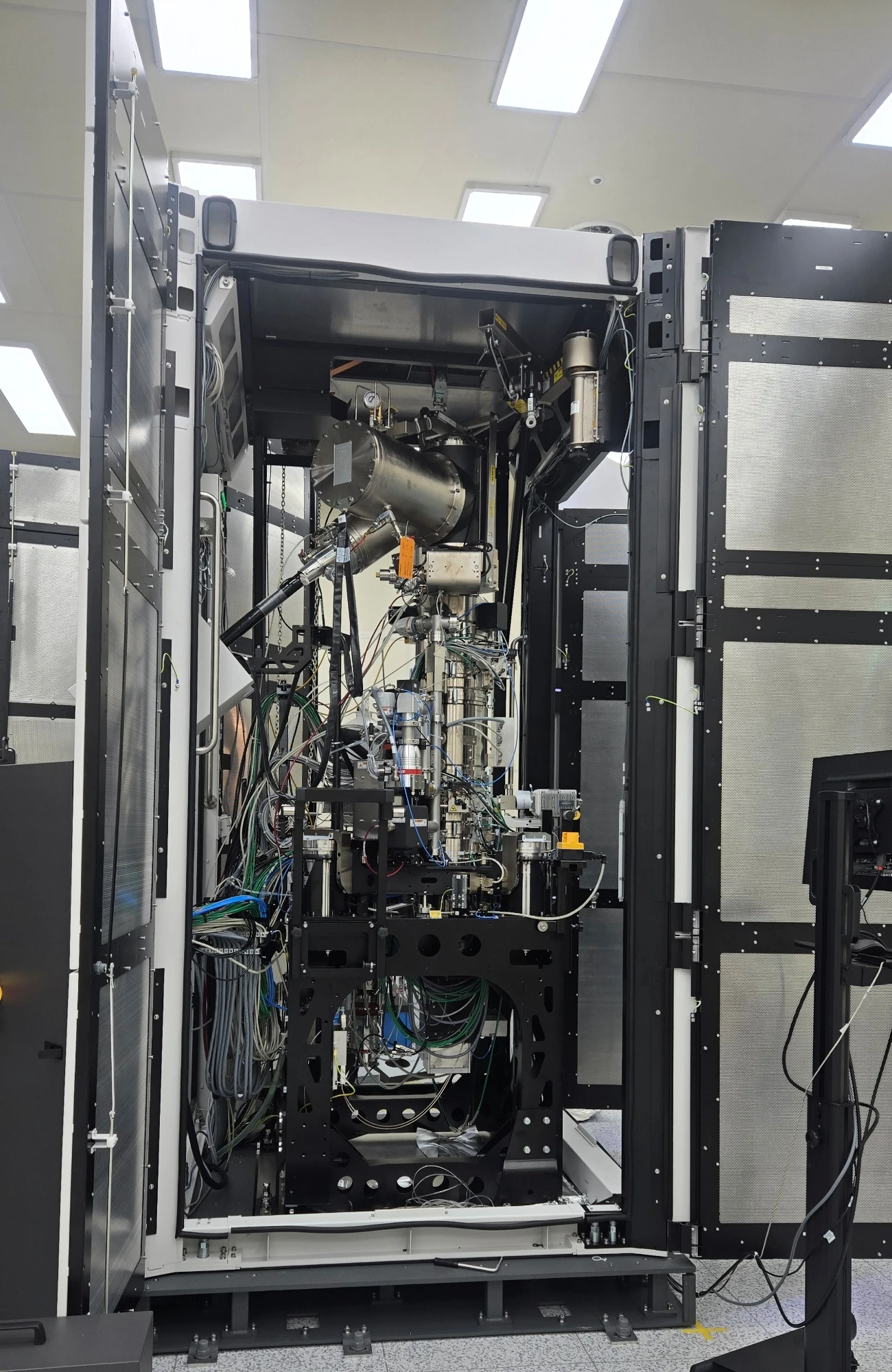

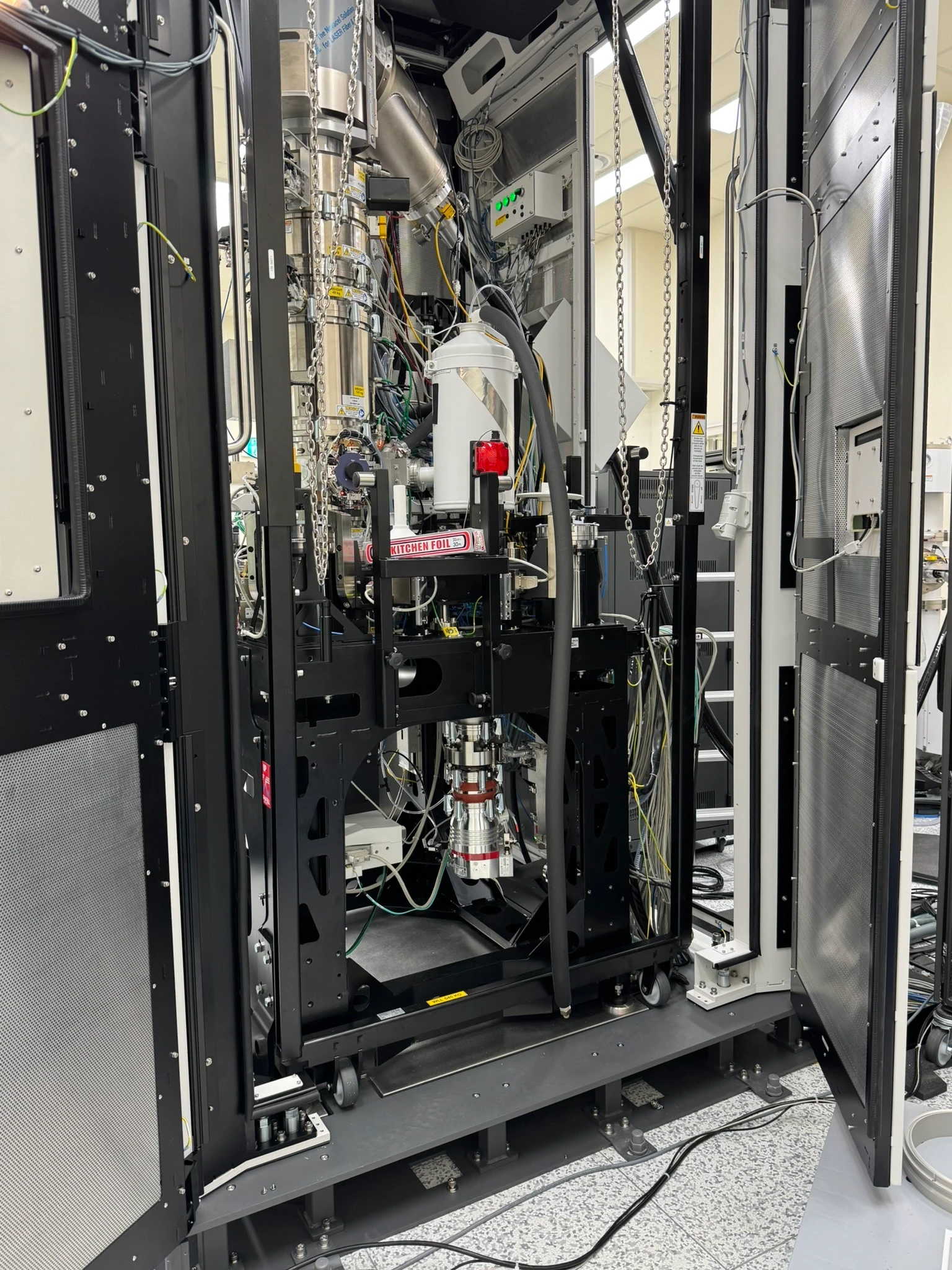

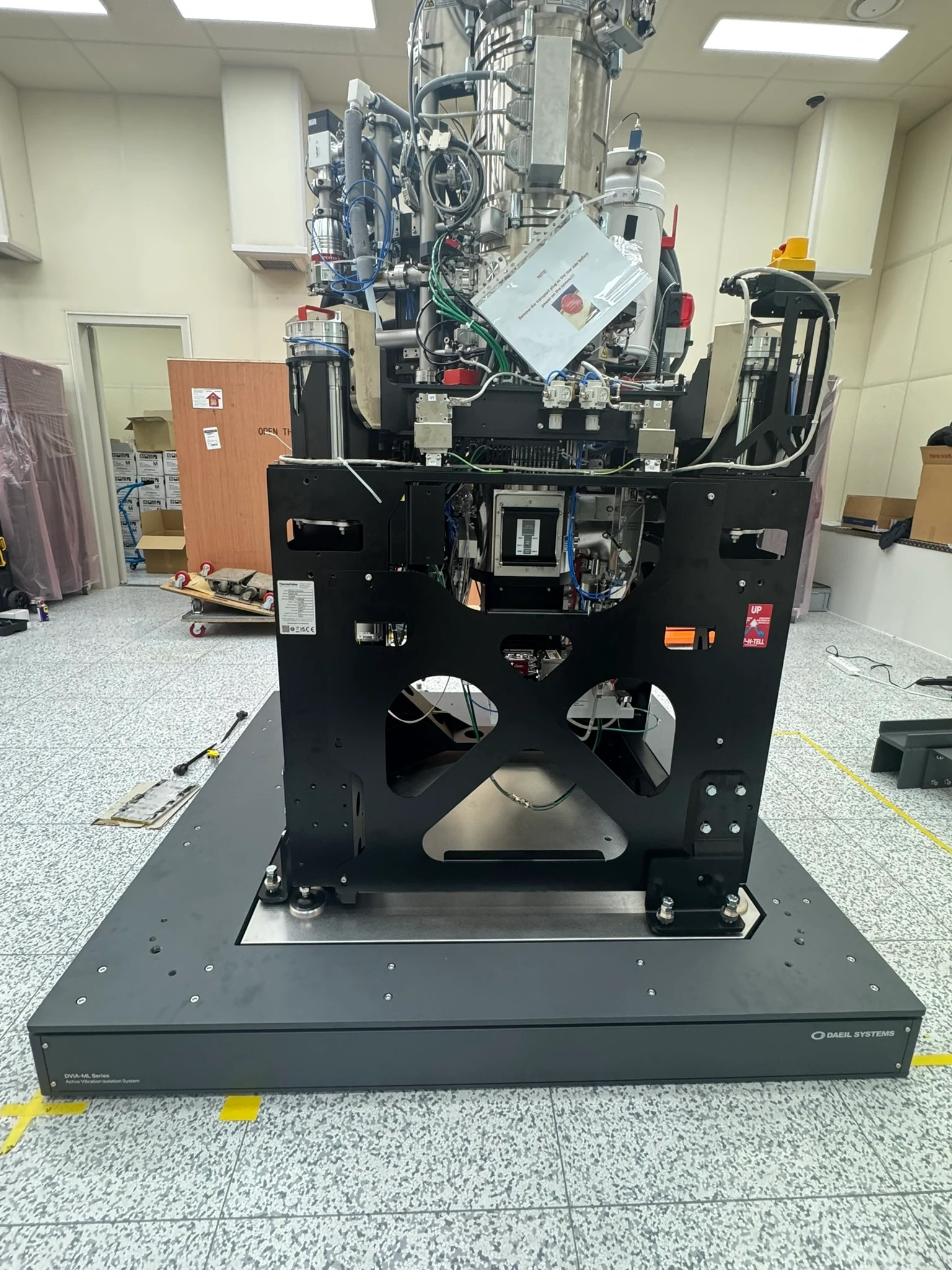

Installation photo

Reference

Generic Vibration Criteria

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A
