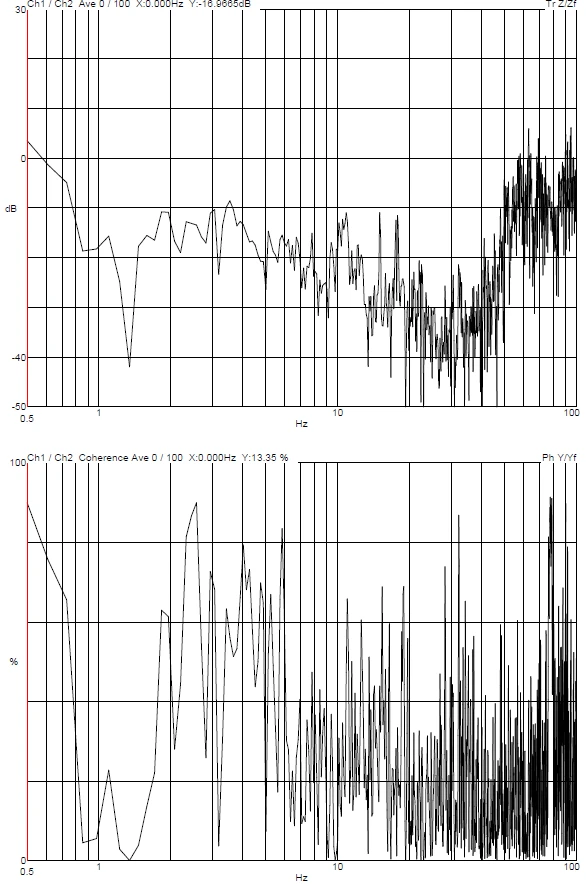

DVIA-M1000 installation follow-up for MIRA LSM at Qingdao (National high-end intelligent home appliance Innovation Center). The overview states the platform is appropriately installed and functioning as intended. Internal program performance screenshots are published for the Z, X, and Y axes (cover/title graphics from the Word file are omitted on the public page).

DVIA-UB700 (S/N 230515R1) installation report at Hefei Institutes of Physical Science (Chinese Academy of Sciences), Hefei — Z / X / Y-axis transmissibility plots from the September 2023 handout.

DVIA-M1000 abbreviated worksheet (serial 230627R4). Setup and reporting dated 23.08.29; measurement date 2023.08.29 (Tuesday) in Jingmen with operator Youngha Lee from DAEIL SYSTEMS. END USER Jingmen 605; Target equipment Sigma 300 and installation site Jingmen as in the form. The Overview block states the standard DVIA-M1000 sentence only. No vibration specification, equipment status, tuning request, measurement summary table, or Reference section appears in the source. The internal-program section title in the source reads “M1000 internal program performance measurement result”; published figures are three plots labeled Z axis, X axis, and Y axis. Decorative header graphics from the Word file are omitted from public copy.

DVIA-MB1000 (serial 220524R4, platform DVIA-MB1000 - 910 x 1140 mm) VEC installation worksheet at University of North Dakota Whitmer Hall with TFS HT Tank 200 kV, tuning date 25 August 2023. Includes UI program transmissibility (Z/X/Y), VEC floor and active VC curves per axis, a transmissibility graph, and vibration results summary (F/D/G). Engineers Youngha Lee and Jongwon Park (DAEIL SYSTEMS). Report written 23.09.06. Reference uses the standard Generic Vibration Criteria markdown table (criterion graphic not republished).

DVIA-MB3000 (serial 221104R3, platform DVIA-MB3000-1370x2020x232H) VEC installation worksheet at University of North Dakota Whitmer Hall with Thermo Fisher Talos F200X, tuning date 25 August 2023. Includes UI program transmissibility (Z/X/Y), VEC measurement plots (transmissibility, floor VC, active VC per axis), and vibration results summary (F/D/G). Engineers Youngha Lee and Jongwon Park (DAEIL SYSTEMS). Report written 23.09.06.

Thermo Fisher Scientific Talos F200X G2 TEM DVIA-MB3000 Installation
