Installation Report
DVIA-M Series
10-10-2023
Wuxi DK Electronic Materials Flex1000 DVIA-M1000 (230801R2) Internal Program Performance — 2023.10.10
DVIA-M Series
Installation Report
Wuxi DK Electronic Materials
Flex1000
Shanghai
DVIA-M1000
230801R2
Contents
(M1000_ 230801R2 Set up)
| Target equipment | Flex1000 |
|---|---|
| Place of installation | shanghai |
| Remark | Good Performance |
| END USER | Wuxi DK Electronic Materials Co., Ltd. |
| Operator: Lee, Sangjae | Date of business trip : 17.12.27~17.12.29 |
| Date of setup: 23.10.10 | |
| Date of reporting: 23.10.17 |
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date
2023.10.10 (Tuesday)
Operator
Operator: DAEIL SYSTEMS Sangjae Lee
Place of measurement
Shanghai
Equipment Model
Flex1000
M1000 internal program performance measurement result

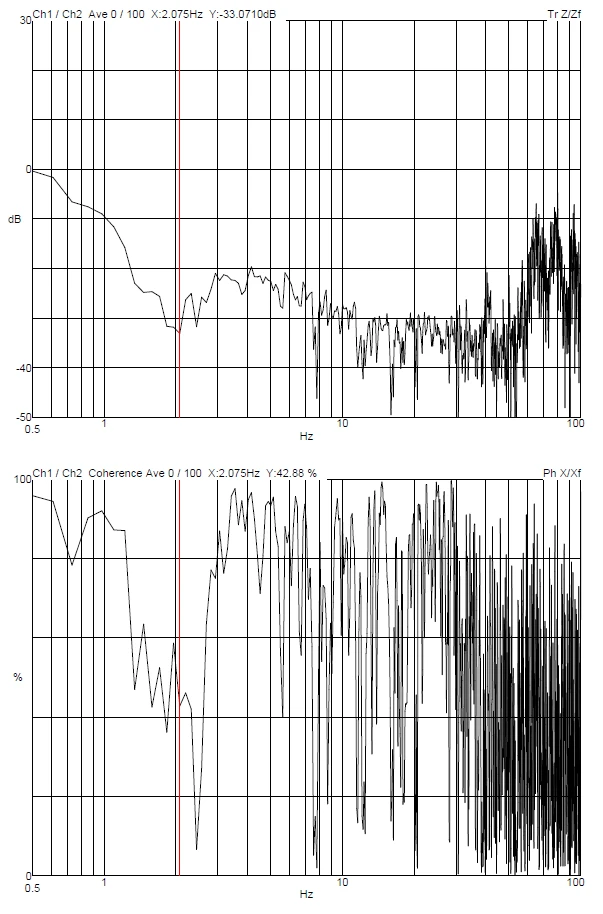

Z axis

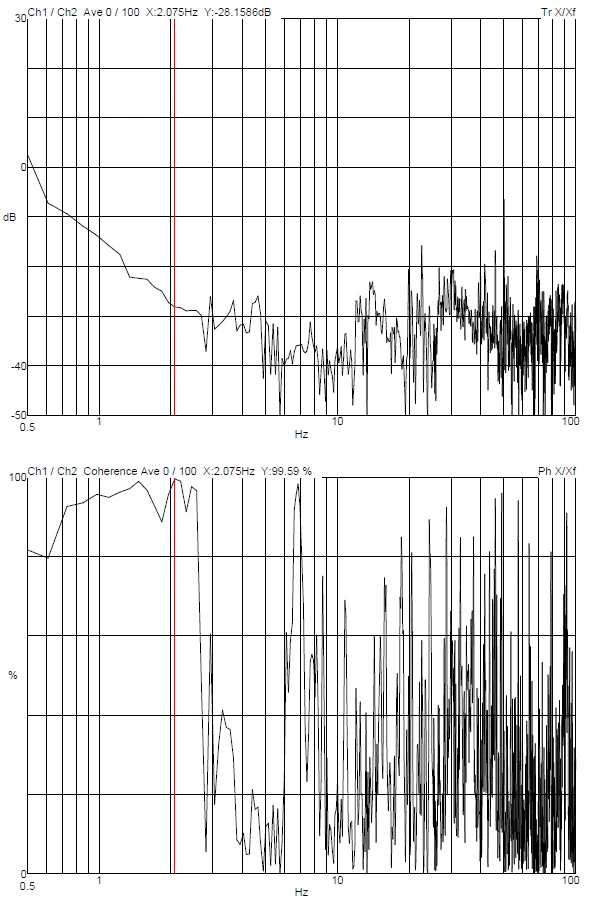

X axis

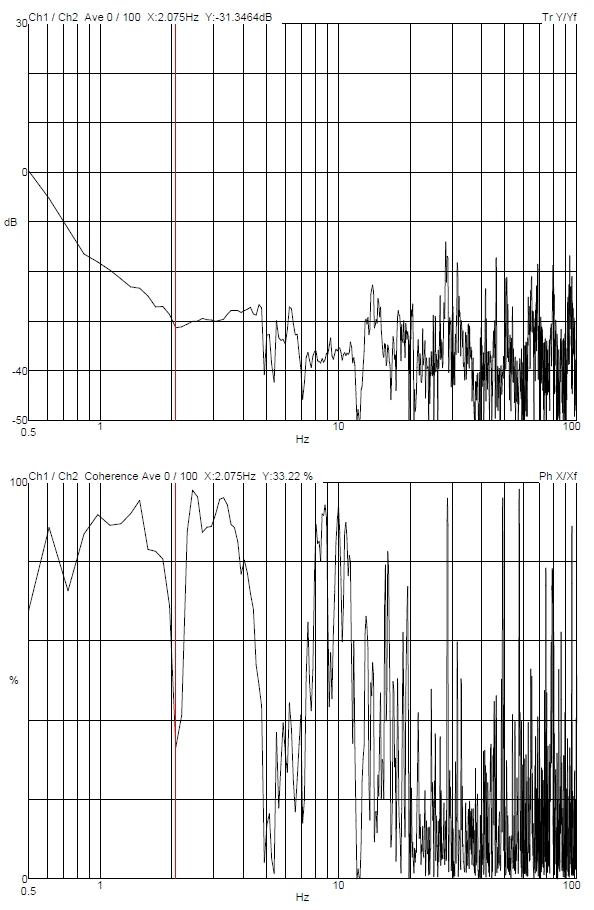

Y axis
