Installation Report
DVIA-M Series
08-07-2025

Tongji University Raith Voyager MAX EBL DVIA-M1000 (250402R6) Installation Report

DVIA-M Series
Installation Report
Tongji University
Raith
Voyager MAX
EBL
Shanghai
DVIA-M1000
DVIA-ML1000

Contents

Overview

The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.

Vibration Isolation System Information

Model: DVIA-M1000

Serial Number: 250402R6

Engineer

Chaewon Lee DAEIL SYSTEMS

Tuning Date

August 7, 2025

Report written date

August 7, 2025

End User

Tongji University

Number of Tuning Trial

1st

Location

Shanghai, China

Equipment

Manufacturer: Raith

Equipment: Electron Beam Lithography

Model: Voyager MAX

Vibration specification

N/A

Equipment Condition

The equipment is installed/Turned off

Tuning Request

Data and Image

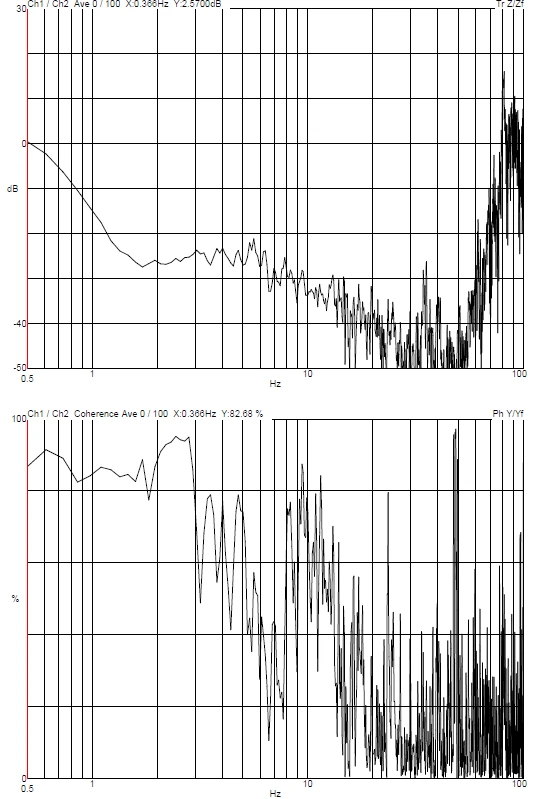

Vertical Transmissibility

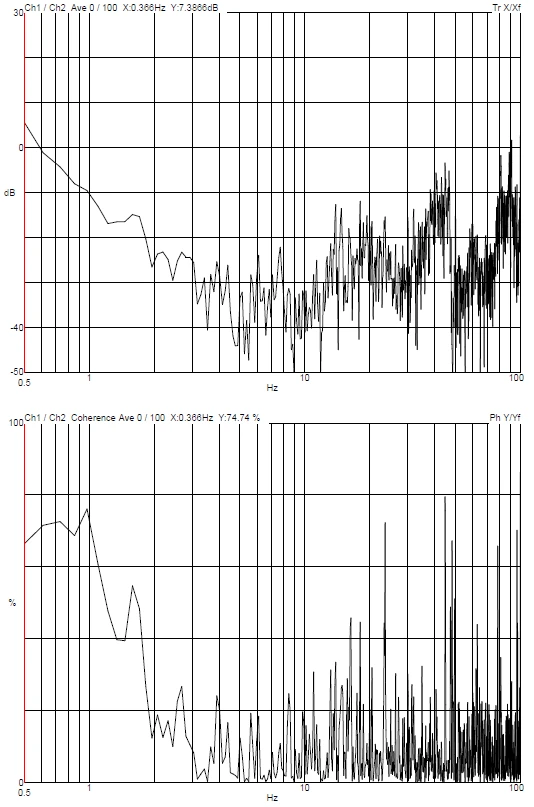

Left to Right Transmissibility

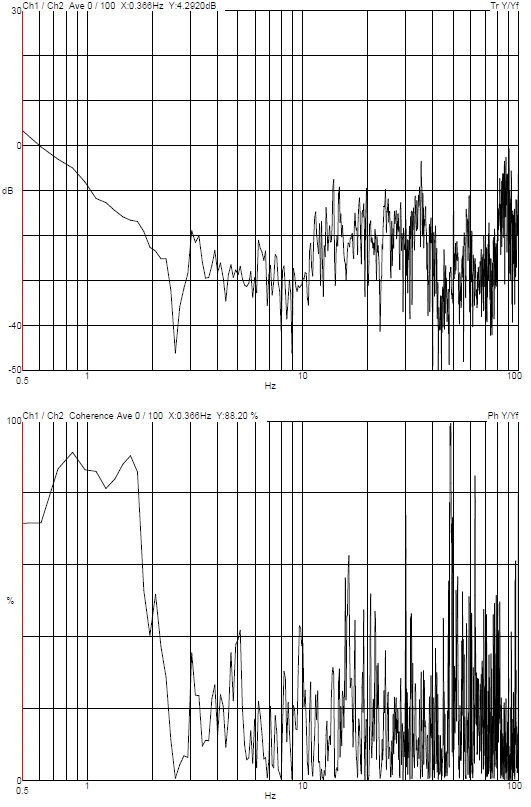

Front to Back Transmissibility

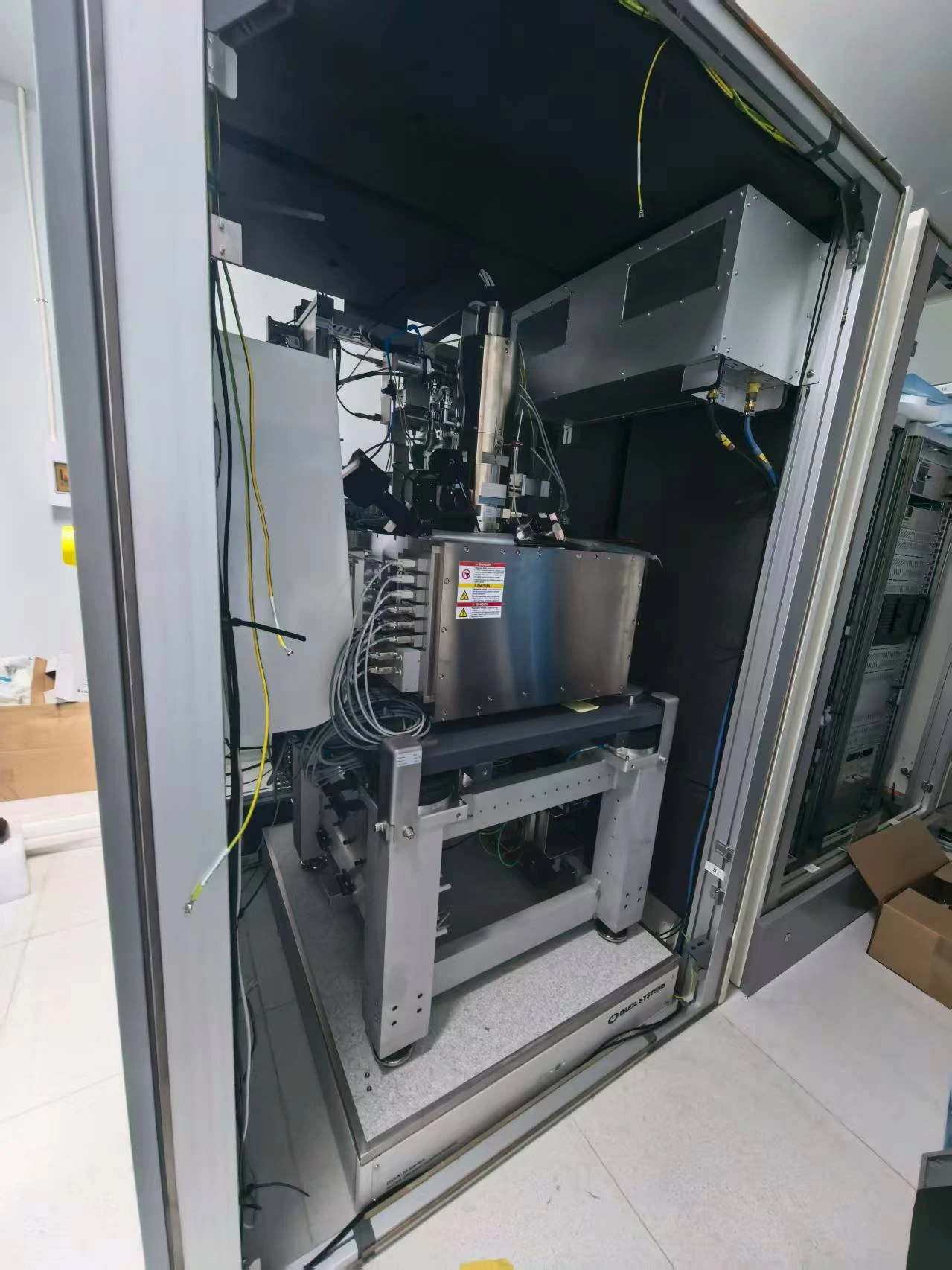

Equipment picture

Reference

Criterion CurveDescriptionAmplitude
μm/s (µin/s)		Detail Size
μm
Workshop (ISO)Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.800 (32,000)N/A
Office (ISO)Perceptible vibration. Appropriate to offices and non-sensitive areas.400 (16,000)N/A
Residential Area (ISO)Barely perceptible vibration. Appropriate to sleep areas in most instances.200 (8,000)75
Operating Theatre (ISO)Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.100 (4,000)25
VC-AAdequate for optical microscopes to 400x, microbalances, optical balances.50 (2,000)8
VC-BAppropriate for inspection and lithography equipment to 3μm line widths.25 (1,000)3
VC-CAppropriate for optical microscopes to 1000x, lithography equipment to 1μm.12.5 (500)1 - 3
VC-DSuitable for demanding equipment including electron microscopes (SEMs/TEMs).6.25 (250)0.1 - 0.3
VC-EFor the most demanding systems including E-Beam lithography at nanometer scales.3.12 (125)< 0.1
VC-FFor extremely quiet research spaces. Not recommended as design criterion.1.56 (62.5)N/A
VC-GFor extremely quiet research spaces. Not recommended as design criterion.0.78 (31.25)N/A

Notes:

- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

- Detail size refers to width in microelectronics fabrication or particle size in medical research.
