Installation Report

DVIA-M Series

10-21-2022

Shanghai Aladdin Biochemical Regulus8100 DVIA-M1000 setup report — Shanghai (DVIA-M1000, SN 211220R1)

DVIA-M Series

Installation Report

Shanghai Aladdin Biochemical Technology

Regulus8100

Shanghai

DVIA-M1000

DVIA-ML1000

SEM

Target equipment

Regulus8100

Place of installation

Shanghai

Remark

Good Performance

END USER

Shanghai Aladdin Biochemical Technology Co., Ltd.

Operator

Lee, Young Ha

Date of setup

22.10.17

Date of reporting

22.10.21

Date of business trip

17.12.27~17.12.29

Overview

The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.

Measurement date: 2022.10.17 (Monday),

Operator: DAEIL SYSTEMS, Youngha Lee

Place of measurement: Shanghai

Equipment Model: Regulus8100

M1000 internal program performance measurement result

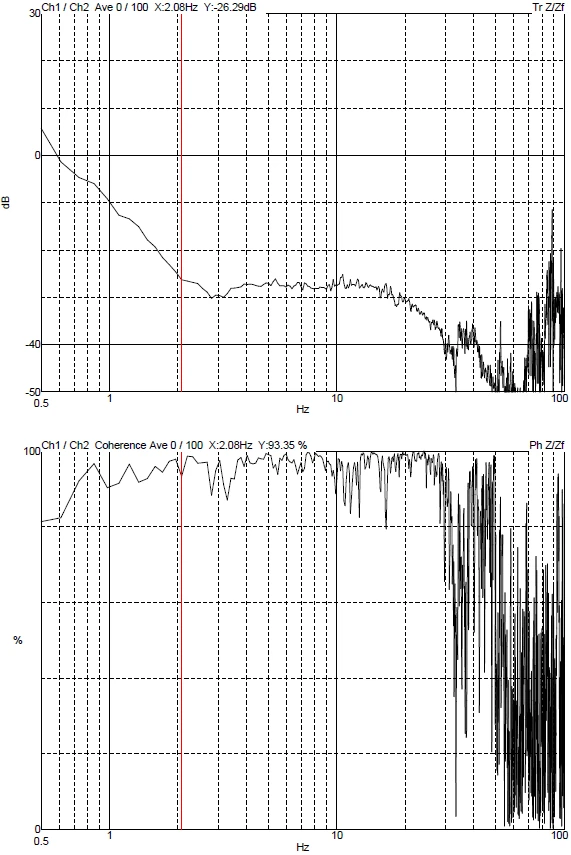

Z axis

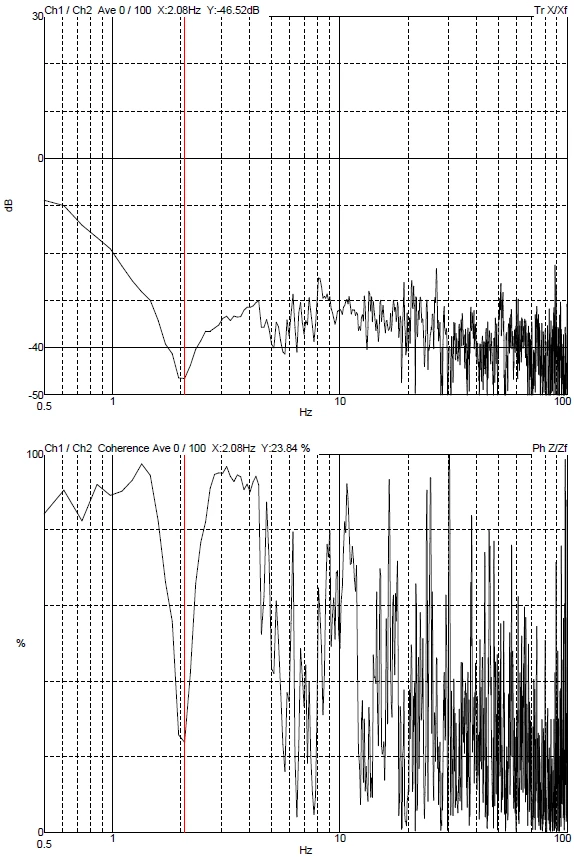

X axis

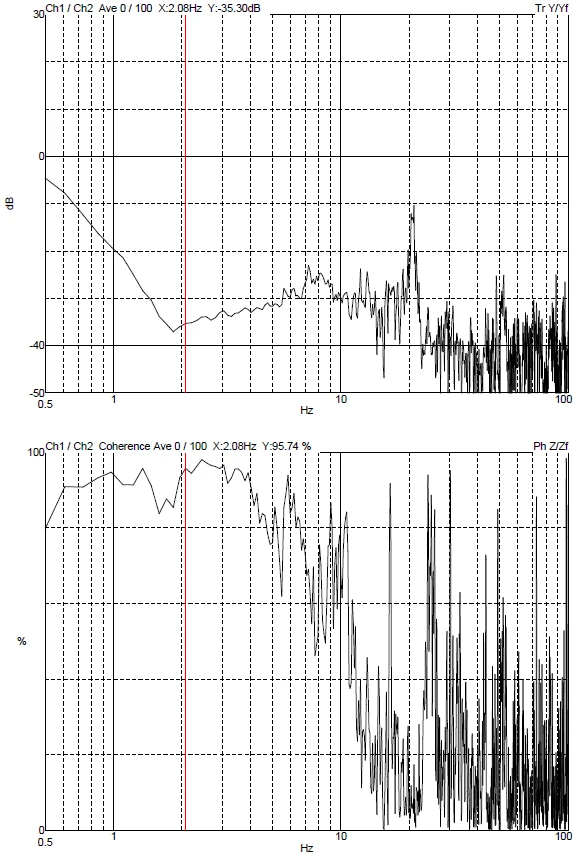

Y axis

Reference

Generic Vibration Criteria

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A

Notes:

- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

- Detail size refers to width in microelectronics fabrication or particle size in medical research.

Share this Case Study

Case Study Information

Related Case Studies

DVIA-M Series

LASENSOR SEM5000 DVIA-M1000 Setup Report — Shanghai measurement (DVIA-M1000, SN 220726R5)

10-21-2022Read more

DVIA-M Series

Zeiss Gemini SEM360 DVIA-ML1000 Installation Report (220307R1)

07-12-2022Read more

DVIA-M Series

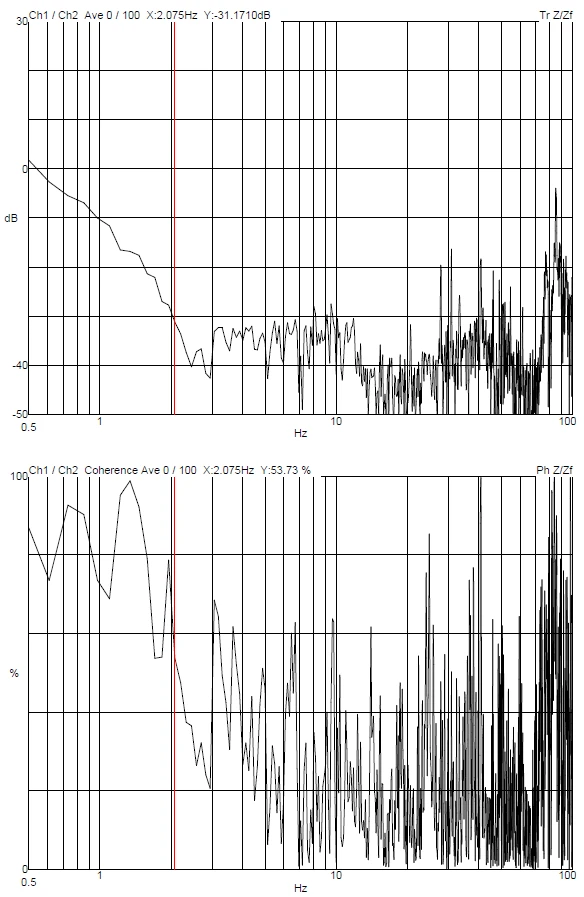

Bangxin Semiconductor Hitachi Regulus8100 DVIA-M1000 (231205R5) Installation Report
