Installation Report
DVIA-T Series
09-30-2023
TOPTICA DVIA-T45 Installation Report — Field inspection (sensor fault)
DVIA-T Series
Installation Report
TOPTICA
DVIA-T45
230703R3
Contents
Prepared for
TOPTICA
Prepared by
Engineer: Youngha Lee
Tuning date: 23.09.27
Report written date: 23.09.30
Date of business trip : 17.12.27~17.12.29
Overview
A DVIA-T45 performance inspection was carried out upon request because the equipment was operating abnormally.
During sensor inspection, faults were observed on Z2 and the Z base sensor.
System Information
Model: DVIA-T45
Serial Number: 230703R3
Engineer
Youngha Lee, Engineer, R&D Division, DAEIL SYSTEMS
Tuning Date
September 27, 2023
Equipment
-
Data and Image

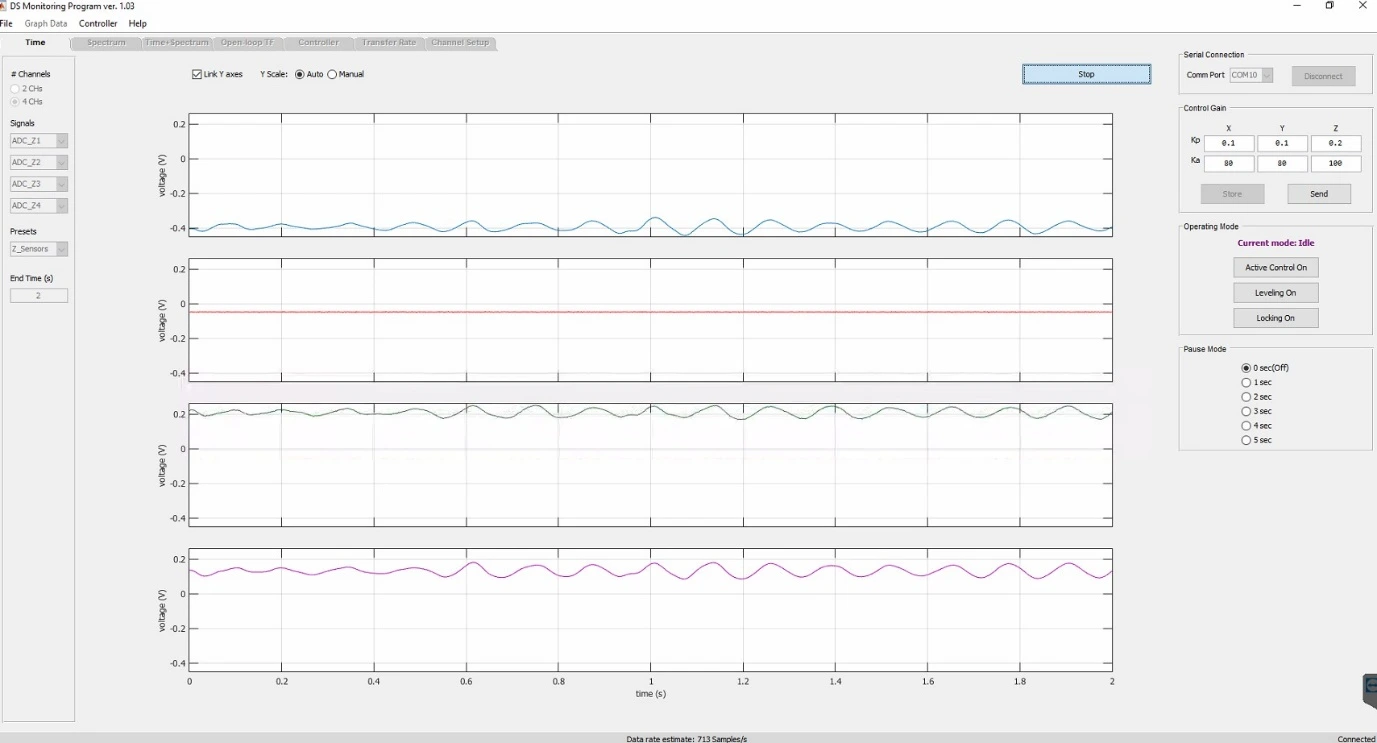

Z-axis (Vertical) Sensor Check

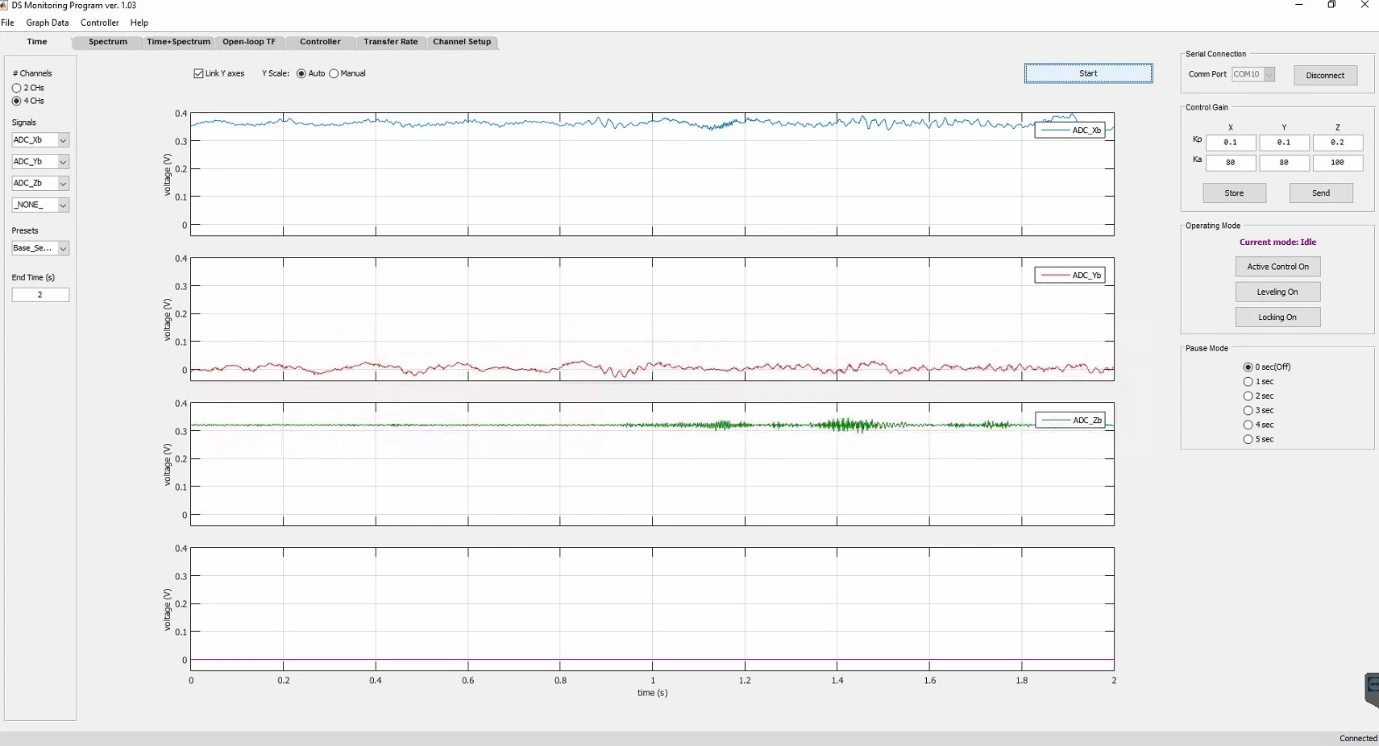

Z-axis (Vertical) Floor Sensor Check

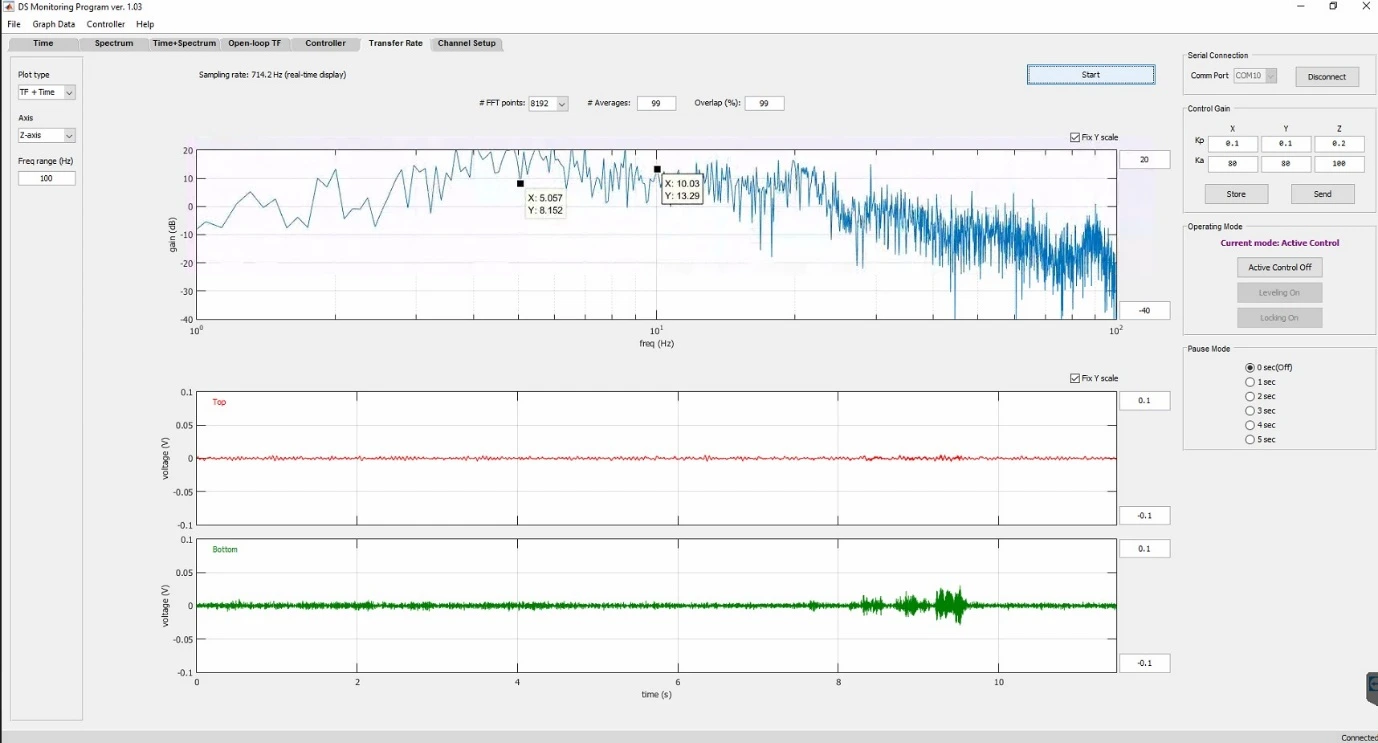

Z-axis (Vertical) UI Program Transmissibility

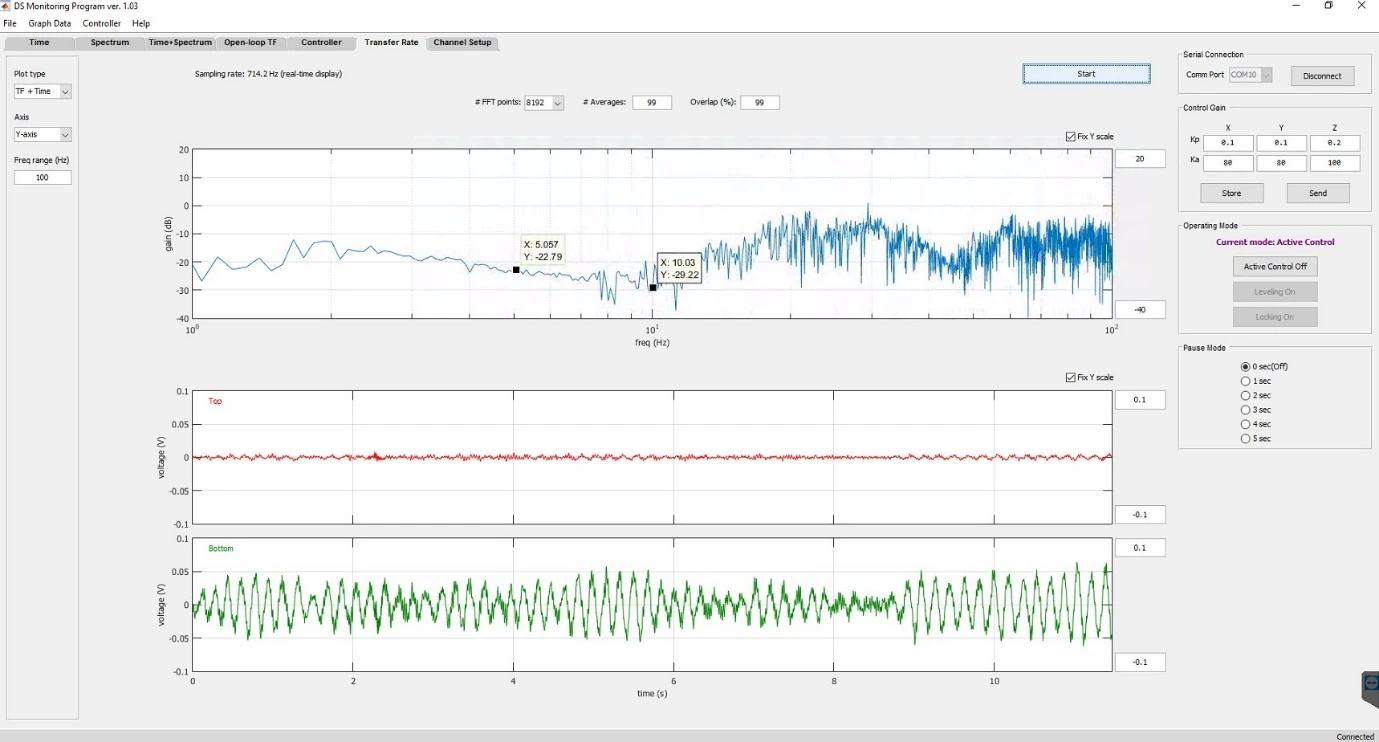

X-axis (Left to Right) UI Program Transmissibility

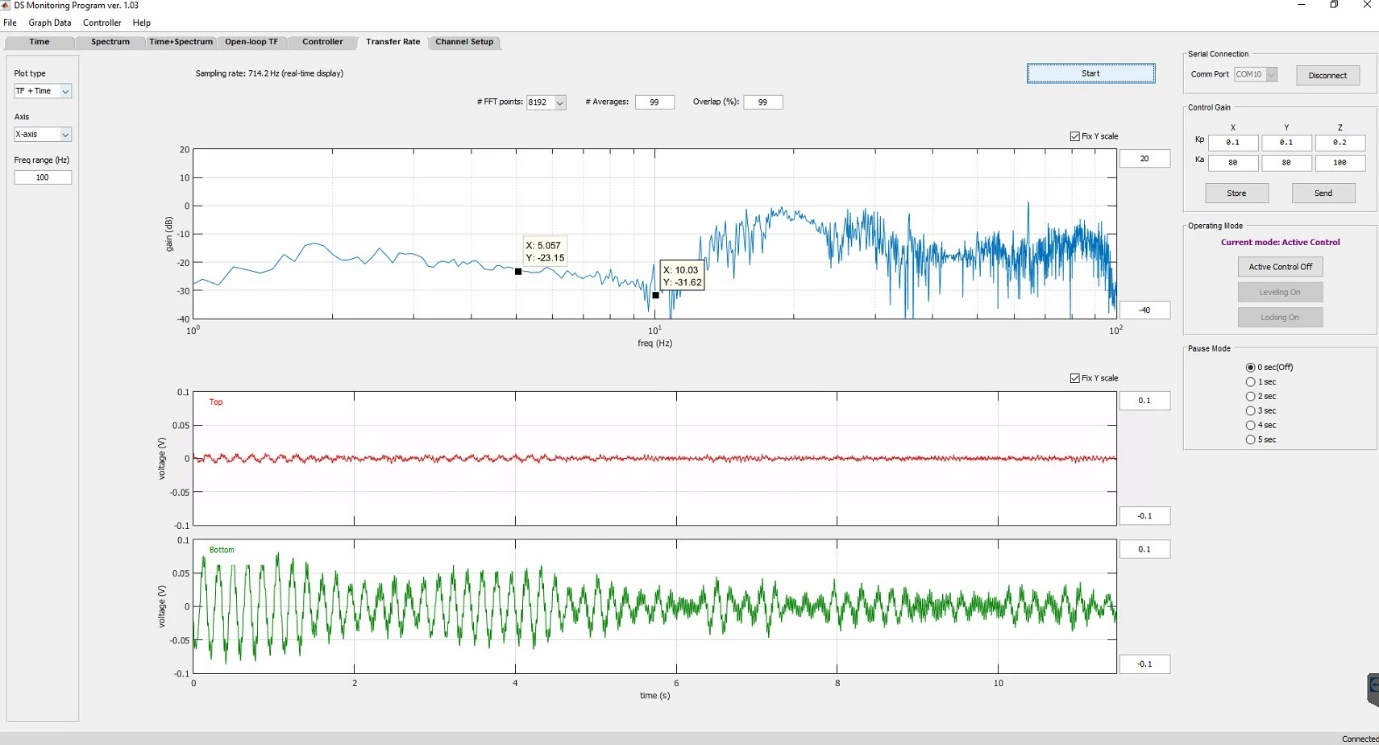

Y-axis (Front to Back) UI Program Transmissibility
