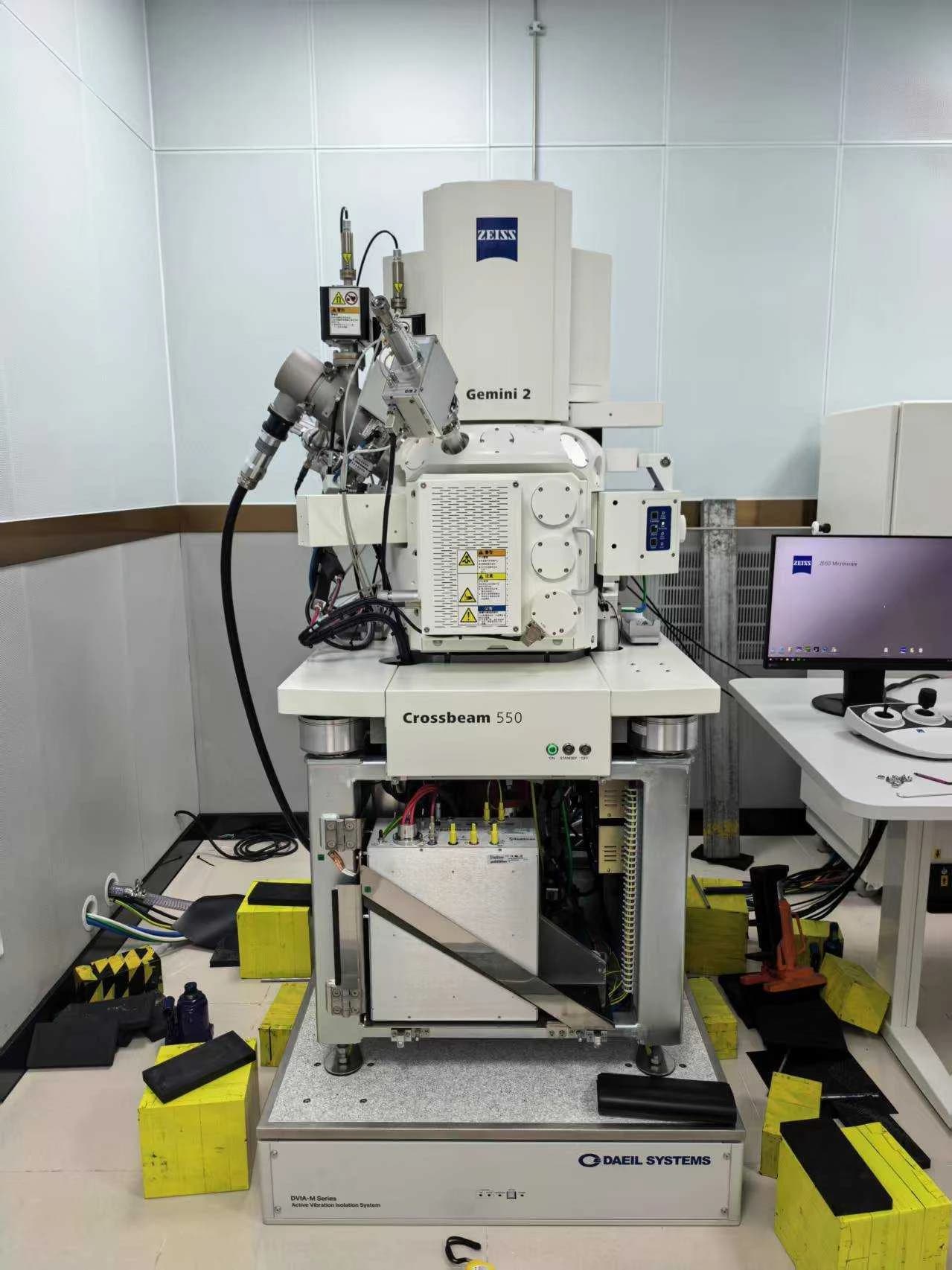

DVIA-M1000 installation report (serial 240509R6) for ZEISS FIB-SEM Crossbeam 550. Overview matches the published form. Equipment condition: The equipment is installed/IDLE. Published figures include UI-program plots as listed; Reference uses the standard Generic Vibration Criteria markdown table.

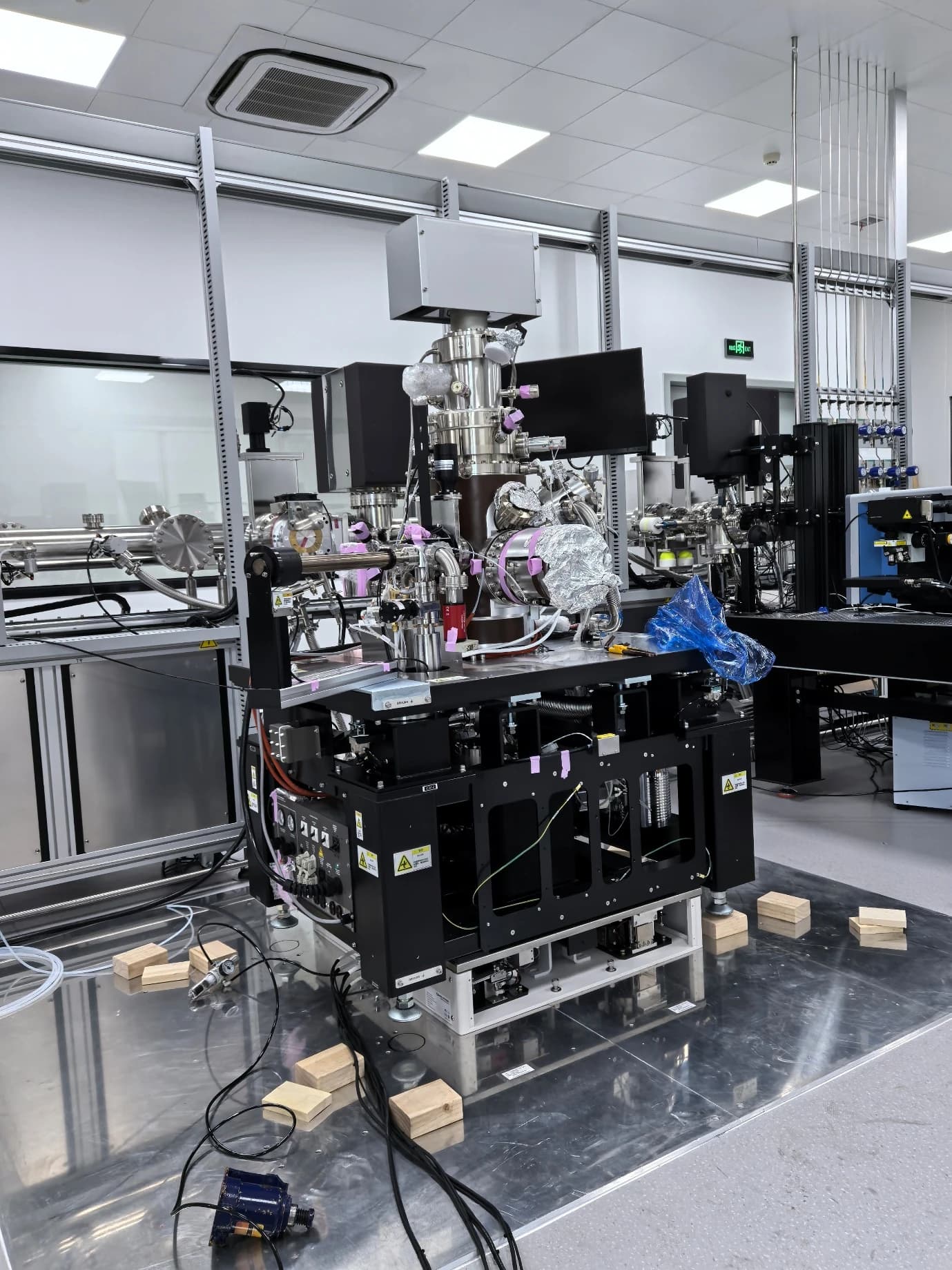

DVIA-M1000 installation report — EVAN Scanning Auger Electron Spectrometer (serial 250526R4) for Ningbo Institute of Materials, Hangzhou. Overview confirms the platform is appropriately installed and functioning as intended. No vibration specification section on the published form. Equipment condition: The equipment is installed/Turned off. Tuning screenshot, vertical and horizontal transmissibility, equipment photo; Reference presents Generic Vibration Criteria as a markdown table (no separate reference graphic).

DVIA-M3000 (240612R3) installation report — Supergravity Laboratory, Hangzhou, China; QIYUE TECHNOLOGY FIB-SEM SS-HV800. Published Transmissibility plots (Vertical, Left to Right, Front to Back), Tuning Request capture, and equipment photograph. Generic vibration criteria presented as markdown table.

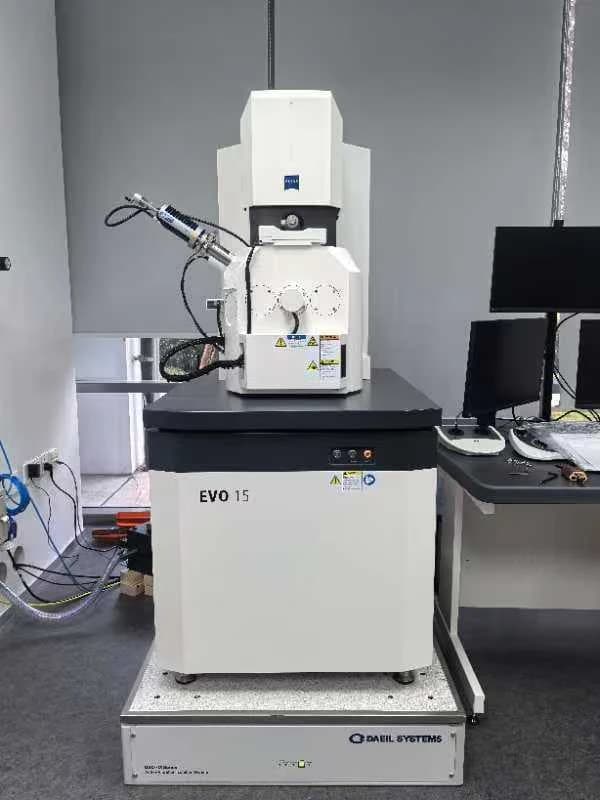

DVIA-M1000 installation report (serial 241106R4) for ZEISS SEM EVO 15 at ZEISS Demo Laboratory, Shanghai, China. Overview states the platform is appropriately installed and functioning as intended. Prepared for and end user ZEISS demo laboratory. Equipment condition: The equipment is installed/IDLE. Chaewon Lee, second tuning trial on June 30, 2025 (first December 3, 2024); report written July 1, 2025. The published handout has no separate vibration specification section or measurement summary table. Tuning Request UI capture; vertical, left-to-right, and front-to-back transmissibility under Data and Image; equipment photo; Reference uses the standard Generic Vibration Criteria markdown table only (no separate reference graphic).

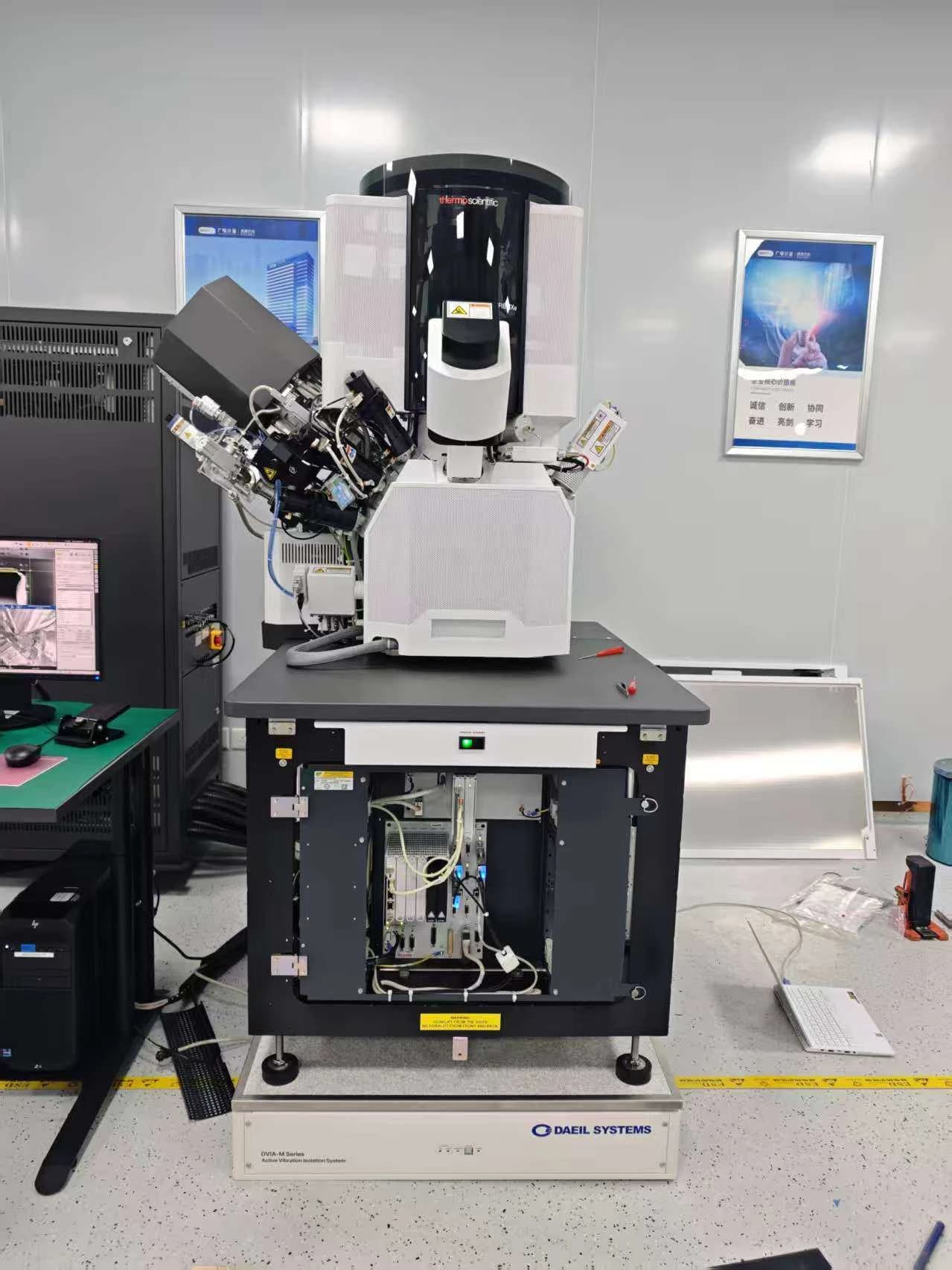

DVIA-M1000 installation report — Thermo Fisher FIB-SEM Helios 5 PFIB (serial 250331R1) for Radio and television metering in Wuxi, China. Overview states the platform is appropriately installed and functioning as intended. Equipment condition: The equipment is installed/IDLE. Tuning request as UI capture; published plots are Transmissibility (vertical, left to right, front to back) plus equipment photo. The source report has no vibration-specification heading, no measurement-summary table, and no VC or Autospectrum figures.

DVIA-MO1000 installation report at Tier-1 Electronics Component Manufacturer Magok site (serial 250409R2). Field tuning and vibration measurement on the isolation platform; VC curves, autospectra, and transmissibility with the equipment Turned off and Front-to-Back set repeated with the equipment Turned on, measurement summary table, and Generic Vibration Criteria reference table.
