Vibration Isolation Case Studies

DVIA-MB1000 installation report (serial 221026R4) for PE-300 FE-SEM at WONKWANG University (Iksan), prepared for MODULE SCI. VC curves compare floor versus active isolation by axis, followed by a transmissibility plot; vibration summary grades are reproduced from the published form; Reference lists Generic Vibration Criteria as a markdown table only.

DVIA-MB3000-1200x2200x227H (serial 221012R5): installation worksheet with tuning on December 9, 2022 and report dated December 16, 2022 for Xradia 620 Versa at Tier-1 Display Manufacturer, Paju. Includes vibration summary VC-class table plus Z/X directional VC curves, transmissibility plots, damping notes from the worksheet, and Reference as a markdown Generic Vibration Criteria table.

DVIA-M1000 handout (serial 220125R1) for Sigma300 at Sunway (Yiyang) Communication, Hunan province. Published fields follow the worksheet; banner and title-block raster photos are omitted. MB1000 internal program performance graphs are shown for the Z, X, and Y axes. Reference uses the standard Generic Vibration Criteria markdown table only.

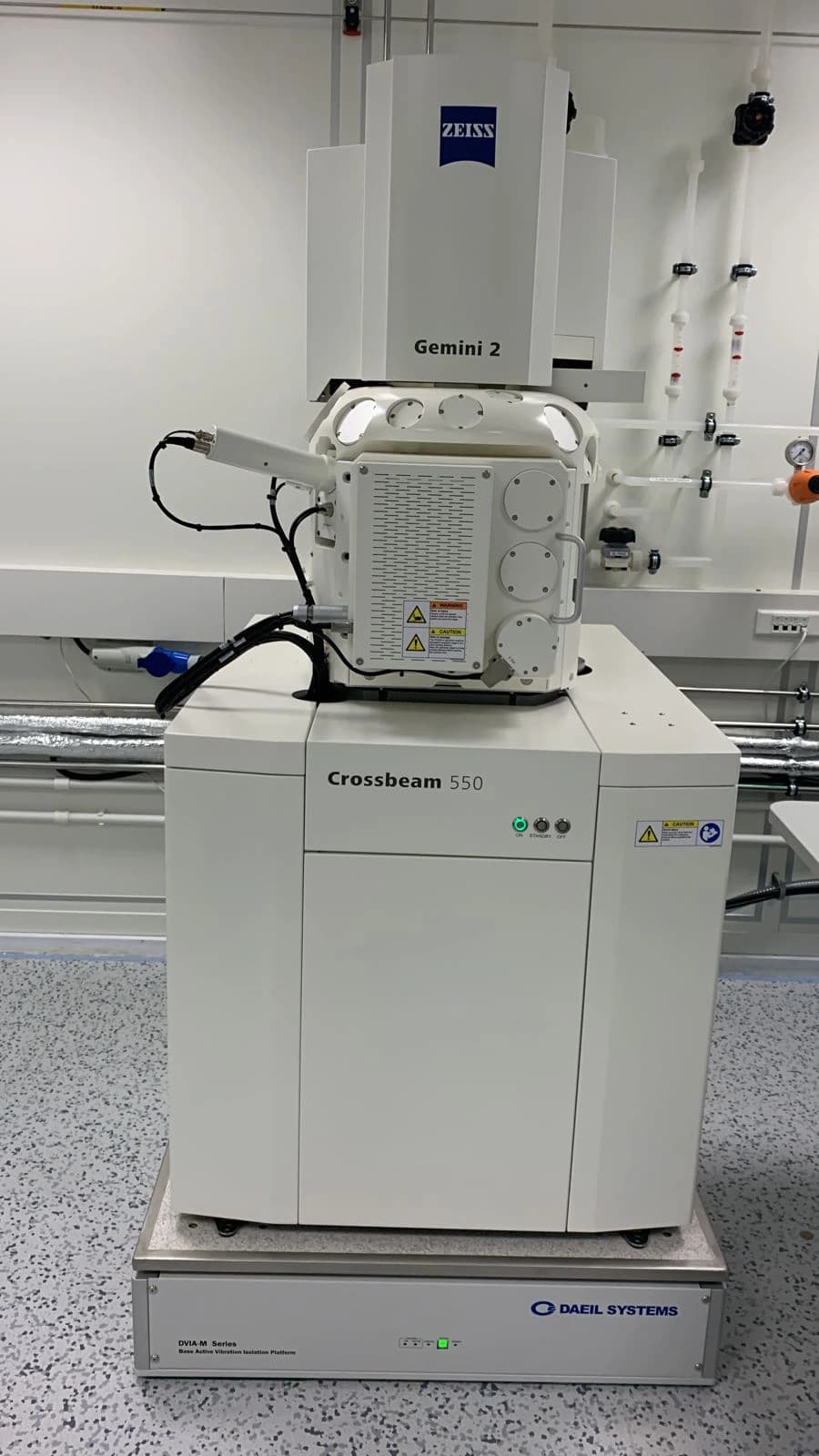

DVIA-MB1000 (SN 220825R6-1) at Bauman Moscow State Technical University with ZEISS Crossbeam 550: engineer field notes, Z/X/Y transmissibility curves, equipment photo, and VC reference table.

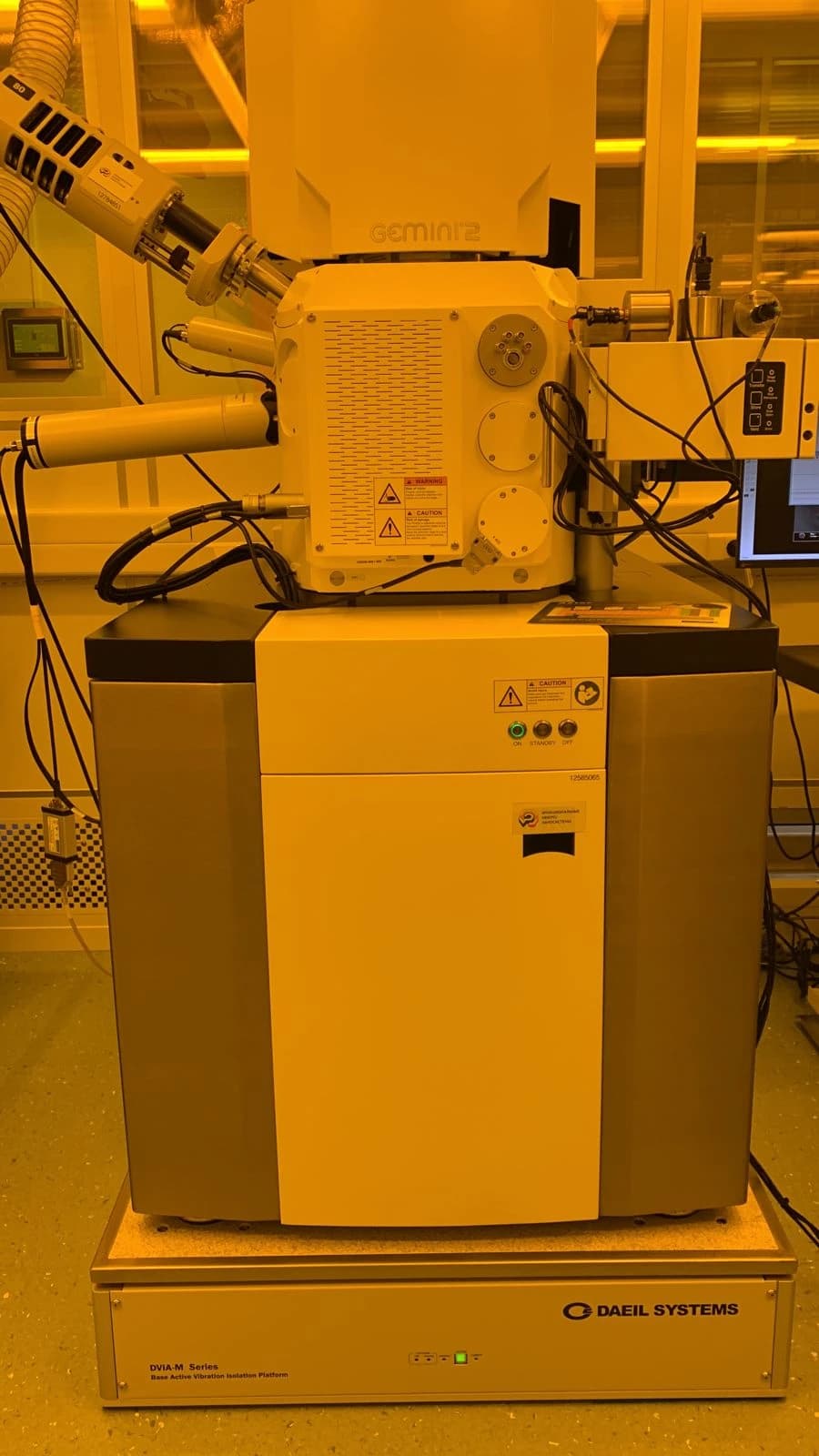

DVIA-MB1000 (SN 220825R6-2) at Bauman Moscow State Technical University with Zeiss Merlin Gemini II: engineer field notes, Z/X/Y transmissibility plots, equipment photo, and VC reference table.

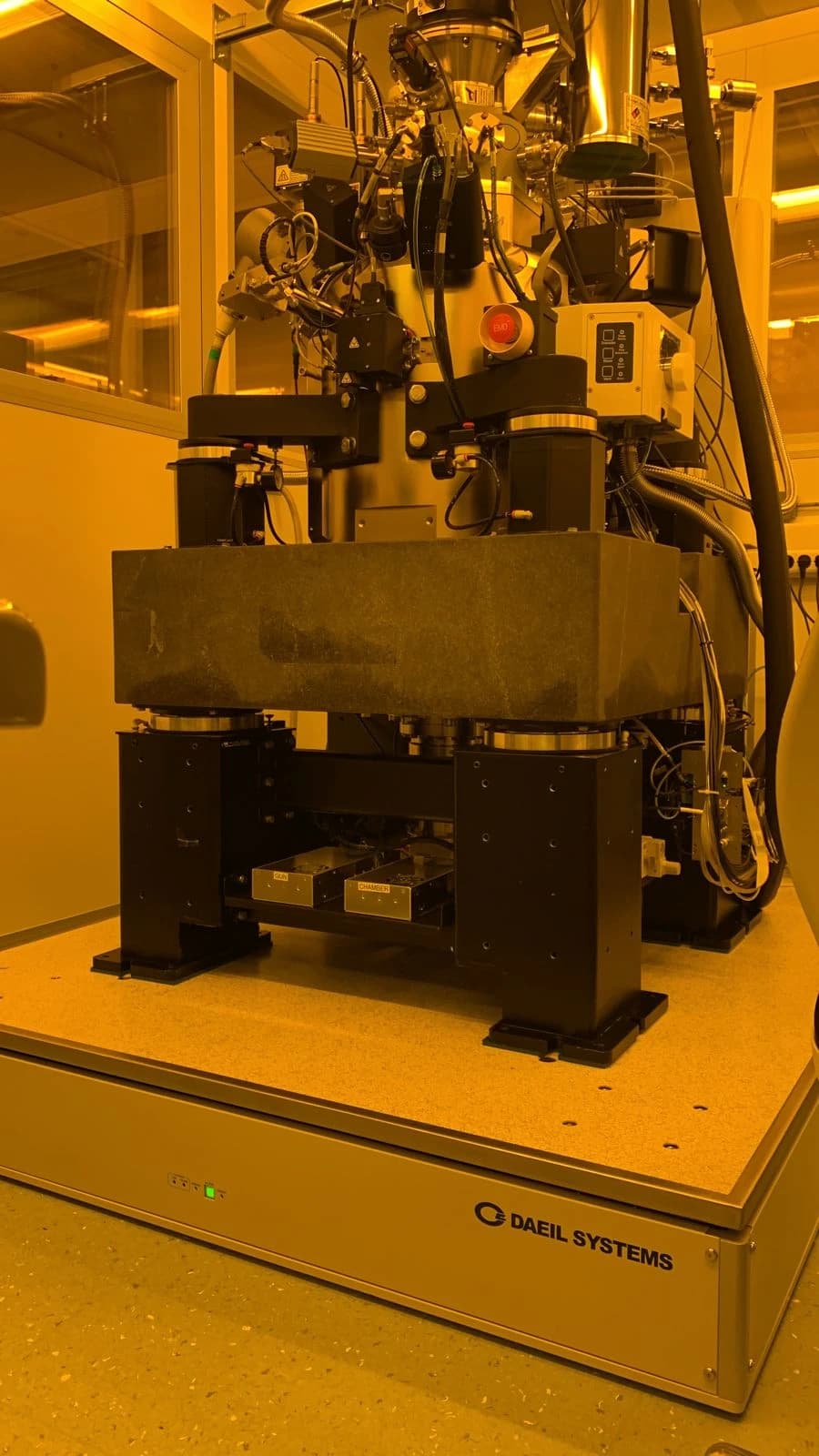

DVIA-MB3000 installation report (serial 220825R6-4) prepared for Bauman Moscow State Technical University with Zeiss Orion equipment: Z/X/Y transmissibility graphs, on-site equipment photo, and Generic Vibration Criteria as a markdown table (no separate reference figure). Engineer Youngha Lee (DAEIL SYSTEMS); tuning 22.11.16; report written 23.01.17.
