Installation Report
DVIA-M Series
04-21-2023
Self-made SEM DVIA-ML1000 Installation Report (Zhejiang Qiyue Technology, 230209R1, 2023-04-21)
DVIA-M Series
Installation Report
Zhejiang Qiyue
SEM
DVIA-ML1000
230209R1
China
Contents
(M1000_ 230209R1 Set up)
Target equipment
Self-made SEM
Place of installation
ZHEJIANG
Remark
Good Performance
END USER
Zhejiang Qiyue Technology Co., Ltd.
Operator: Yu, Ho Sang
Date of setup
23.04.19
Date of reporting
23.04.21
Date of business trip
17.12.27~17.12.29
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date
2023.04.19 (Wednesday)
Operator: DAEIL SYSTEMS, Hosang Yu
Place of measurement
ZHEJIANG
Equipment Model
Self-made SEM
Measurement conditions and results
Summary of measurement results
| Test Condition | Z | X | Y |
|---|---|---|---|
| Floor | D | F | E |
| Above Active | G | G | G |
Good omnidirectional performance.
5.
MB1000 internal program performance measurement result

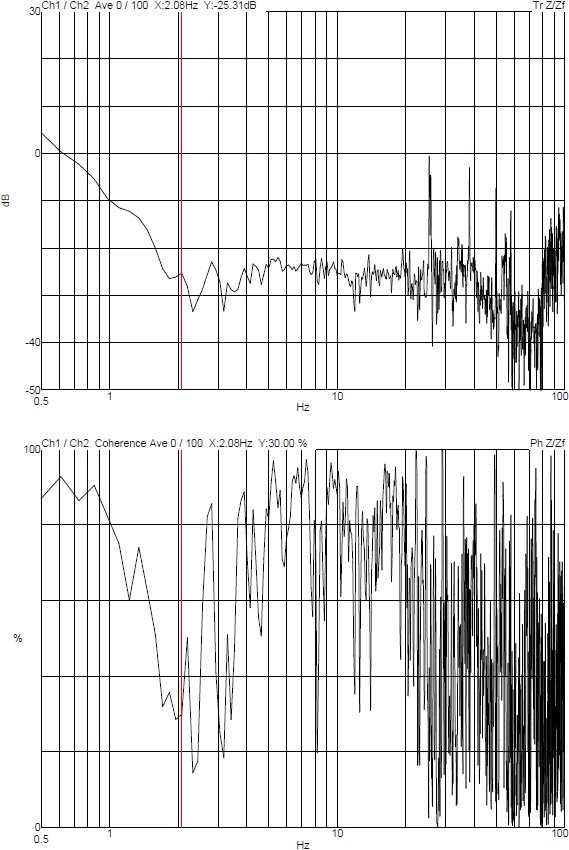

Z axis

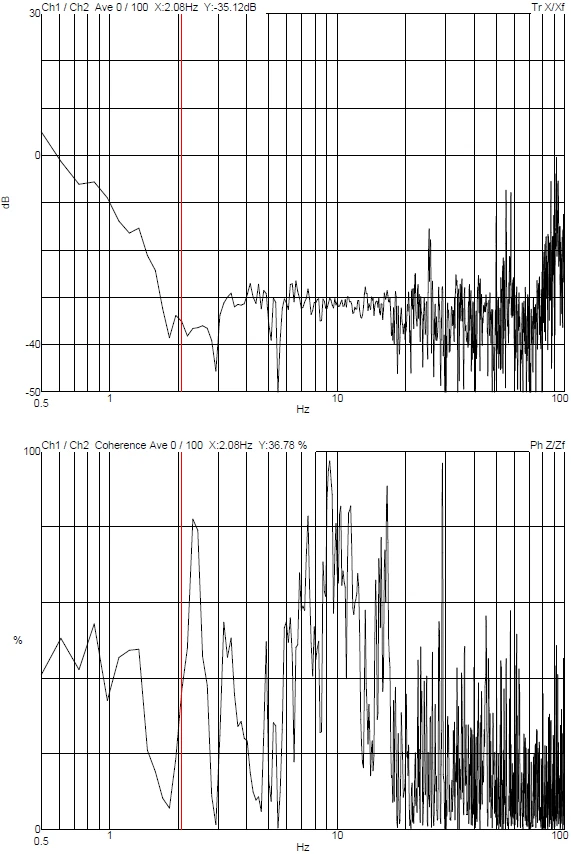

X axis

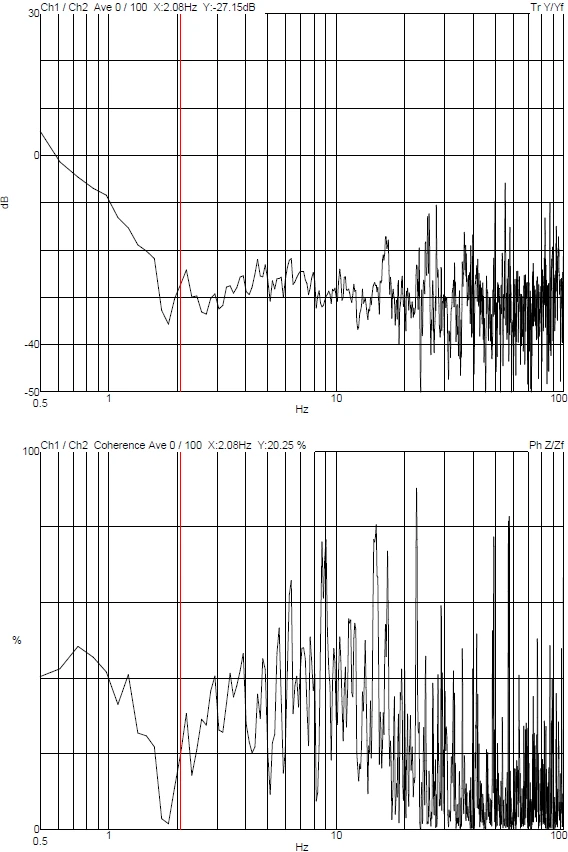

Y axis
Octave Band Result

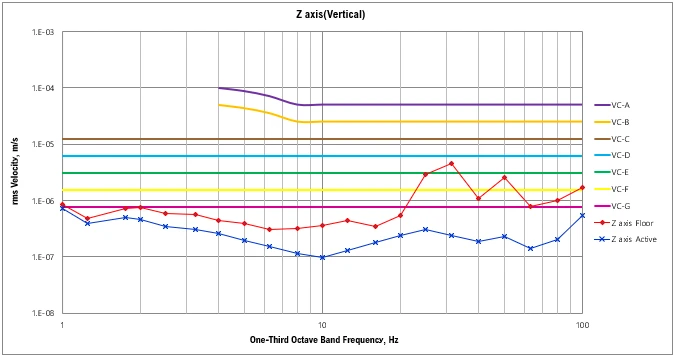

Z axis

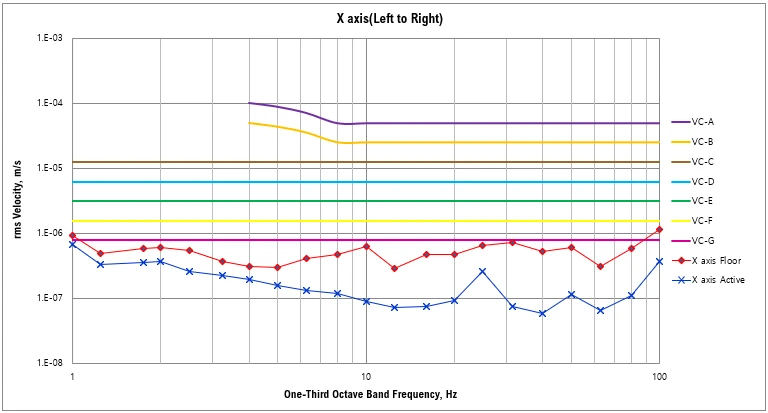

X axis

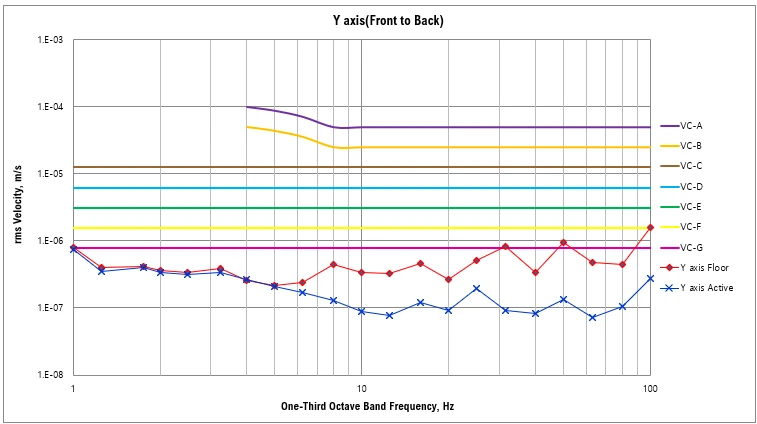

Y axis
