Vibration Isolation Case Studies

DVIA-ML1000 installation report — ZEISS FE-SEM Sigma 360 (serial 250828R5). Overview states the platform is appropriately installed and functioning as intended. Prepared for, End User, and Location are N/A on the form. Equipment Condition The equipment turned on/IDLE; Tuning Request N/A. UI-program transmissibility (vertical, left-to-right, front-to-back) and equipment photo. No vibration-spec screen capture and no measurement summary table on the published form.

DVIA-ML1000 SN 250828R5 — ZEISS Sigma 360; report contains transmissibility plots (Z/X/Y).

DVIA-ML3000 (serial 250805R2) installation report for the Nano Convergence Technology Institute 4F Line with a ZEISS X-ray Microscope Versa 630. Equipment specification is shown as a diagram; measurement summary compares floor versus DVIA-ML3000 in Turned on/IDLE state. VC, autospectrum, and transmissibility plots per axis; Reference uses the standard Generic Vibration Criteria markdown table.

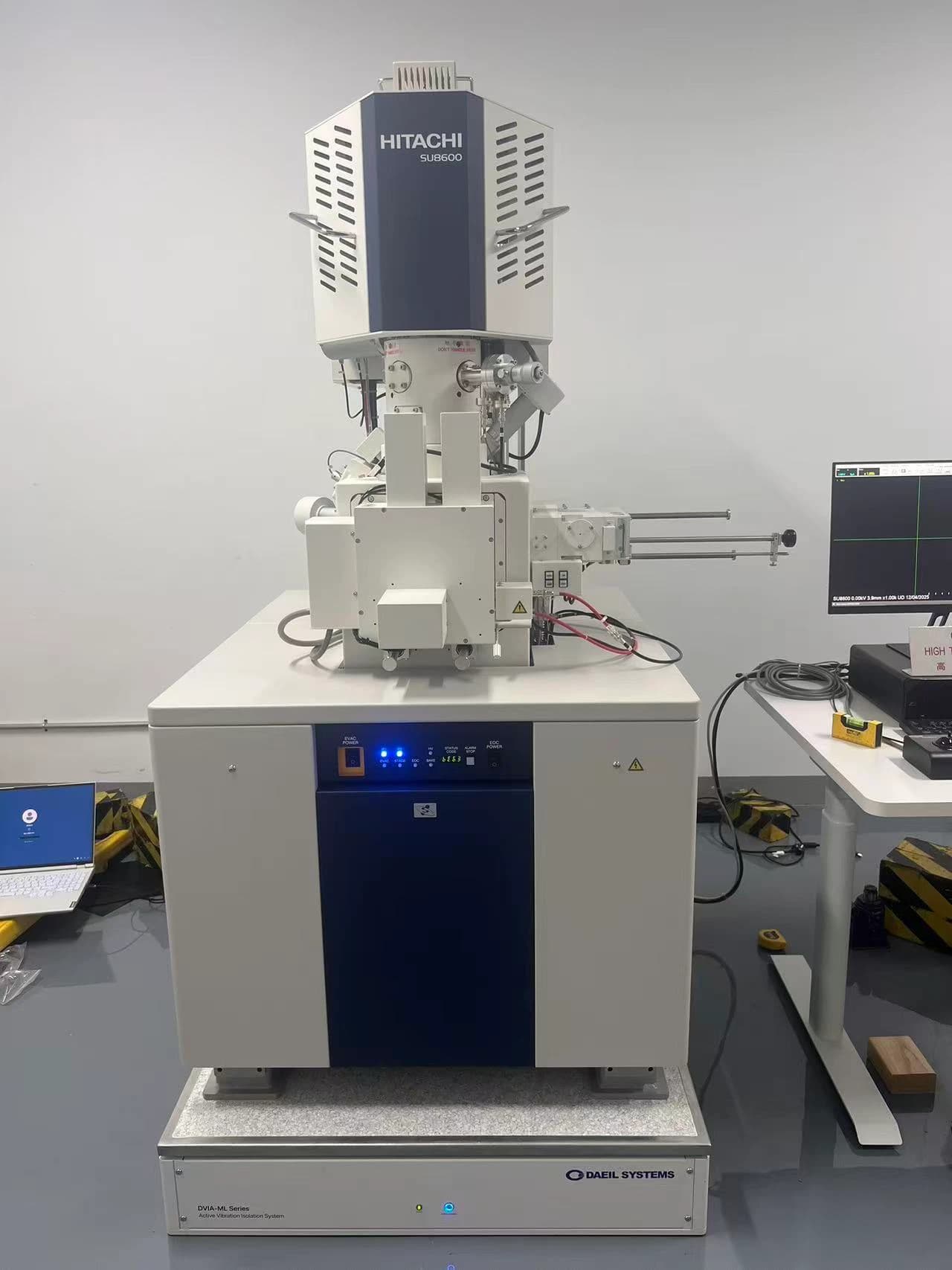

DVIA-ML1000 installation report — Hitachi FE-SEM model SU8600 (serial 250822R5). Overview states the platform is appropriately installed and functioning as intended. Vibration specification N/A; End user and location N/A. Measurement summary compares floor vs on DVIA-ML1000 with SU8600 turned on/IDLE. UI-program VC curves, Autospectrum, and Transmissibility (vertical, left-to-right, front-to-back) and equipment photo.

Partner site — YIDONG YF-1801; DVIA-ML1000 250912R5 (1st). Transmissibility-focused set.

DVIA-ML1000 installation report (serial 241108R2-1).
