Vibration Isolation Case Studies

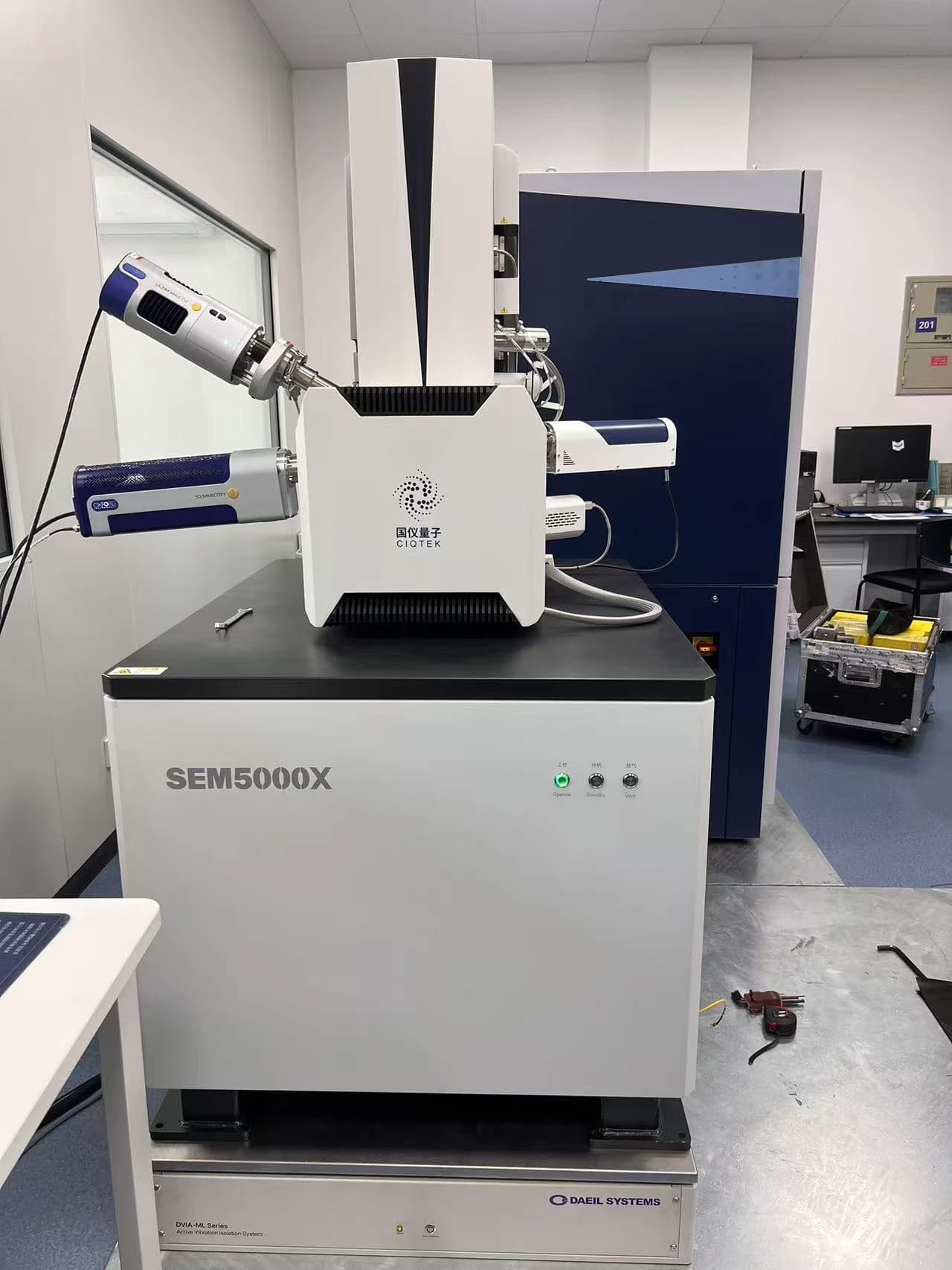

DVIA-ML1000 installation report — Ciqtek SEM5000X (251113R6). The active vibration isolation platform is appropriately installed and functioning as intended. Measurements with SEM5000X Turned on / IDLE; vibration specification N/A on the form; measurement summary compares floor vs on DVIA-ML1000 at dominant frequencies. UI-program plots and equipment photo.

DVIA-ML3000 installation report (serial 250917R1) for the ZEISS X-ray microscope Versa Xradia 630 Versa at Tier-1 Semiconductor Cheonan campus C5 Analysis Room 3. Tuning and vibration checks ran with the tool Turned On / IDLE; vibration curves are omitted from the customer-facing report under export restrictions, but the published equipment vibration specification capture from the handout is included. Reference uses the standard Generic Vibration Criteria markdown table only.

Tier-1 Semiconductor Cheonan C5 — ZEISS Versa Gemini SEM 460 on DVIA-ML1000 (SN 251015R4). Per customer data-handling policy, the public case is text only: no measurement plots and no report imagery.

DVIA-ML3000 (250903R5) installation report at Tier-1 Semiconductor Icheon campus P&T1 — ZEISS X-ray Microscope Versa 730. Equipment specification diagram from the report UI; VC / Autospectrum / Transmissibility for vertical, left-to-right, and front-to-back; standard vibration criteria as a markdown table.

Safran Transmission System LAB, Colombes — JEOL JSM-IT800 on DVIA-ML1000 (250829R2).

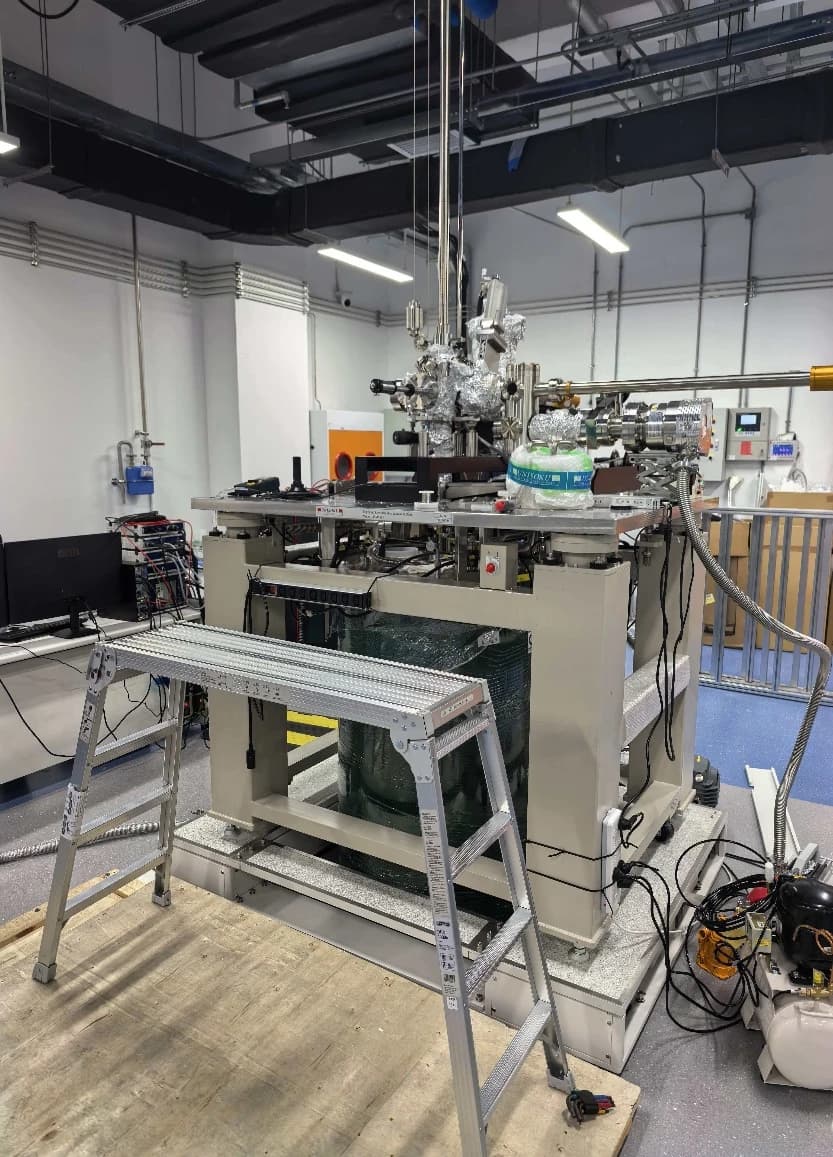

DVIA-ML1000 installation report — Beijing University of Aeronautics and Astronautics Unisoku STM (serial 250730R1-1). Overview documents Z-axis VCM issues (Dec 3 / Dec 11 visit), interim tuning with Z2 off and Z3/Z4 matrix sign reversal, and acceptable overall performance with slight horizontal-axis degradation pending full VCM repair. Transmissibility plots (vertical, left-to-right, front-to-back), tuning-request capture, and equipment photo.
