Installation Report

DVIA-M Series

01-19-2026

Shanghai Silicon Power PXB-BE-200HV DVIA-ML1000 (251023R6) Installation Report

DVIA-M Series

Installation Report

Shanghai Silicon Power Semiconductor

PXB-BE-200HV

DVIA-ML1000

Overview

DSP board issue was identified; re-tuning after replacing the DSP board. Second tuning visit (first tuning 2025-01-13).

DVIA-ML1000 active isolation with PXB-BE-200HV — platform installed and functioning as intended; UI-program measurements while Turned on / IDLE in Shanghai.

The form lists N/A for Vibration specification; the measurement summary cites VC for floor vs DVIA-ML1000 at the reported dominant frequencies.

Generic VC / ISO reference levels are in Reference at the end.

Vibration Isolation System Info

Model: DVIA-ML1000

Serial Number: 251023R6

Engineer

Chaewon Lee, DAEIL SYSTEMS

Tuning Date

January 19, 2026

Report written date

January 19, 2026

End User

Shanghai Silicon Power Semiconductor

Number of Tuning Trial

2nd (1st: 2025-01-13)

Location

Shanghai

Equipment

Manufacturer: Shanghai Silicon Power Semiconductor

Equipment: — (as listed)

Model: PXB-BE-200HV

Vibration specification (field form)

N/A

in the field report. Measurement data in the measurement summary and plots below are interpreted against generic VC context in Reference.

Equipment condition

Turned on / IDLE

during the reported measurement.

Tuning request

N/A

Measurement Summary

Status	Axis	Floor	On DVIA-ML1000
PXB-BE-200HV is turned on/IDLE	Vertical	VC-C @ 12.5 Hz	VC-G @ 12.5 Hz
	Left to Right	VC-C @ 2.5 Hz	VC-G @ 2.5 Hz
	Front to Back	VC-C @ 3.15 Hz	VC-G @ 3.15 Hz

Data and Image

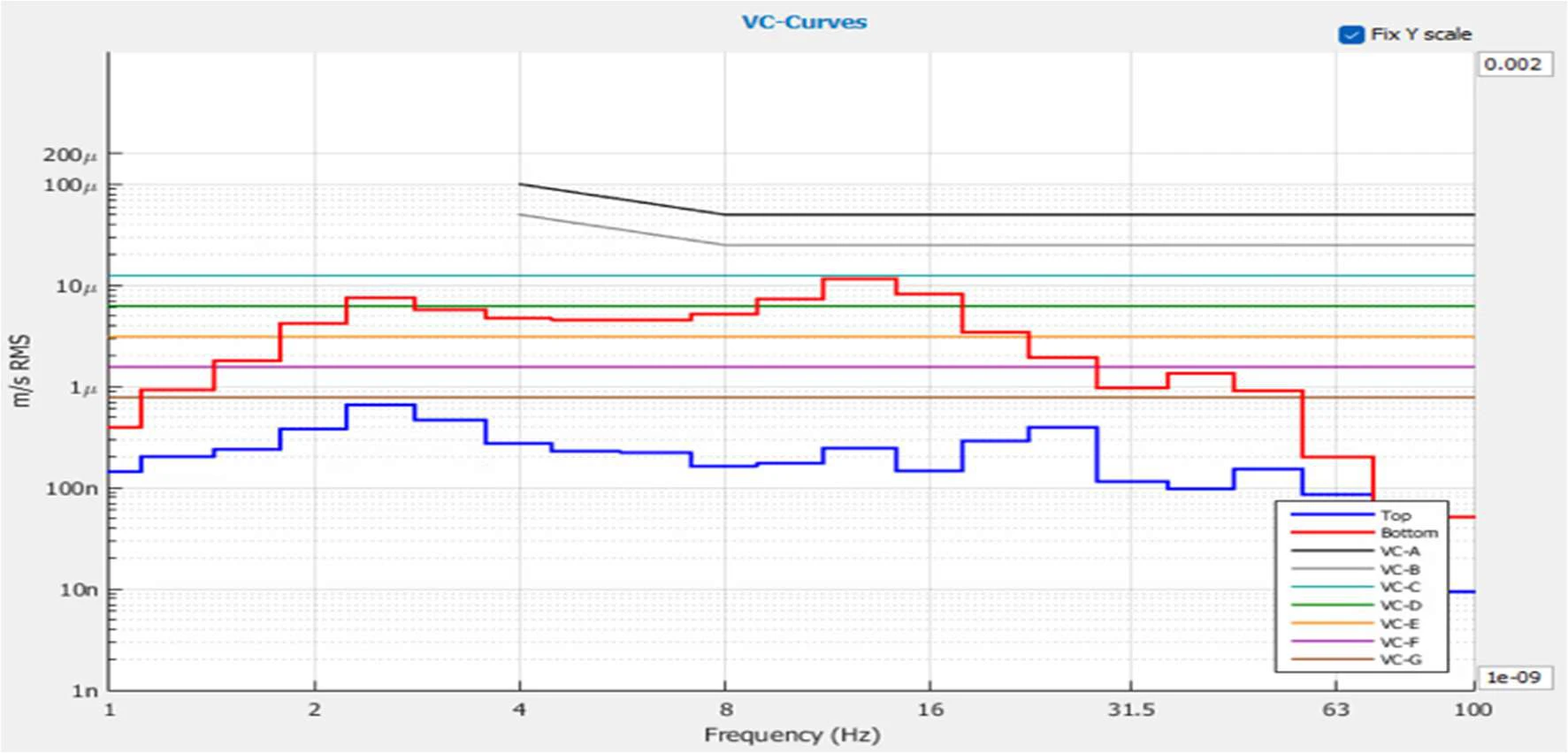

Vertical VC Curves

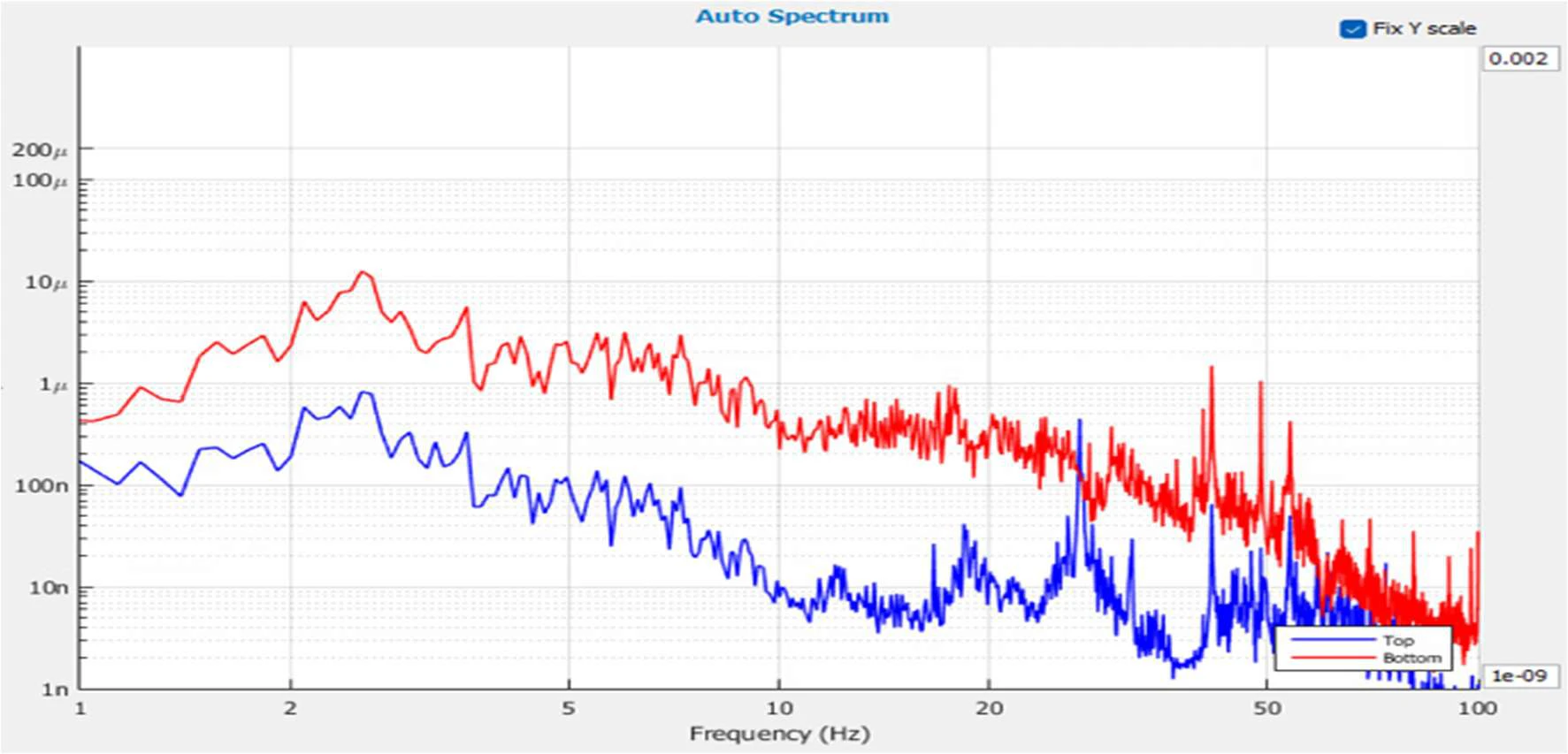

Vertical Autospectrum

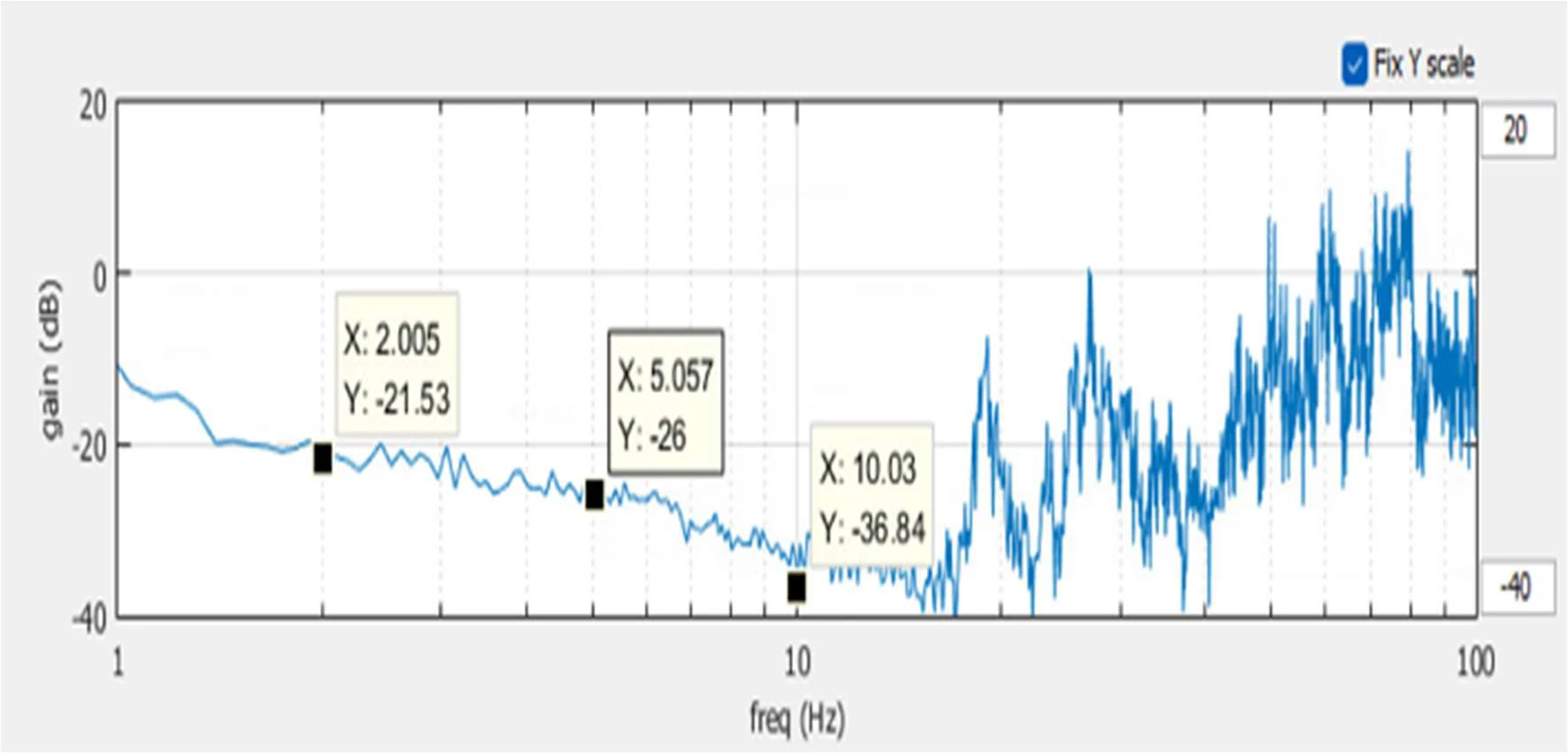

Vertical Transmissibility

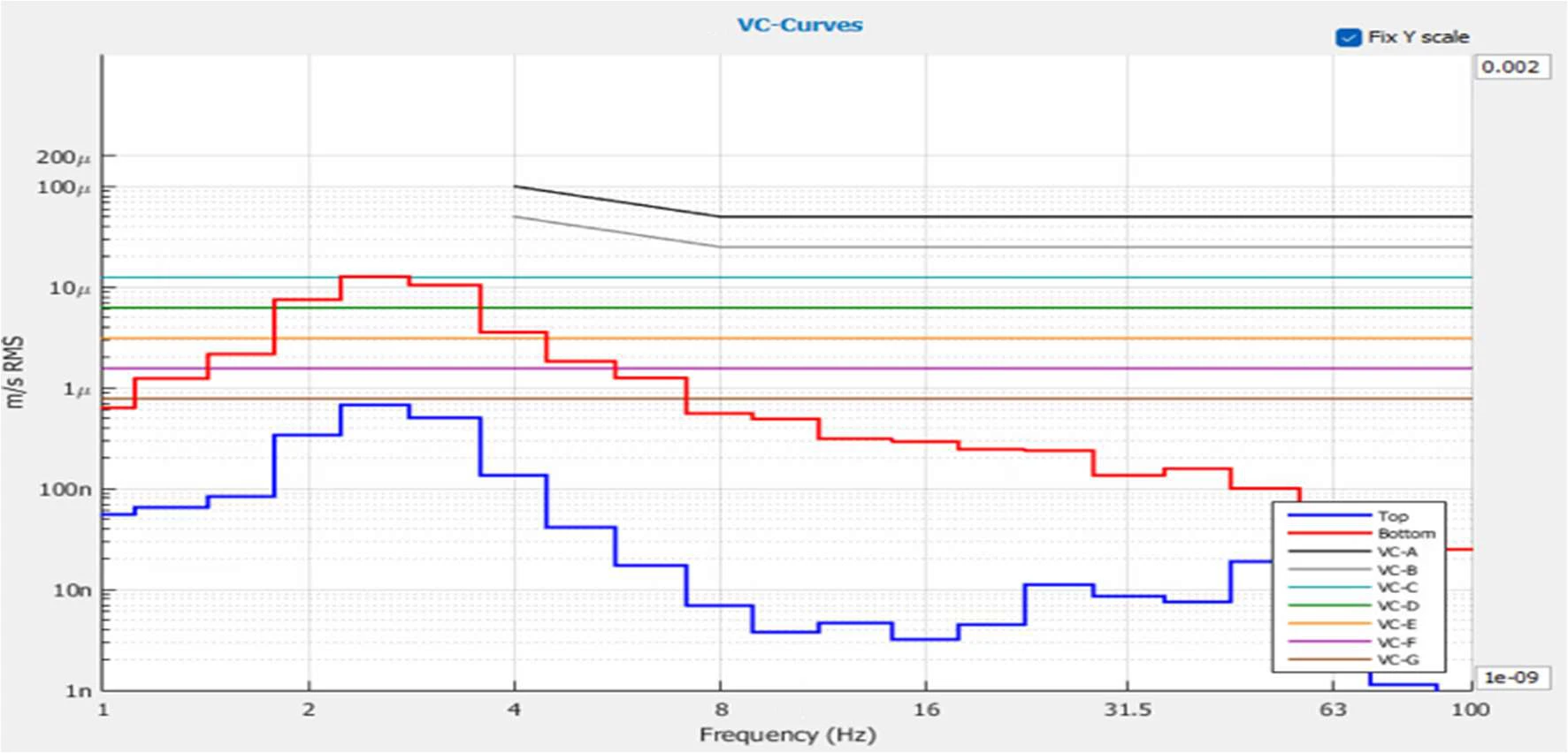

Left to Right VC Curves

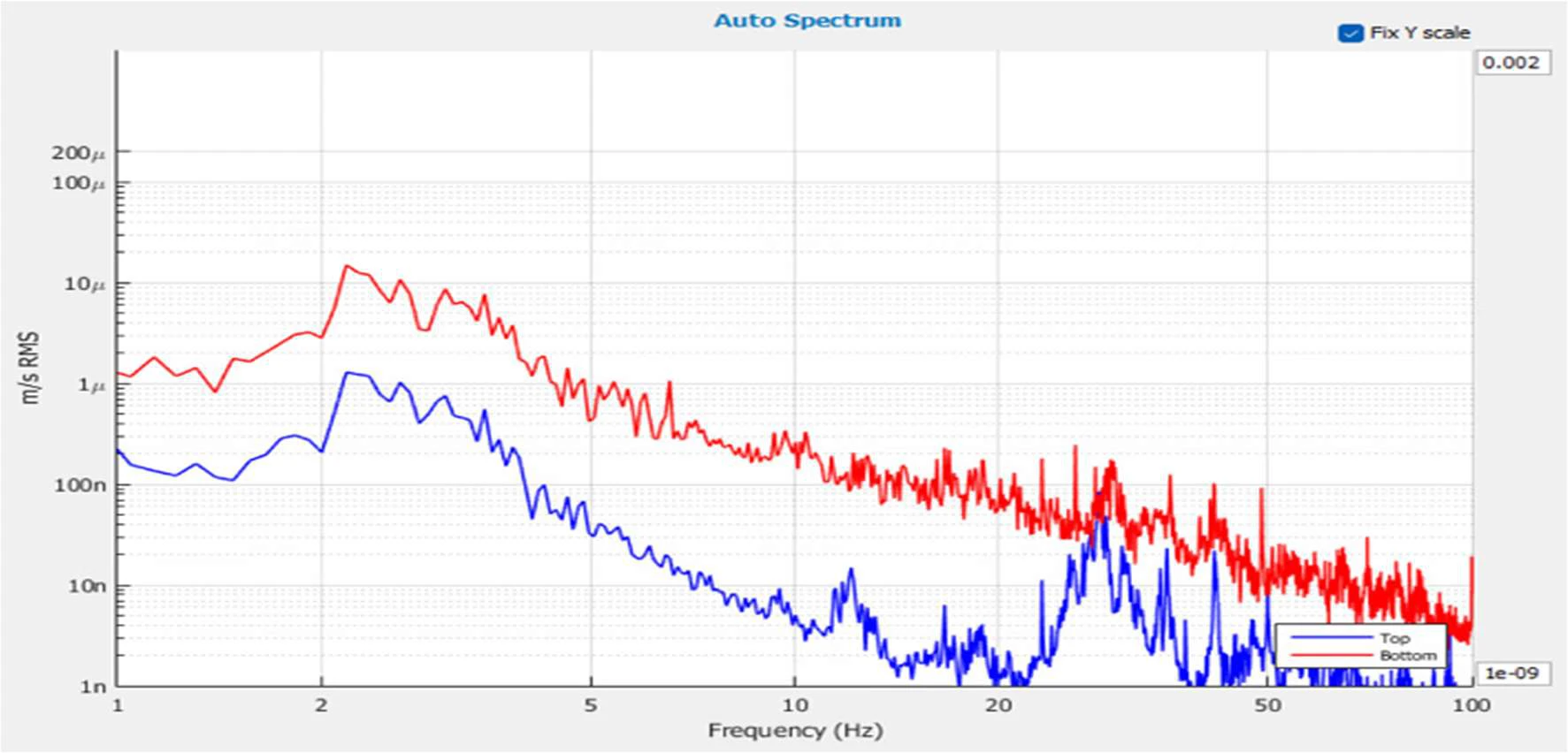

Left to Right Autospectrum

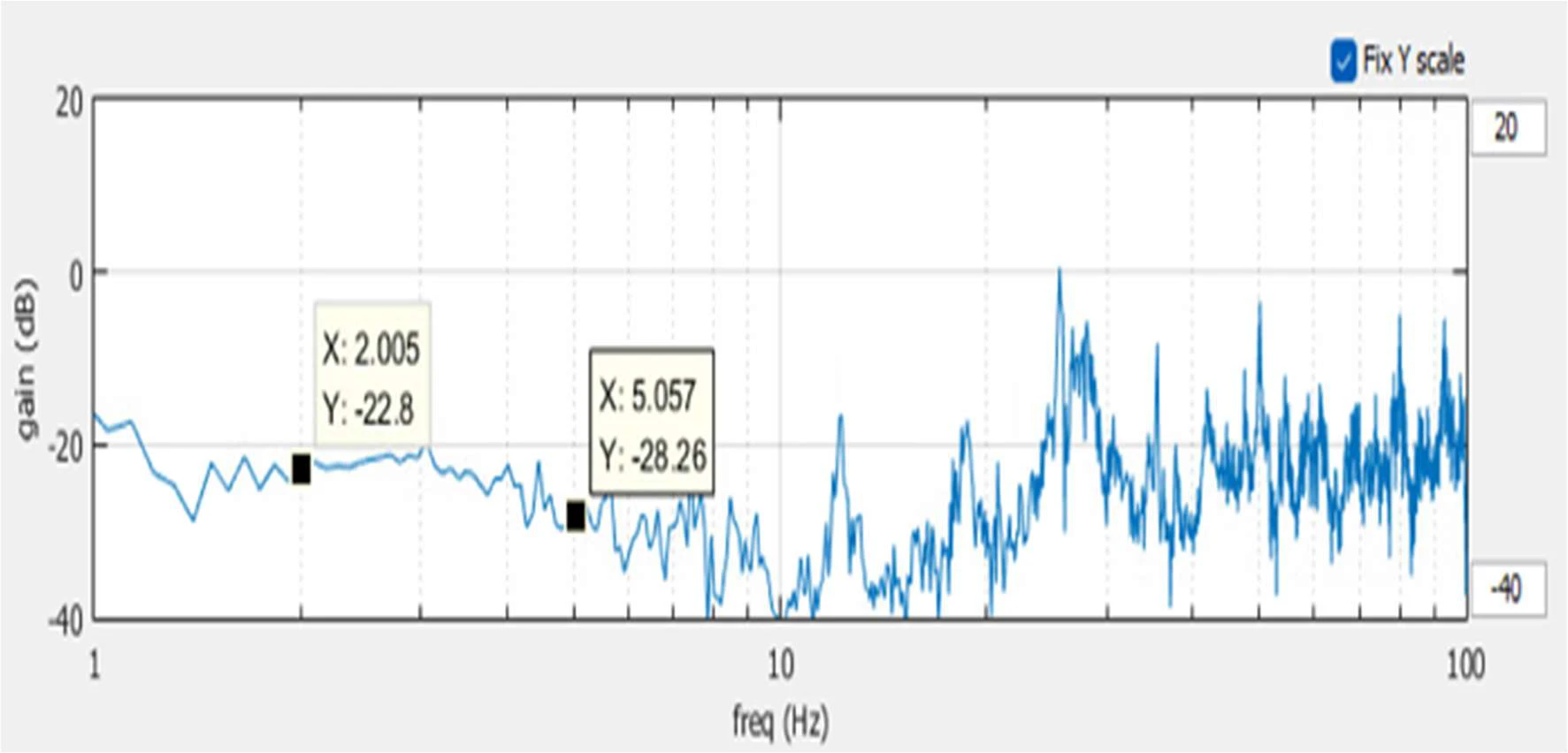

Left to Right Transmissibility

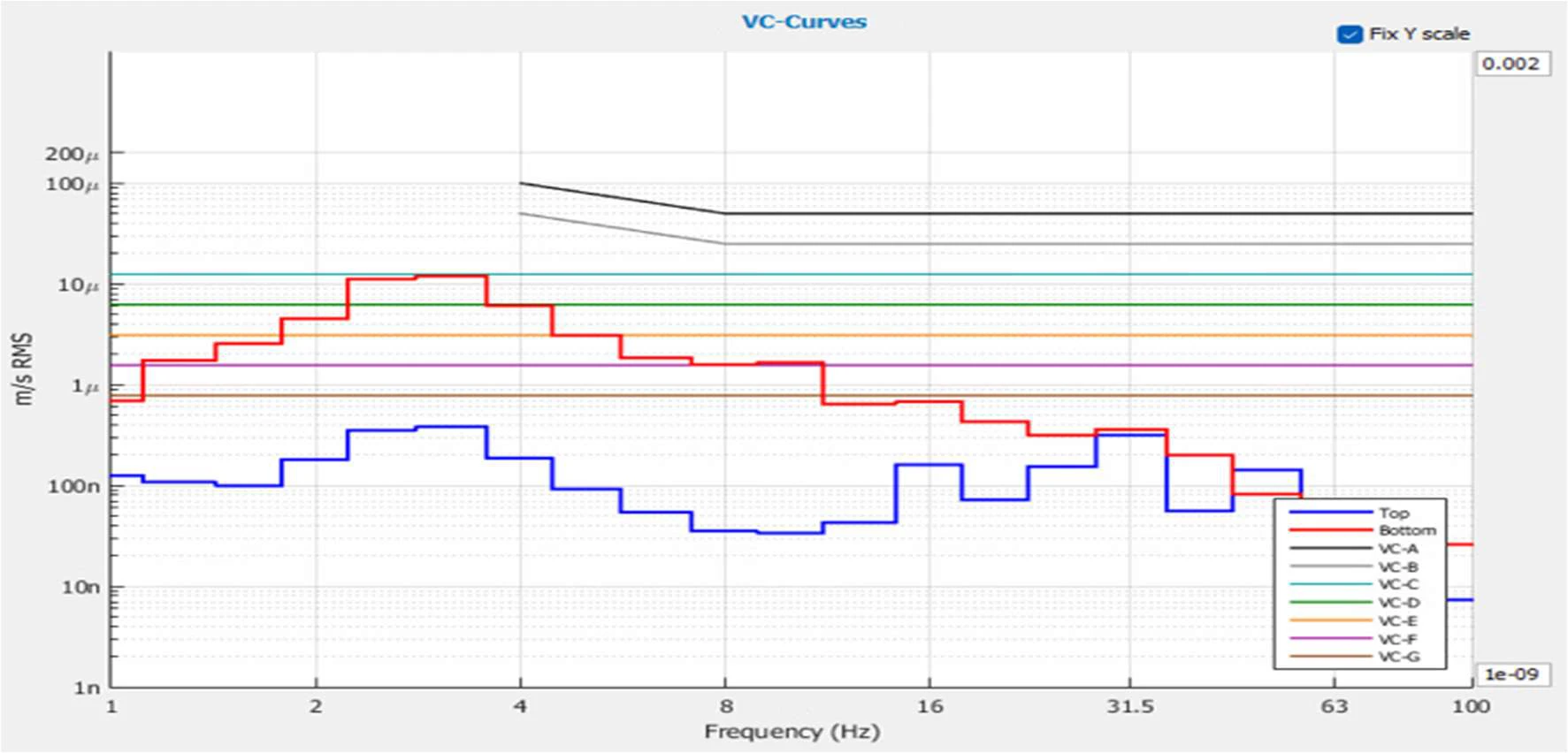

Front to Back VC Curves

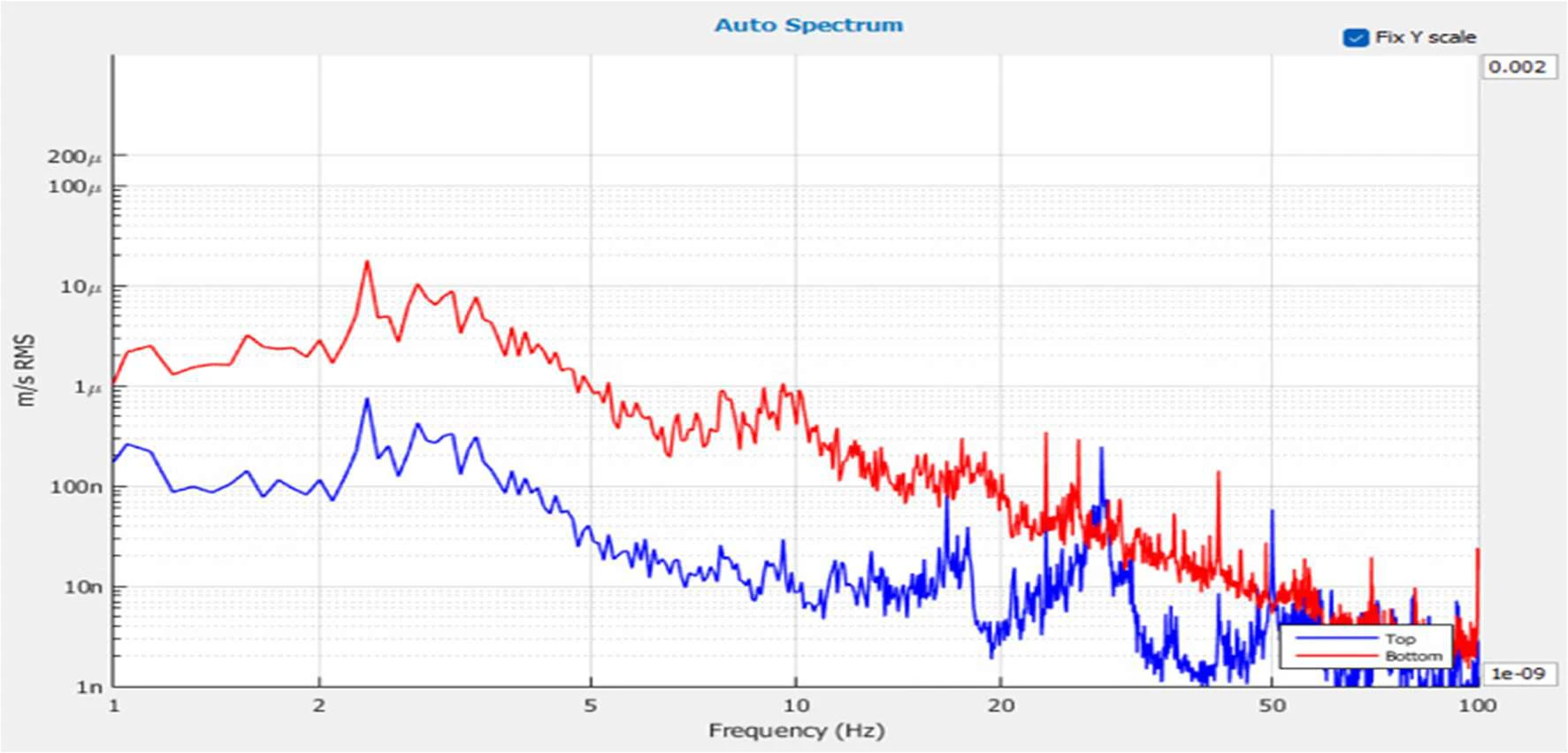

Front to Back Autospectrum

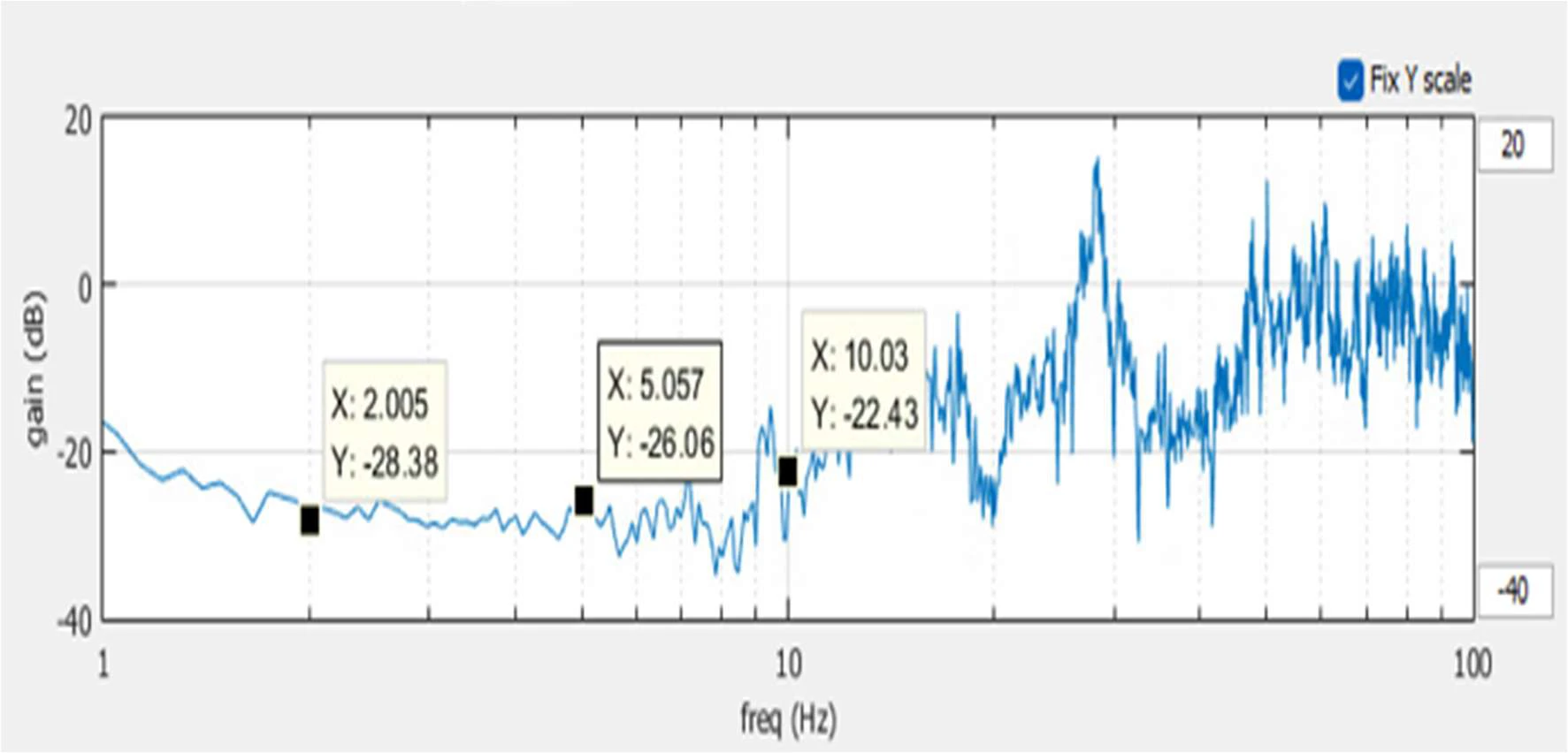

Front to Back Transmissibility

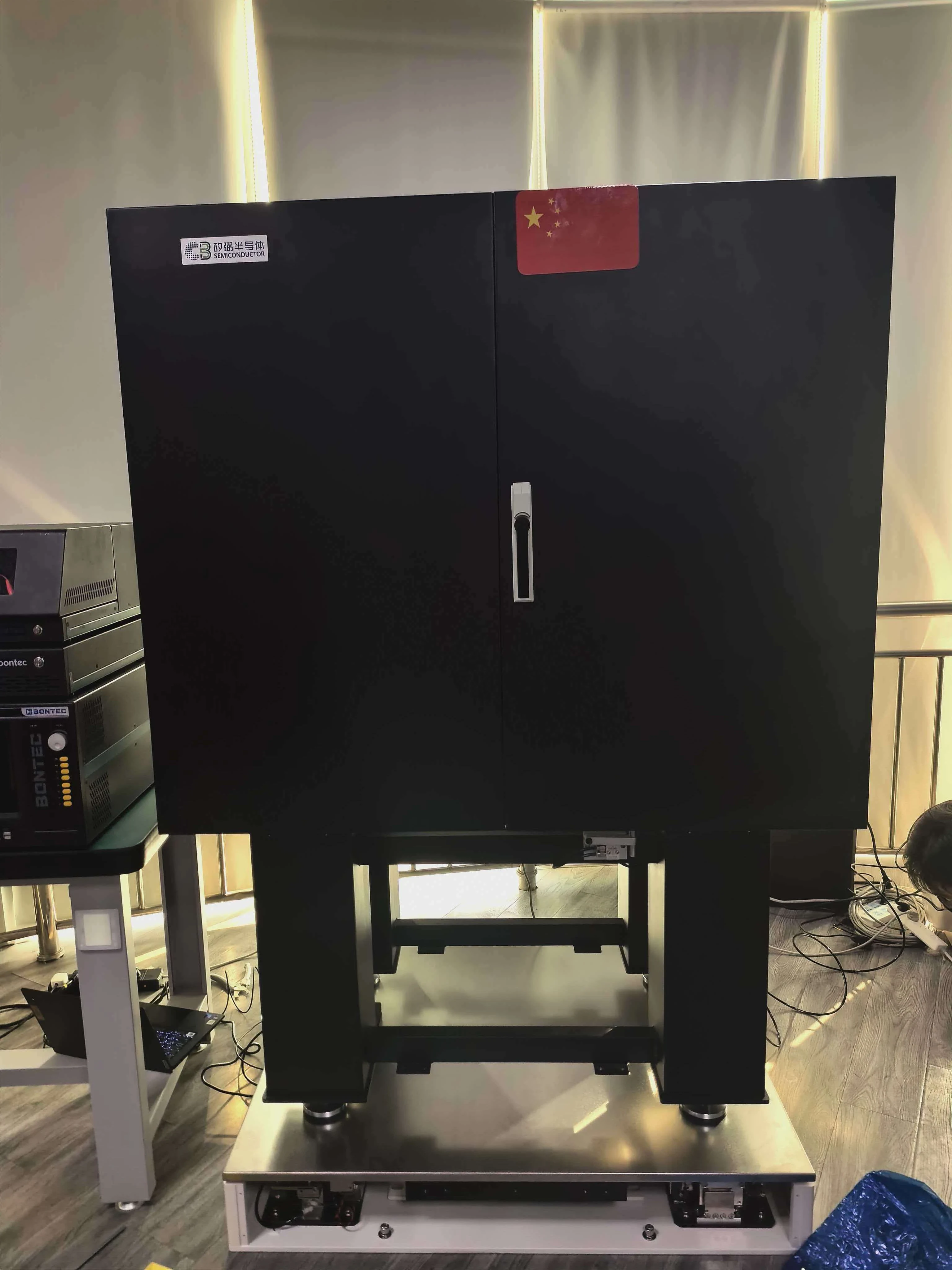

Equipment pictures (site)

Reference

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A

Notes:

- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

- Detail size refers to width in microelectronics fabrication or particle size in medical research.
