Hitachi HT7800 TEM DVIA-ML1000 Installation Report (2nd visit 2026-01-21)

DVIA-M Series

Installation Report

Hitachi

HT7800

TEM

DVIA-ML1000

Overview

The DVIA-ML1000 is appropriately installed and functioning as intended.

2nd tuning . Hitachi HT7800 TEM, on/IDLE.

Vibration Isolation System Information

Model: DVIA-ML1000 — Serial: 250912R5

Engineer

Chaewon Lee — DAEIL SYSTEMS

Tuning date

January 21, 2026

Report written date

January 21, 2026

End user

N/A

Number of tuning trial

2nd (1st: 25.12.09)

Location

N/A

Equipment

Manufacturer: Hitachi — TEM — Model: HT7800

Vibration specification

VC-G

Equipment condition

The equipment is turned on/IDLE

Tuning request

N/A

Data and Image

Vertical, Left to Right, and Front to Back — each: Autospectrum and Transmissibility (3 axes × 2 = 6 measurements; an additional figure may show the equipment photo).

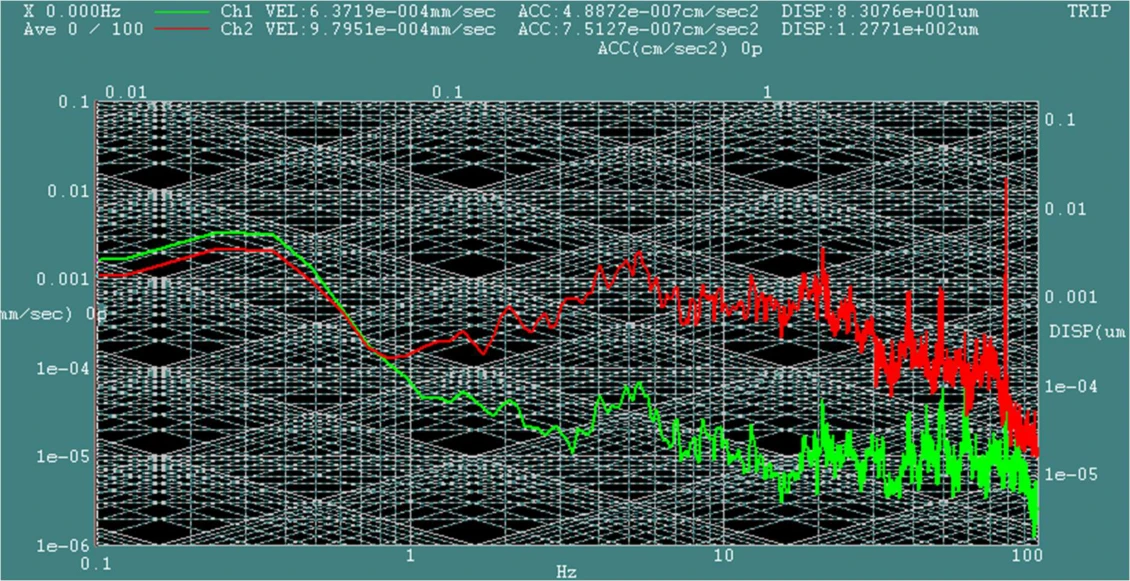

Vertical Autospectrum

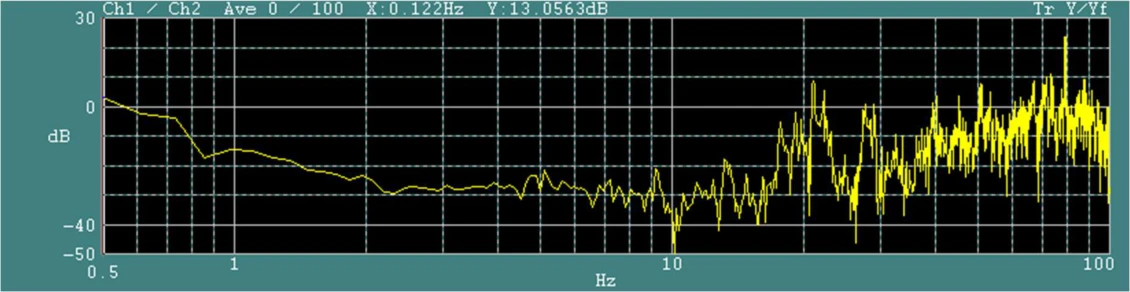

Vertical Transmissibility

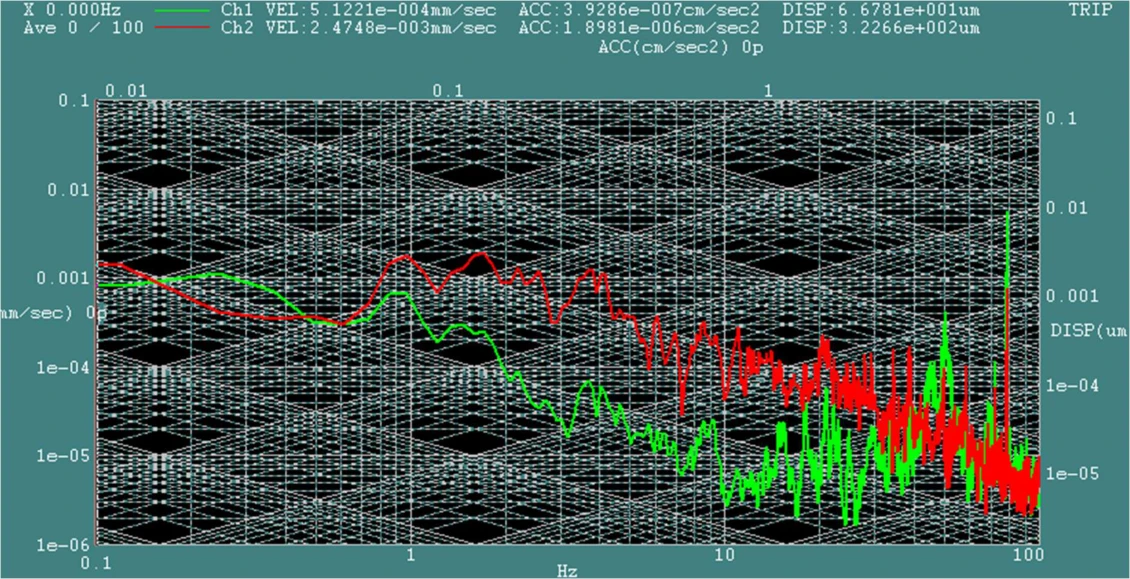

Left to Right Autospectrum

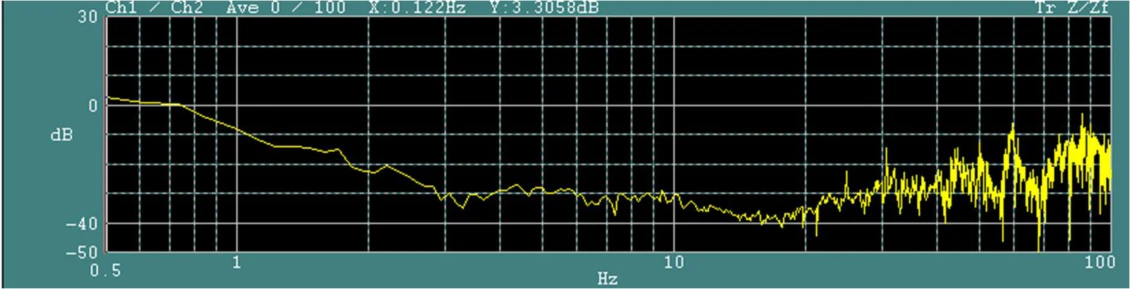

Left to Right Transmissibility

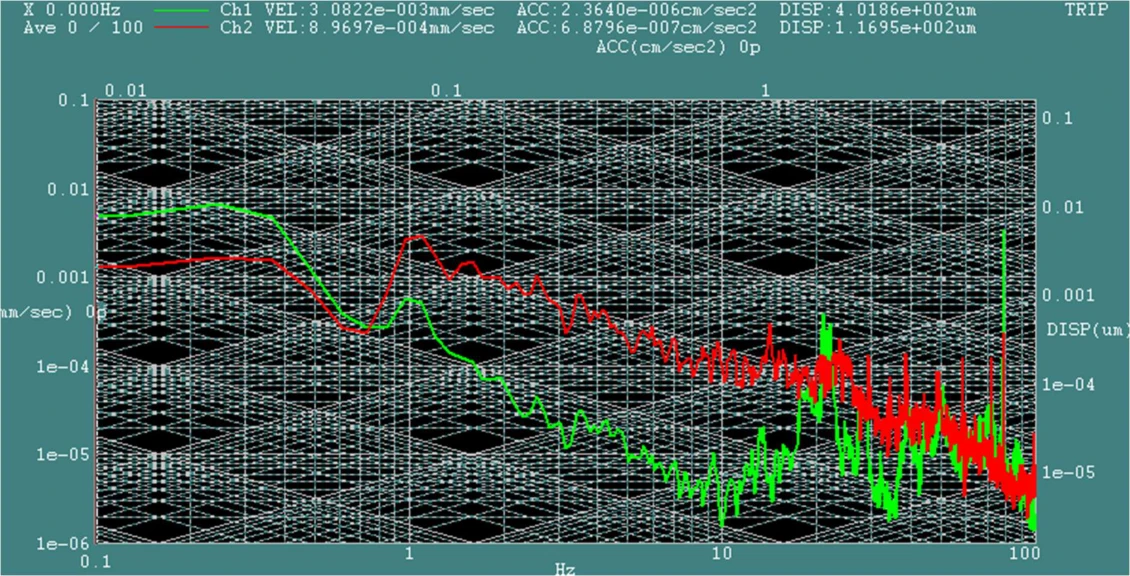

Front to Back Autospectrum

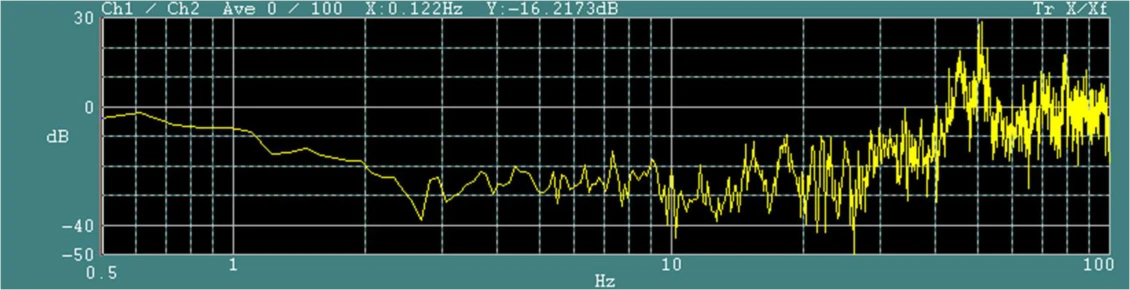

Front to Back Transmissibility

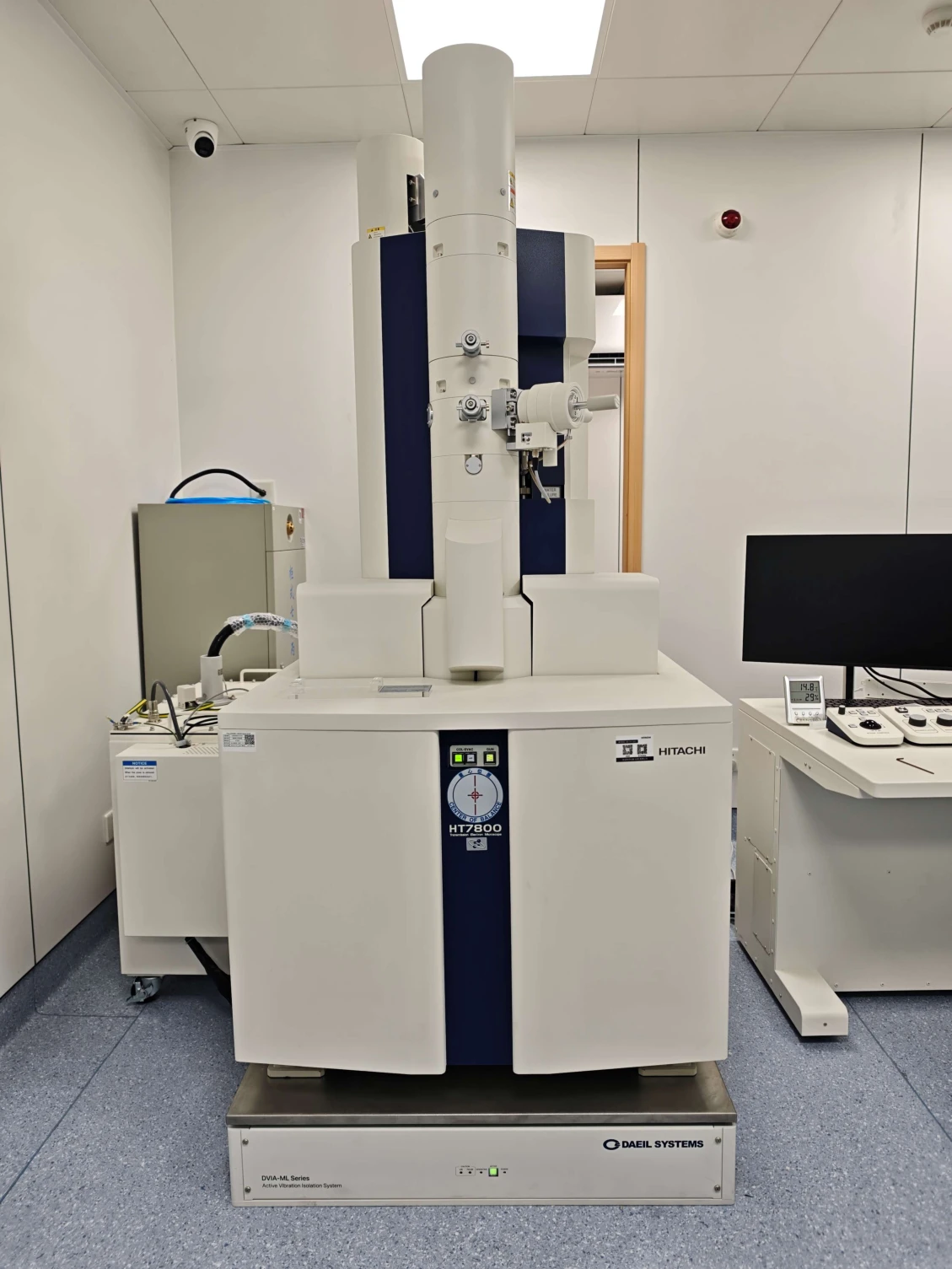

Equipment picture

Reference

Generic Vibration Criteria

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A

Notes:

- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

- Detail size refers to width in microelectronics fabrication or particle size in medical research.
