Vibration Isolation Case Studies

Thermo Fisher Spectra 300 DVIA-MB3000 Installation

DVIA-MB3000 (serial 240304R3) installation tuning and vibration measurement for ZEISS Xradia Context microCT (Yongin). Air conditioner on/off comparison with SignalCalc ACE (Data Physics QUATTRO); VC curves and transmissibility by axis for floor vs platform; measurement summary table; equipment idle. Engineer Chaewon Lee (DAEIL SYSTEMS); installation and report date 2024-04-02. Reference: Generic Vibration Criteria as a markdown table (no separate criterion figure).

DVIA-MB3000 onboard internal-program results (serial 230918R3) with JEOL JEM-F200 for BCPCA, Beijing install site (Place of installation: Beijing). Operator Jongwon Park; setup 23.12.29 · reporting 24.03.27 · measurement 2023.12.29 (Friday). Published screenshots follow the embedded program headings Vertical, Left to Right, and Front to Back. Decorative Word title-block raster omitted.

DVIA-MB3000 abbreviated worksheet for serial 231004R3-1 (source MB3000_231004R3-1_24.03.05.docx). Target equipment Thermo Fisher Spectra 300 for Hainan University (海南大学) in Hainan; setup dated 24.03.05 and reporting dated 24.03.13 per the form; operator Lee, Chaewon; measurement dated 2024.03.05 (Tuesday) with operator DAEIL SYSTEMS Chaewon Lee. Overview uses the standard DVIA-MB3000 sentence; no vibration specification, equipment condition, tuning request, measurement summary table, or Reference section appears in the source. Internal-program captures are labeled Vertical, Left to Right, and Front to Back under “M3000 internal program performance measurement result.” The JPEG under the Set-up title line was treated as decorative and omitted from the public page.

DVIA-MB3000 abbreviated worksheet for serial 231004R3-3 with Thermo Fisher Spectra Ultra at Hainan University in Hainan (source file STONE-300_231004R3-3_24.03.05.docx; form wording follows the MB3000 template). Setup dated 24.03.05 and reporting dated 24.03.13; operator Lee, Chaewon in the header block; measurement dated 2024.03.05 (Tuesday) with operator DAEIL SYSTEMS Chaewon Lee. Overview uses the standard DVIA-MB3000 sentence. No vibration specification, equipment condition, tuning request, measurement summary table, or Reference section appears in the source. Internal-program captures are labeled Vertical, Left to Right, and Front to Back under “M3000 internal program performance measurement result.” The JPEG under the Set-up title line was treated as decorative and omitted from the public page.

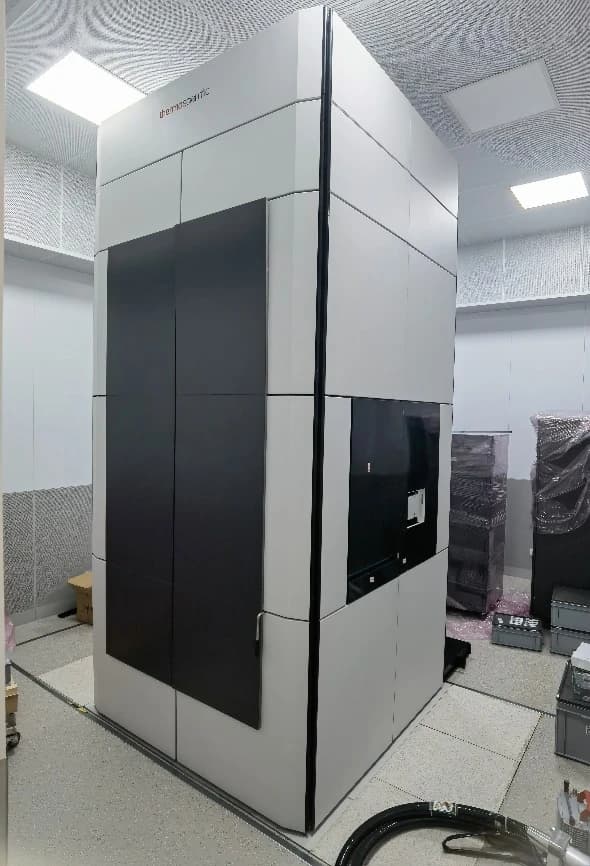

DVIA-MB3000 (serial 231113R4-1) setup worksheet dated 2024.03.05 at Hainan University with Thermo Fisher Spectra 300: installation summary fields, Overview statement, and M3000 internal program performance plots (Vertical, Left to Right, Front to Back). Operators Chaewon Lee (DAEIL SYSTEMS) and Lee Chaewon per report header; reporting date 2024.03.13.
