Thermo Fisher Scientific Talos TEM DVIA-MB3000 Installation Report

DVIA-M Series
Installation Report
Thermo Fisher Scientific

Overview

The DVIA-MB3000 active vibration isolation platform is appropriately installed and functioning as intended

Vibration Isolation System Information

Model: DVIA-MB3000

Serial Number: 240201R4

Engineer

Byeonghun Cho from DAEIL SYSTEMS

Tuning Date

June 7, 2024

Number of Tuning Trial

1st tuning

Location

Hainan, China

Equipment

Manufacturer: Thermo Fisher Scientific

Equipment: TEM

Model: Talos

Equipment Condition

The equipment is installed / IDLE

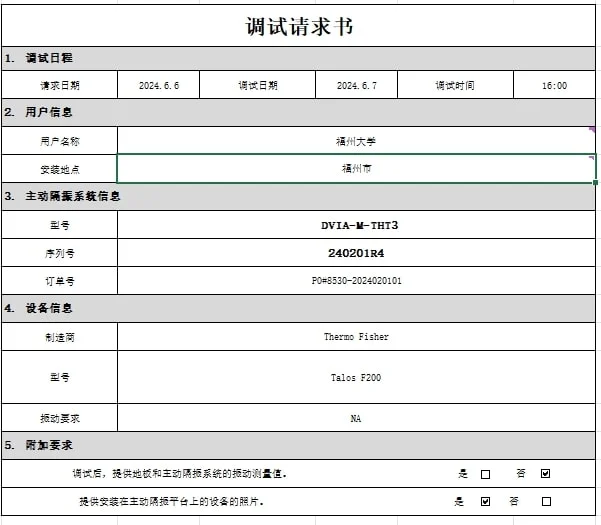

Tuning Request

Equipment allowable vibration

Vertical: VC-E / Left to Right: VC-F / Front to Back: VC-F

Data and Image

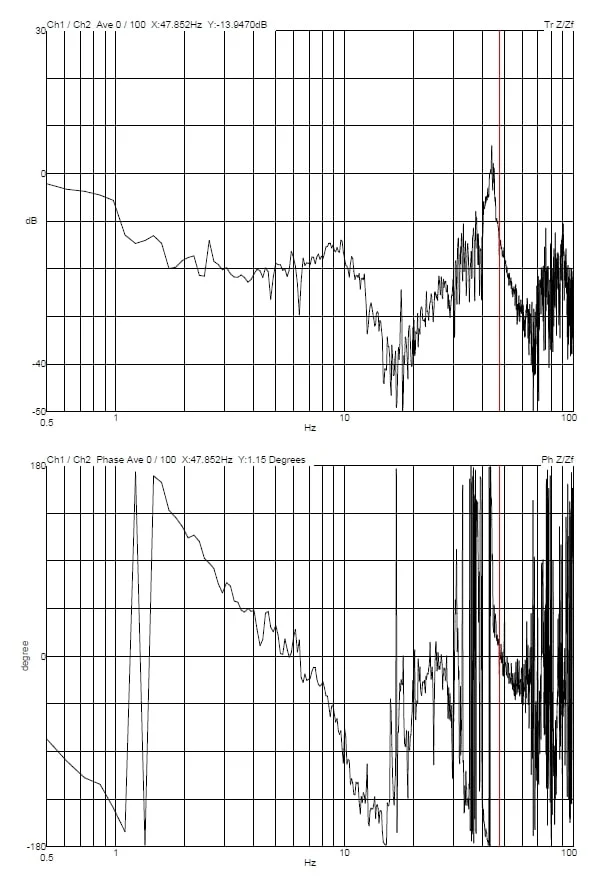

Vertical Transmissibility

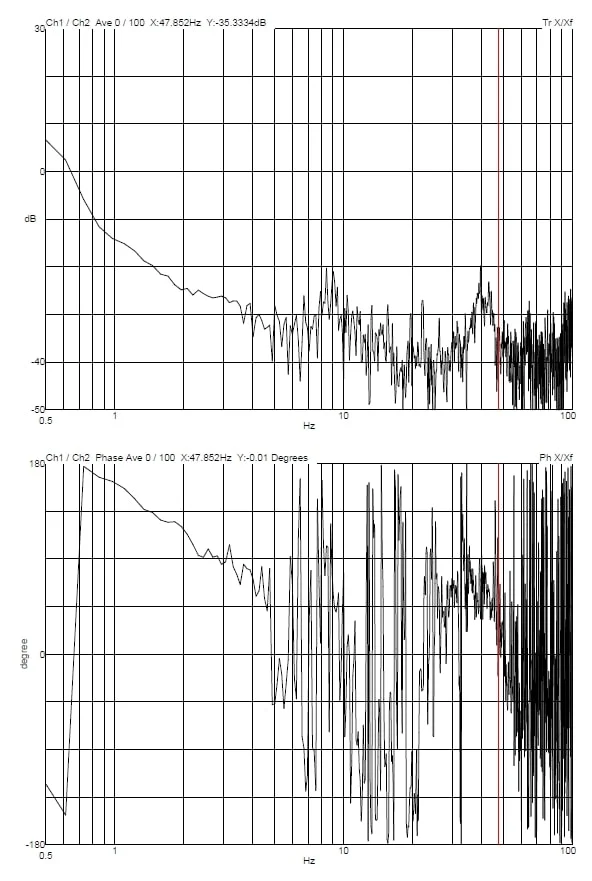

Left to Right Transmissibility

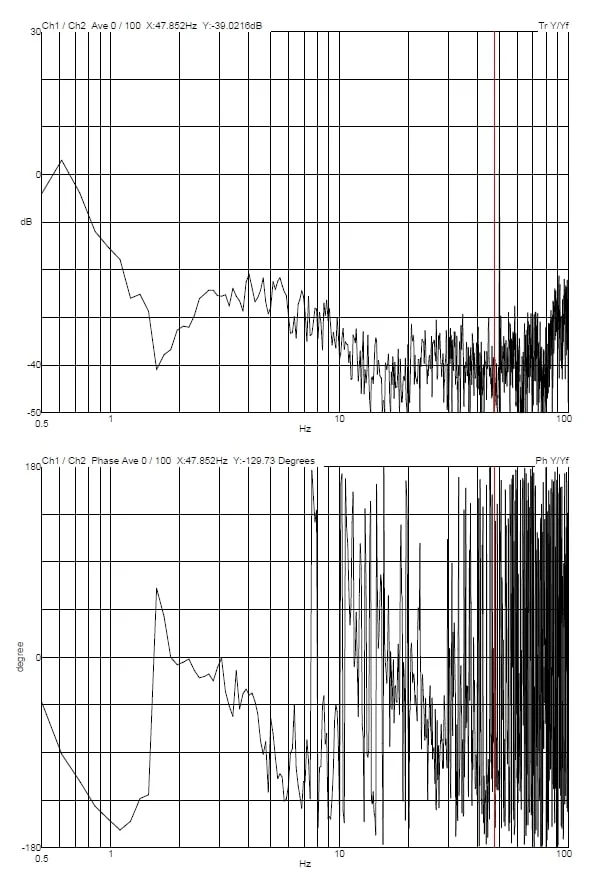

Front to Back Transmissibility

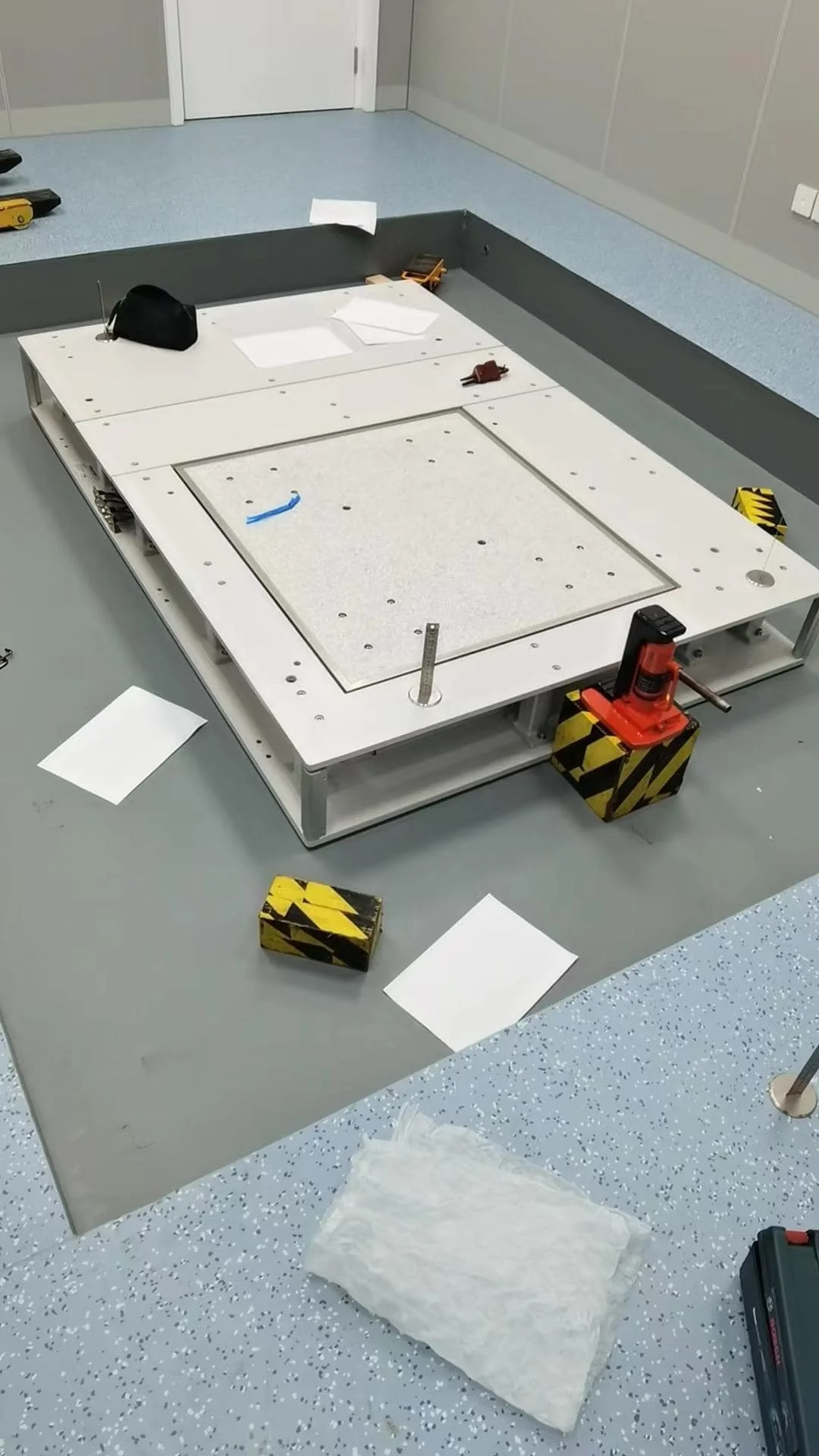

Equipment picture

Reference

Generic Vibration Criteria

Criterion CurveDescriptionAmplitude
μm/s (µin/s)		Detail Size
μm
Workshop (ISO)Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.800 (32,000)N/A
Office (ISO)Perceptible vibration. Appropriate to offices and non-sensitive areas.400 (16,000)N/A
Residential Area (ISO)Barely perceptible vibration. Appropriate to sleep areas in most instances.200 (8,000)75
Operating Theatre (ISO)Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.100 (4,000)25
VC-AAdequate for optical microscopes to 400x, microbalances, optical balances.50 (2,000)8
VC-BAppropriate for inspection and lithography equipment to 3μm line widths.25 (1,000)3
VC-CAppropriate for optical microscopes to 1000x, lithography equipment to 1μm.12.5 (500)1 - 3
VC-DSuitable for demanding equipment including electron microscopes (SEMs/TEMs).6.25 (250)0.1 - 0.3
VC-EFor the most demanding systems including E-Beam lithography at nanometer scales.3.12 (125)< 0.1
VC-FFor extremely quiet research spaces. Not recommended as design criterion.1.56 (62.5)N/A
VC-GFor extremely quiet research spaces. Not recommended as design criterion.0.78 (31.25)N/A

Notes:

1. VC-A/B is measured in 1/3 octave bands from 8-80 Hz, VC-C through VC-G from 1-80 Hz.

2. Detail size refers to line widths in microelectronics manufacturing or particle sizes in medical research.
