ZOLIX DVIA-MO1000 (200914R2, P206) Remote Tuning Installation Report — November 19, 2020
DVIA-M Series
Installation Report
ZOLIX
MO1000
DVIA-MO1000
P206
200914R2
Remote tuning
Contents

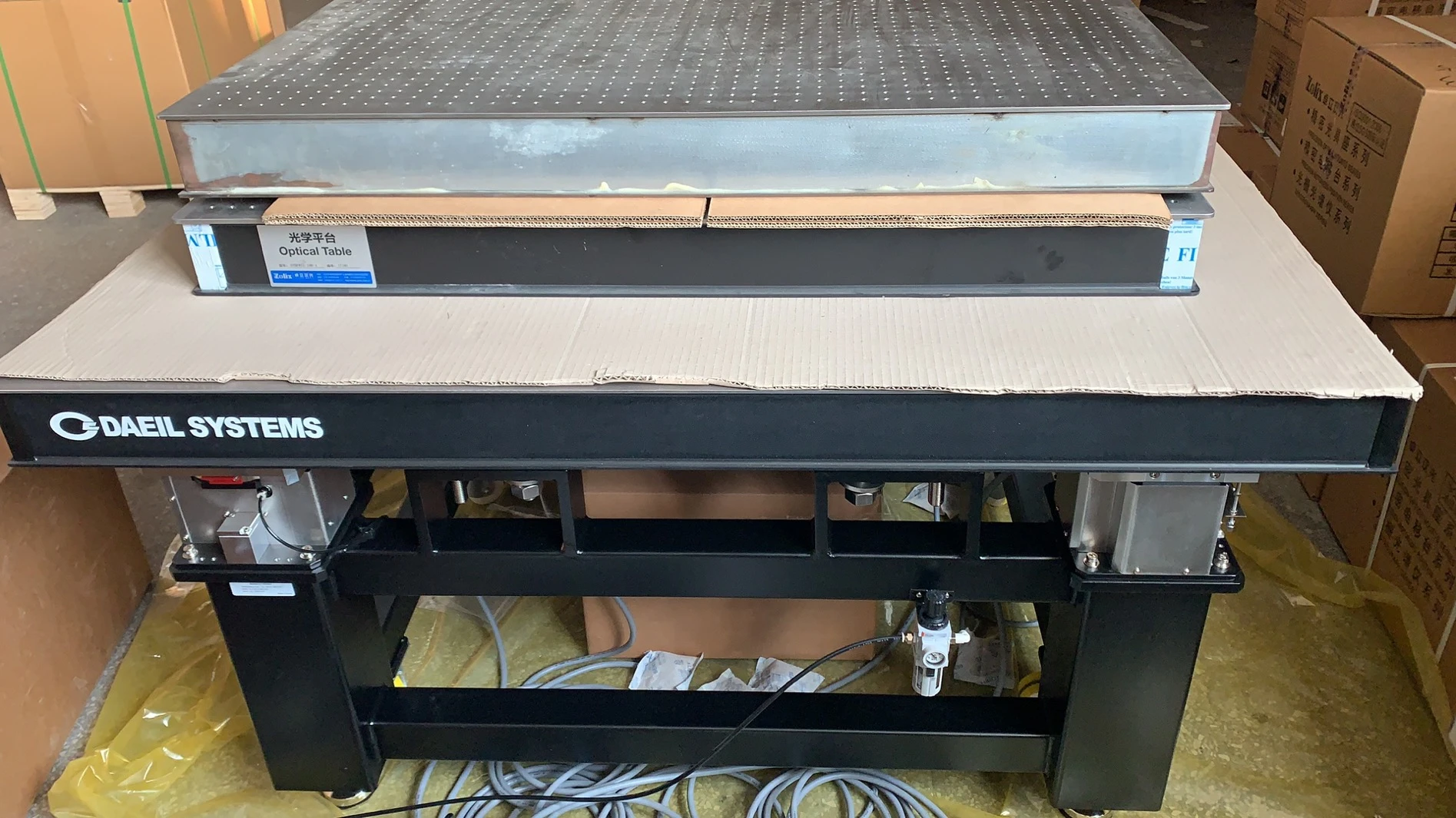

MO1000_200914R2(P206) Set up
Target equipment and site
| Target equipment | Dummy |
|---|---|
| Place of installation | Zolix |
| Remark | Good Performance |
| END USER | Zolix |
Reporting schedule
Operator: Munho Noh
Date of setup : 20.11.19
Date of reporting : 20.11.19
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.11.19 (THU)
Operator: Daeil System, Research engineer Munho Noh
Place of measurement : Zolix
Equipment Model: Dummy
Measurement conditions and results
Summary of measurement results
Test Condition
Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -23.26 dB | -35.17 dB | -31.86 dB |
| X | -25.05 dB | -39.73 dB | -39.34 dB |
| Y | -26.68 dB | -35.11 dB | -37.07 dB |
Good omnidirectional performance.
@30 Hz / Z : -34.31 dB / X : -46.96 dB / Y : -37.08 dB
MB1000 internal program performance measurement result

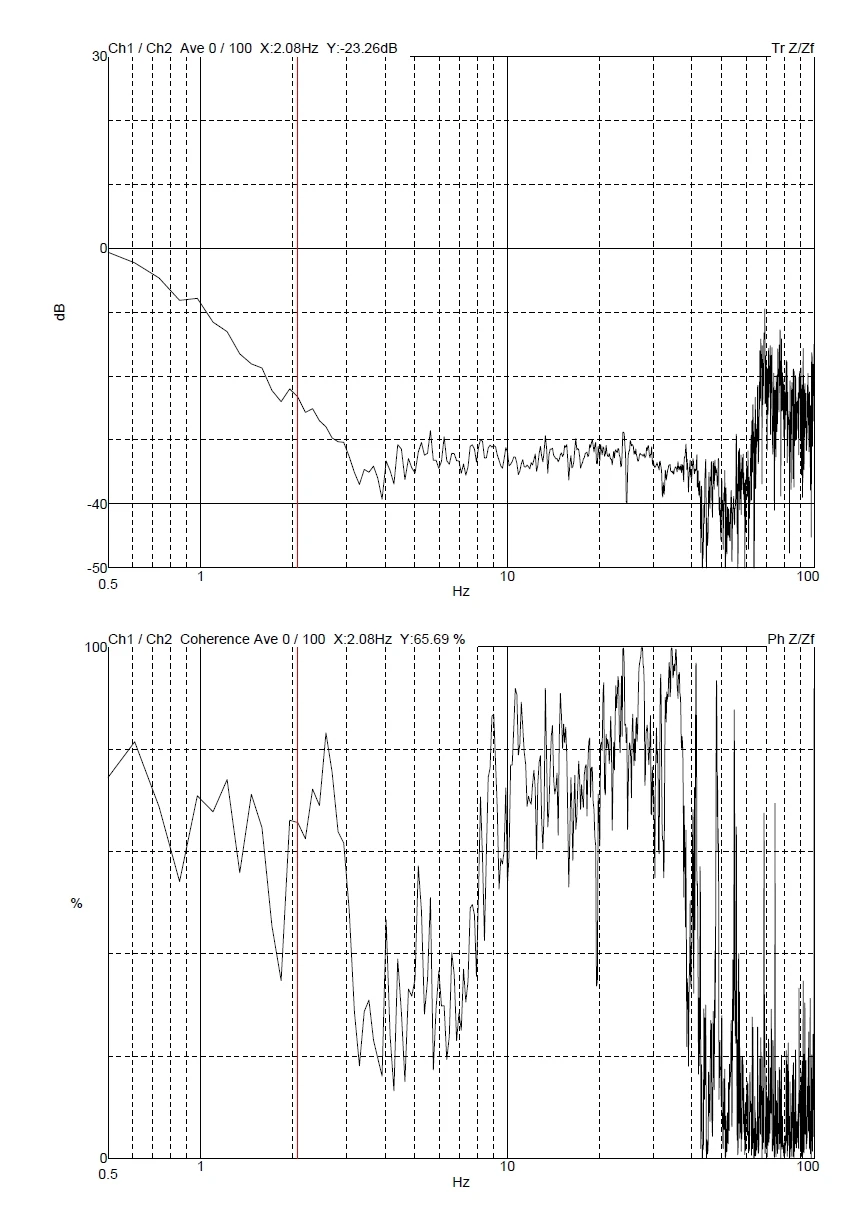

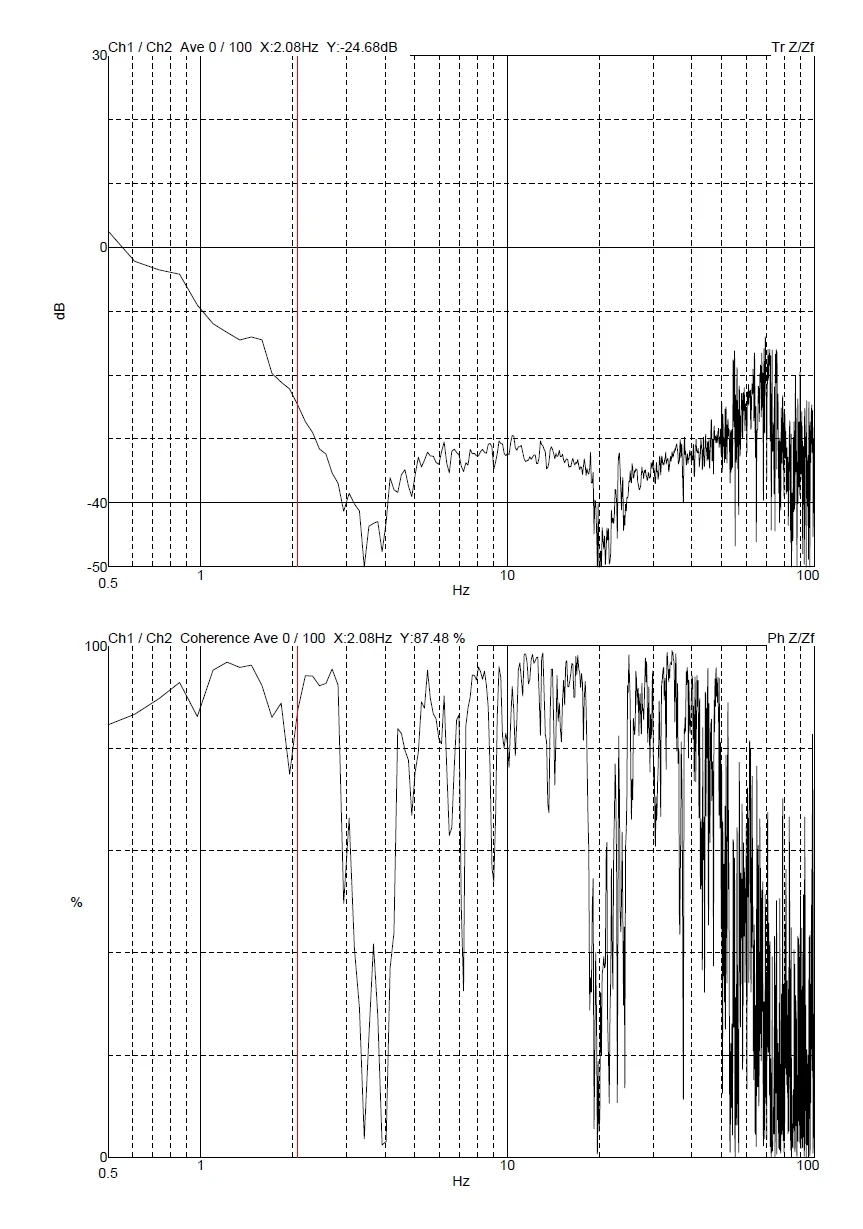

Z axis

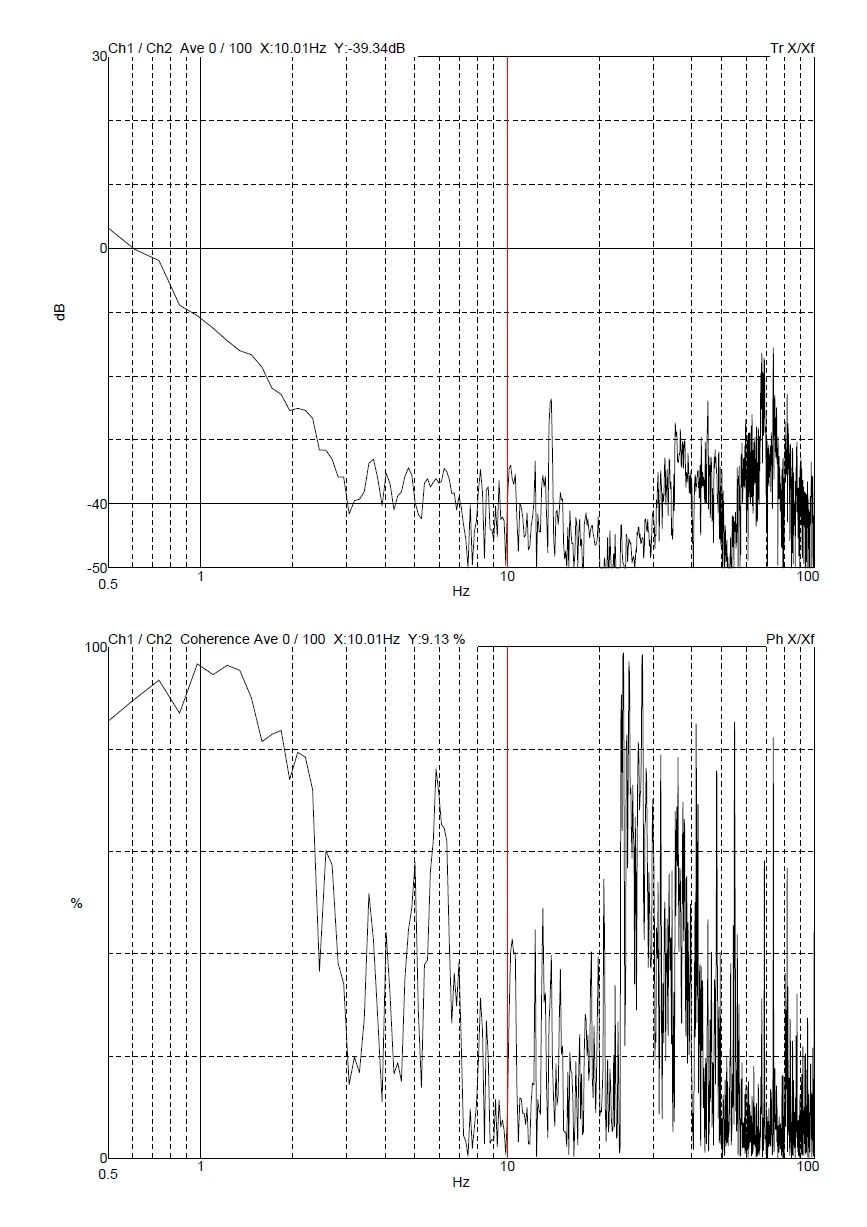

X axis

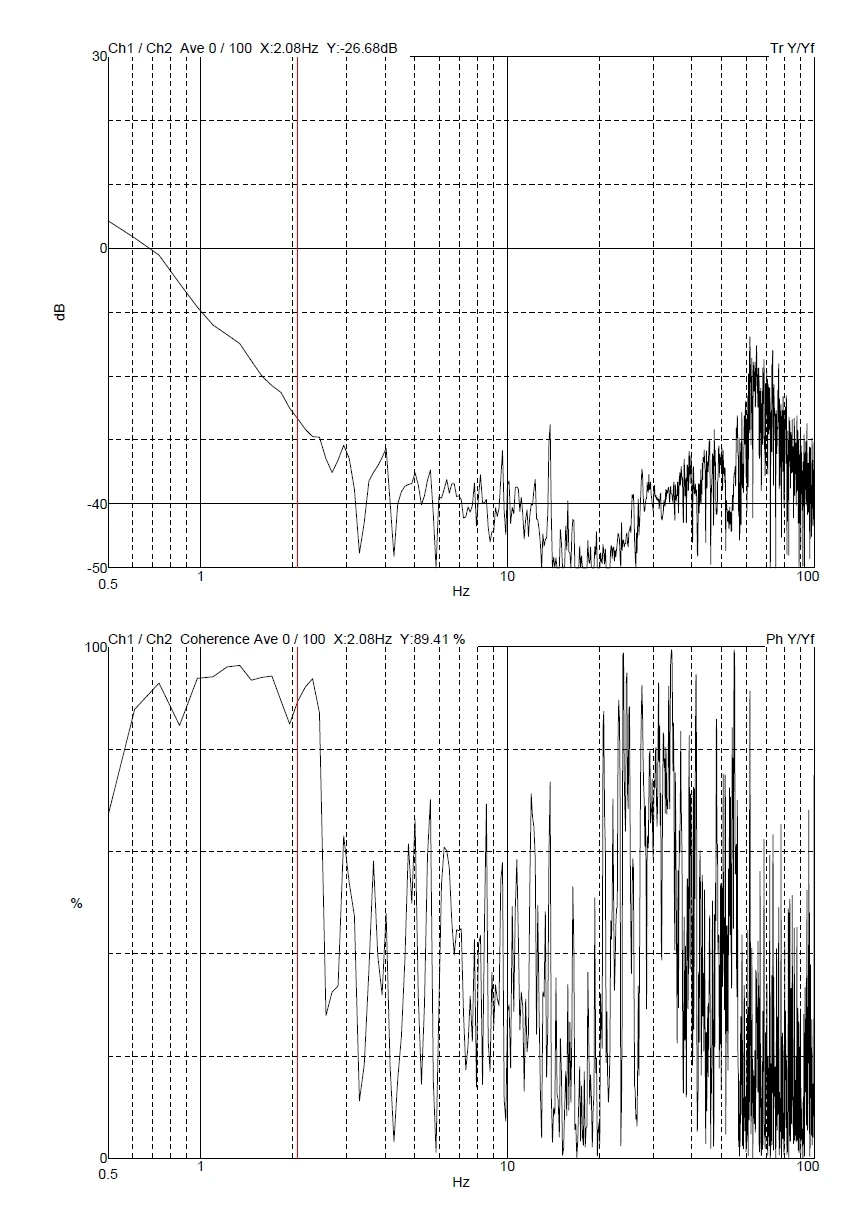

Y axis
