Handu Package Hirox Microscope DVIA-MO1000 (P20) Vibration Environment Measurement — May 2, 2016

2016.04.30 (Sat)

2016.05.02 (Mon)

Choi HyoungMun (Deputy Manager), Lim Jongwook (Assistant Manager)

After installing the vibration isolation platform, the vibration environment was measured to verify that there is no issue with equipment use.

2016. 04. 30(Sat), Operator: Lim Jongwook, DAEIL SYSTEMS

Namdong Industrial Complex, Incheon, Handu Package

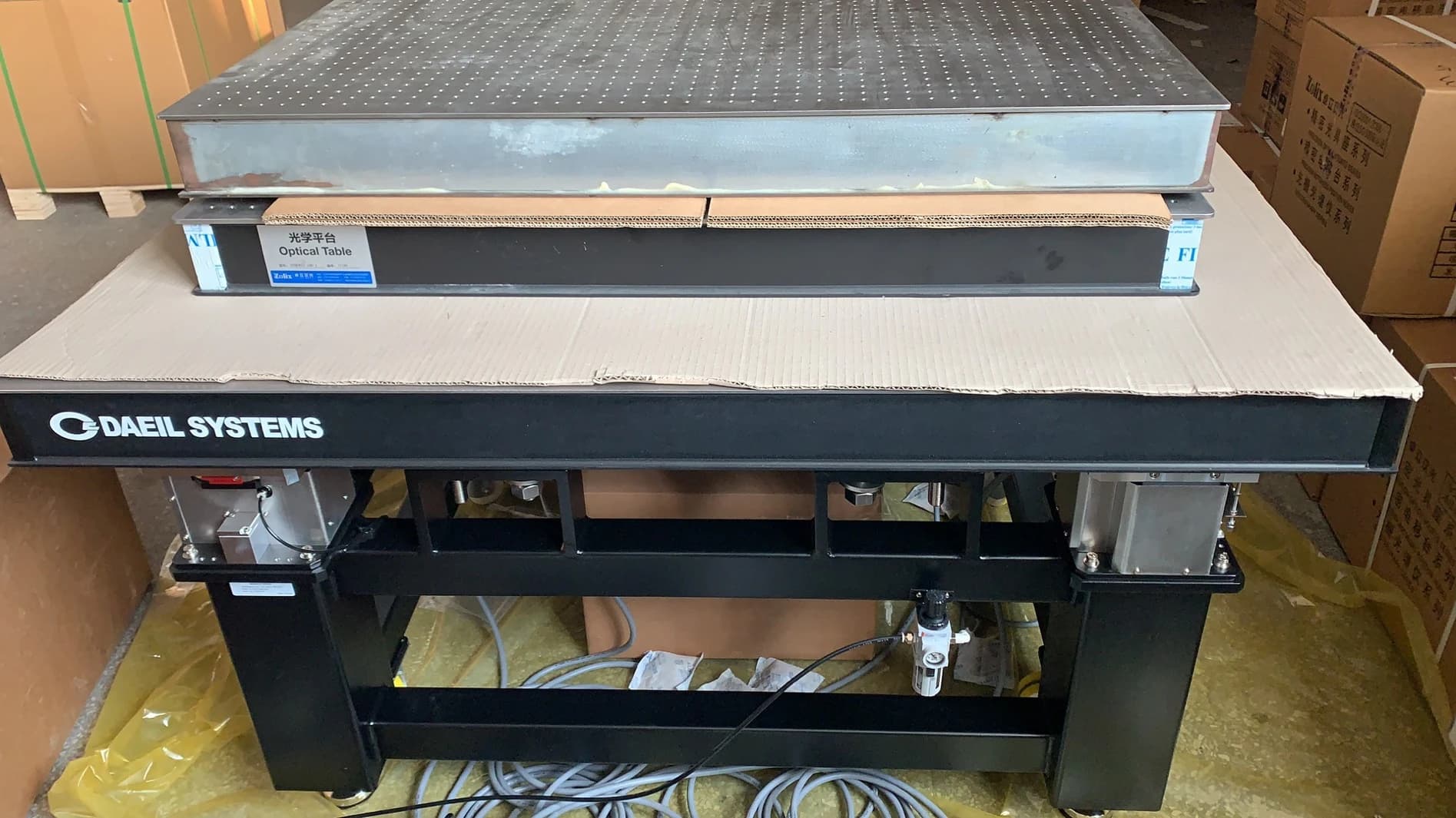

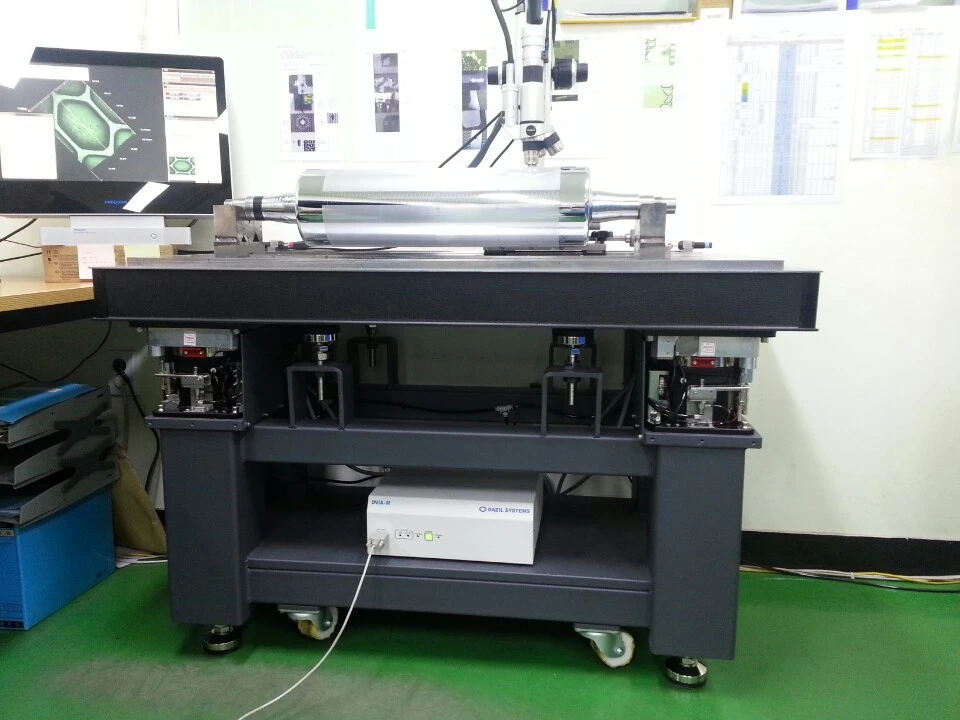

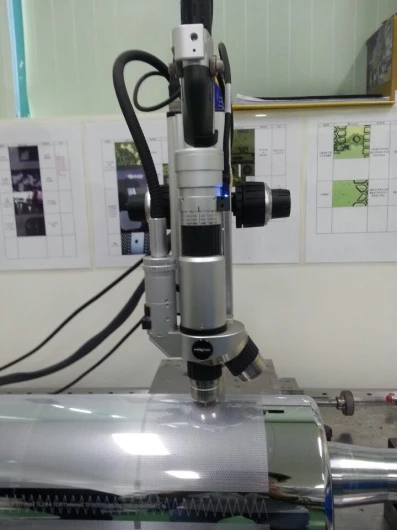

Hirox microscope

Measurement condition: MO1000 top plate and building floor were measured.

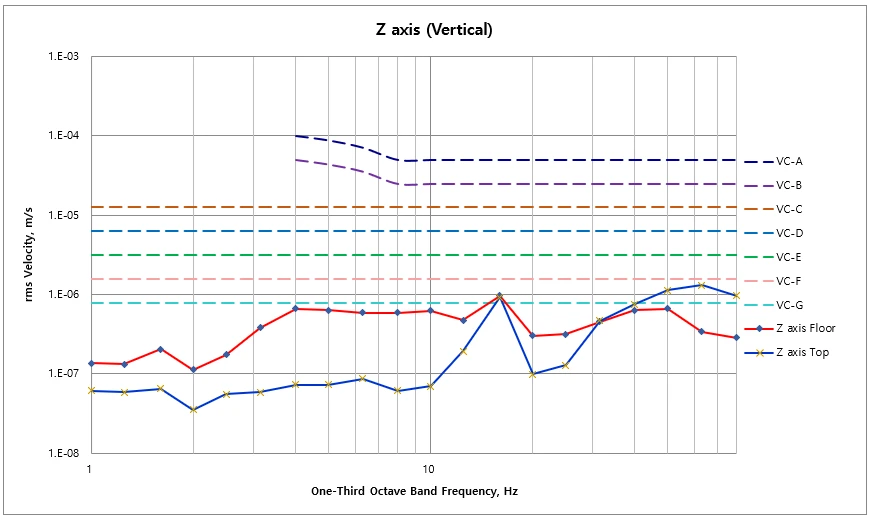

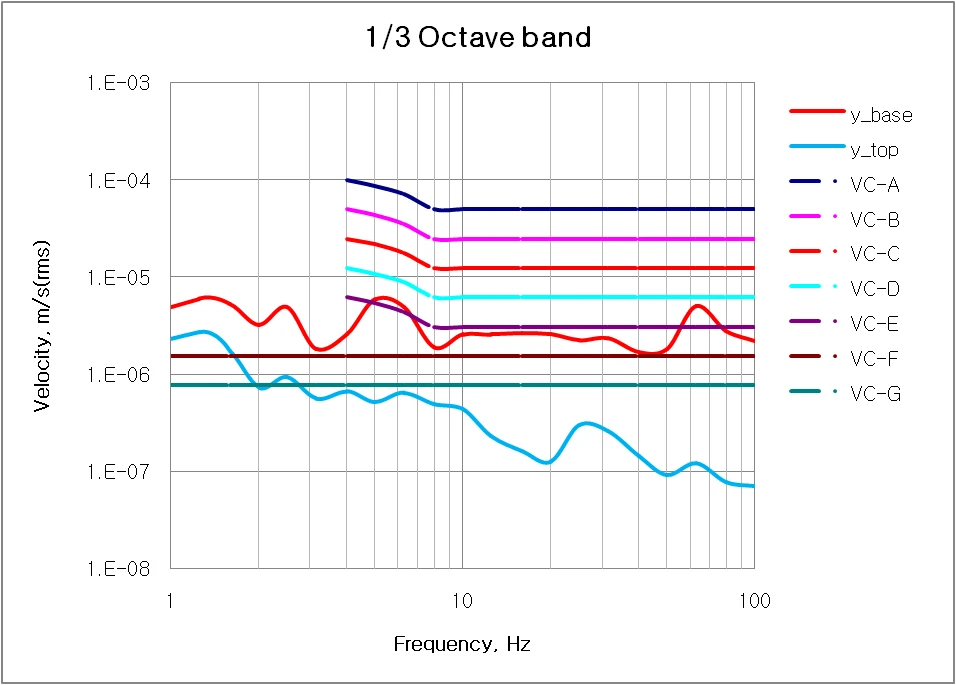

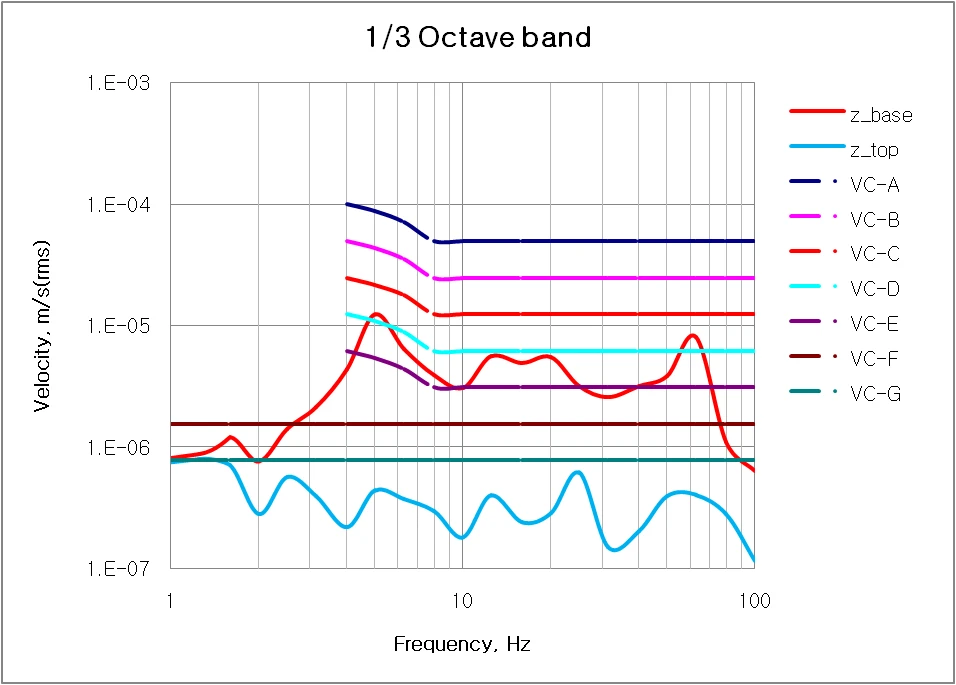

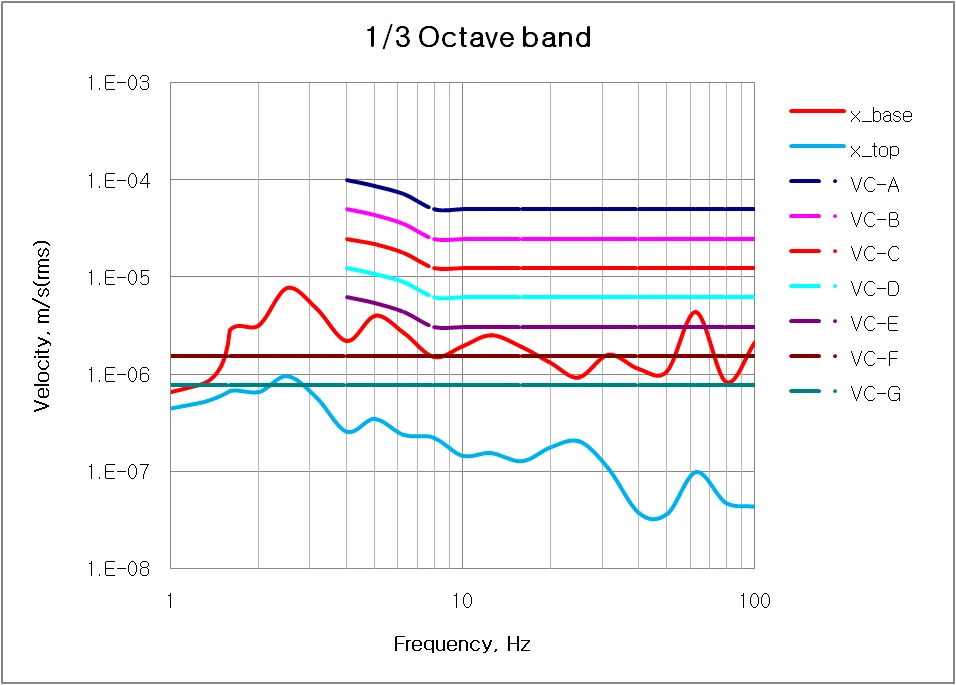

On the vertical axis the environment is G class; on the horizontal axes it is E class, which is favorable.

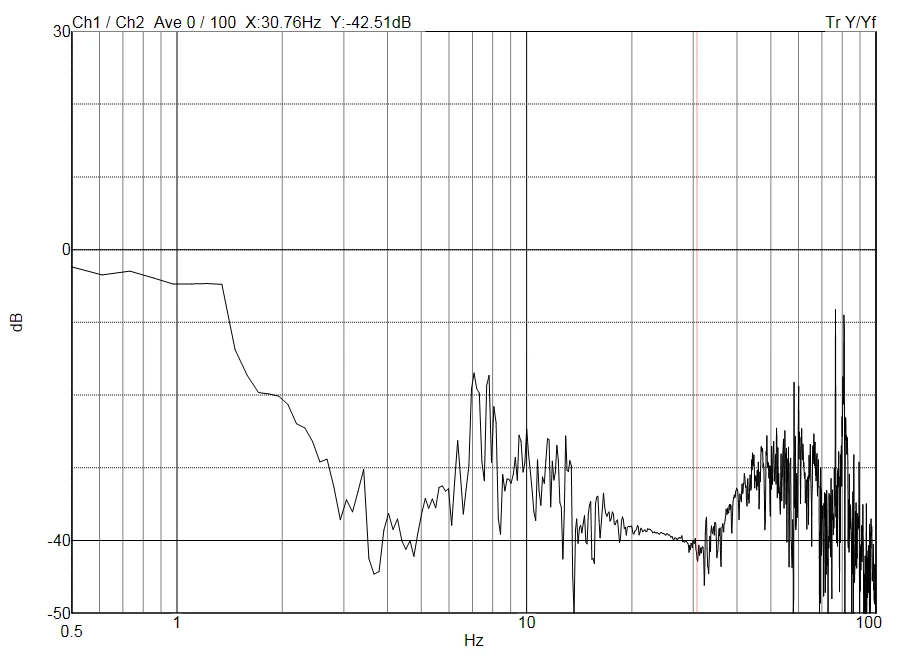

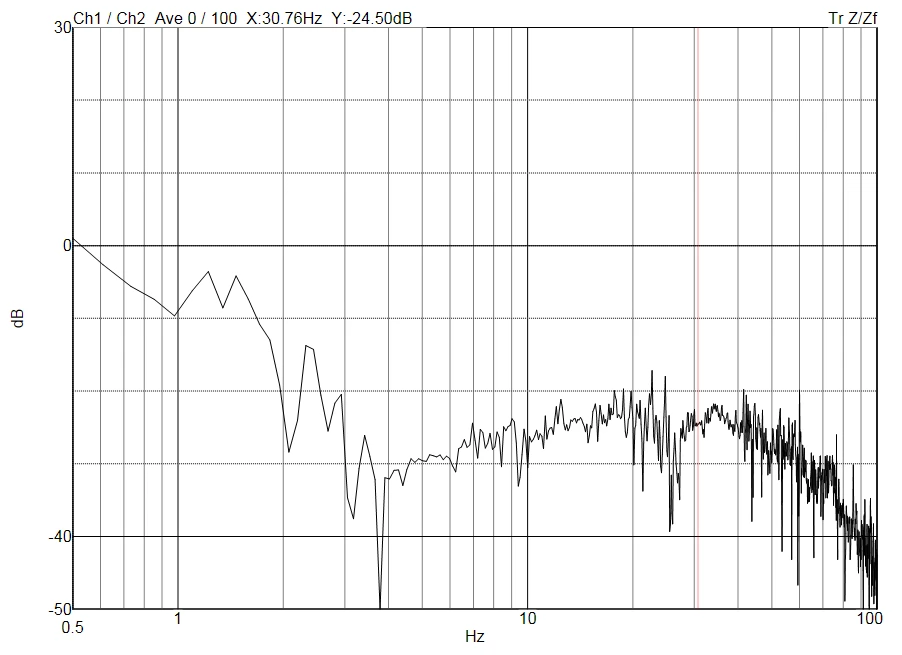

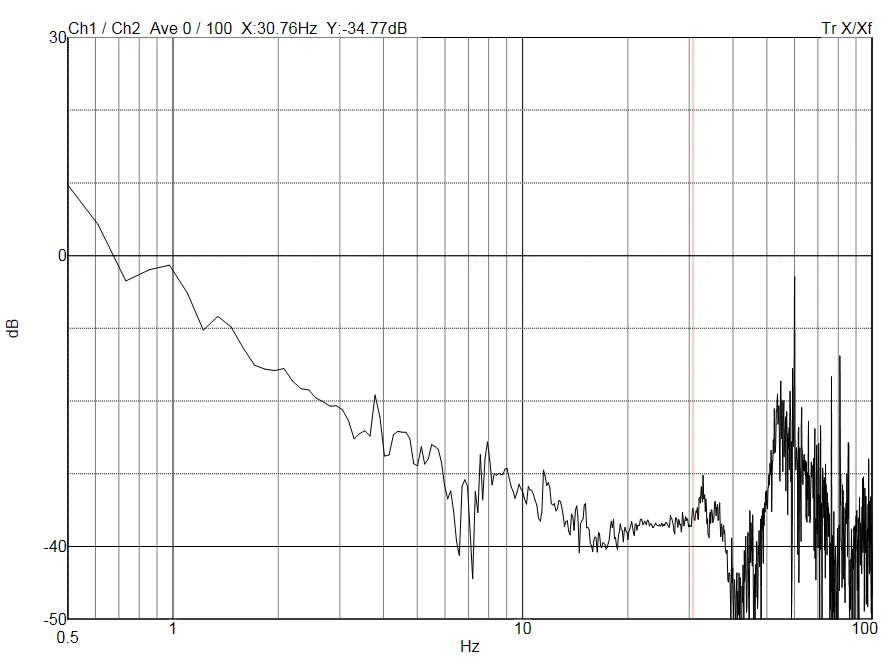

The built-in program transmissibility measurement is about −30 dB in all directions, indicating good isolation performance.

Strong impact vibration from nearby activity (items placed on the floor) was present, and machinery running at the adjacent station was causing visible image shake.

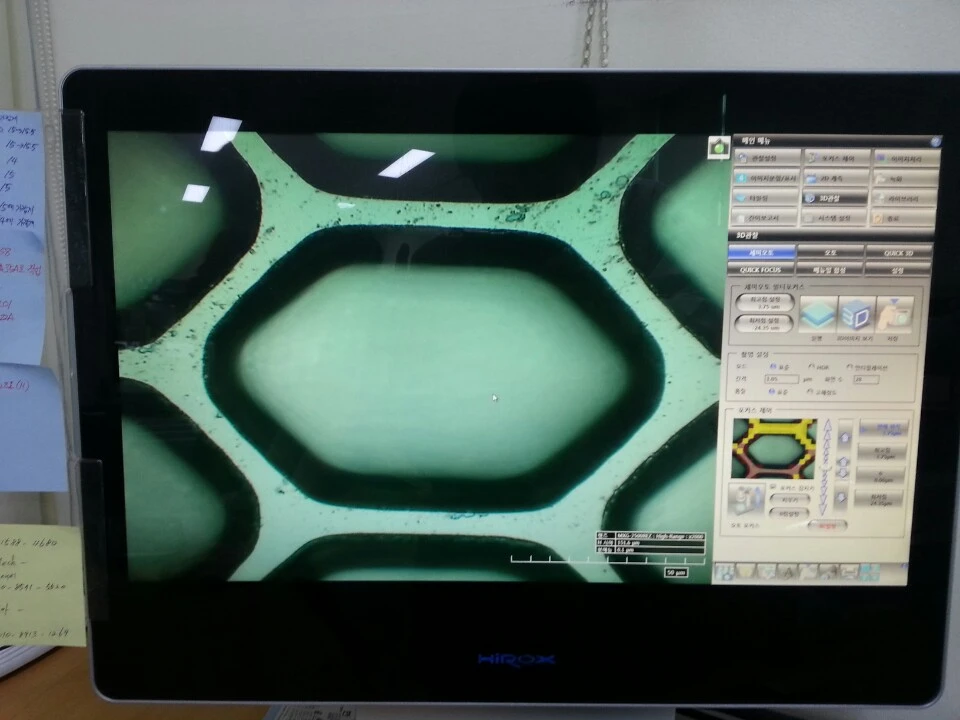

After installing the vibration isolation platform, brief shake occurs when impact vibration is applied; otherwise shake is not observed.

The microscope is moved vertically and horizontally for measurement, and objects about 15 kg–20 kg are placed on and removed from the platform. The passive state can therefore change.

Measurement positions and load conditions were varied assuming these situations, imaging was performed accordingly, and the customer was satisfied.

VC-class graphs, built-in program transmissibility, and measurement images are attached.
