Thermo Fisher Scientific Spectra 200 TEM DVIA-MB3000 Installation Report
Contents
Executive Summary
Introduction
The purpose of this work is to install the Vibration Isolation MB3000 system for the Thermo Fisher Scientific Spectra 200 in Spectra Room.
Summary Results
Below is a summary of the results:
MB3000 ON PASSED the Vibration specifications
Introduction
The purpose of this work is to install the Vibration Isolation MB3000 system for the Thermo Fisher Scientific Spectra 200 in Spectra Room.
Product Details
| Part Delivered | Serial Number | Software |
|---|---|---|
| MB3000 | 220542R2 | Site-Specific Tune |
Summary of Work
We installed the system by
We tested the system by
We left the system
Procedures
Vibration
VEC conducted vibration measurements in six directions. Acceleration measurements were taken at a bandwidth of 200 with units of m/s (RMS). The acceleration spectra with 200 bandwidths were recorded.
Setup
| Parameter | Value |
|---|---|
| Bandwidth | 200 |
| Lines | 3200 |
| Window | Hanning |
| Coupling | ICP 2mA |
| Average Type | Stable |
| Duration | 60 |
| Engineering Units | um/s (RMS) |
Specifications
VEC used the following specifications for the project.
Specification Summary
| Tool | Specification |
|---|---|
| Thermo Fisher Scientific Spectra 200 | Vibration: VC-F, All Directions: VC-G |
Detailed Specifications
Results
Detailed Results
| Type | Position | Direction | Specification | Measurement | Result |
|---|---|---|---|---|---|
| Vibration | Floor | Z-Axis | VC-G | VC-E | ✗ FAIL |
| X-Axis | VC-G | ✓ PASS | |||
| Y-Axis | VC-F | ✗ FAIL | |||
| MB3000 | Z-Axis | VC-G | ✓ PASS | ||
| X-Axis | VC-G | ✓ PASS | |||
| Y-Axis | VC-G | ✓ PASS |
Data
Spectra Room - Thermo Fisher Scientific Spectra 200
Vibration
Figure 1: Z-Axis – Floor
Figure 2: Z-Axis – MB 3000
Figure 3: Z-Axis – Transmissibility
Figure 4: X-Axis – Floor
Figure 5: X-Axis – MB 3000

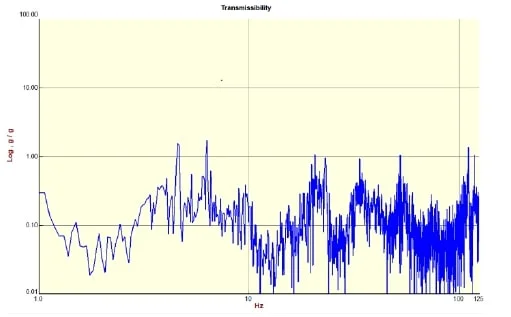

Figure 6: X-Axis – Transmissibility
Figure 7: Y-Axis – Floor
Figure 8: Y-Axis – MB 3000

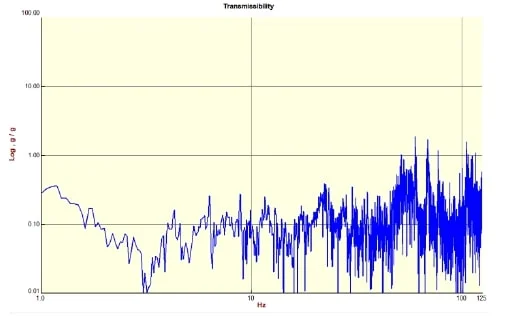

Figure 9: Y-Axis – Transmissibility

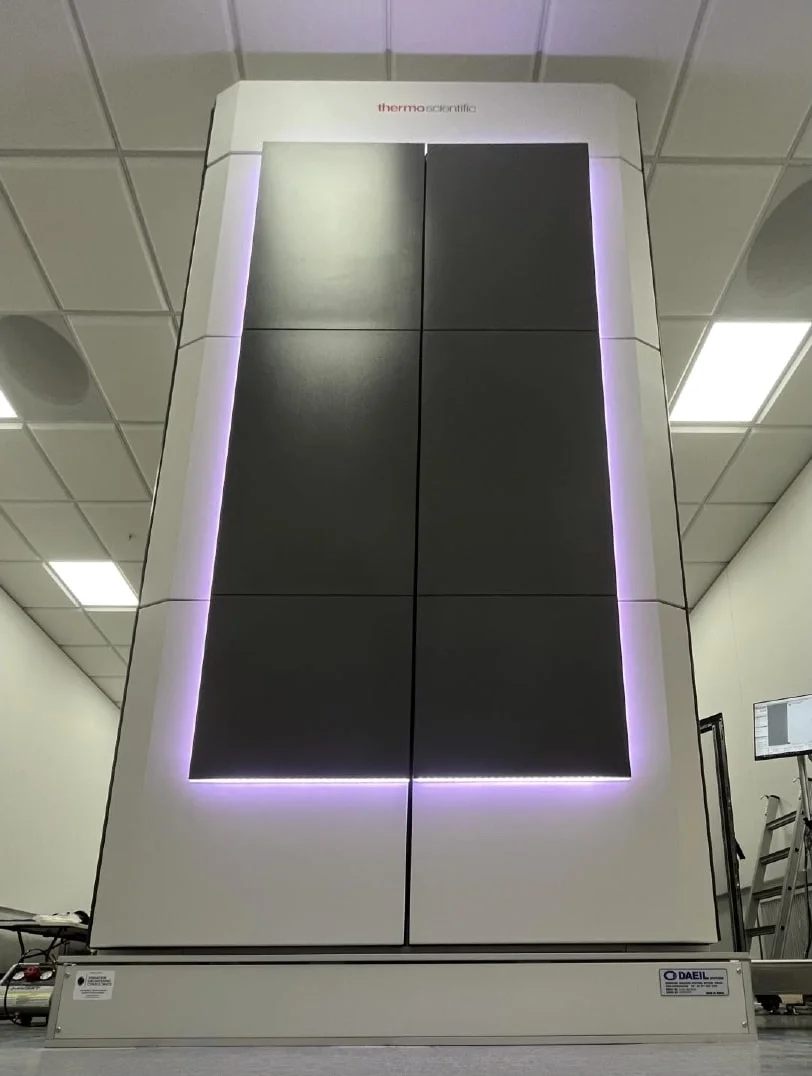

Figure 10: Equipment Picture
Reference
Generic Vibration Criteria
Notes:
1. VC-A/B is measured in 1/3 octave bands from 8-80 Hz, VC-C through VC-G from 1-80 Hz.
2. Detail size refers to line widths in microelectronics manufacturing or particle sizes in medical research.
