Jiasheng Advanced Technology TESCAN Amber FIB-SEM DVIA-ML1000 (251117R7) Installation Report

DVIA-M Series
Installation Report
Jiasheng Advanced Technology
TESCAN
FIB-SEM
Amber
DVIA-ML1000
Suzhou

Contents

Overview

The DVIA-ML1000 active vibration isolation platform is appropriately installed and functioning as intended.

Vibration Isolation System Info

Model: DVIA-ML1000

Serial Number: 251117R7

Engineer

Chaewon Lee DAEIL SYSTEMS

Tuning Date

April 15, 2026

Report written date

April 16, 2026

End User

Jiasheng Advanced Technology

Number of Tuning Trial

1st

Location

Suzhou, China

Equipment

Manufacturer: TESCAN

Equipment: FIB-SEM

Model: Amber

Vibration specification

Equipment Condition

The equipment is turned on/IDLE

Tuning Request

N/A

Measurement Summary

Measurement pointStatusAxisVibration specificationFloorDVIA-ML1000Result (floor)Result (DVIA-ML1000)
1.Floor 2.DVIA-ML1000Equipment is Turned on/IDLEVerticalRefer to item 9VC-D @ 5 HzVC-F @ 5 Hz✓ PASS✓ PASS
1.Floor 2.DVIA-ML1000Equipment is Turned on/IDLELeft to RightRefer to item 9VC-F @ 6.3 HzVC-G @ 6.3 Hz✓ PASS✓ PASS
1.Floor 2.DVIA-ML1000Equipment is Turned on/IDLEFront to BackRefer to item 9VC-F @ 4 HzVC-G @ 4 Hz✓ PASS✓ PASS

Data and Image

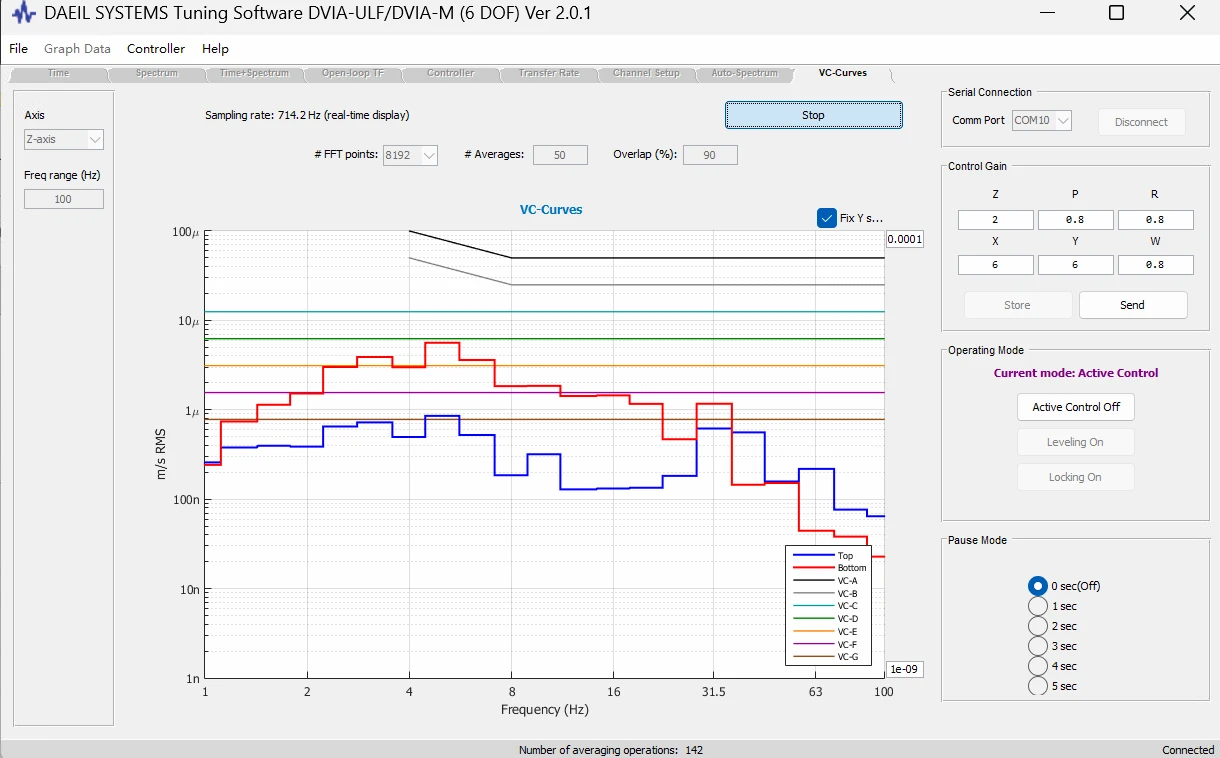

Vertical VC Curves

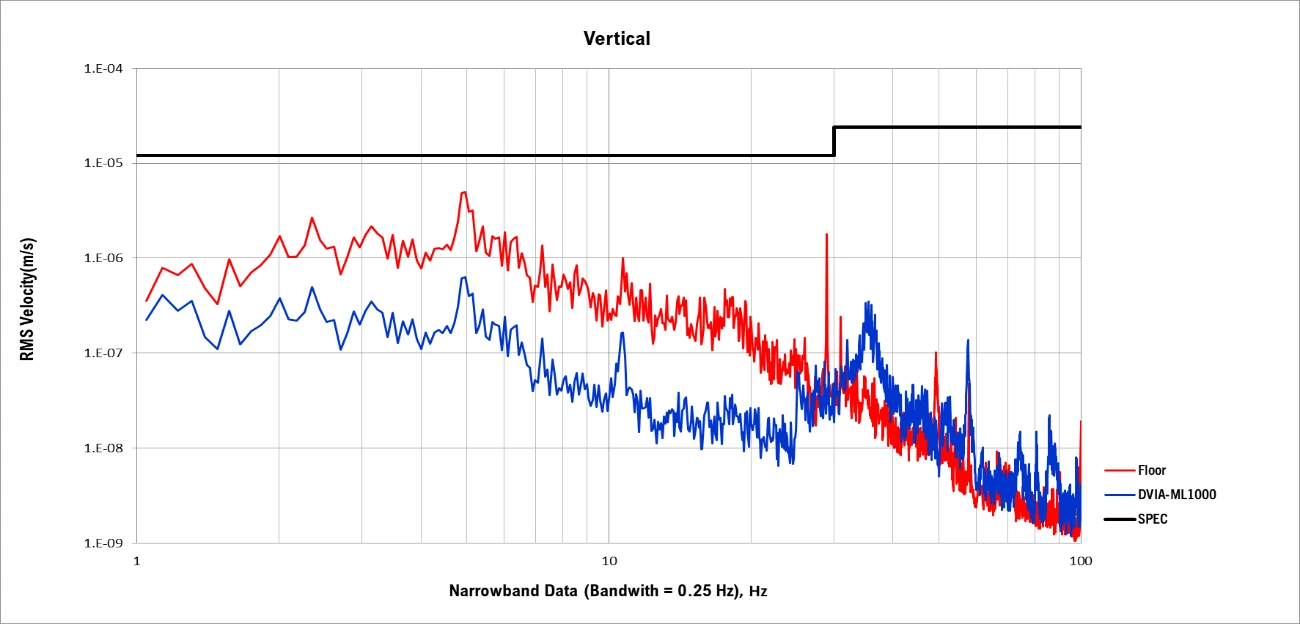

Vertical Autospectrum

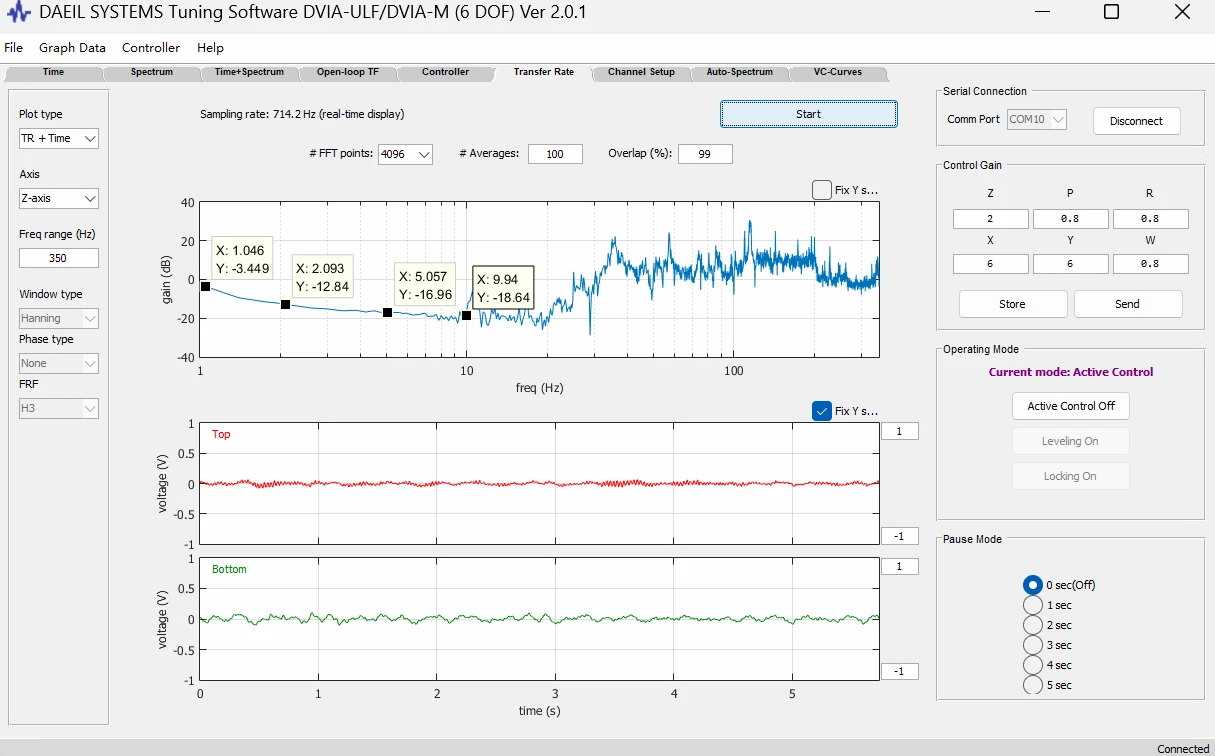

Vertical Transmissibility

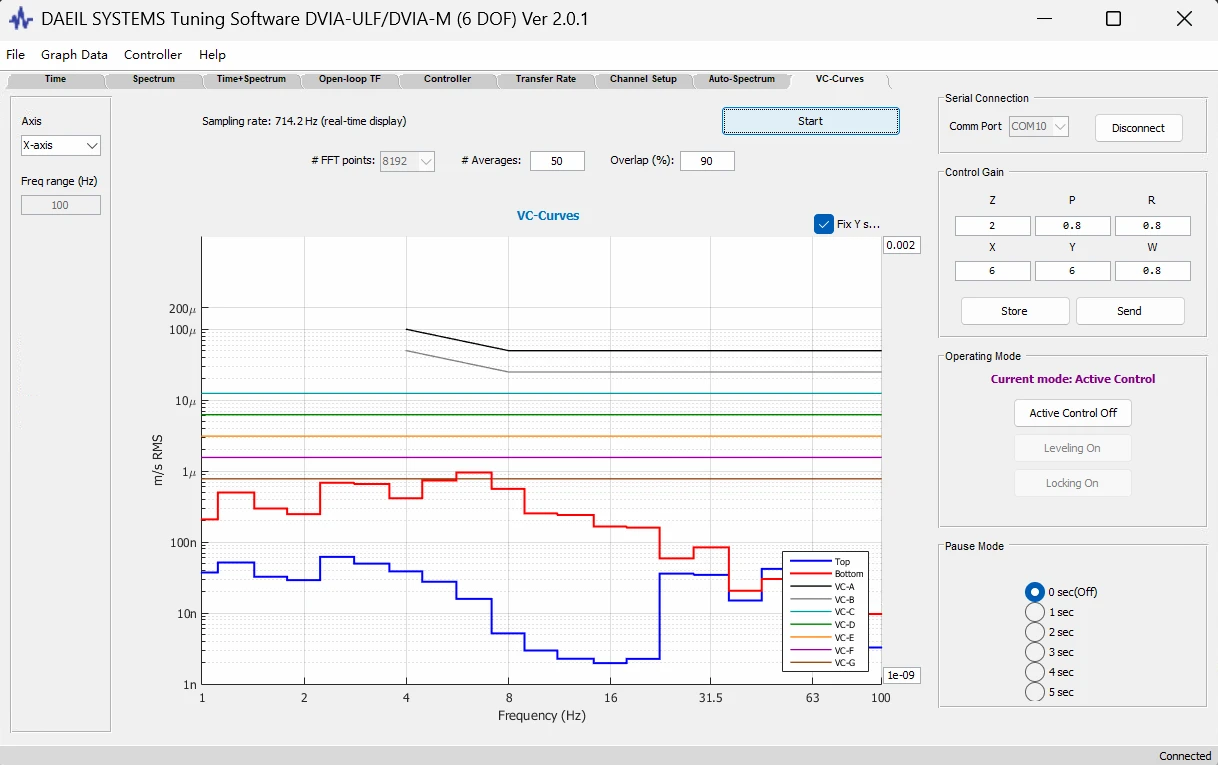

Left to Right VC curves

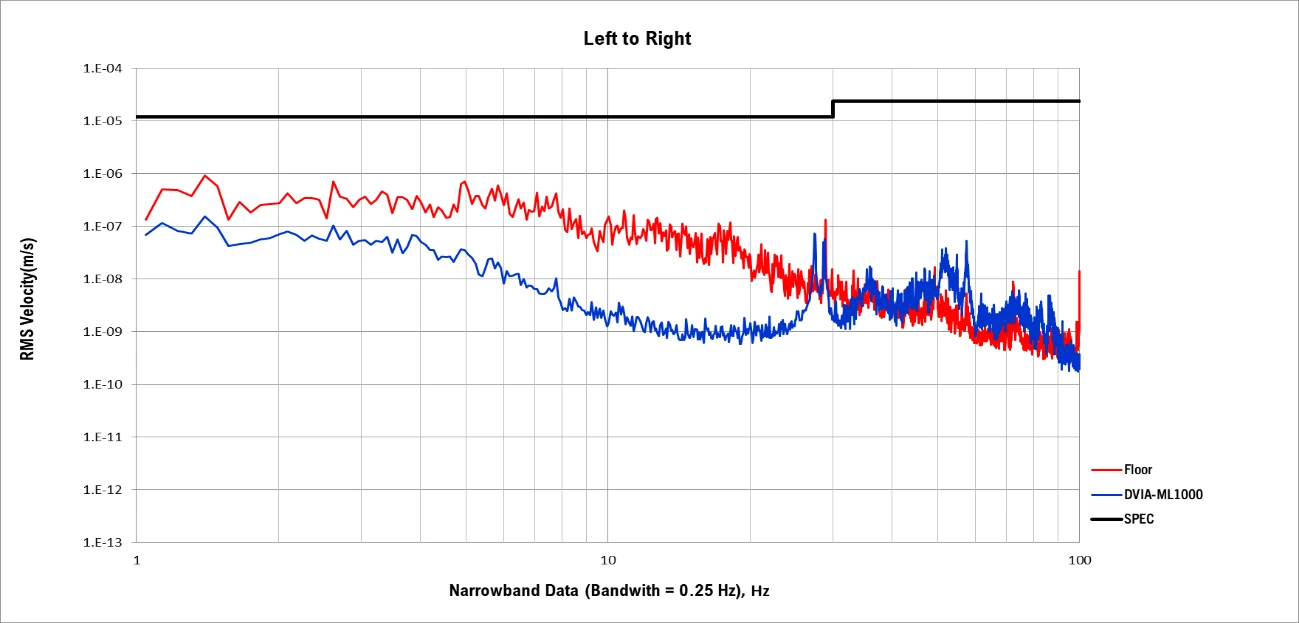

Left to Right Autospectrum

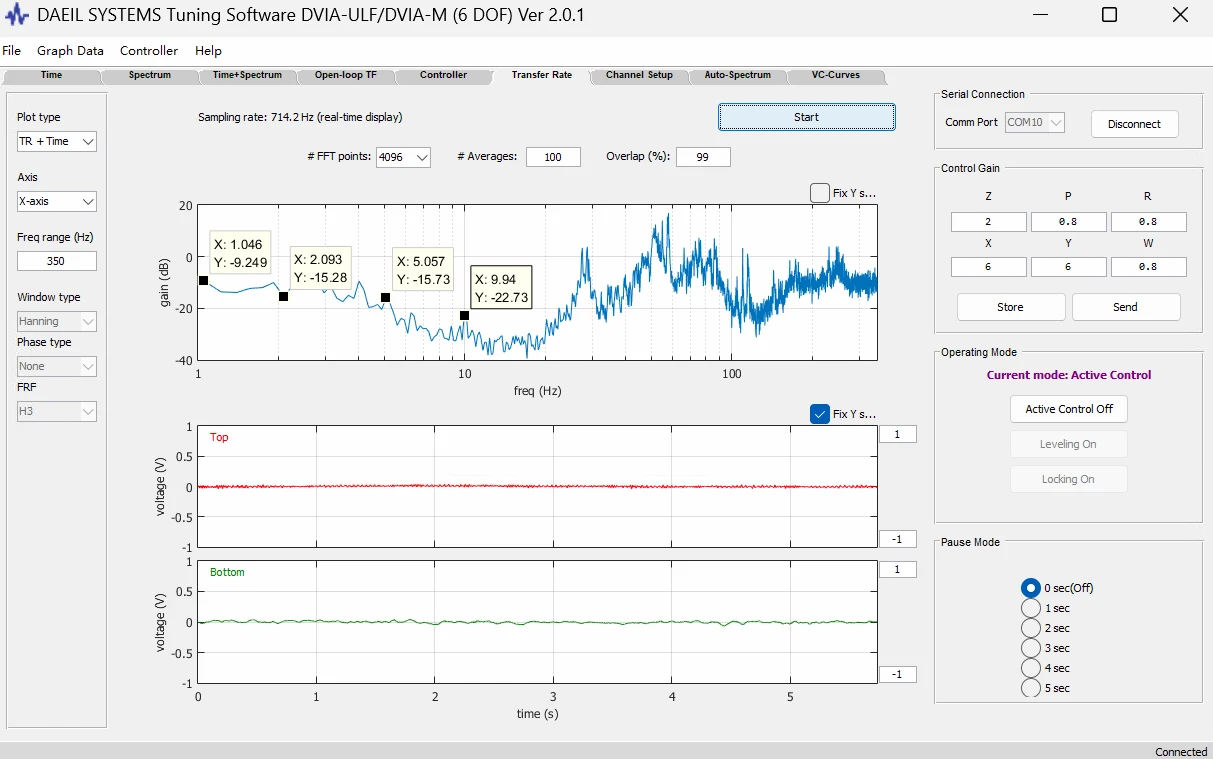

Left to Right Transmissibility

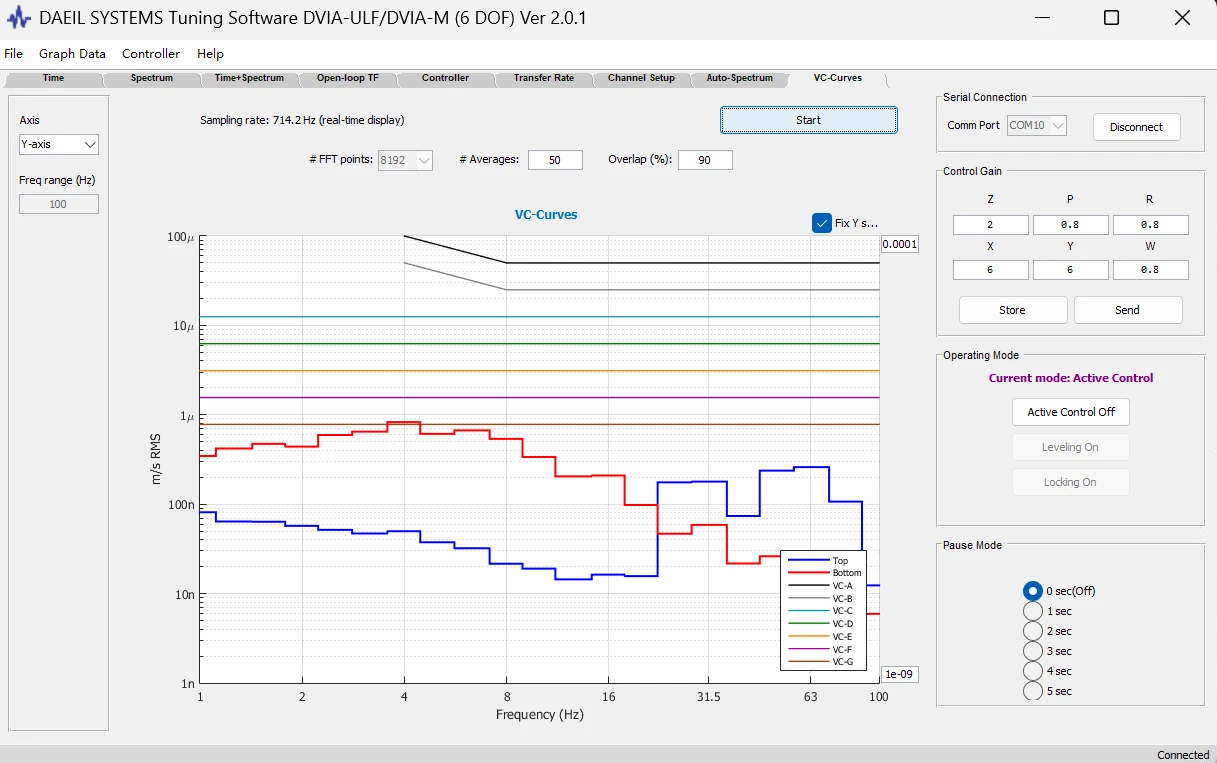

Front to Back VC Curves

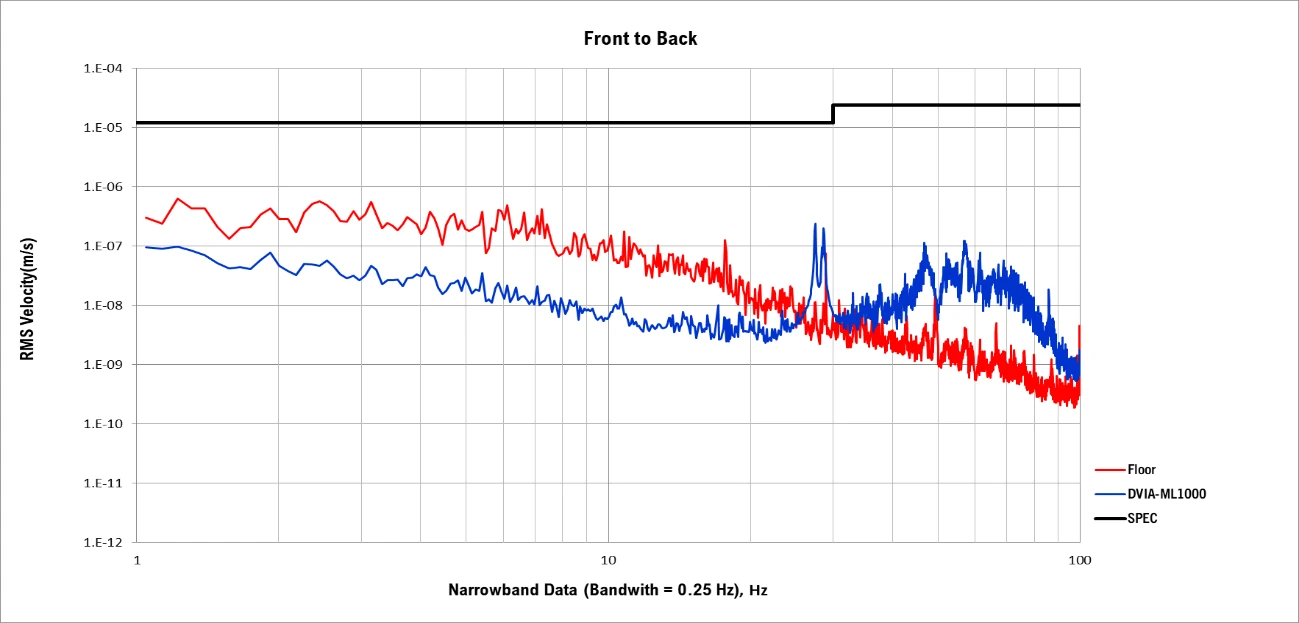

Front to Back Autospectrum

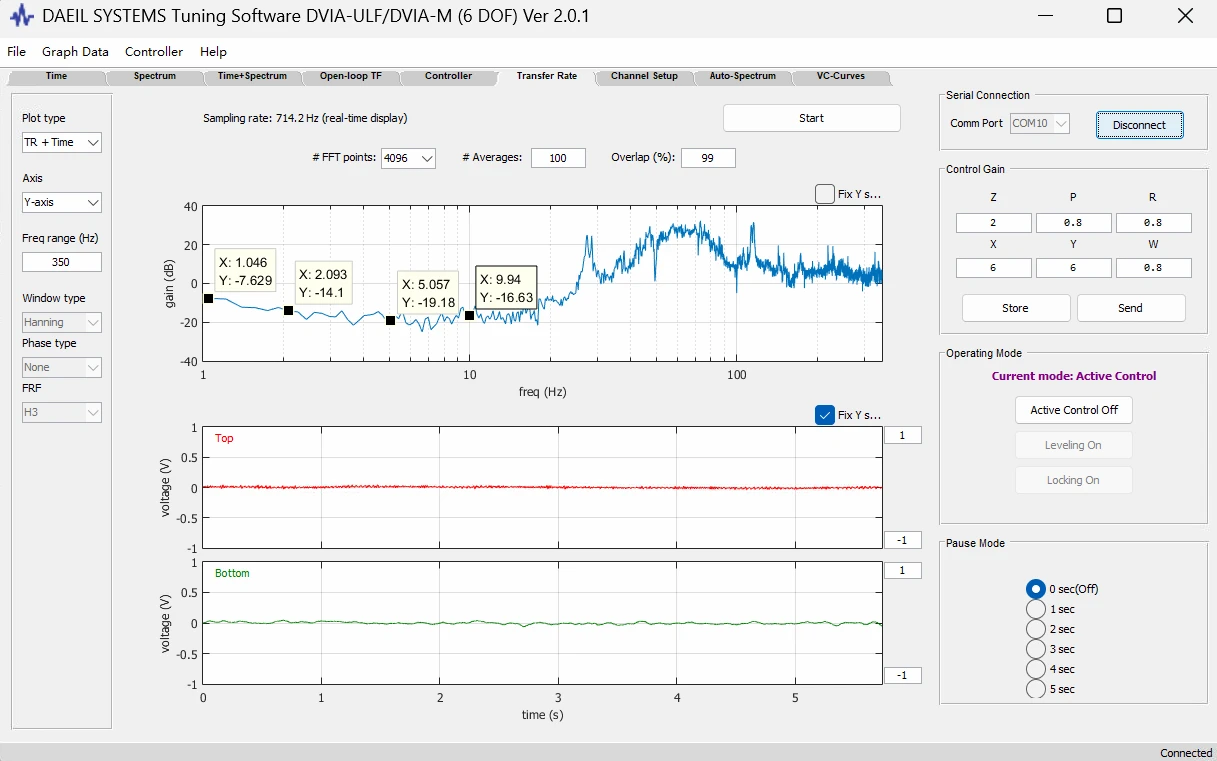

Front to Back Transmissibility

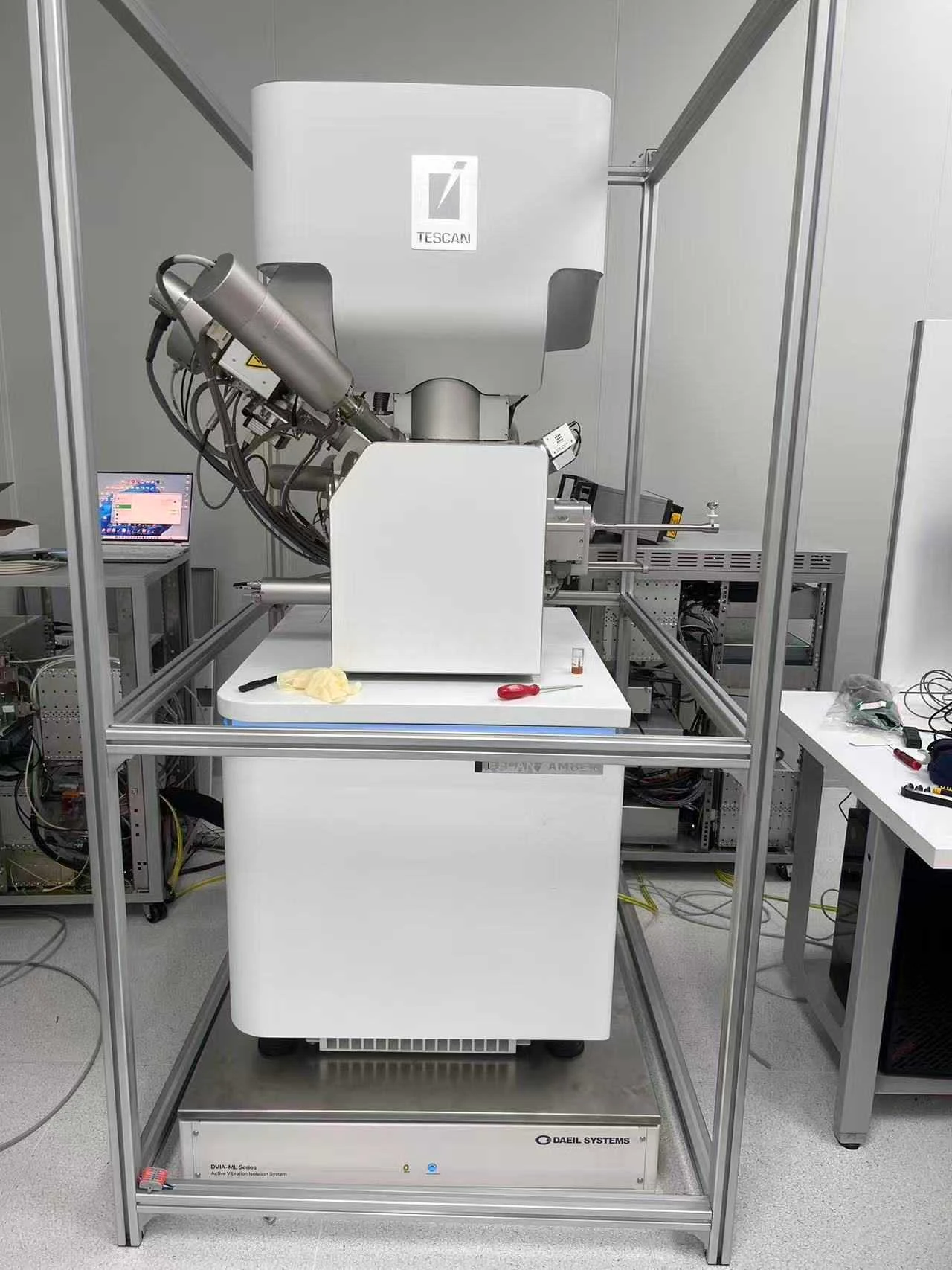

Equipment picture

Reference

Criterion CurveDescriptionAmplitude
μm/s (µin/s)		Detail Size
μm
Workshop (ISO)Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.800 (32,000)N/A
Office (ISO)Perceptible vibration. Appropriate to offices and non-sensitive areas.400 (16,000)N/A
Residential Area (ISO)Barely perceptible vibration. Appropriate to sleep areas in most instances.200 (8,000)75
Operating Theatre (ISO)Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.100 (4,000)25
VC-AAdequate for optical microscopes to 400x, microbalances, optical balances.50 (2,000)8
VC-BAppropriate for inspection and lithography equipment to 3μm line widths.25 (1,000)3
VC-CAppropriate for optical microscopes to 1000x, lithography equipment to 1μm.12.5 (500)1 - 3
VC-DSuitable for demanding equipment including electron microscopes (SEMs/TEMs).6.25 (250)0.1 - 0.3
VC-EFor the most demanding systems including E-Beam lithography at nanometer scales.3.12 (125)< 0.1
VC-FFor extremely quiet research spaces. Not recommended as design criterion.1.56 (62.5)N/A
VC-GFor extremely quiet research spaces. Not recommended as design criterion.0.78 (31.25)N/A

Notes:

- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

- Detail size refers to width in microelectronics fabrication or particle size in medical research.
