Installation Report
DVIA-M Series
07-05-2024
Xi'an Jiaotong University ZEISS Sigma 300 DVIA-M1000 (231009R3) Installation Report
DVIA-M Series
Installation Report
Xi'an Jiaotong University
DVIA-M1000
231009R3
ZEISS
Sigma300
SEM
Xi'an
Contents
Xi'an Jiaotong University
Xi'an Jiaotong University
(M1000_ 231009R3 Set-up)
Site checklist
| Target equipment | ZEISS Sigma300 |
|---|---|
| Place of installation | Xi'an |
| Remark | Good Performance |
| END USER | Xi'an Jiaotong University |
Operator and dates
Operator: Chaewon Lee
Date of setup: 24.03.22
Date of reporting: 24.07.05
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date: 2024.03.15(Wednesday)
Operator: Chaewon Lee from DAEIL SYSTEMS
Place of measurement: Xi'an Jiaotong University
Equipment Model: N/A
Manufacturer: ZEISS
Equipment: SEM
Model: Sigma300
5.
M1000 internal program performance measurement result

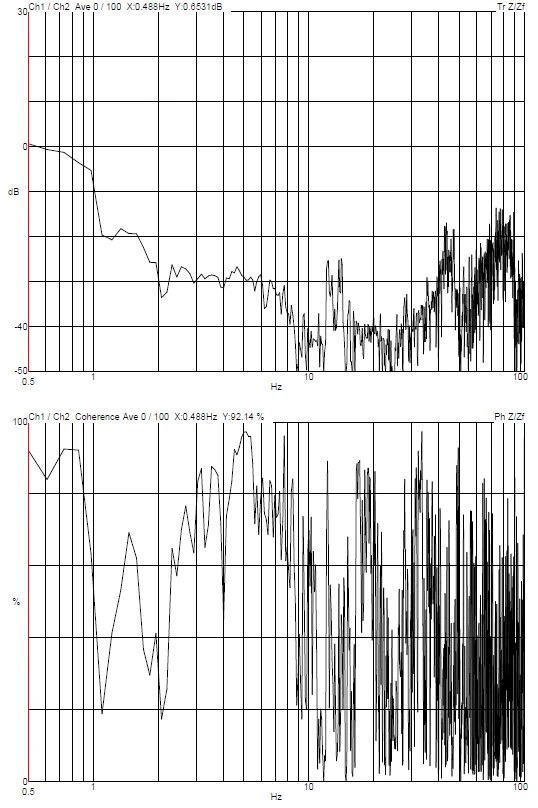

Vertical

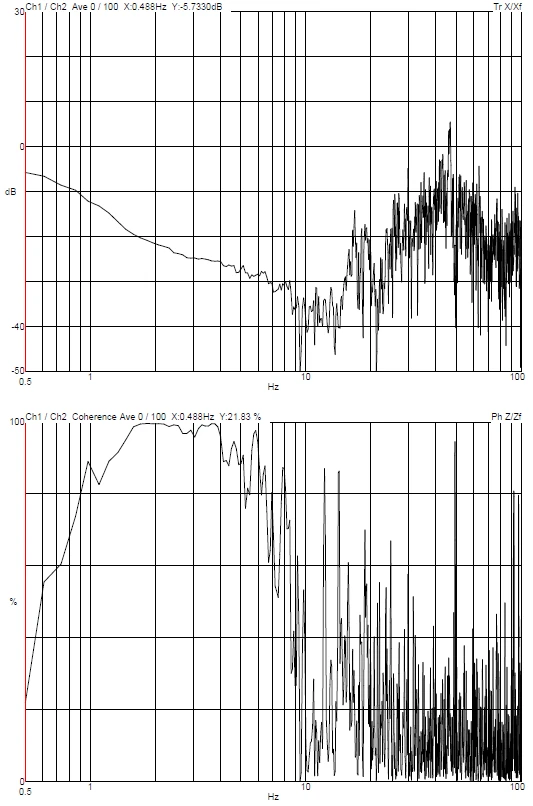

Left to Right

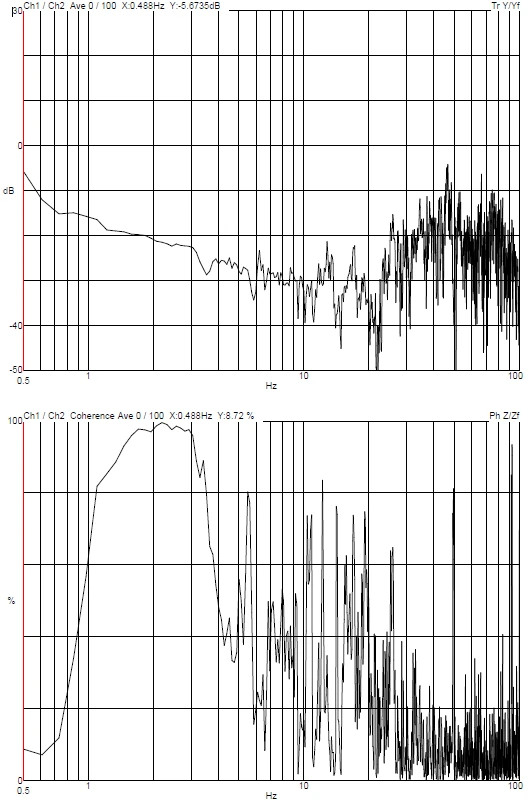

Front to Back
