Installation Report
DVIA-M Series
05-15-2026
Shanghai Institute of Space Propulsion ZEISS Sigma300 DVIA-M1000 (230701R3) Installation Report
DVIA-M Series
Installation Report
Shanghai Institute of Space Propulsion
ZEISS
Sigma300
DVIA-M1000
230701R3
Contents

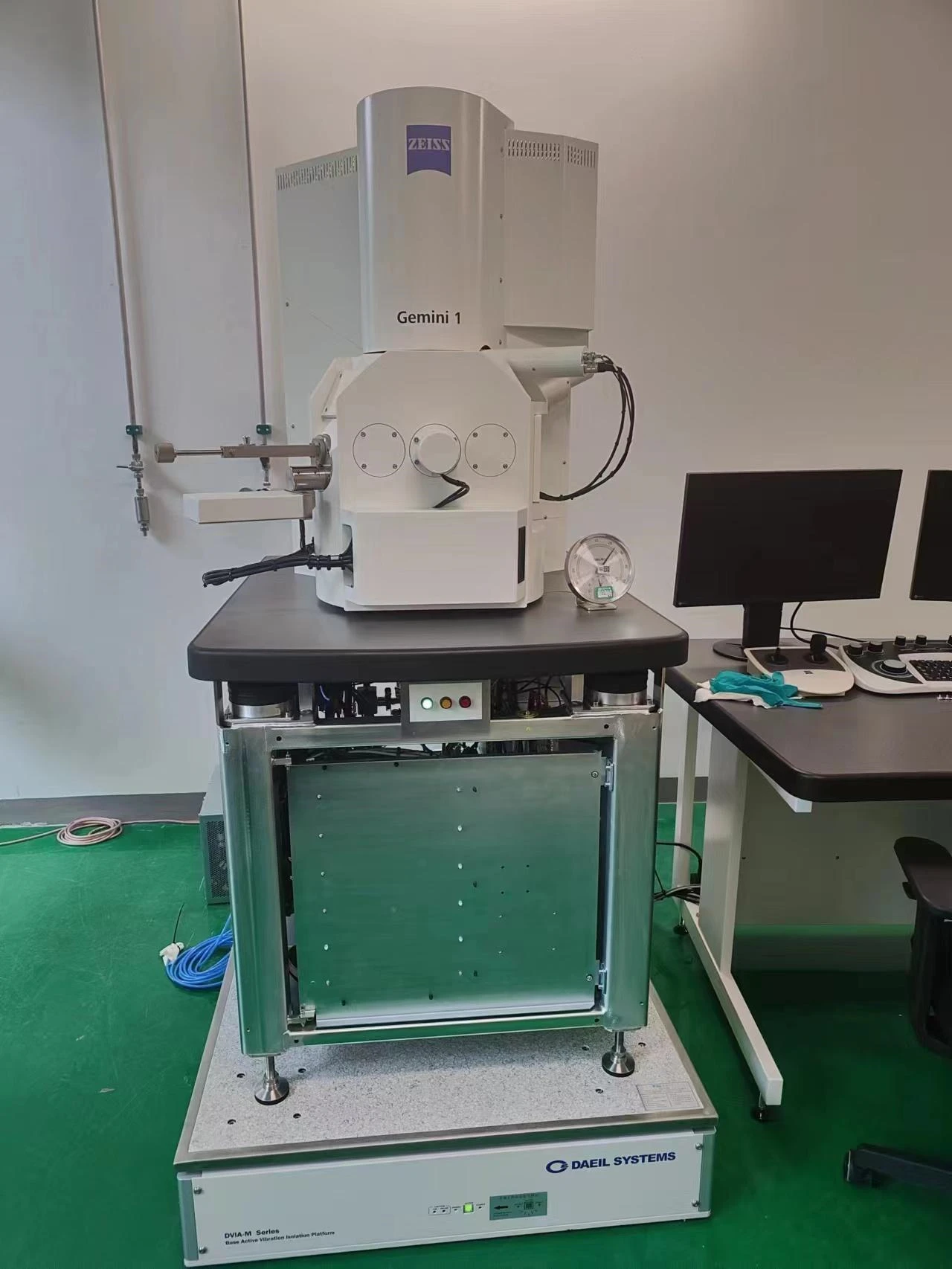

Equipment installation photograph
| Target equipment | Sigma300 |
|---|---|
| Place of installation | Shanghai |
| Remark | Good Performance |
| END USER | Shanghai Institute of Space Propulsion |
Operator: Lee, Sangjae
Date of setup: 23.10.10
Date of reporting: 23.10.17
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date
Measurement date: 2023.10.10 (Tuesday)
Operator: DAEIL SYSTEMS Sangjae Lee
Place of measurement: Shanghai
Equipment Model: Sigma300

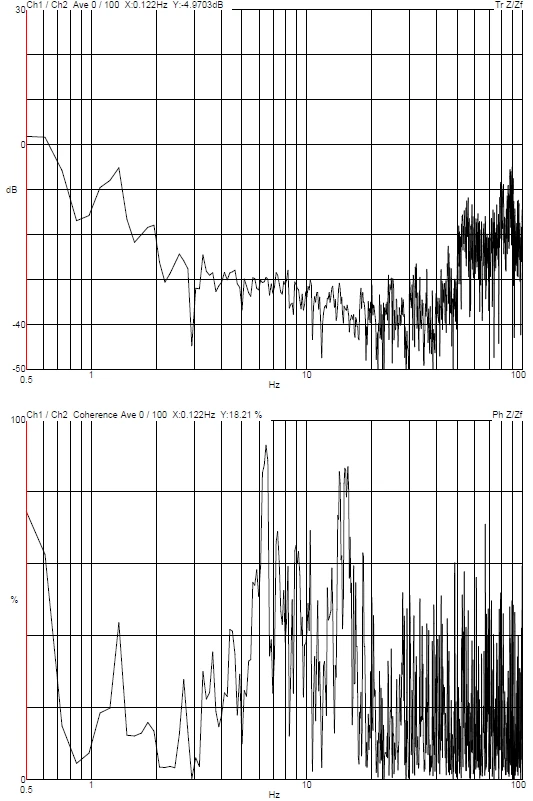

M1000 internal program performance measurement result

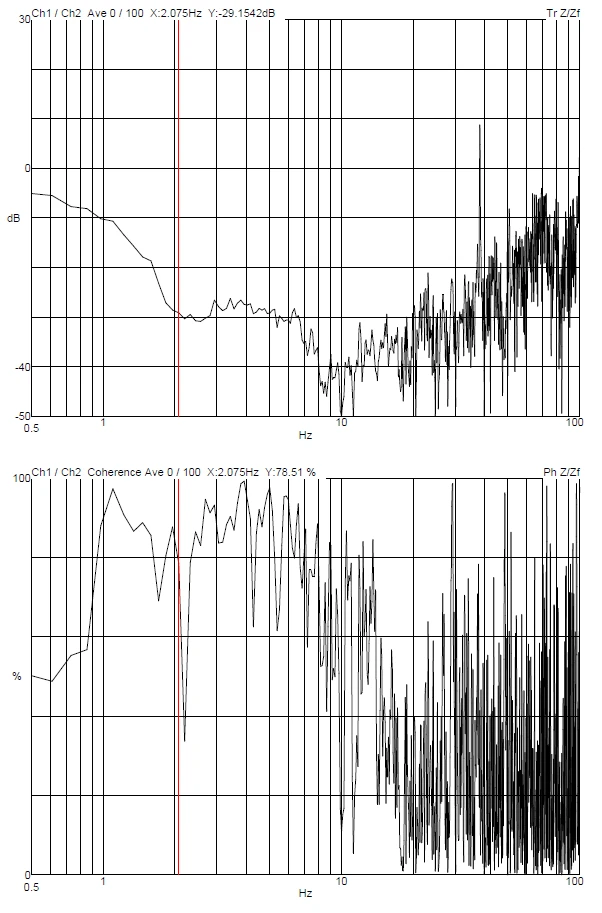

Z axis

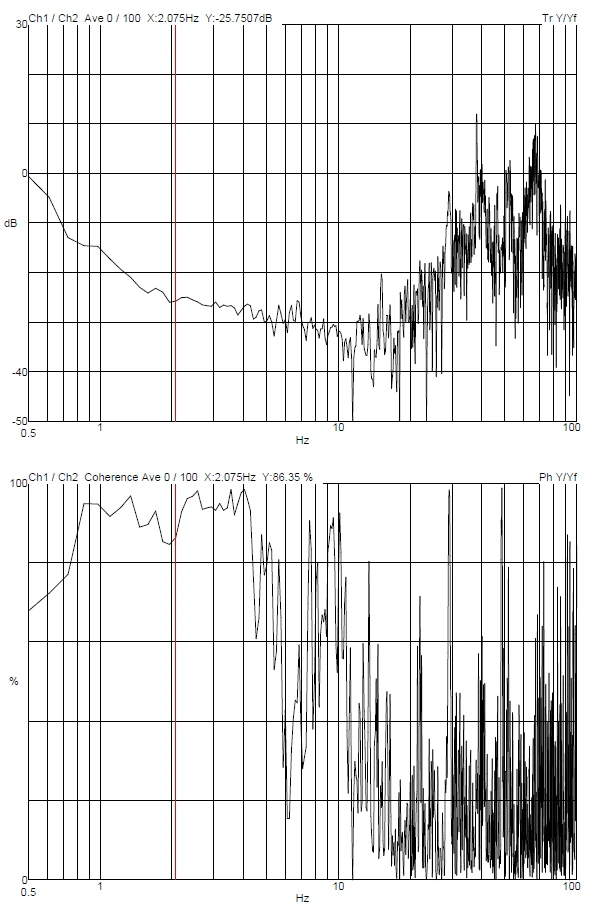

X axis

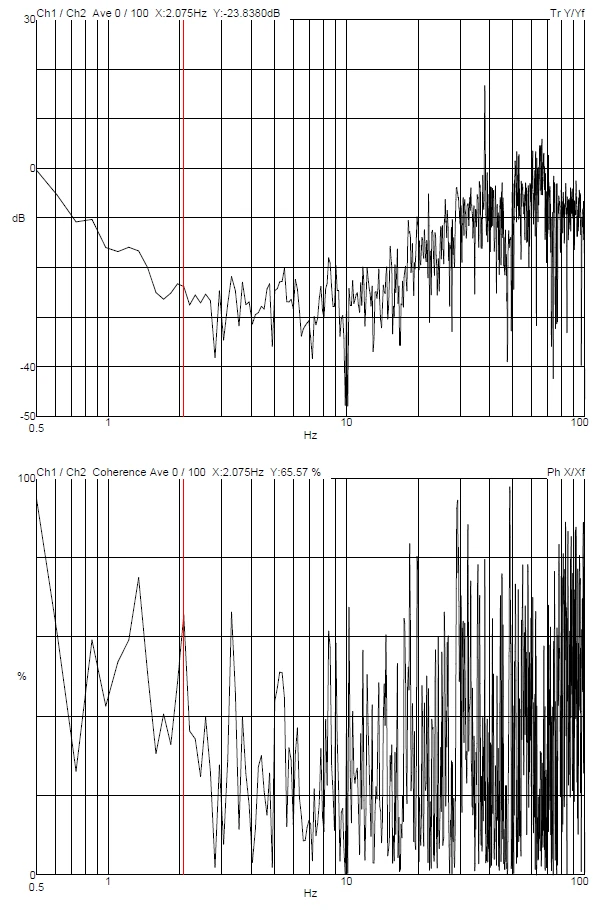

Y axis
