Installation Report
DVIA-M Series
07-05-2024
ZEISS Crossbeam300 SEM DVIA-M1000 (230701R3) Installation Setup Handout
DVIA-M Series
Installation Report
ZEISS
Crossbeam300
SEM
DVIA-M1000
230701R3
Contents
Cover
(M1000_ 230701R3 Set-up)
Installation handout information
| Field | Value |
|---|---|
| Target equipment | ZEISS Crossbeam300 |
| Place of installation | N/A |
| Remark | Good Performance |
| END USER | N/A |
Reporting and trip schedule
Operator: Chaewon Lee
Date of setup: 23.12.01
Date of reporting: 24.07.05
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date
2023.12.01(Friday)
Operator: Chaewon Lee from DAEIL SYSTEMS
Place of measurement
N/A
Equipment Model
Manufacturer: ZEISS
Equipment: SEM
Model: Crossbeam300
M1000 internal program performance measurement result

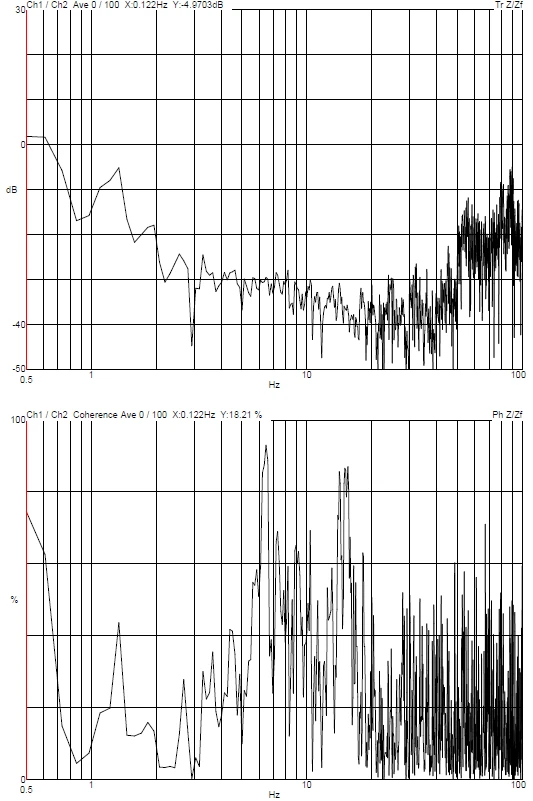

Vertical

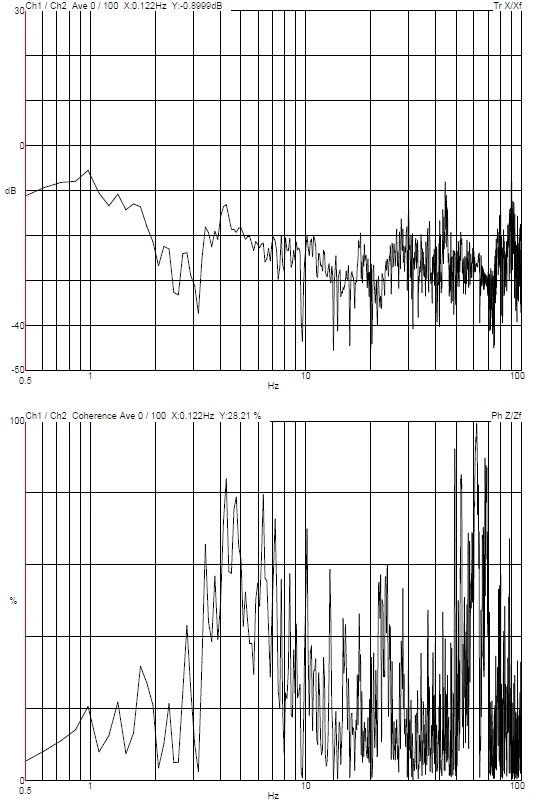

Left to Right

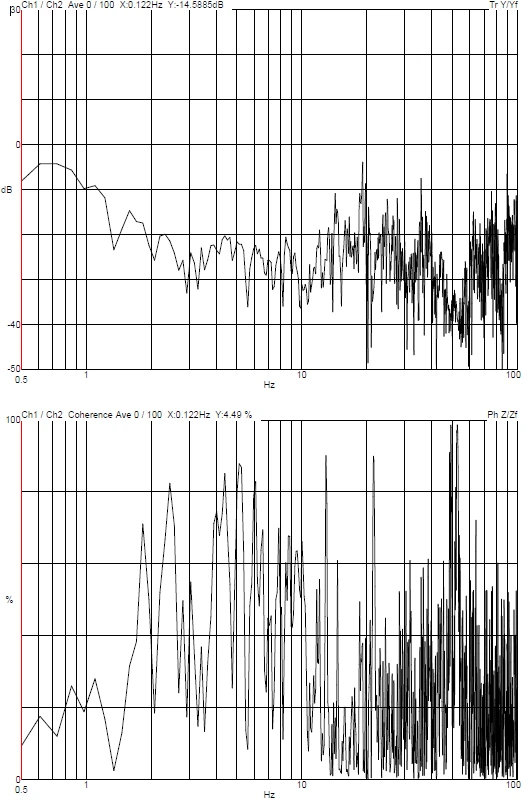

Front to Back
