Installation Report

DVIA-M Series

10-26-2023

Sigma 300 DVIA-M1000 (230818R4) Dongguan Haoxing Setup Handout

DVIA-M Series

Installation Report

Dongguan

Sigma 300

DVIA-M1000

230818R4

Cover

Dongguan Haoxing Precision Electroplating Co., Ltd.

(M1000_ 230818R4 Set up)

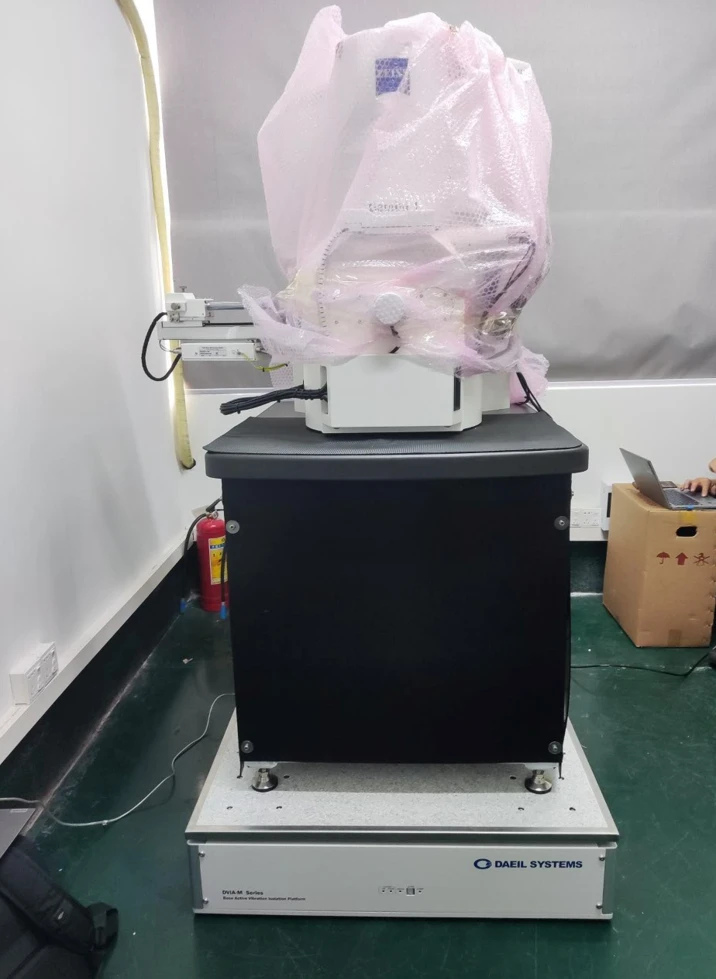

Equipment photo

Installation handout information

Field	Value
Target equipment	Sigma 300
Place of installation	Dongguan
Remark	Good Performance
END USER	Dongguan Haoxing Precision Electroplating Co., Ltd.

Reporting and trip schedule

Operator: Park, Jongwon

Date of setup: 23.10.25

Date of reporting: 23.10.26

Date of business trip : 17.12.27~17.12.29

Overview

The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.

Measurement date

2023.10.25 (Wednesday)

Operator: DAEIL SYSTEMS Jongwon Park

Place of measurement

Dongguan

Equipment Model

Sigma 300

M1000 internal program performance measurement result

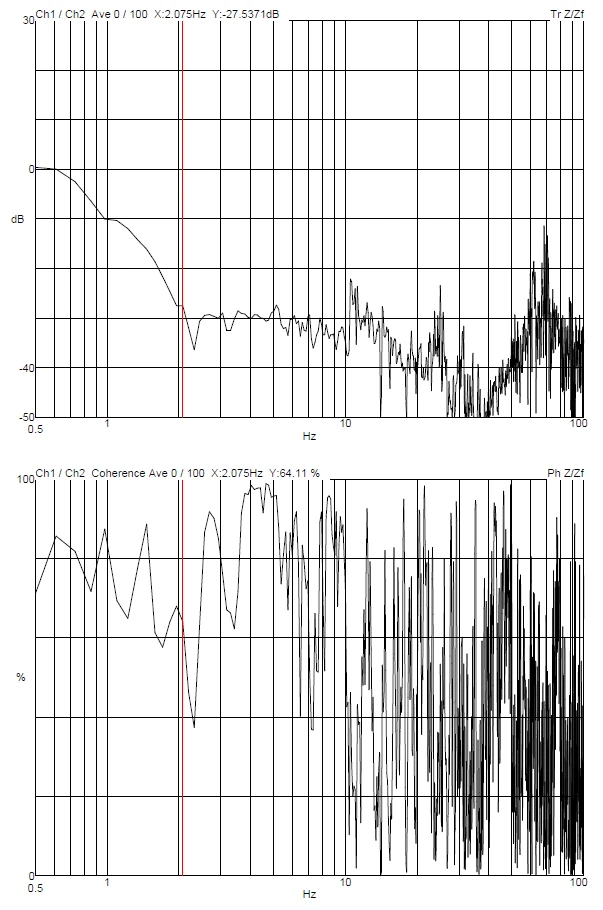

Z axis

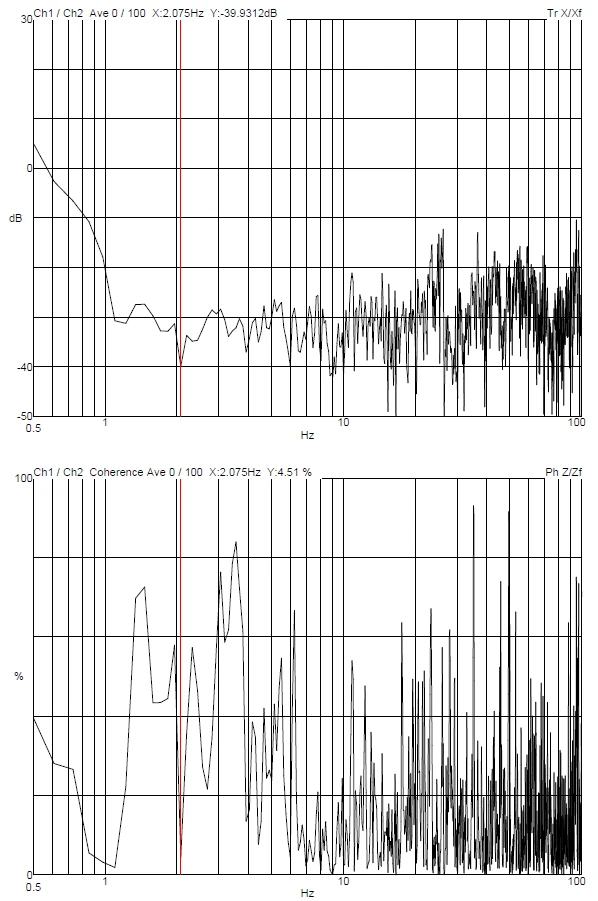

X axis

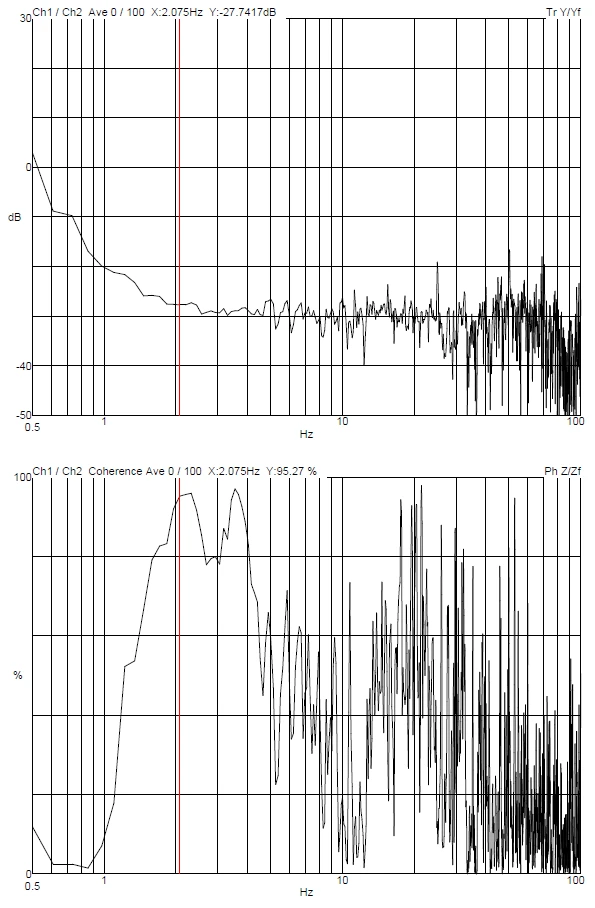

Y axis
