Jingmen 605 Sigma 300 DVIA-M1000 (230627R4) Installation Report

DVIA-M Series
Installation Report
Jingmen
Jingmen 605
DVIA-M1000
230627R4
Sigma 300

Contents

Jingmen 605

Jingmen 605

(M1000_ 230627R4 Set up)

Site checklist

Target equipmentSigma 300
Place of installationJingmen
RemarkGood Performance
END USERJingmen 605

Operator and dates

Operator: Lee, Youngha

Date of setup: 23.08.29

Date of reporting: 23.08.29

Date of business trip : 17.12.27~17.12.29

Overview

The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.

Measurement date: 2023.08.29 (Tuesday)

Operator: DAEIL SYSTEMS Youngha Lee

Place of measurement: Jingmen

Equipment Model: Sigma 300

5.

M1000 internal program performance measurement result

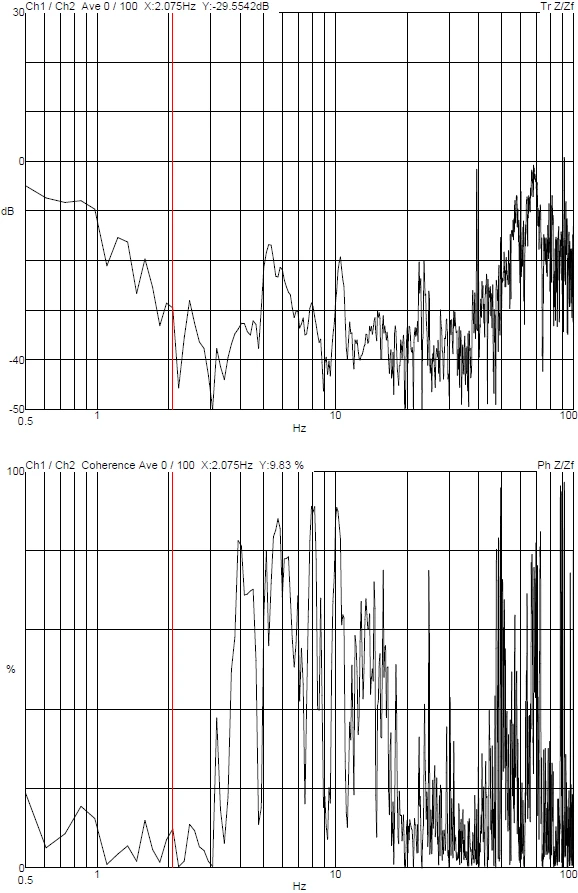

Z axis

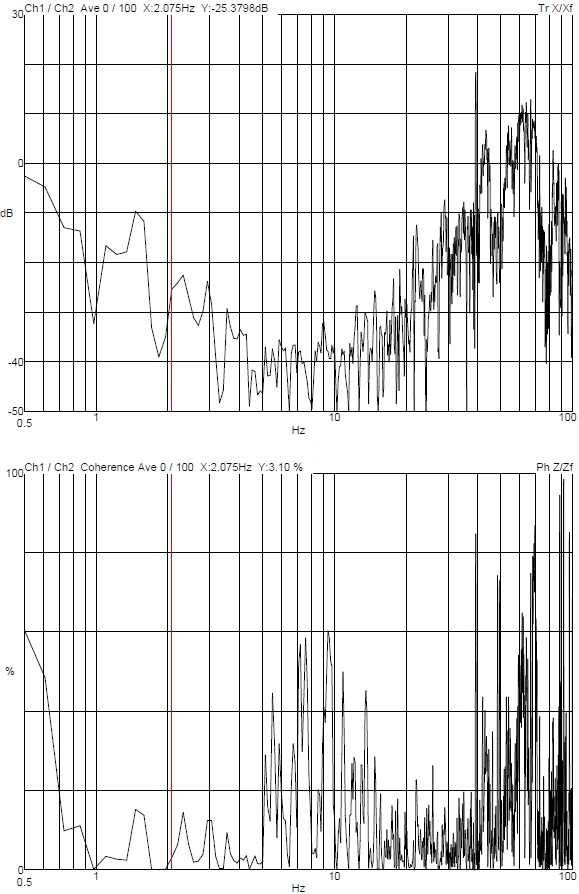

X axis

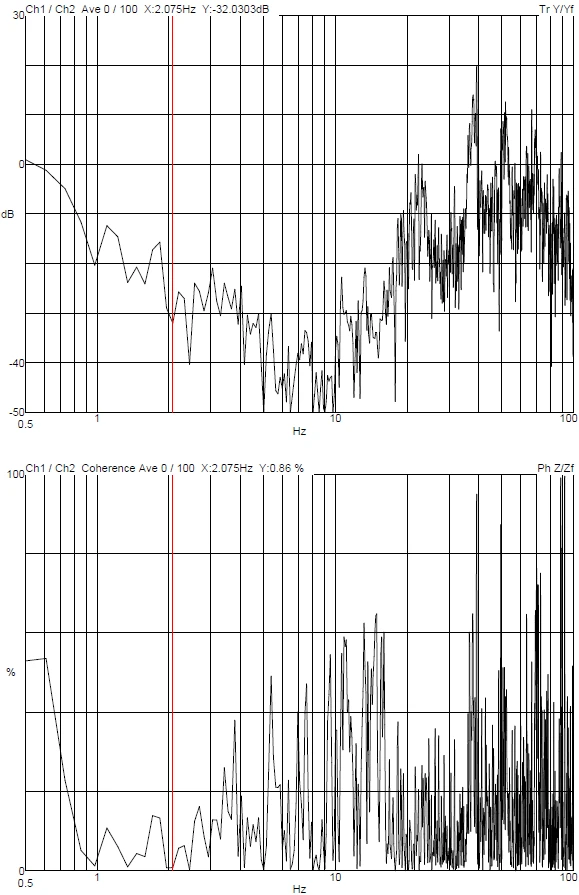

Y axis
