Installation Report
DVIA-M Series
09-19-2023
Crossbeam550 DVIA-M1000 (230222R5) Installation Report — Shenzhen
DVIA-M Series
Installation Report
Crossbeam550
Shenzhen
DVIA-M1000
230222R5
Contents
Site information
| Target equipment | Crossbeam550 |
|---|---|
| Place of installation | Shenzhen |
| Remark | Good Performance |
| END USER | PXW |
Vibration Isolation System Information
Model: DVIA-M1000
Serial Number: 230222R5
Operator and reporting dates
| Operator: Park, JongwonDate of setup: 23.09.07Date of reporting: 23.09.19 | Date of business trip : 17.12.27~17.12.29 |
|---|
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Reporting form excerpt (verbatim)
| OverviewThe DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.Measurement date: 2023.09.07 (Thursday)Operator: DAEIL SYSTEMS Jongwon ParkPlace of measurement: ShenzhenEquipment Model: Crossbeam550 | 5. |
|---|
M1000 internal program performance measurement result

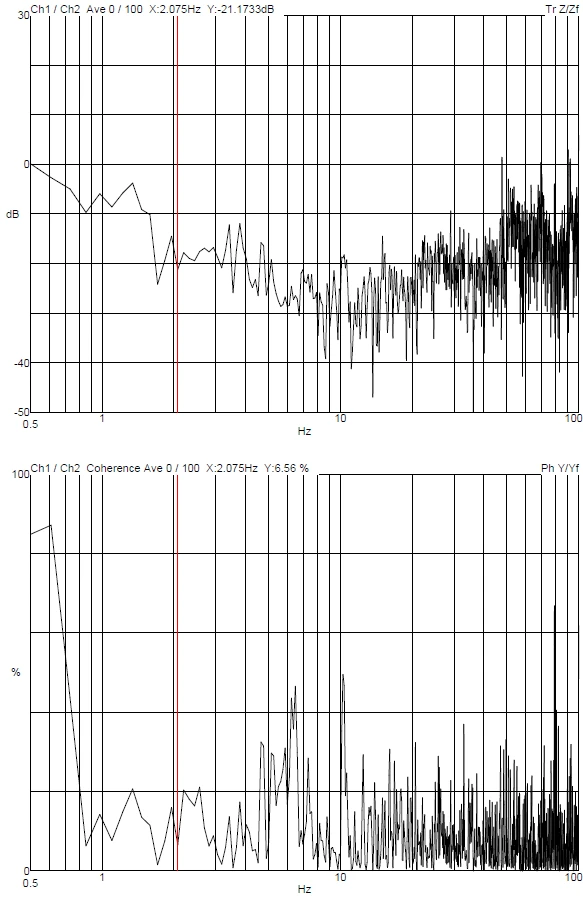

Z axis

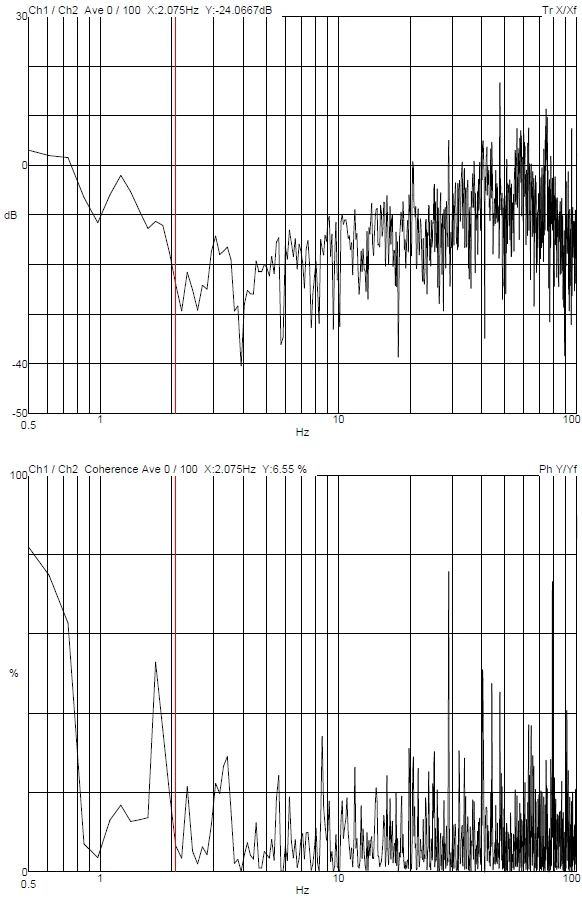

X axis

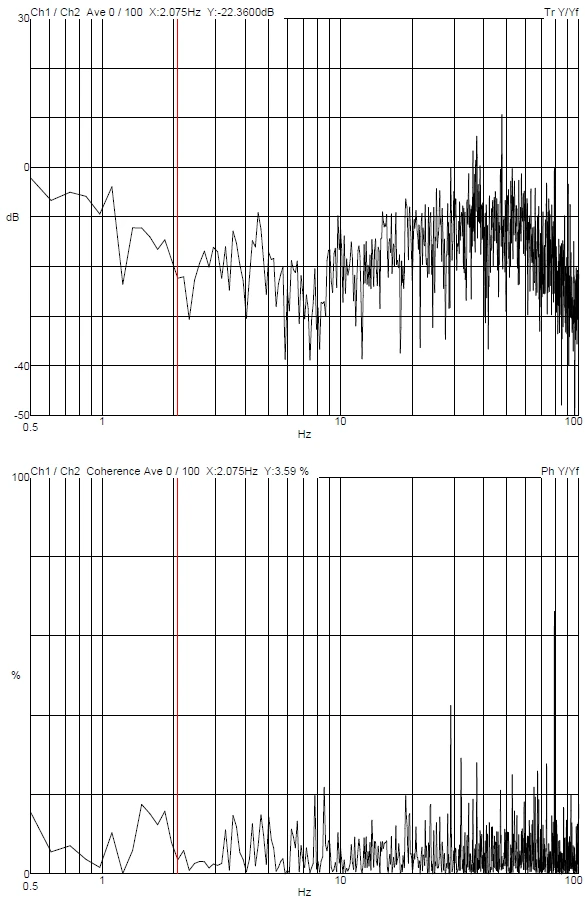

Y axis
