Installation Report
DVIA-M Series
05-15-2026
PXW ZEISS FIB-SEM Crossbeam550 DVIA-M1000 (230222R4) Installation Report
DVIA-M Series
Installation Report
PXW
ZEISS
Crossbeam550
FIB-SEM
DVIA-M1000
230222R4
Contents
PXW
PXW
(M1000_ 230222R4 Set up)
Vibration Isolation System Information
Model: DVIA-M1000
Serial Number: 230222R4
Target equipment
Crossbeam550
Place of installation
Shenzhen
Remark
Good Performance
END USER
PXW
Operator
Operator: Park, Jongwon
Date of setup
Date of setup: 23.09.08
Date of reporting
Date of reporting: 23.09.19
Date of business trip
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement
Measurement date: 2023.09.08 (Friday)
Operator: DAEIL SYSTEMS Jongwon Park
Place of measurement: Shenzhen
Equipment Model: Crossbeam550
M1000 internal program performance measurement result

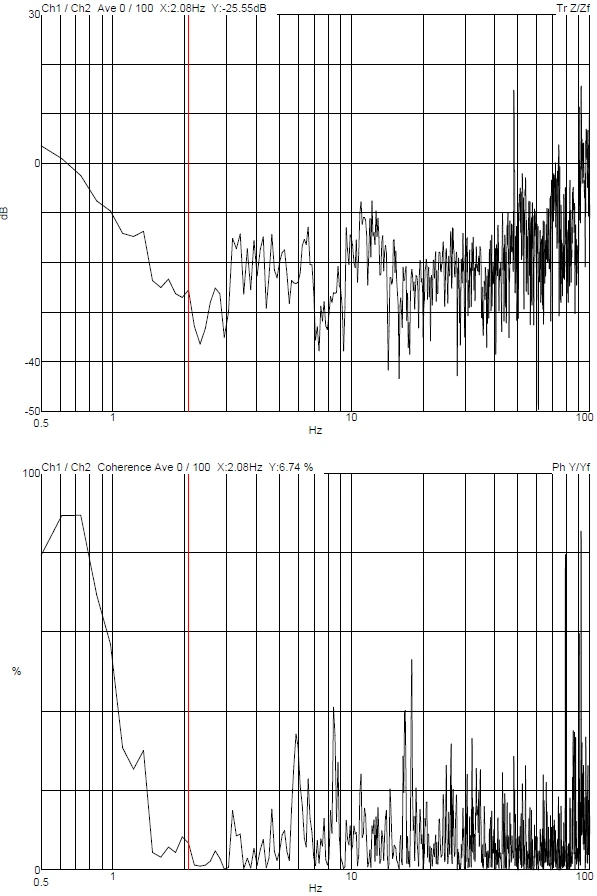

Z axis

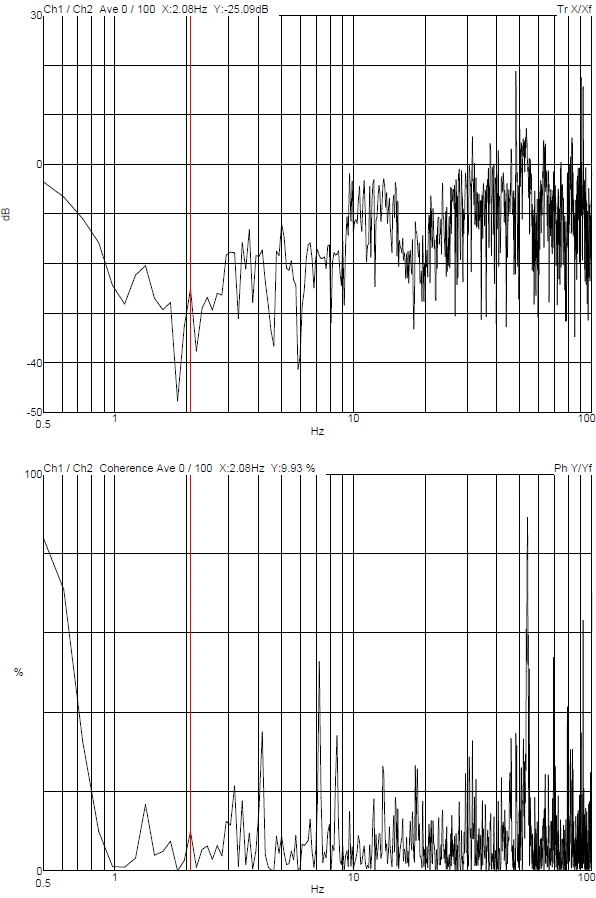

X axis

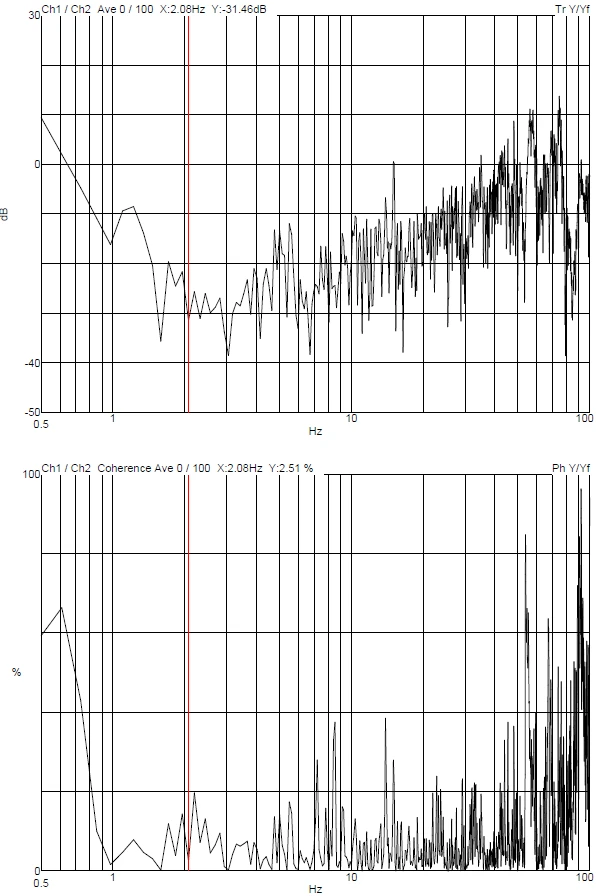

Y axis
