Sigma 500 DVIA-M1000 (220728R1) Installation Report — Hongfujin Shenzhen
DVIA-M Series
Installation Report
Hongfujin
Shenzhen
Sigma 500
DVIA-M1000
220728R1
Contents
Customer and setup title
Hongfujin Precision Industry (Shenzhen) Co., Ltd.
(M1000_ 220728R1 Set up)
Target equipment and site
| Target equipment | Sigma 500 |
|---|---|
| Place of installation | SHENZHEN |
| Remark | Good Performance |
| END USER | Hongfujin Precision Industry (Shenzhen) Co., Ltd. |
Report details
| Operator: Lee, Young Ha<br>Date of setup: 23.04.26<br>Date of reporting: 23.05.02 | Date of business trip : 17.12.27~17.12.29 |
|---|---|
| Overview The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended. Measurement date: 2023.04.26 (Wednesday) Operator: DAEIL SYSTEMS, Youngha Lee Place of measurement: SHENZHEN Equipment Model: Sigma 500 | 5. |
Measurement conditions and results
Summary of measurement results
Test Condition
VC-Class
| Z | X | Y | |
|---|---|---|---|
| Floor | B | B | B |
| Above Active | E | E | G |
Good omnidirectional performance.
5.
MB1000 internal program performance measurement result

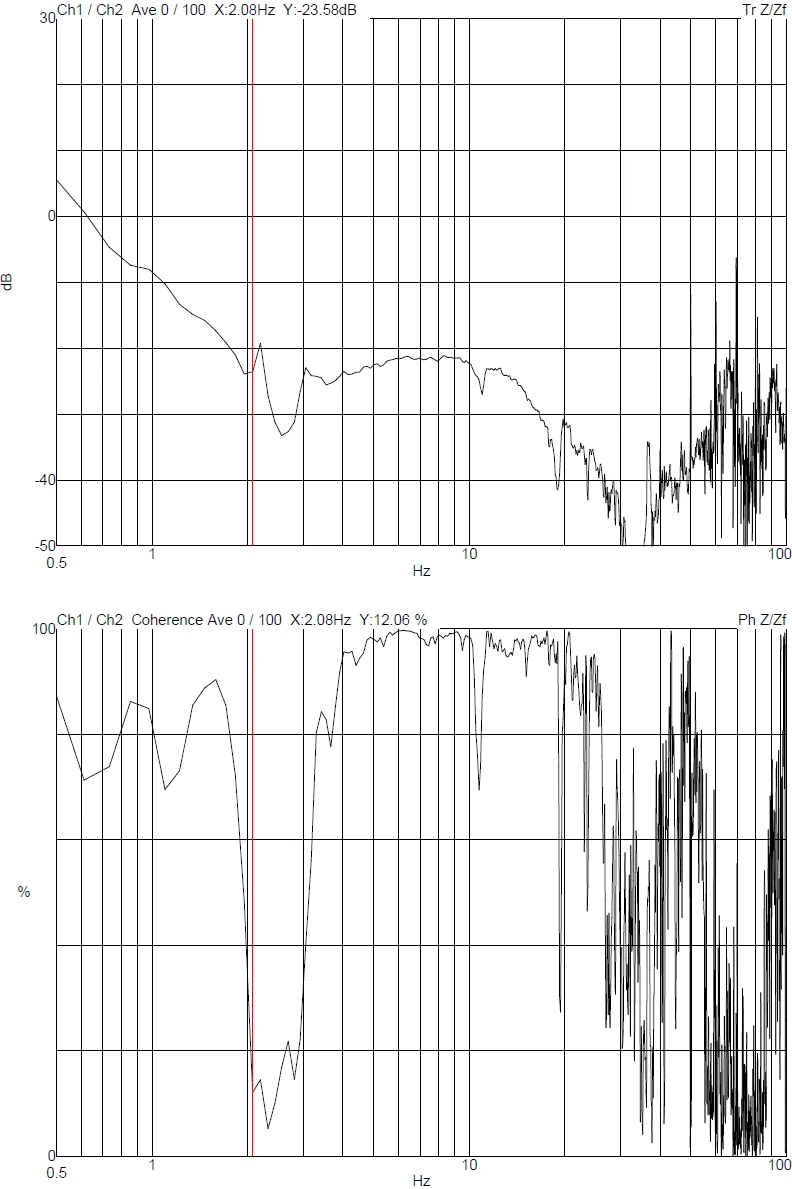

MB1000 internal program — Z axis

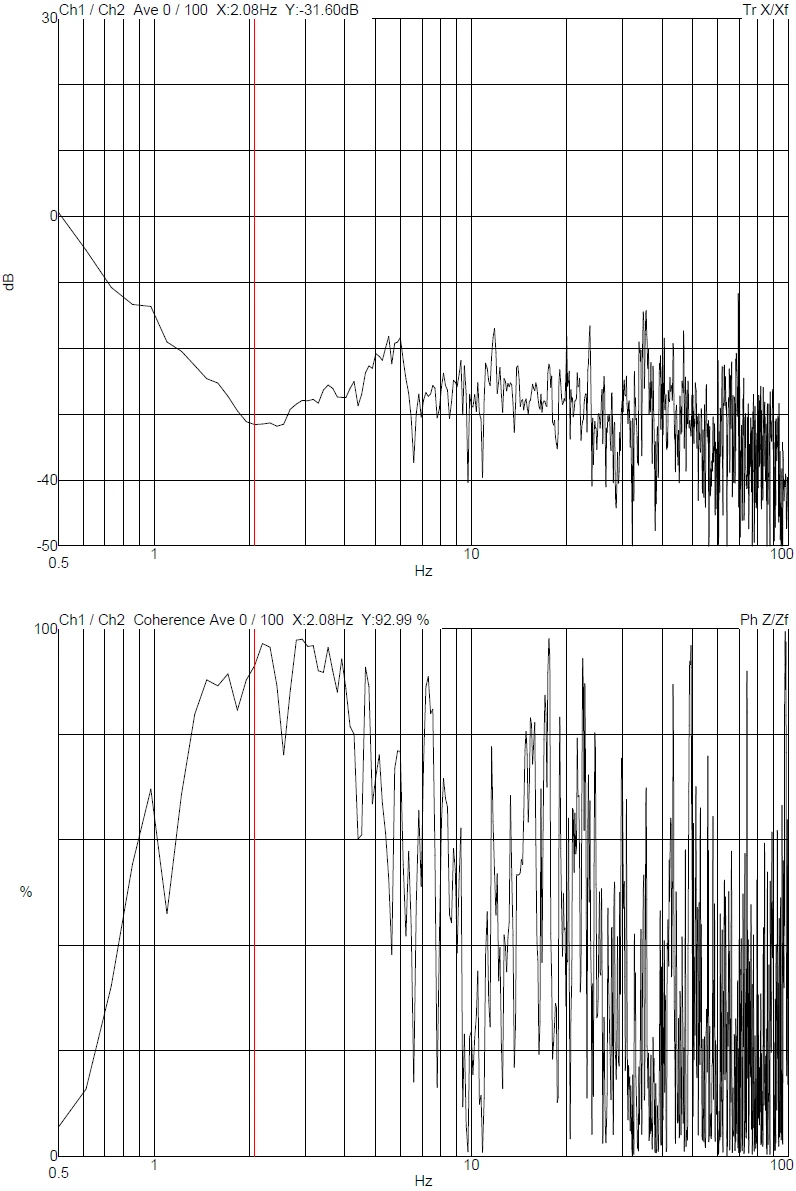

MB1000 internal program — X axis

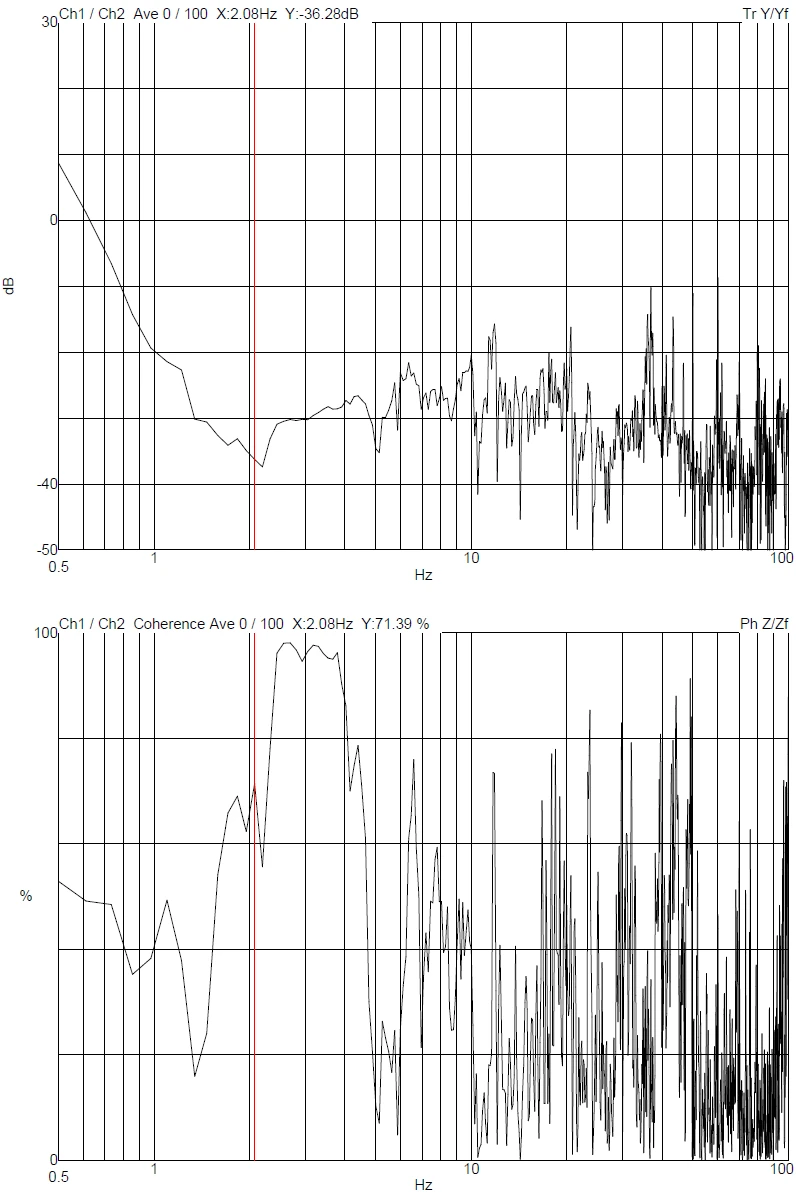

MB1000 internal program — Y axis
Octave Band Result

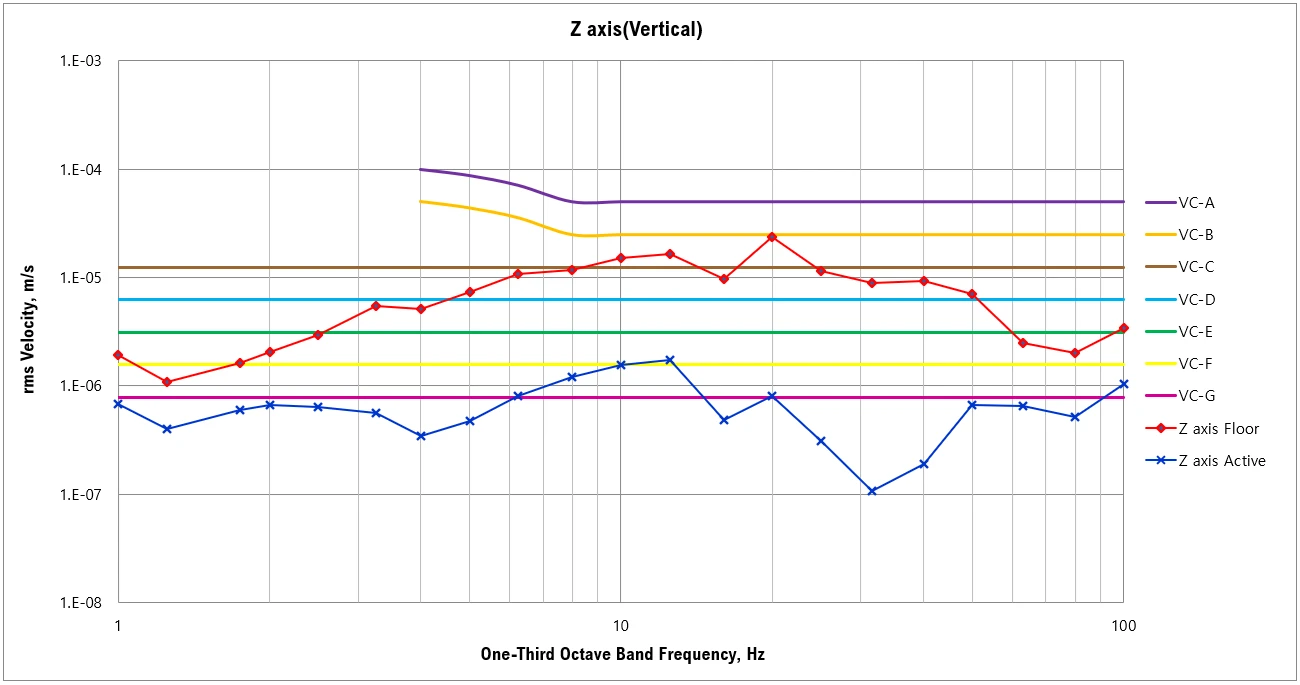

Octave Band Result — Z axis

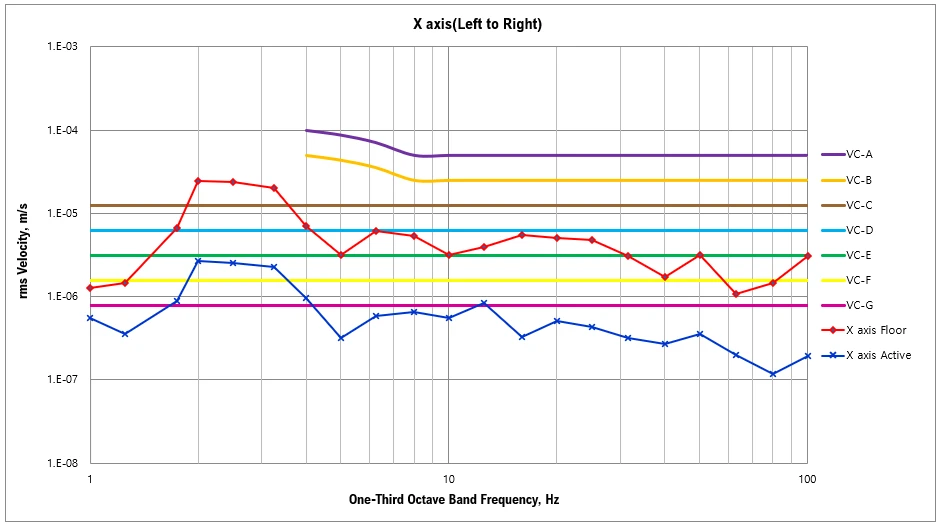

Octave Band Result — X axis

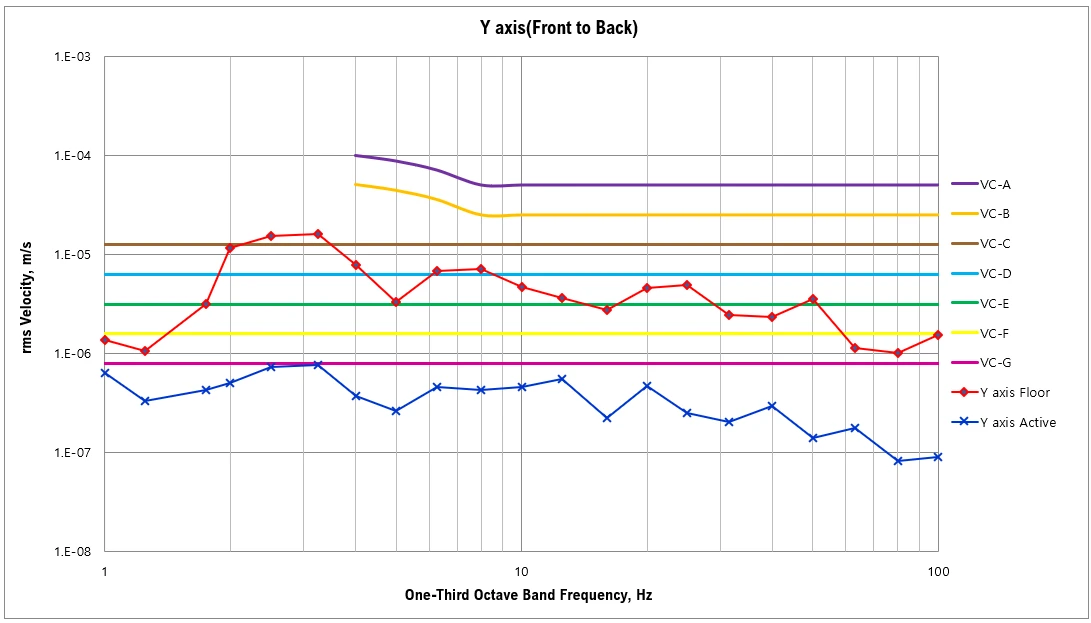

Octave Band Result — Y axis
