Installation Report
DVIA-M Series
09-19-2022
Jiangsu Modern Road & Bridge Axia ChemiSEM HiVac DVIA-M1000 (220718R3) Installation Report — Nanjing
DVIA-M Series
Installation Report
Jiangsu Modern Road & Bridge
Thermo Scientific
Axia
ChemiSEM
Nanjing
DVIA-M1000
220718R3
Contents
Customer and setup title
Jiangsu Modern Road&Bridge Co., Ltd.
(江苏现代路桥有限责任公司)

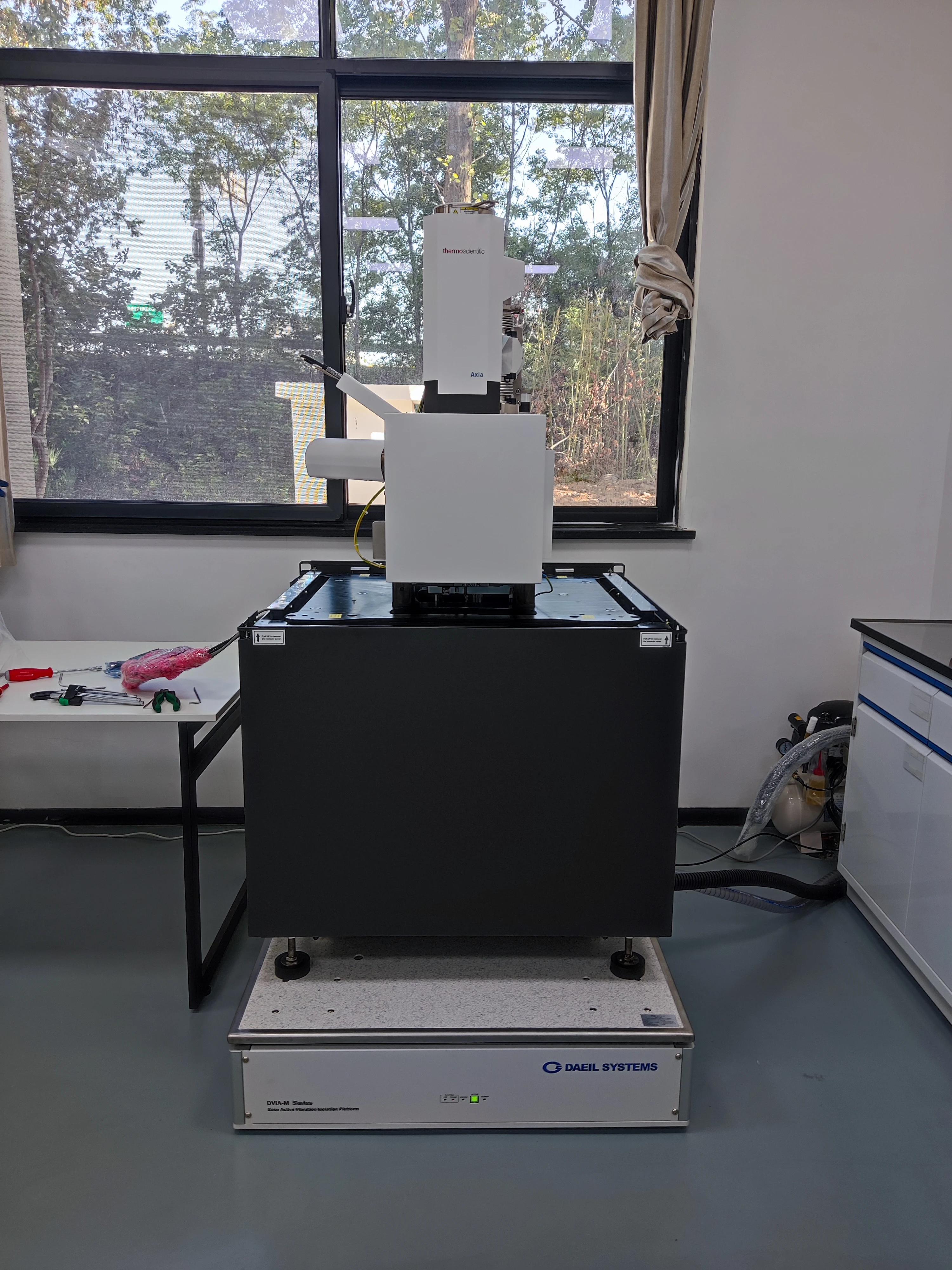

(M1000_ 220718R3 Set up)
Target equipment and site
| Target equipment | Axia ChemiSEM HiVac |
|---|---|
| Place of installation | Nanjing |
| Remark | Good Performance |
| END USER | Jiangsu Modern Road&Bridge Co., Ltd(江苏现代路桥有限责任公司) |
Reporting schedule
Operator: Yu, Ho Sang
Date of setup: 22.09.19
Date of reporting: 22.09.20
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date: 2022.09.19 (Monday),
Operator: DAEIL SYSTEMS, Hosang Yu
Place of measurement: Nanjing
Equipment Model: Axia ChemiSEM HiVac
Measurement conditions and results
Summary of measurement results
Test Condition
VC-Class
| Z | X | Y | |
|---|---|---|---|
| Floor | C | D | D |
| Above Active | D | E | F |
Good omnidirectional performance.
MB1000 internal program performance measurement result

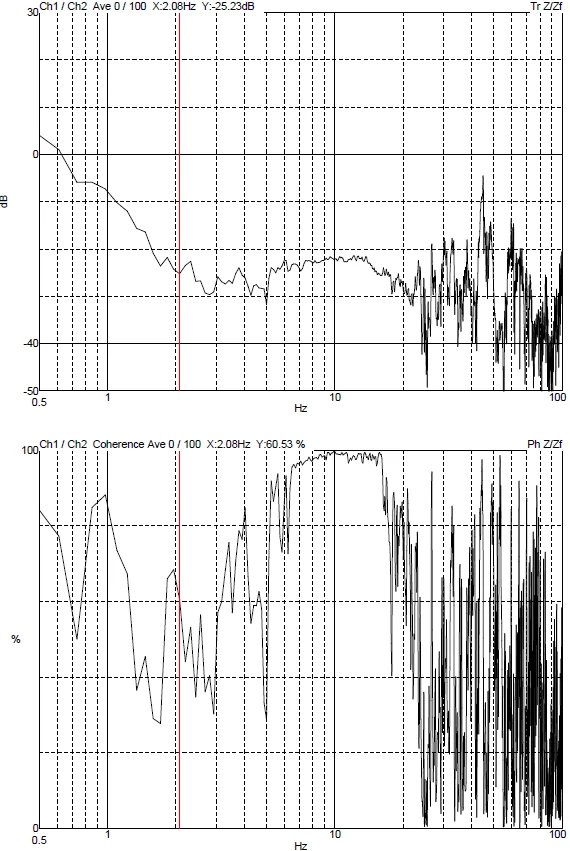

MB1000 internal program — Z axis

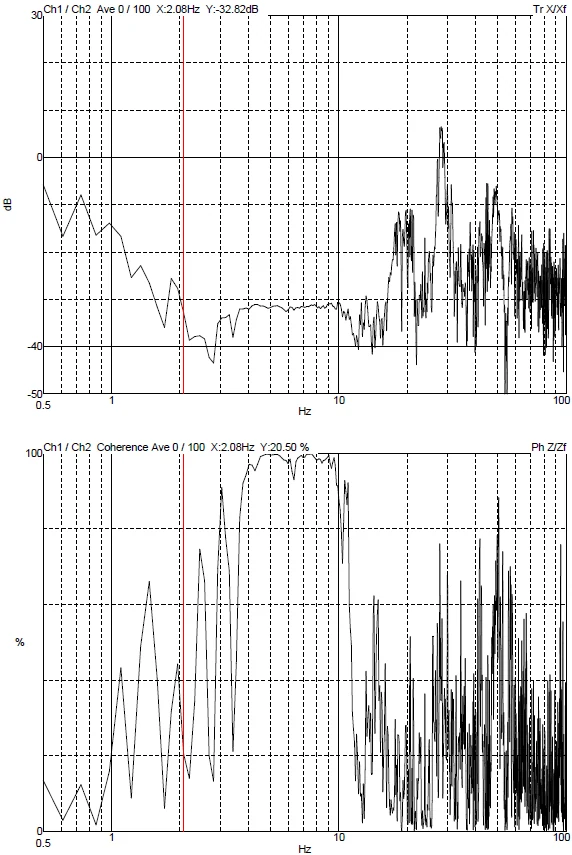

MB1000 internal program — X axis

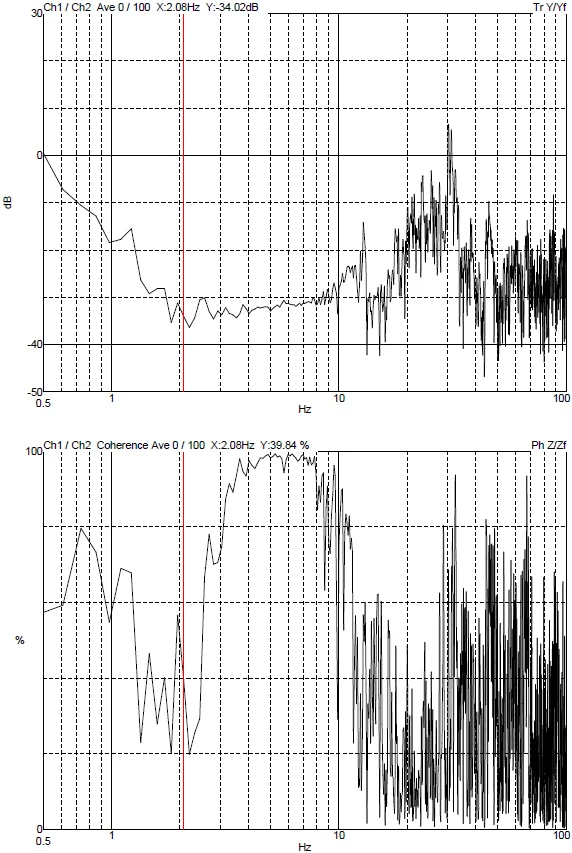

MB1000 internal program — Y axis
Octave Band Result

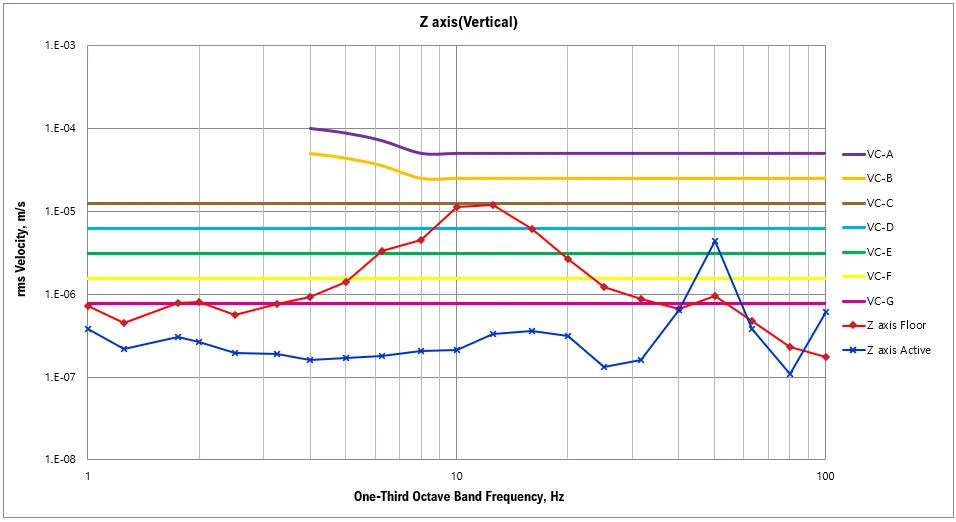

Octave Band Result — Z axis

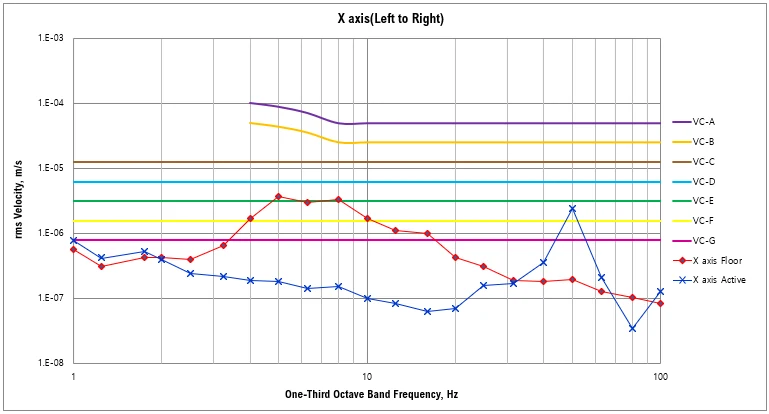

Octave Band Result — X axis

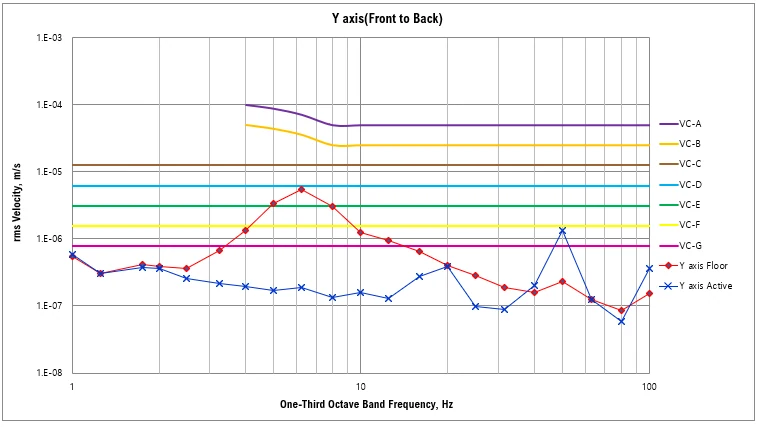

Octave Band Result — Y axis
