Installation Report
DVIA-M Series
07-01-2022
ZEISS EVO15 DVIA-M1000 Internal Program Performance Report — LENS (Taizhou, 2022)
DVIA-M Series
Installation Report
DVIA-M1000
ZEISS
EVO15
LENS
Taizhou
China
220427R2
Contents
(M1000_ 220427R2 Set up)
| Target equipment | Zeiss EVO15 |
|---|---|
| Place of installation | Taizhou, China |
| Remark | Good Performance |
| END USER | LENS（蓝思精密） |
Operator: Yu, Ho Sang
Date of setup: 22.06.29
Date of reporting: 22.07.01
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date: 2022.06.29 (Wednesday),
Operator: DAEIL SYSTEMS, Hosang Yu, Youngha Lee
Place of measurement: Taizhou, China
Equipment Model: Zeiss EVO15
Summary of Setup results
Good omnidirectional performance.
| Condition | 2 Hz | ||
|---|---|---|---|
| Z | X | Y | |
| Transmissibility | -36.86 dB | -31.73 dB | -30.97 dB |
| Attenuation degree | 98.5 % | 97.2 % | 97.1 % |
MB1000 internal program performance measurement result

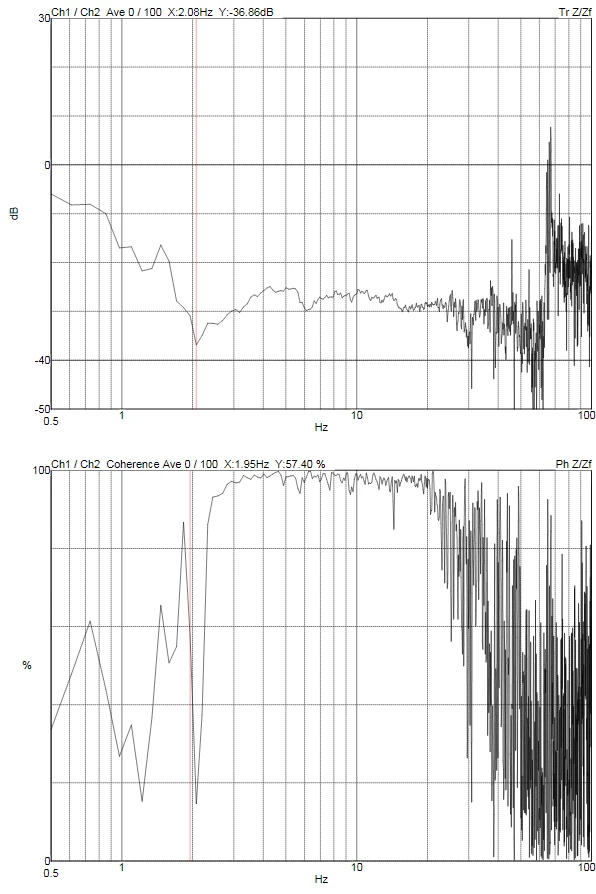

Z axis

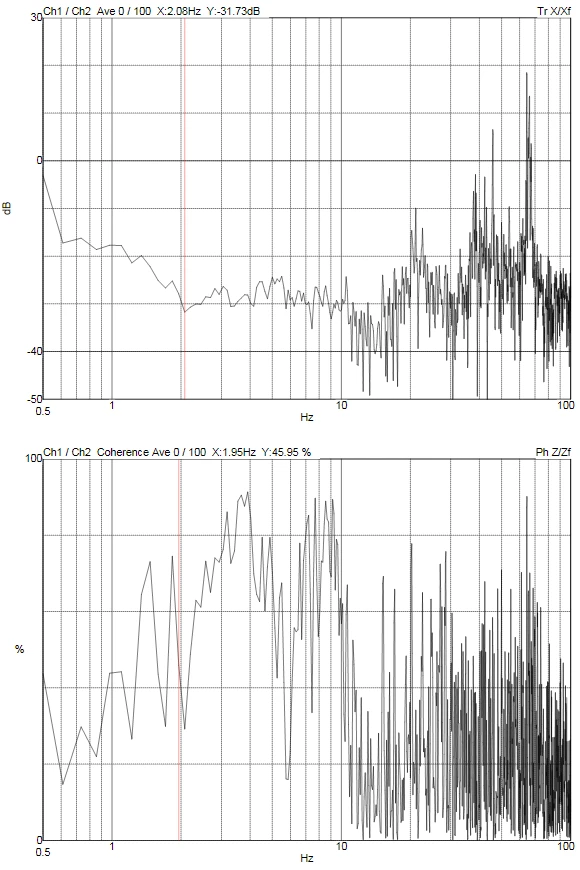

X axis

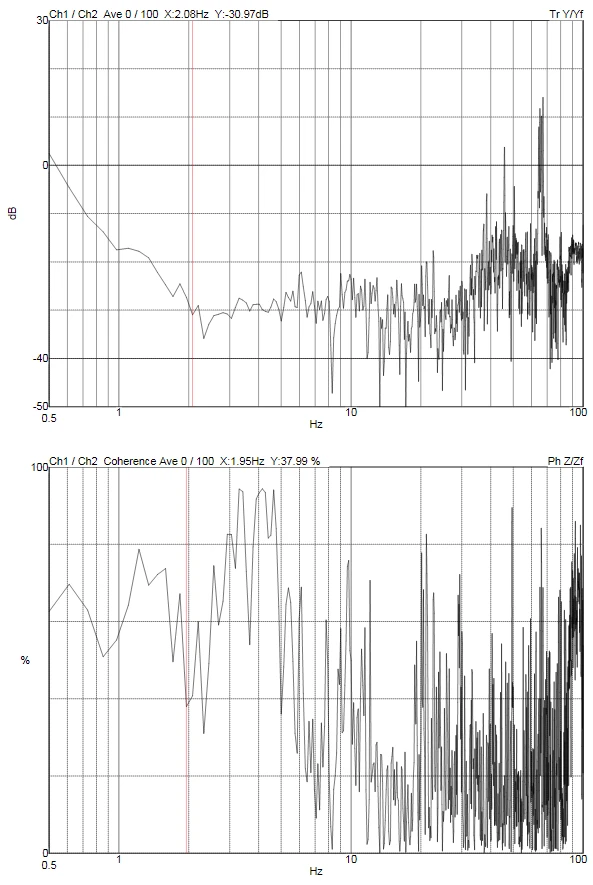

Y axis
