Installation Report
DVIA-M Series
07-10-2023
Shanghai Institute DVIA-MO3000 (220330R5-1) Installation Report
DVIA-M Series
Installation Report
DVIA-MO3000
220330R5-1
Shanghai
ZOLIX
Contents
Overview
The DVIA-MO3000 active vibration isolation platform is appropriately installed and functioning as intended.
Prepared for
Shanghai Institute of Technology and Technology
System Information
Model: DVIA-MO3000
Serial Number: 220330R5-1
Engineer
Youngha Lee from DAEIL SYSTEMS
Tuning Date
July 07, 2023
Report written date
July 10, 2023
Location
Shanghai, China
Equipment
Three-axis Vibration Exciter
Engineer: Youngha Lee Tuning date: 23.07.07 Report written date: 23.07.10
Date of business trip : 17.12.27~17.12.29
Summary of Vibration Transmissibility
| Direction | 2Hz | 5Hz | 10Hz |
|---|---|---|---|
| Z axis | -30.79dB | -22.44dB | -20.99dB |
| X axis | -29.39dB | -20.78dB | -20.51dB |
| Y axis | -32.07dB | -20.02dB | -20.20dB |
Data and Image

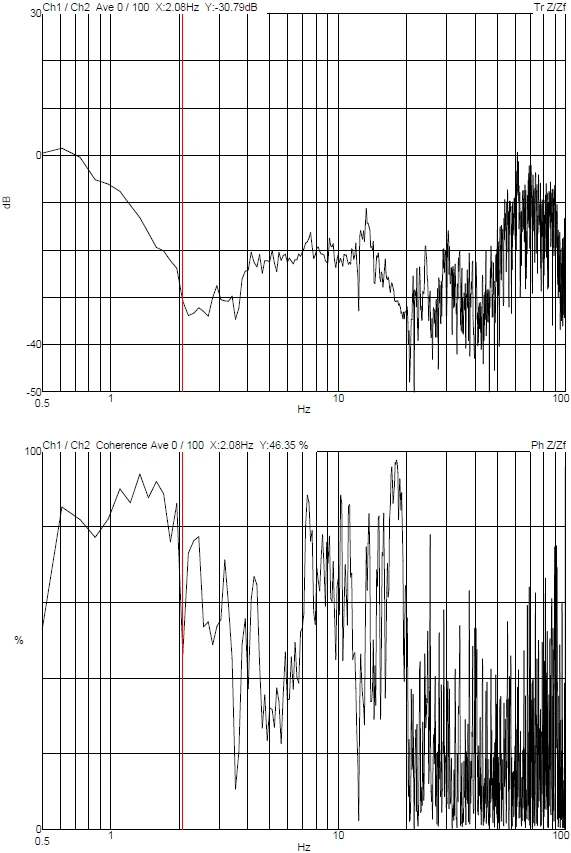

Z-axis (Vertical) Transmissibility

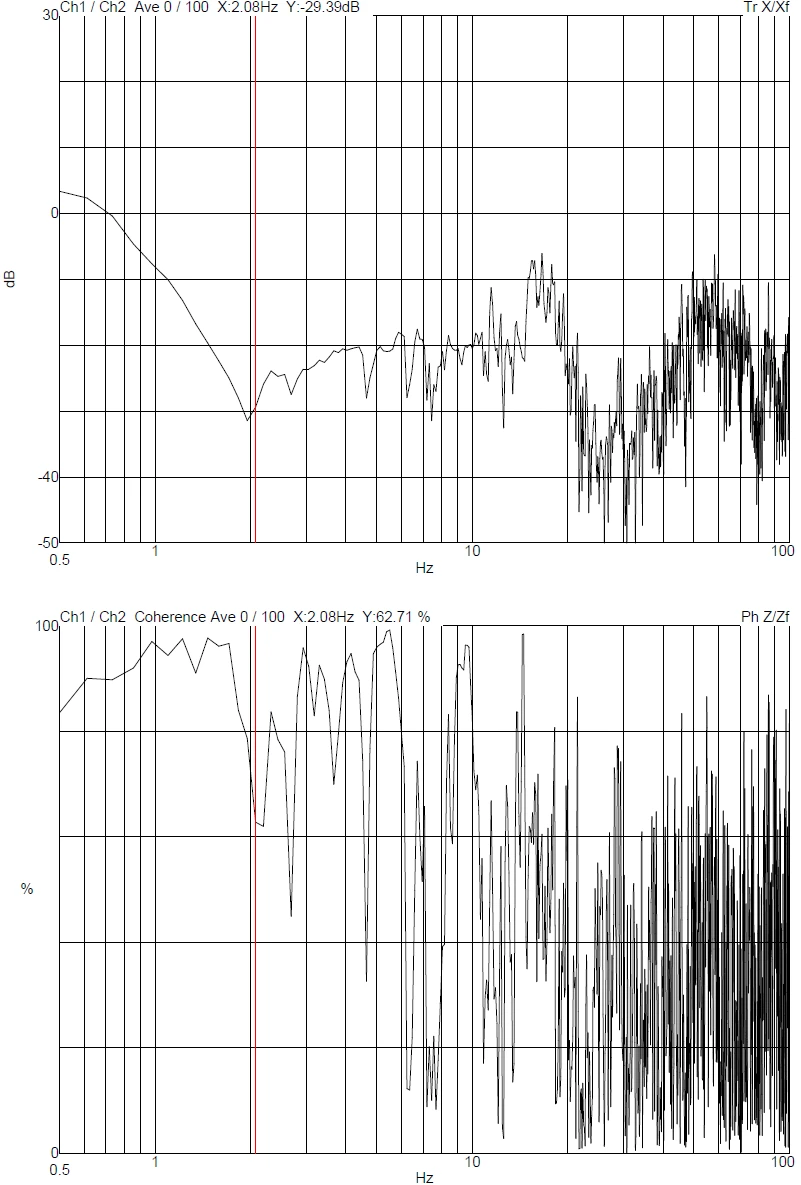

X-axis (Left to Right) Transmissibility

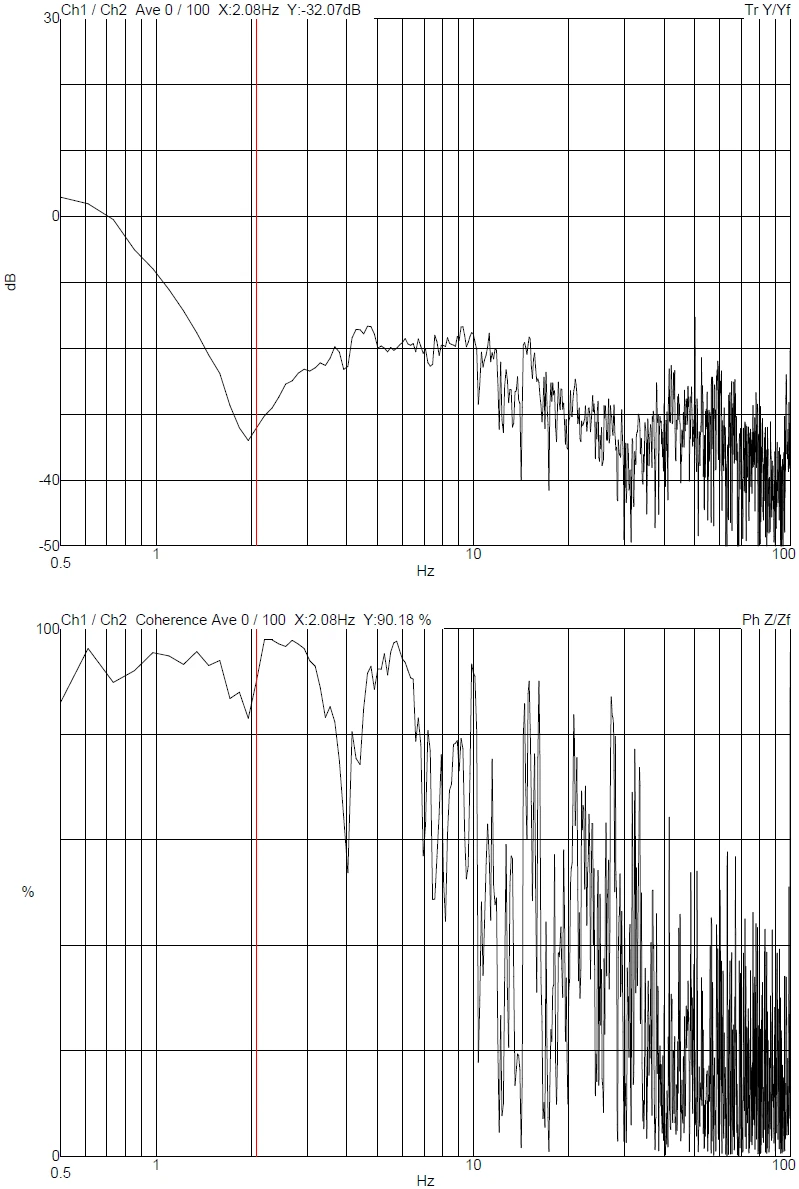

Y-axis (Front to Back) Transmissibility

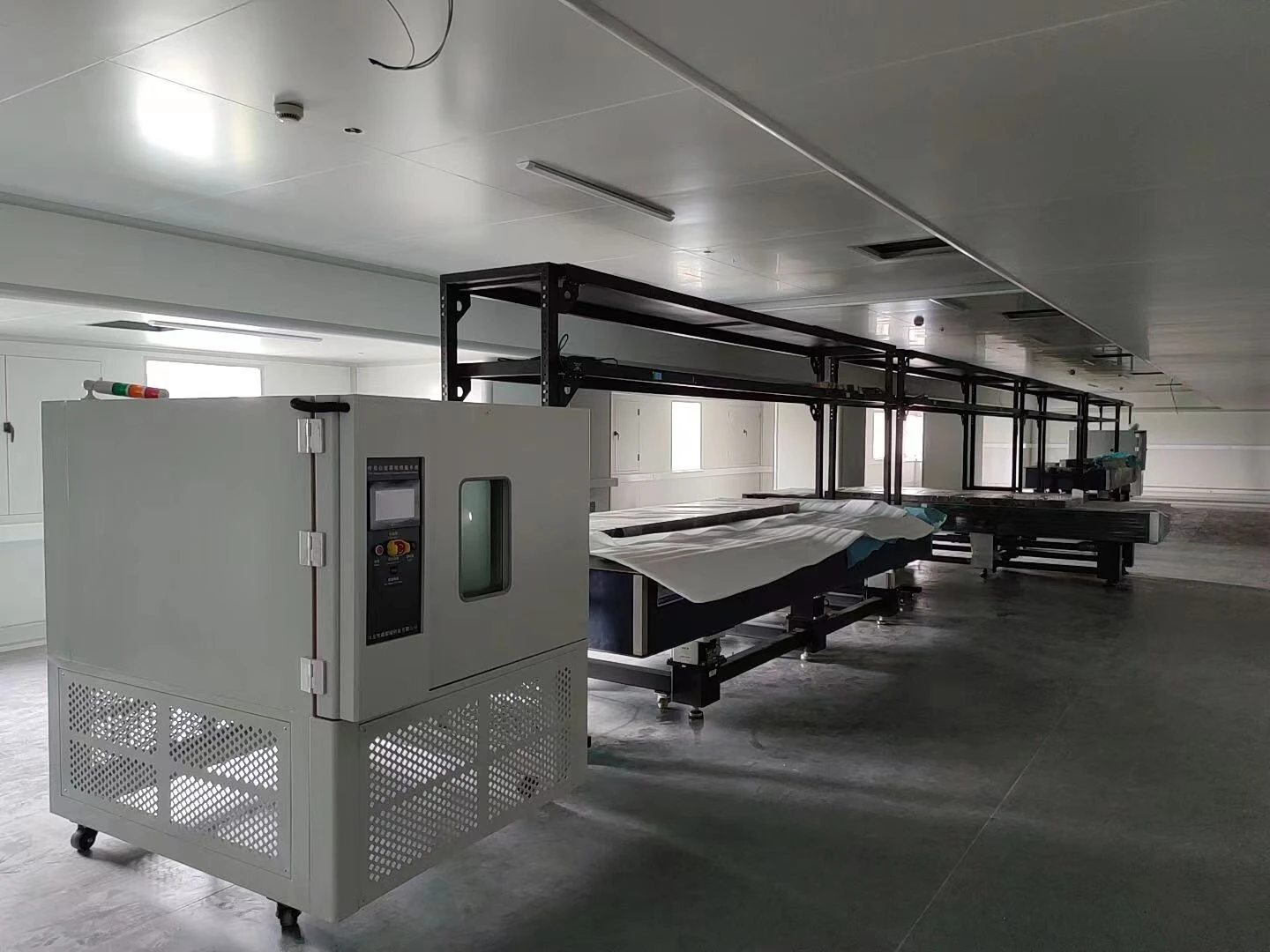

Equipment picture (1)

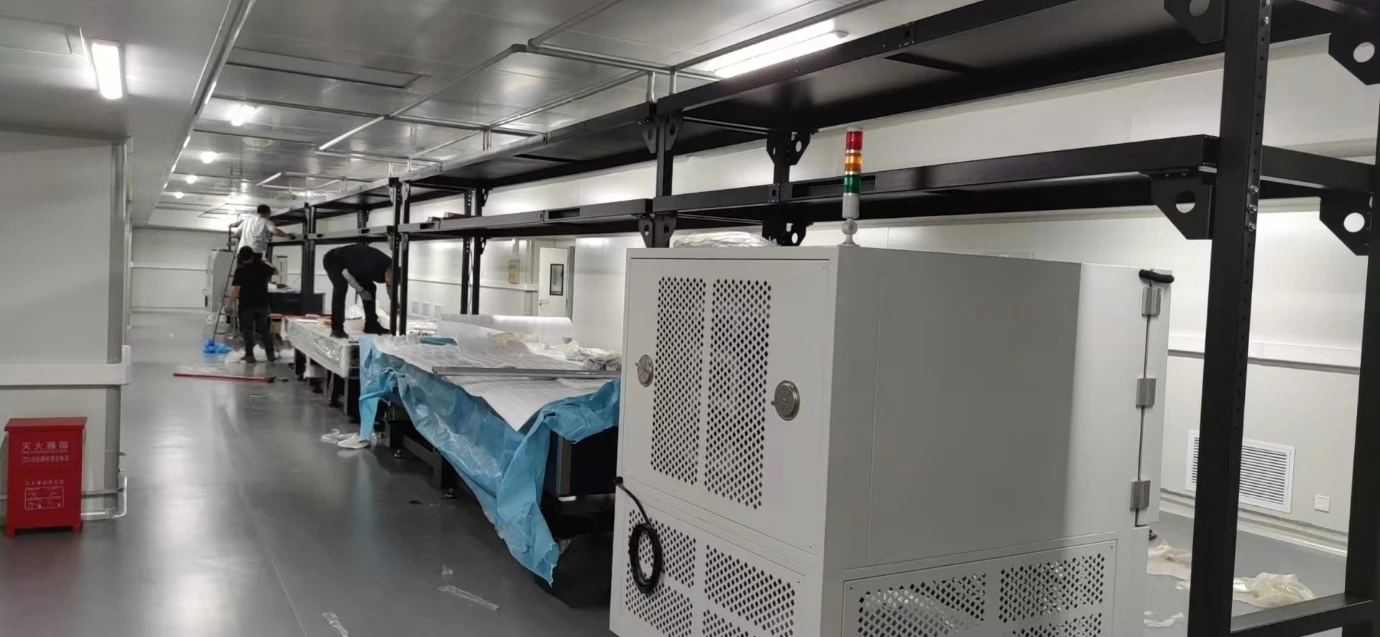

Equipment picture (2)
