Installation Report
DVIA-M Series
12-17-2021
YIMO ZEISS Sigma 300 DVIA-M1000 MB1000 Internal Program Worksheet (2021-12-17)
DVIA-M Series
Installation Report
DVIA-M1000
MB1000
YIMO
ZEISS
Sigma 300
Contents
YIMO
YIMO
MB1000 P272 211122R5
Target equipment
ZEISS Sigma 300
Place of installation
N/A
Remark
Good Performance
END USER
N/A
Operator
Choi, HyoungMun
Date of setup
21.12.14
Date of reporting
21.12.17
Date of business trip
17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.12.14 (the)
Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement : N/A
Equipment Model: ZEISS Sigma 300
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -31 dB | -28 dB | -28 dB |
| X | -37 dB | -25 dB | -30 dB |
| Y | -33 dB | -25 dB | -28 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

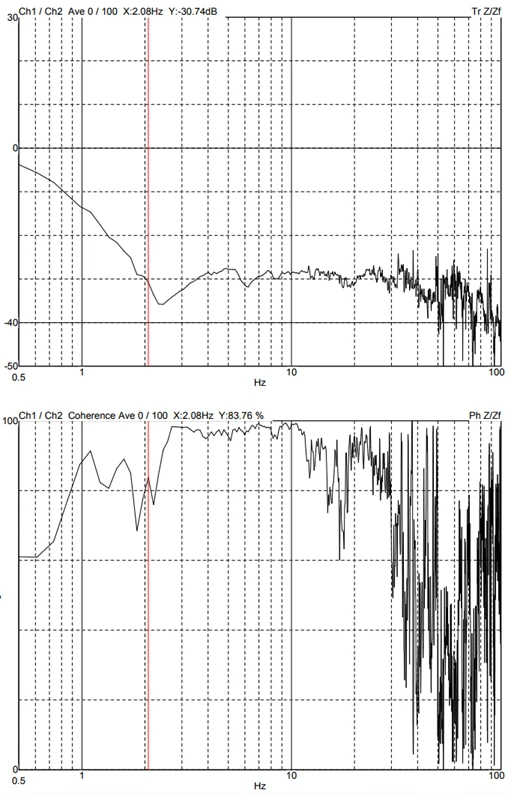

Z axis

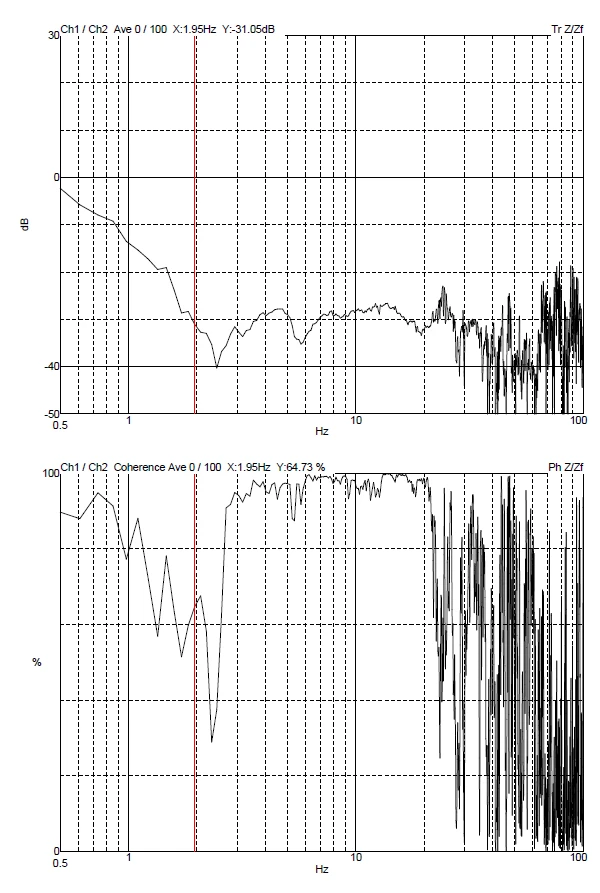

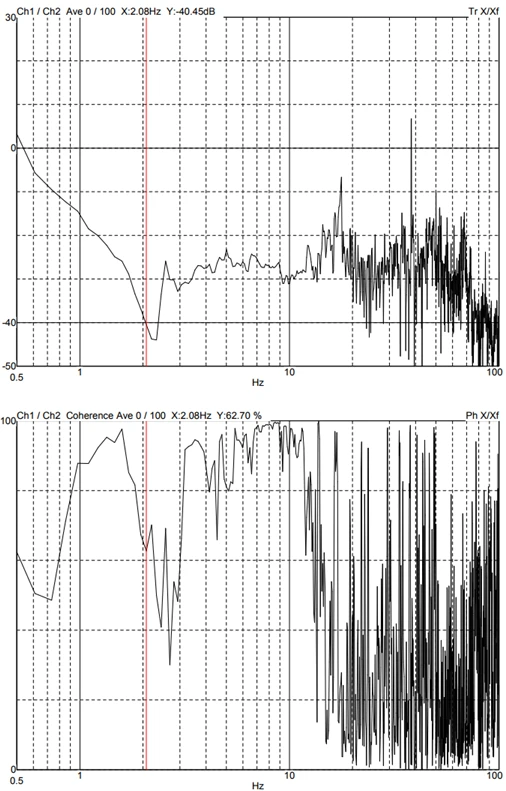

X axis

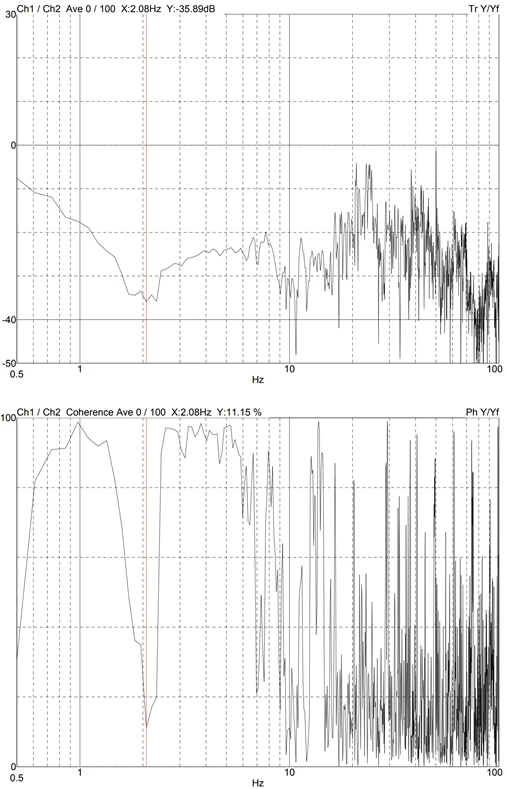

Y axis
