Installation Report
DVIA-M Series
10-21-2020
Wangxiang ZEISS Sigma 300 DVIA-MB1000 MB1000 Internal Program (P179) — 2020.10.21
DVIA-M Series
Installation Report
DVIA-M1000
DVIA-MB1000
MB1000
P179
ZEISS
Sigma 300
Hangzhou
Contents
MB1000_200522R2-3(P179) Set up
| Target equipment | ZIESS Sigma300 |
|---|---|
| Place of installation | Hangzhou |
| Remark | Good Performance |
| END USER | Wangxiang campany |
| Operator : Doohyun Kim | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.10.20 | |
| Date of reporting : 20.10.21 |
Target equipment
ZIESS Sigma300
Place of installation
Hangzhou
Remark
Good Performance
END USER
Wangxiang campany
Date of setup
20.10.20
Date of reporting
20.10.21
Date of business trip
17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 20.10.20 (TUE)
Operator
Operator: Daeil System, Research engineer Doohyun kim
Place of measurement
Place of measurement : Hangzhou
Equipment Model
Equipment Model: ZIESS Sigma300
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -20 dB | -25 dB | -33 dB |
| X | -26 dB | -27 dB | -33 dB |
| Y | -28 dB | -30 dB | -35 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

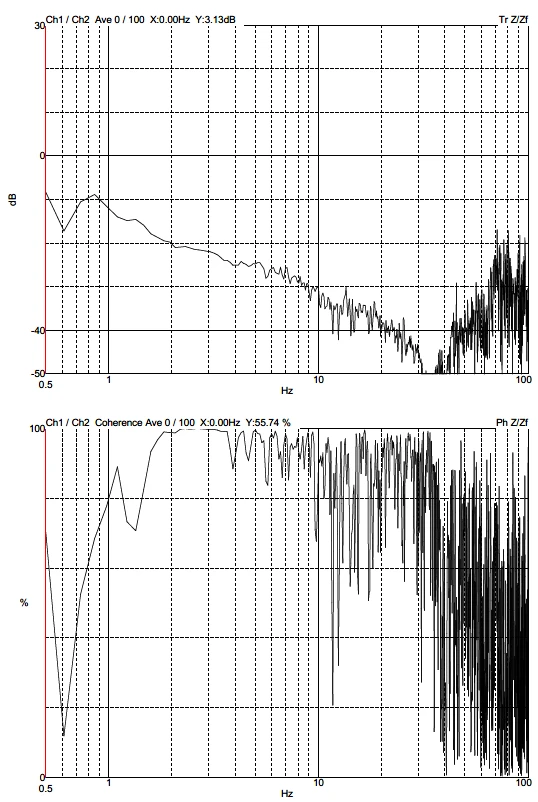

Z axis

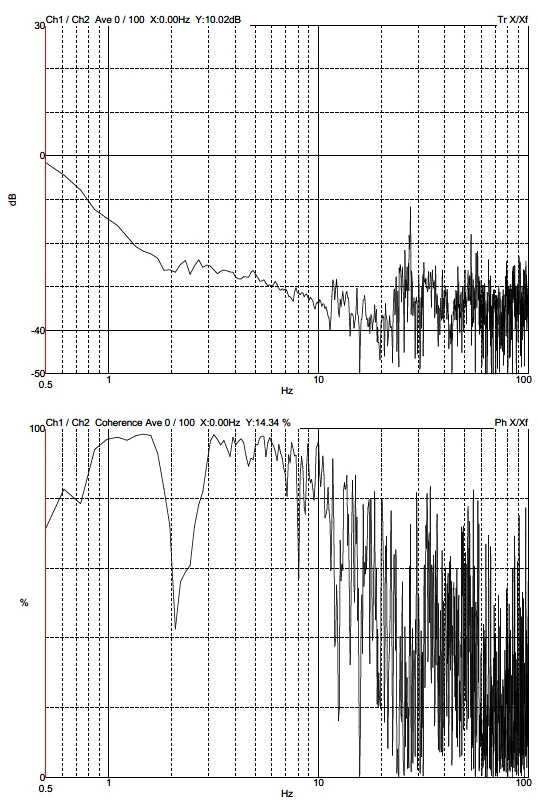

X axis

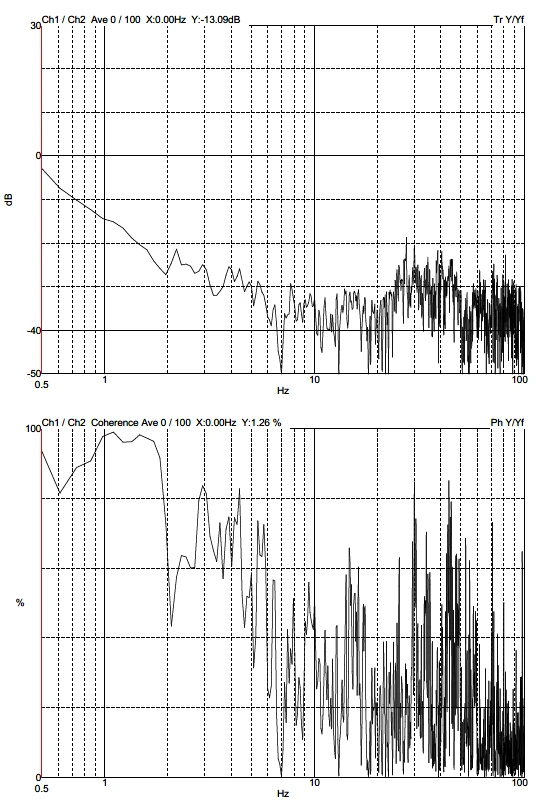

Y axis
