Shanghai Synchrotron Radiation Facility DVIA-M1000 (211026R3-2) Set Up Report
DVIA-M Series
Installation Report
SSRF
Shanghai Synchrotron Radiation Facility
DVIA-M1000
211026R3-2
Contents
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date: 2022.10.19 (Wednesday),
Operator: DAEIL SYSTEMS, Youngha Lee
Place of measurement: Shanghai
Equipment Model: TBD
M1000 internal program performance measurement result

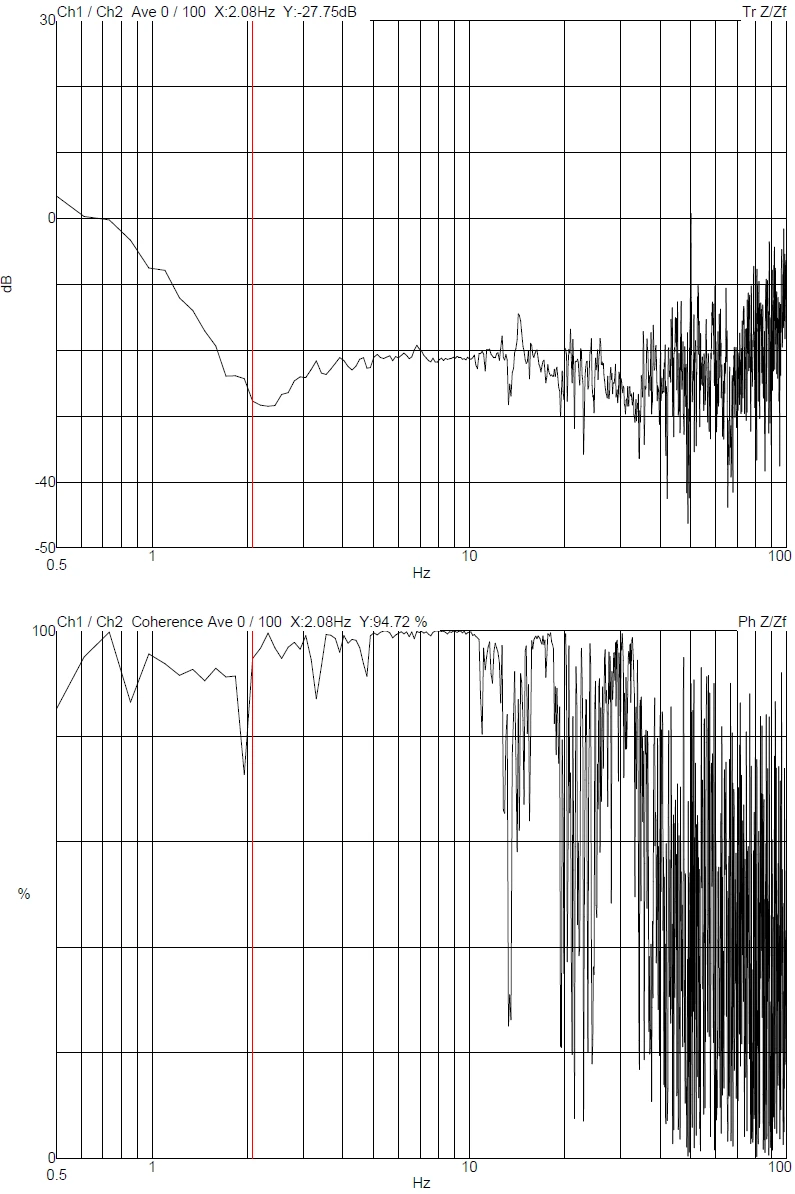

Z axis

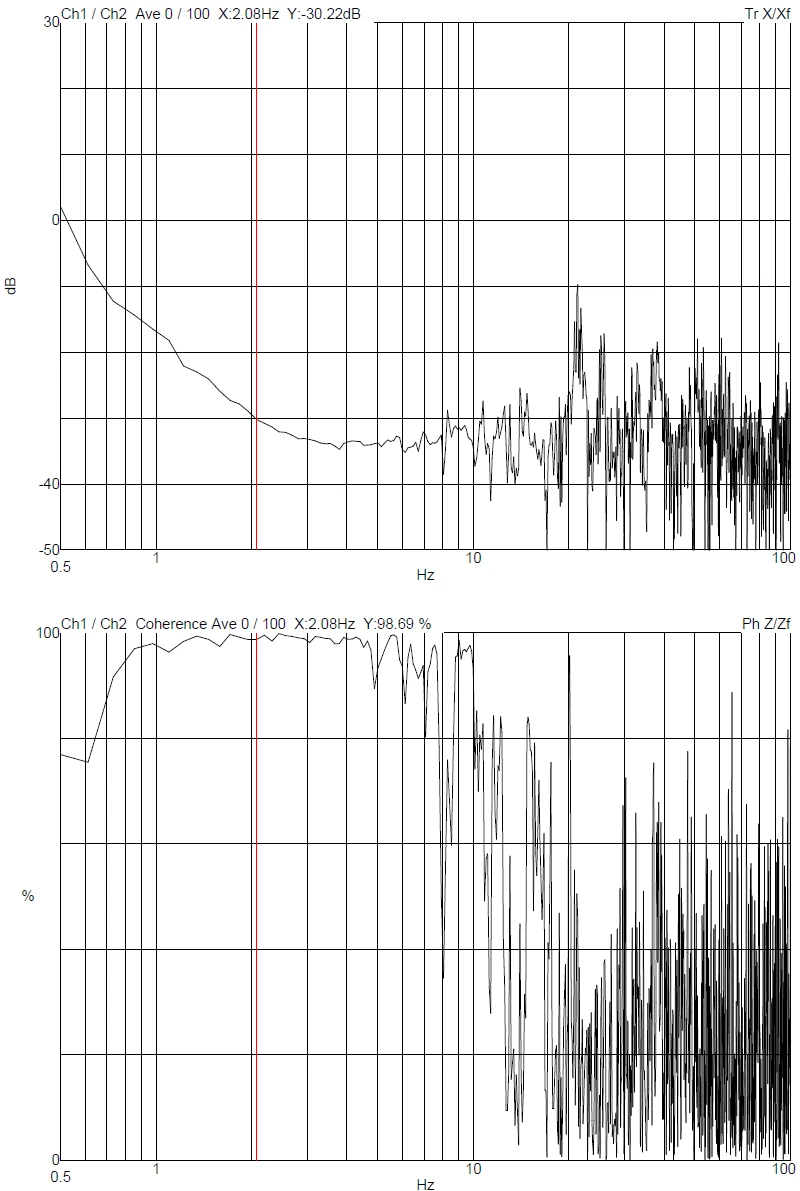

X axis

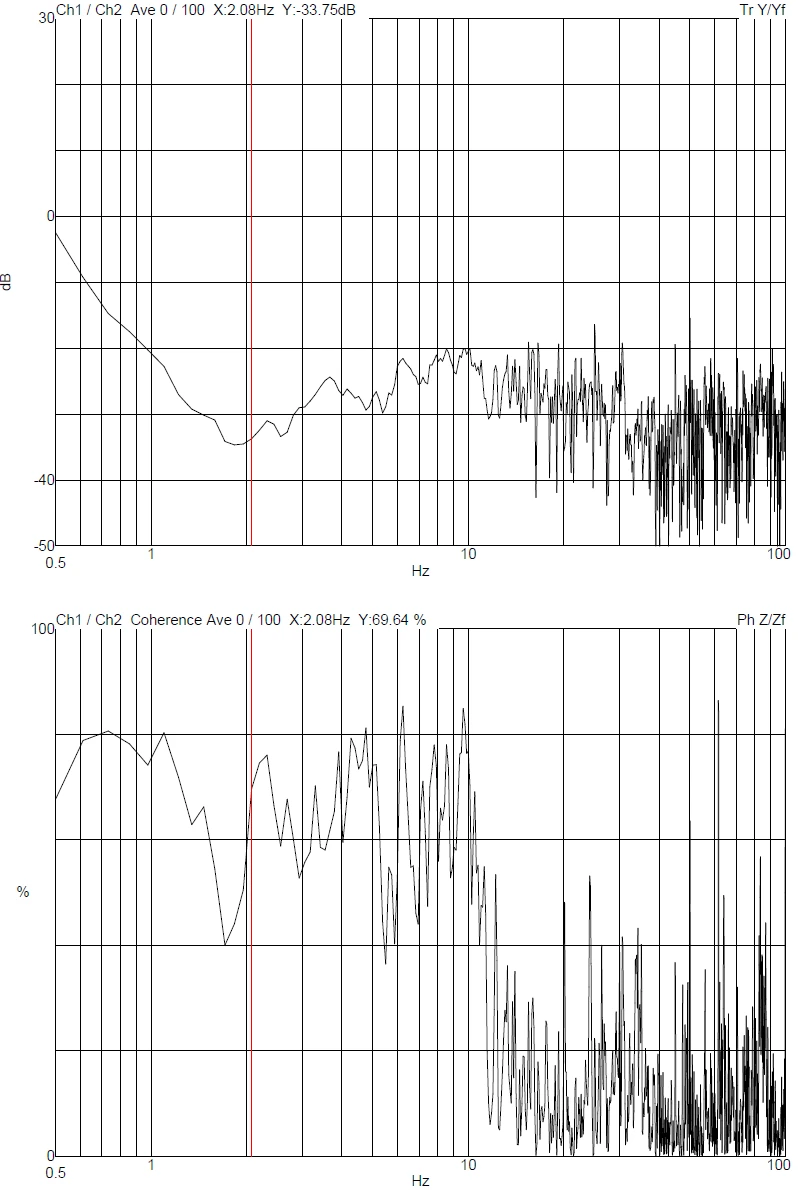

Y axis
