Installation Report
DVIA-M Series
08-04-2021
YIMO DVIA-MB1000 (P160) Internal program performance — 2021.08.04
DVIA-M Series
Installation Report
DVIA-MB1000
YIMO
internal program performance
P160
Contents
MB1000 P160
| Target equipment | N/A |
|---|---|
| Place of installation | N/A |
| Remark | N/A |
| END USER | N/A |
| Operator: Kim, Doohyun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 21.07.31 | |
| Date of reporting : 21.08.04 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: N/A
Operator: N/A
Place of measurement : N/A
Equipment Model: N/A
Measurement conditions and results
Summary of measurement results
Test Condition
Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -28 dB | -32 dB | -32 dB |
| X | -26 dB | -28 dB | -25 dB |
| Y | -27 dB | -32 dB | -28 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

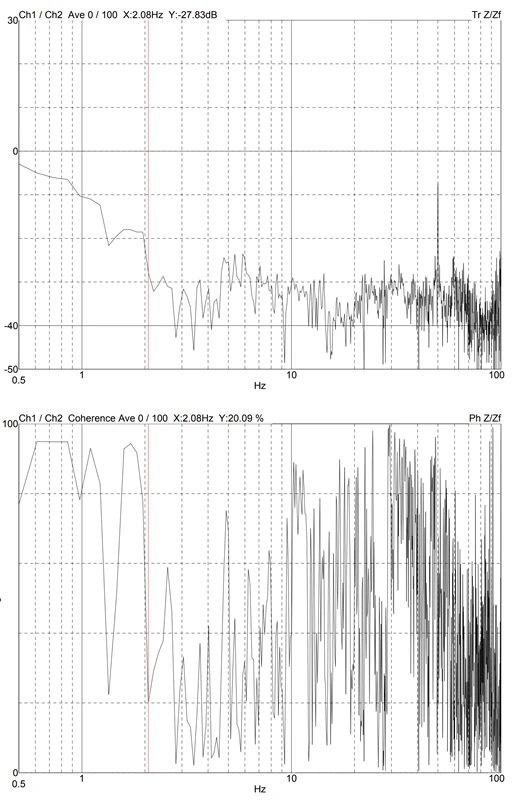

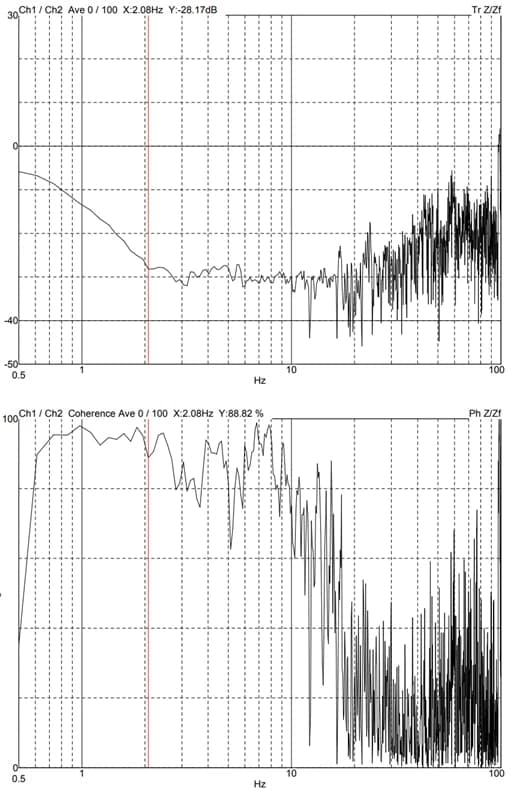

Z axis

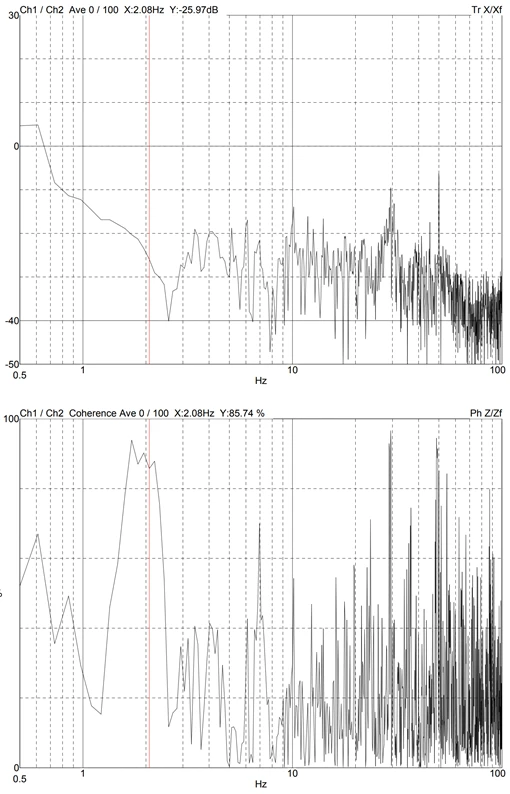

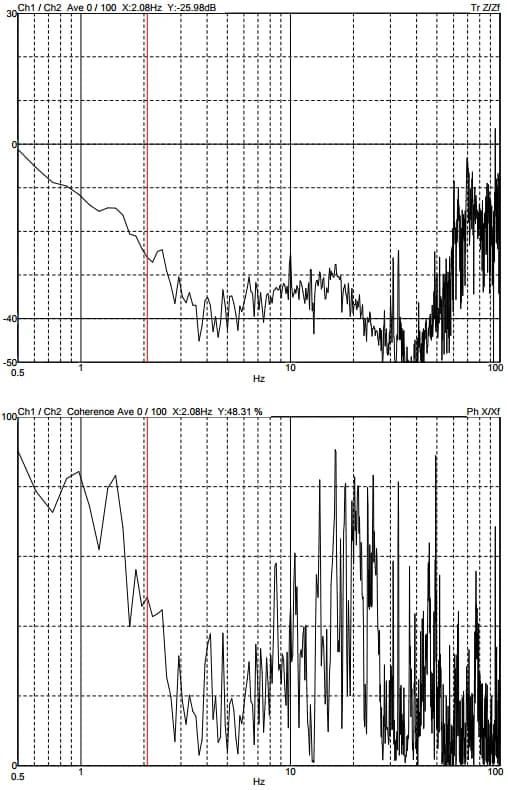

X axis

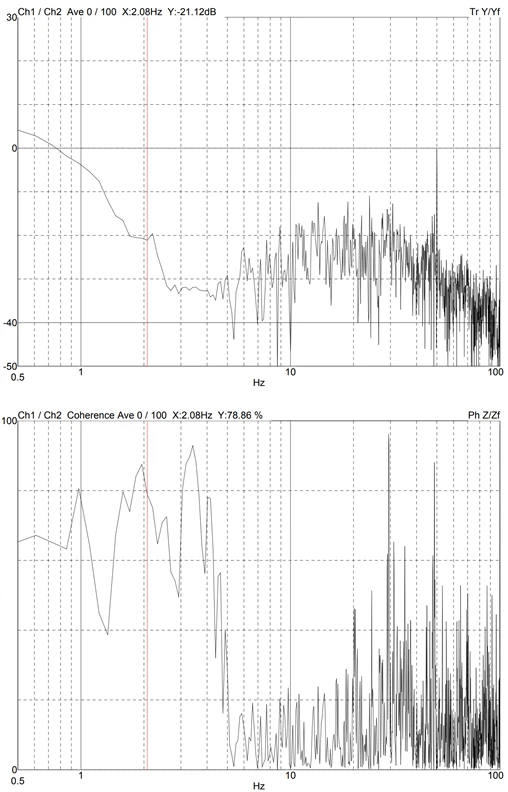

Y axis
Share this Case Study
Case Study Information
Category
Installation Report
SeriesDVIA-M Series
Date08-04-2021
Tags
DVIA-M Series
Installation Report
DVIA-MB1000
YIMO
internal program performance
P160
