YIMO ZEISS Sigma 300 DVIA-MB1000 (P256 / 210604R3) Internal program performance — 2021.11.24
DVIA-M Series
Installation Report
DVIA-MB1000
ZEISS
Sigma 300
YIMO
internal program performance
P256
210604R3
Xiamen Faratronic
Contents
MB1000 P256(210604R3)
| Target equipment | Zeiss Sigma300 |
|---|---|
| Place of installation | xiamen |
| Remark | Good Performance |
| END USER | 厦门法拉电子 |
| Operator: Choi, HyoungMun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 21.11.24 | |
| Date of reporting : 21.11.24 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.11.24 (WED)
Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement : xiamen, 厦门法拉电子
Equipment Model: Zeiss Sigma300
Measurement conditions and results
Summary of measurement results
Test Condition
Transmissibility
| Direction | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -36 dB | -23 dB | -31 dB |
| X | -33 dB | -24 dB | -26 dB |
| Y | -37 dB | -33 dB | -27 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

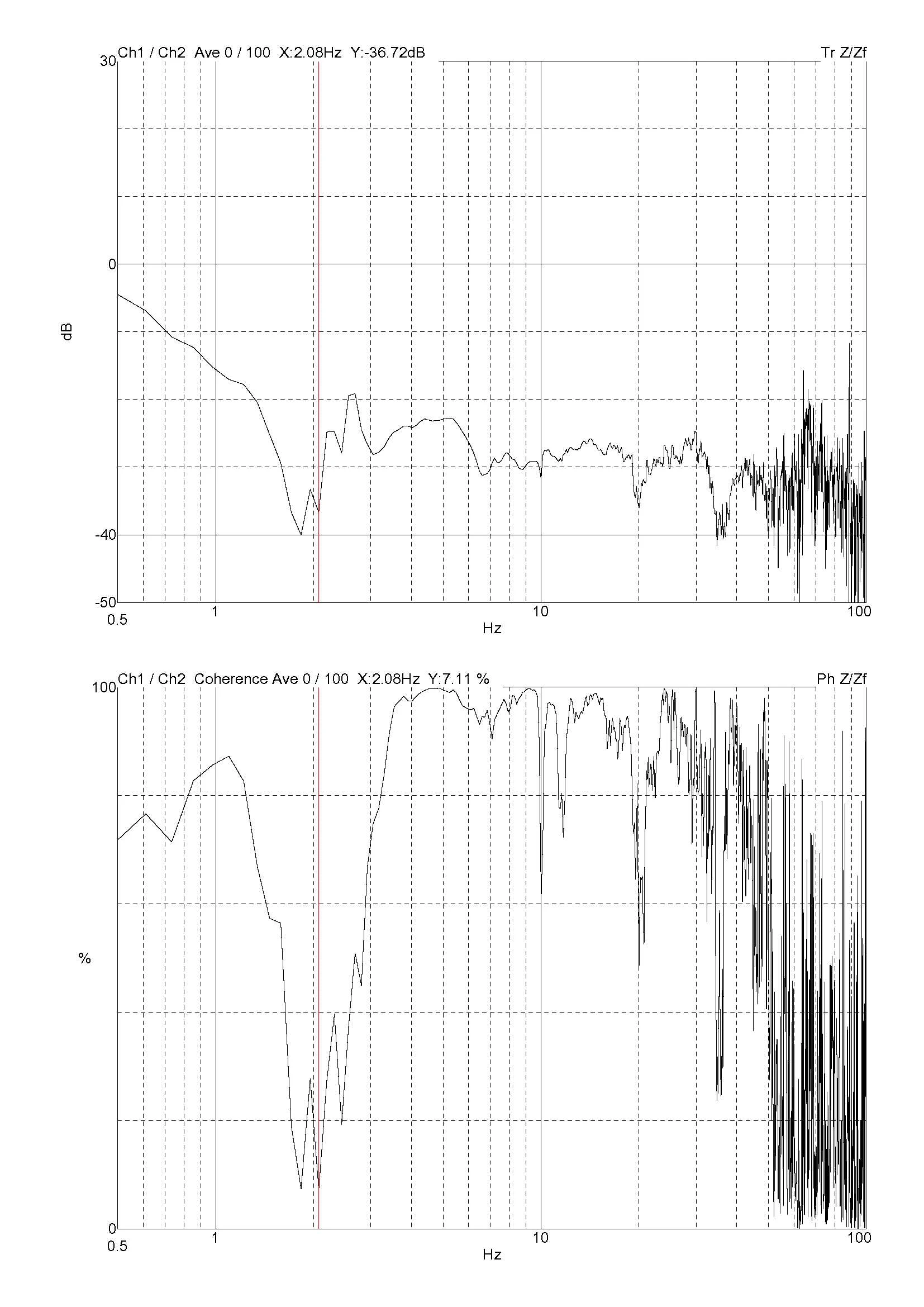

Z axis

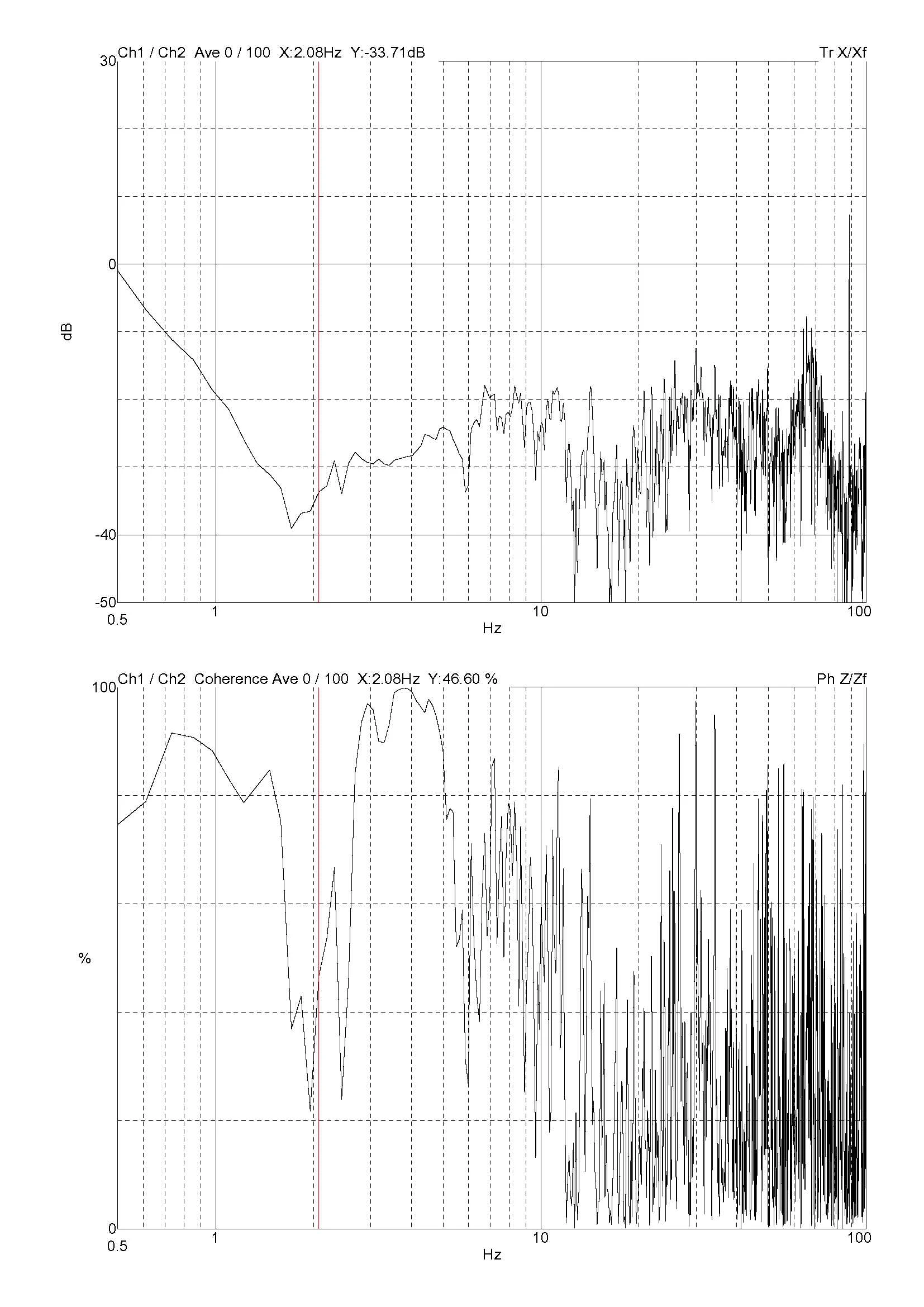

X axis

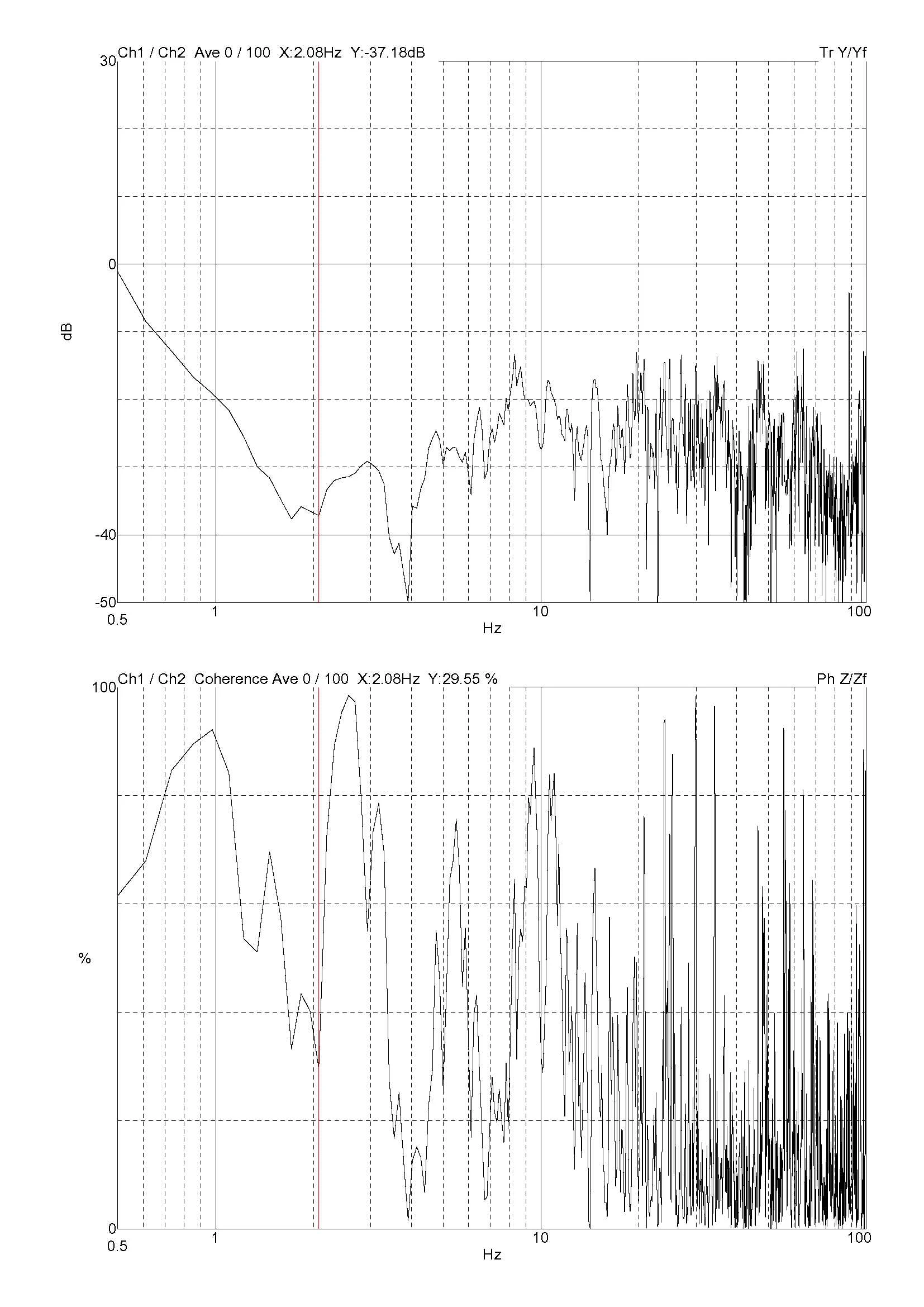

Y axis
