Installation Report
DVIA-M Series
12-29-2021
Baosteel ZEISS Sigma 300 DVIA-MB1000 (P205) Internal Program Performance — 2021.12.29
DVIA-M Series
Installation Report
Baosteel
ZEISS
Sigma 300
DVIA-MB1000
P205
MB1000
Contents
(MB1000 P205 Set up)
| Target equipment | ZEISS-Sigma300 |
|---|---|
| Place of installation | R&D Center 3Floor |
| Remark | Good Performance |
| END USER | BAOSTELL |
| Operator: Choi, HyoungMun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 21.12.29 | Date of reporting : 21.12.29 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 21.12.29 (wed)
Operator
Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement
Place of measurement : R&D Center 3Floor
Equipment Model
Equipment Model: ZEISS-Sigma300
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -23 dB | -40 dB | -40 dB |
| X | -27 dB | -32 dB | -35 dB |
| Y | -30 dB | -41 dB | -40 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

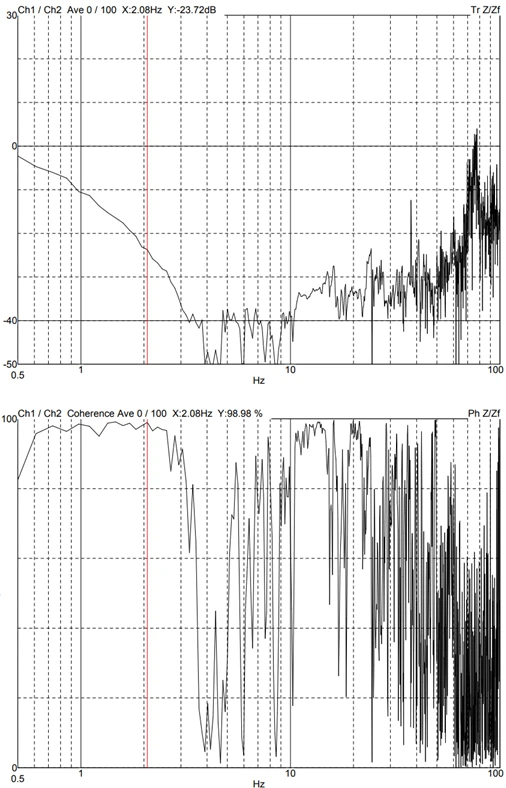

Z axis

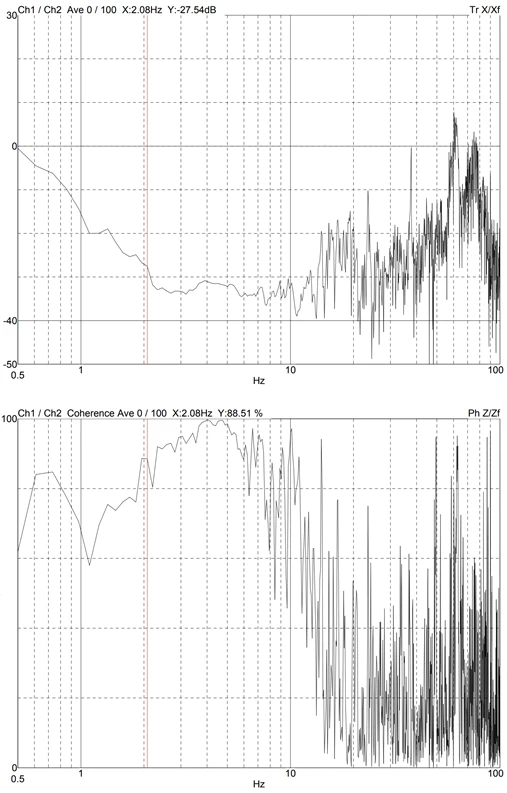

X axis

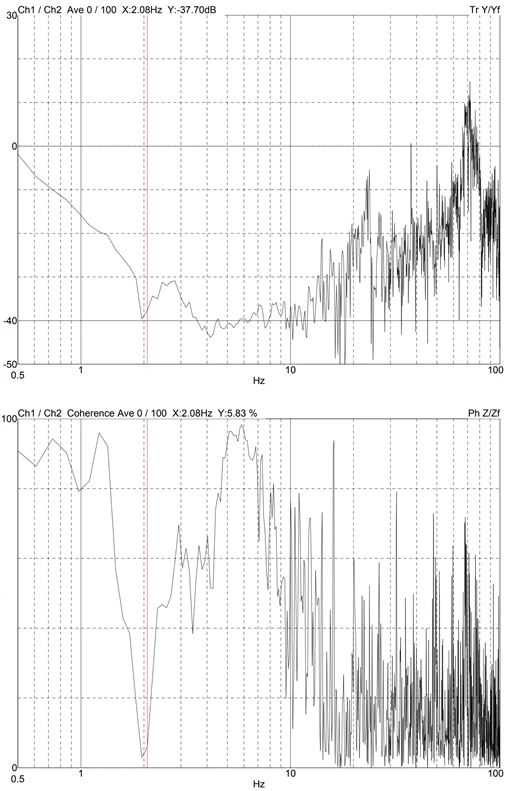

Y axis
