Installation Report
DVIA-M Series
12-15-2020
BAOSTELL R&D Center ZEISS Sigma 300 DVIA-MB1000 (P205 YIMO 201116R2) Internal Program Performance — 2020.12.15
DVIA-M Series
Installation Report
Baosteel
ZEISS
Sigma 300
DVIA-MB1000
MB1000
P205
YIMO
Contents
(MB1000 P205 YIMO 201116R2)
| Target equipment | ZEISS-Sigma300 |
|---|---|
| Place of installation | R&D Center 3Floor |
| Remark | Good Performance |
| END USER | BAOSTELL |
| Operator: Choi, HyoungMun | Date of setup : 20.12.15 |
Overview
Overview After Active mounting, measure the vibration environment to check that there is no problem in using the equipment. Measurement date: 20.12.15 (TUE) Operator: Daeil System, Research engineer Choi, HyoungMun Place of measurement : R&D Center 3Floor Equipment Model: ZEISS-Sigma300
Measurement conditions and results
Summary of measurement results
| Transmissibility | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -23 dB | -40 dB | -36 dB |
| X | -27 dB | -40 dB | -40dB |
| Y | -27 dB | -37 dB | -37dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

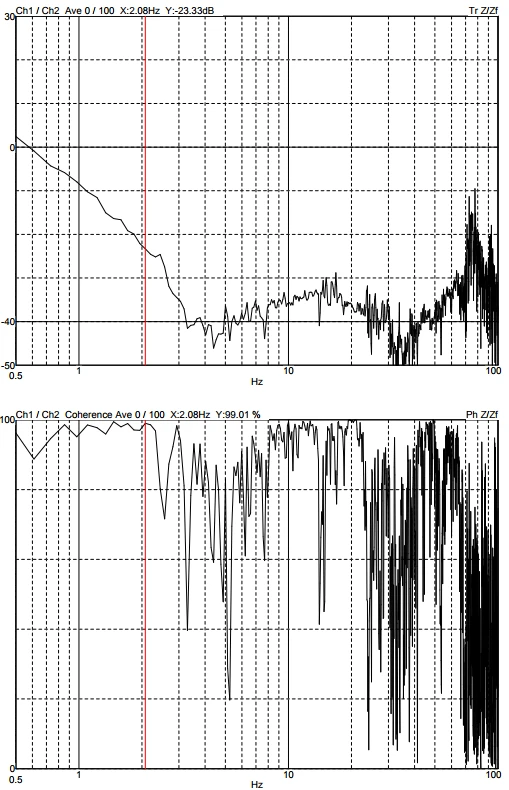

Z axis

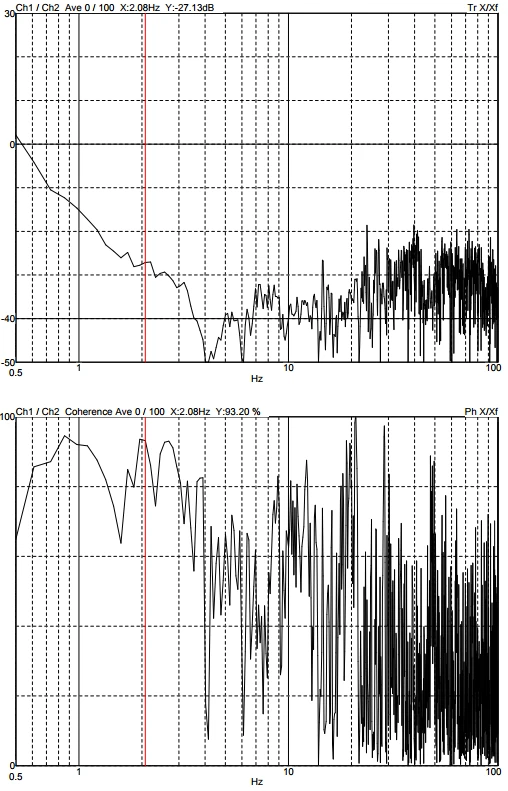

X axis

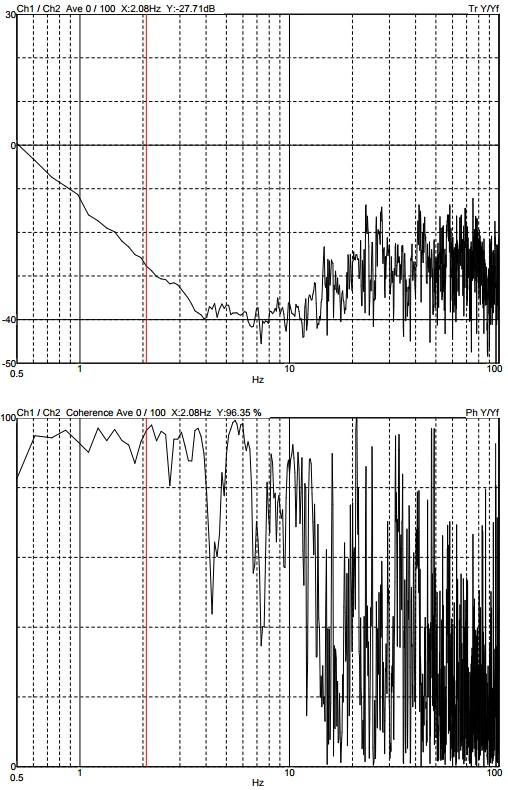

Y axis
