Installation Report
DVIA-M Series
02-01-2021
ZIESS-GeminiSEM 500 DVIA-MB1000 (P165 / 200522R2-2) Installation report — 2021.02.01
DVIA-M Series
Installation Report
DVIA-MB1000
ZIESS
GeminiSEM 500
P165
200522R2-2
internal program performance
Contents
MB1000_P165 200522R2-2
| Target equipment | ZIESS-GeminiSEM 500 |
|---|---|
| Place of installation | N/A |
| Remark | Good Performance |
| END USER | N/A |
| Operator: Choi, HyoungMun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 21.01.26 | |
| Date of reporting : 21.01.29 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.02.01 (Mon)
Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement : N/A
Equipment Model: ZIESS-GeminiSEM 500
Measurement conditions and results
Summary of measurement results
Test Condition
Transmissibility
| Direction | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -31 dB | -35 dB | -35 dB |
| X | -27 dB | -40 dB | -40 dB |
| Y | -29 dB | -37 dB | -35 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

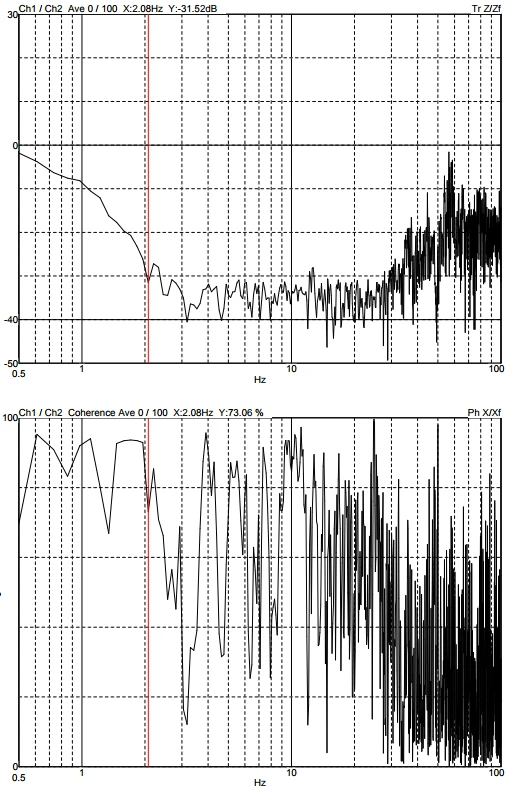

Z axis

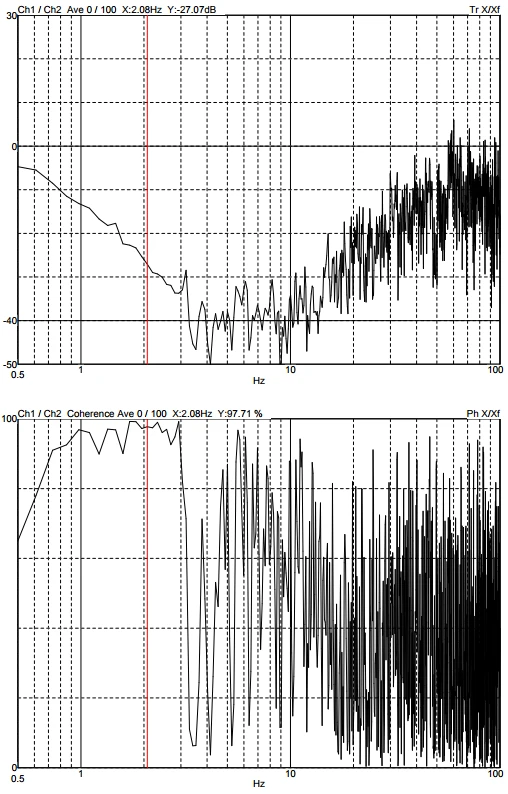

X axis

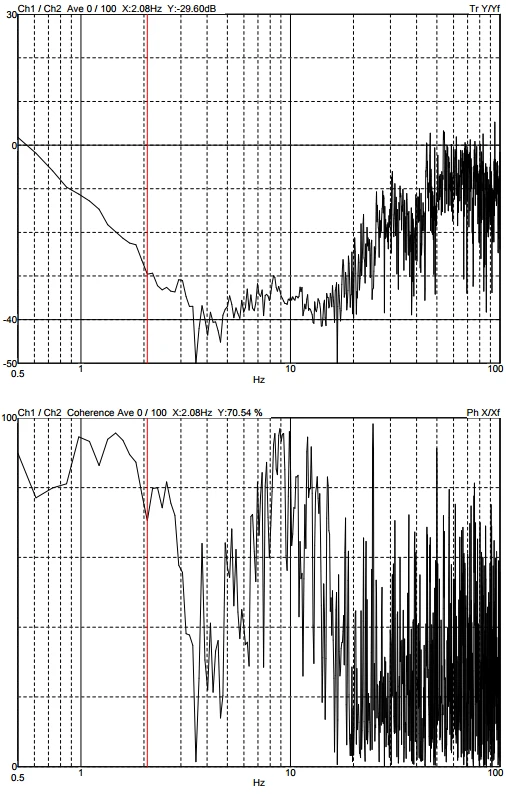

Y axis
