Installation Report
DVIA-M Series
08-05-2022
Ningbo Institute of materials ZEISS GEMINI300 DVIA-M1000 (210714R2-2) Installation Report — 2022.08.05
DVIA-M Series
Installation Report
Ningbo Institute of materials
ZEISS
GEMINI300
SEM
DVIA-M1000
210714R2-2
Contents
Ningbo Institute of materials（宁波材料所）
(M1000_ 210714R2-2 Set up)
| Target equipment | ZEISS GEMINI300 |
|---|---|
| Place of installation | BINZHOU |
| Remark | Good Performance |
| END USER | Ningbo Institute of materials（宁波材料所） |
| Operator: Lee, Young ha Date of setup: 22.08.04 Date of reporting: 22.08.05 | Date of business trip : 17.12.27~17.12.29 |

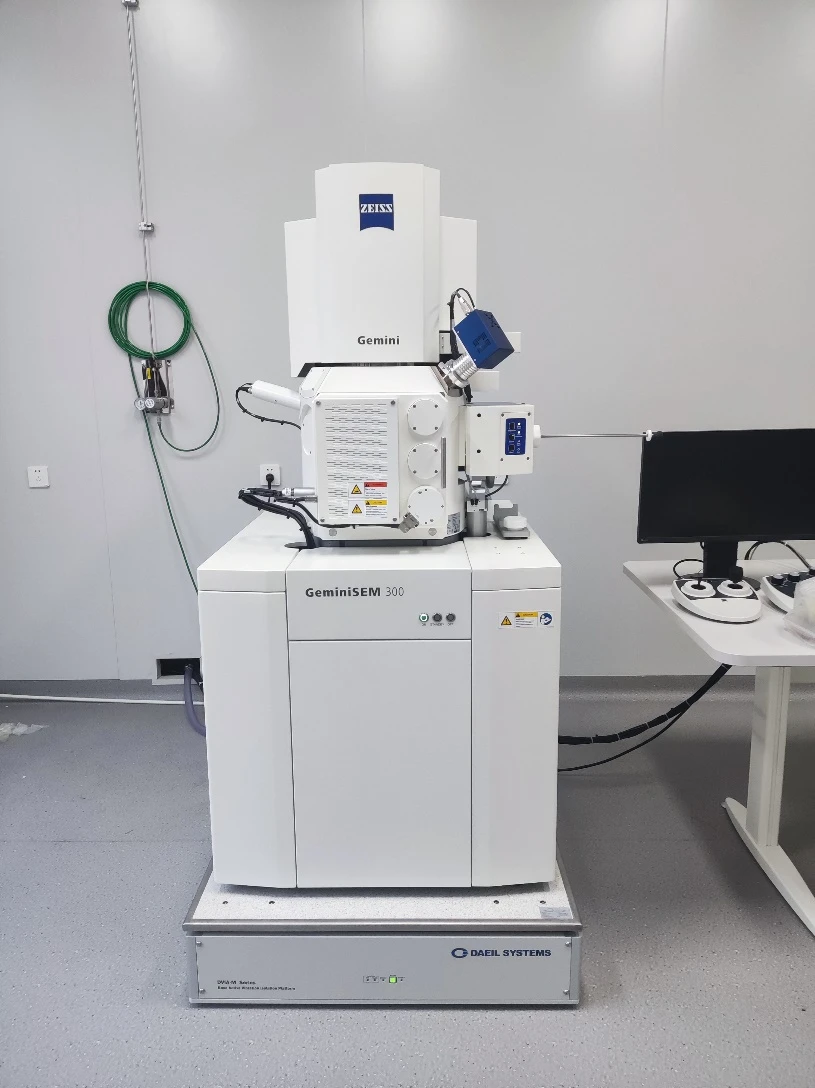

Overview

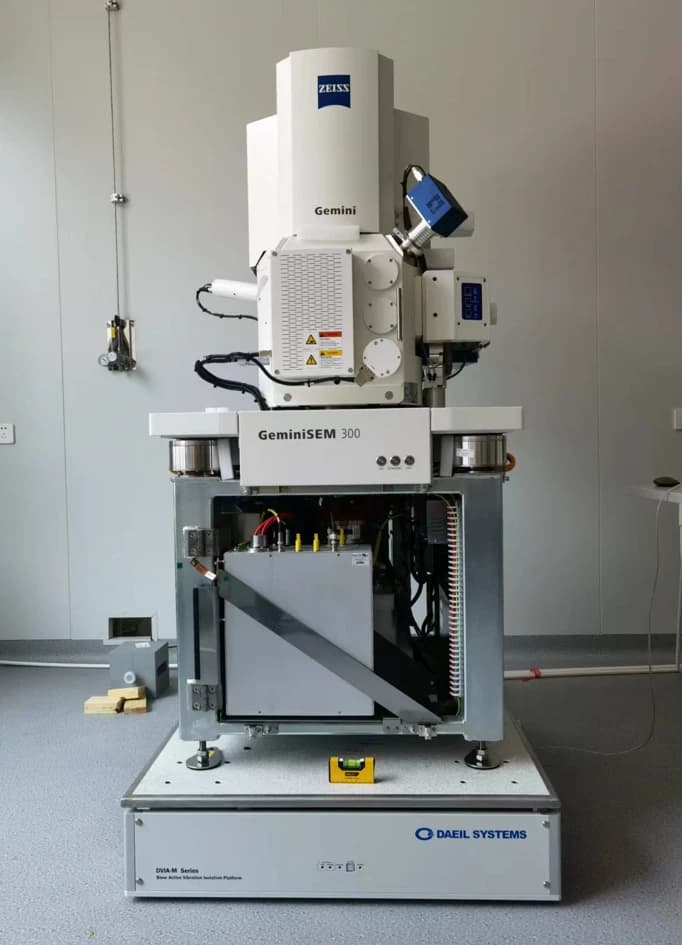

The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date
Measurement date: 2022.08.04 (Thursday),
Operator
Operator: DAEIL SYSTEMS, Youngha Lee
Place of measurement
Place of measurement: BINZHOU
Equipment Model
Equipment Model: ZEISS GEMINI300
Measurement conditions and results
Summary of measurement results
Test Condition
VC-Class
| Z | X | Y | |
|---|---|---|---|
| Floor | B | E | E |
| Above Active | G | F | F |
Good omnidirectional performance.
MB1000 internal program performance measurement result

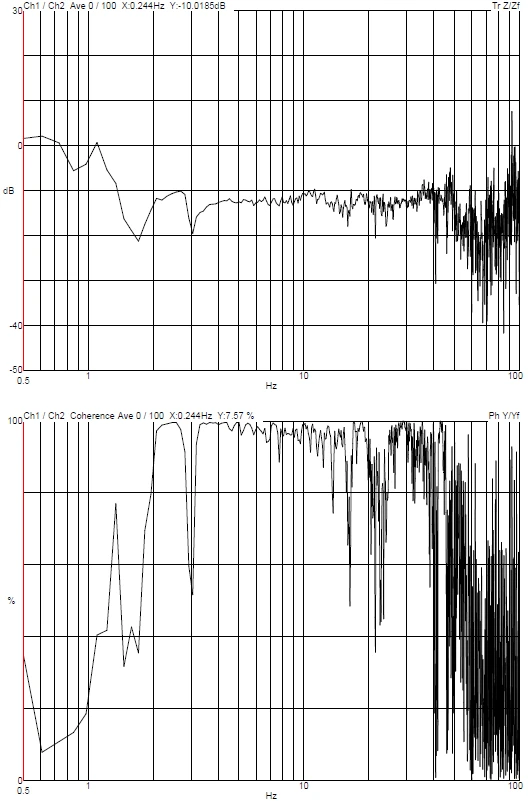

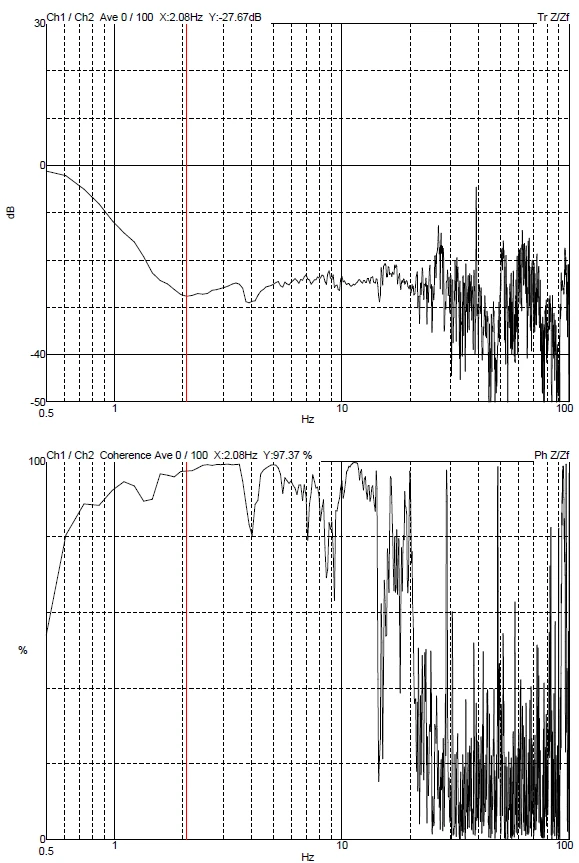

MB1000 internal program — Z axis

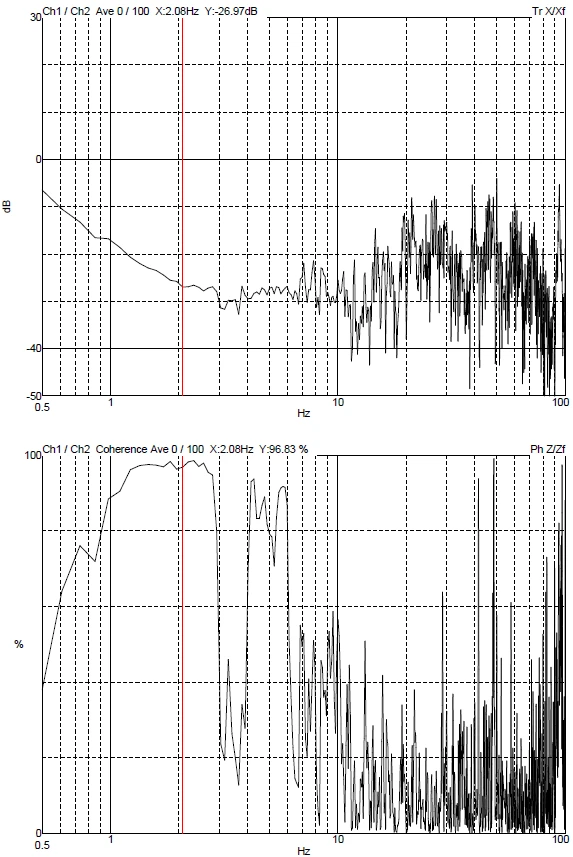

MB1000 internal program — X axis

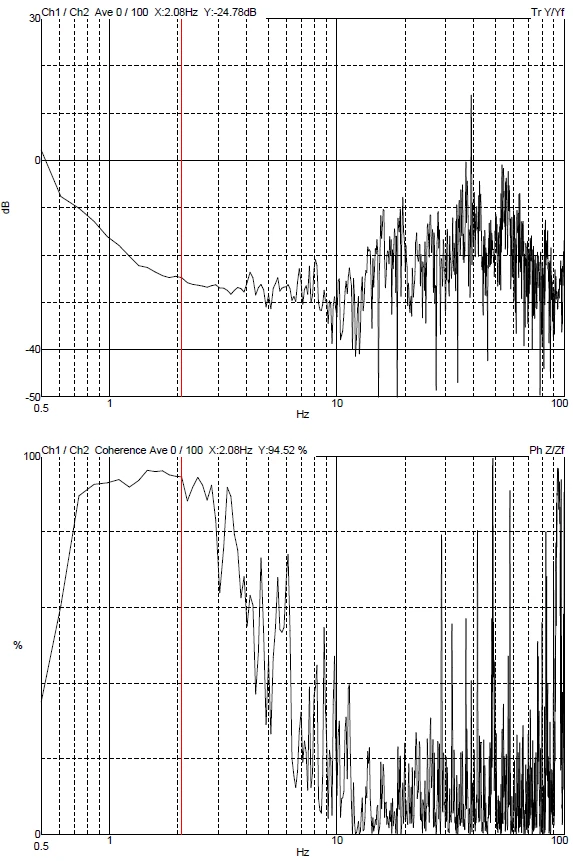

MB1000 internal program — Y axis
Octave Band Result

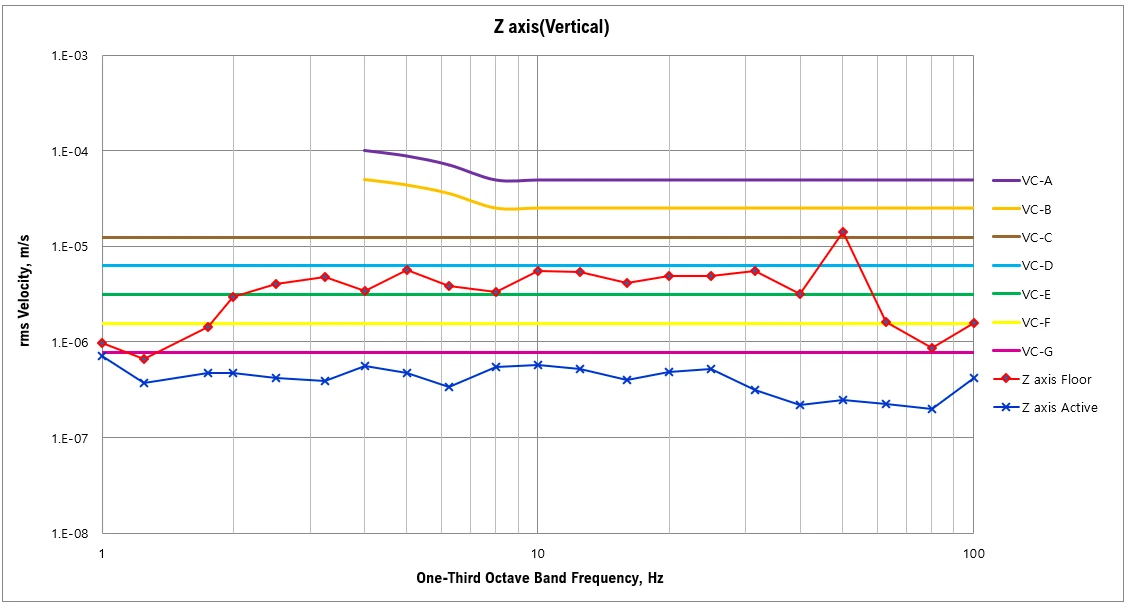

Octave Band Result — Z axis

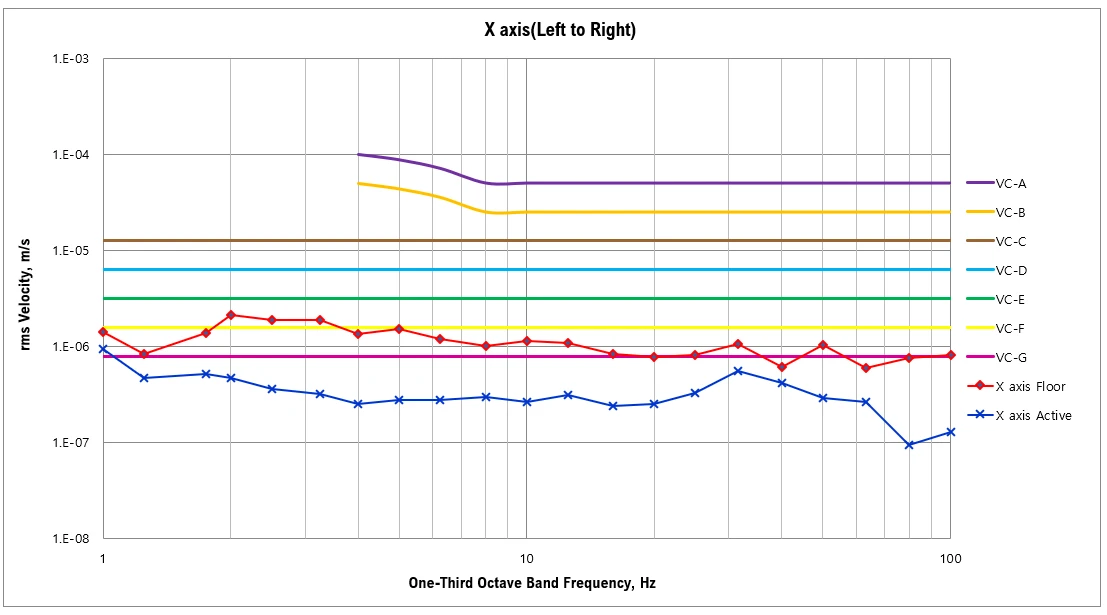

Octave Band Result — X axis

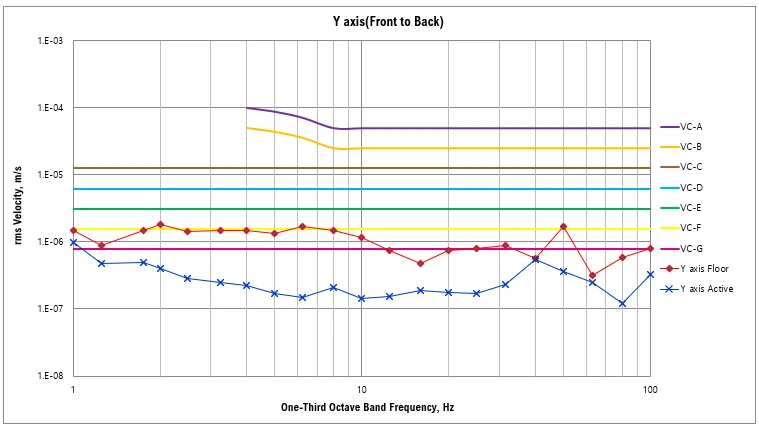

Octave Band Result — Y axis
