Installation Report
DVIA-M Series
09-06-2021
YIMO Hitachi SU8010 DVIA-MB1000 P238 (210708R1-2) internal program handout — 2021.09.06
DVIA-M Series
Installation Report
YIMO
DVIA-MB1000
210708R1-2
P238
Hitachi
SU8010
Contents
(MB1000 P238 210708R1-2 Set up)
Target equipment
HITACHI-SU8010
Place of installation
N/A
Remark
Good Performance
END USER
N/A
Operator
Choi, HyoungMun
Date of setup
Date of setup : 21.08.25
Date of reporting
Date of reporting : 21.09.06
Date of business trip
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 21.08.25 (WED)
Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement
Place of measurement : HITACHI-SU8010
Equipment Model
Equipment Model: N/A
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz | ||
|---|---|---|---|---|---|
| Z | -30 dB | -32 dB | -32 dB | ||
| X | -32 dB | -35 dB | -30 dB | ||
| Y | -30 dB | -30 dB | -32 dB | ||
Good omnidirectional performance.
MB1000 internal program performance measurement result

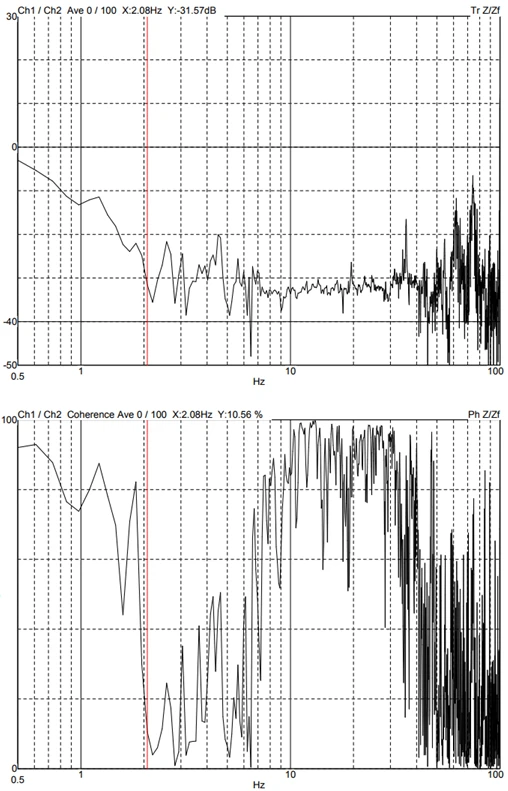

Z axis

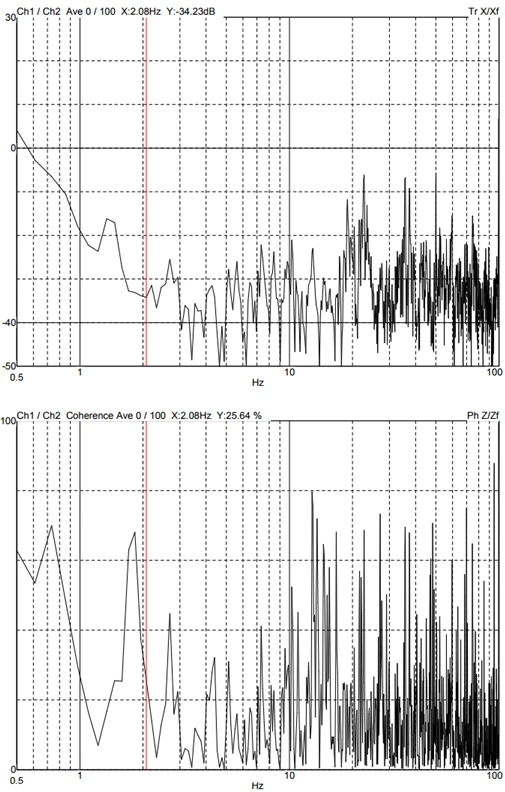

X axis

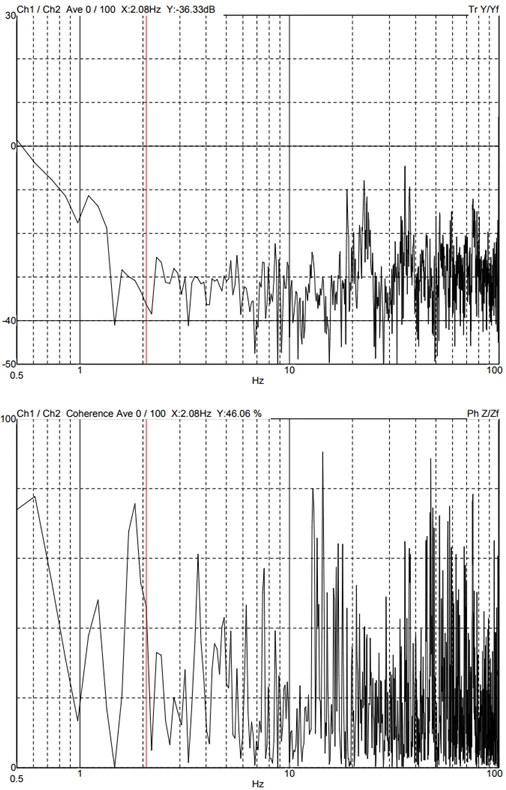

Y axis
