Installation Report
DVIA-M Series
05-19-2022
THERMO APREO 2S DVIA-M1000 (210701R6) Re-tuning Report — Opton Guangzhou — 2022.05.18
DVIA-M Series
Installation Report
Opton
Guangzhou
THERMO APREO 2S
DVIA-M1000
210701R6
Contents
(M1000_210701R6 Re-tuning)
Target equipment and site
| Target equipment | THERMO APREO 2S |
|---|---|
| Place of installation | GUANGZHOU, 1F |
| Remark | Good Performance |
| END USER | Opton |
Report details
| Operator: Yu, Ho Sang<br>Date of setup : 22.05.18<br>Date of reporting : 22.05.19 | Date of business trip : 17.12.27~17.12.29 |
|---|---|
| Overview The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended. Measurement date: 2022.05.18 (Wednesday), Operator: Daeil System, HoSang Yu Place of measurement: GUANGZHOU, 1F Equipment Model: THERMO APREO 2S |
Measurement conditions and results
Summary of measurement results
| Test Condition | Transmissibility | ||
|---|---|---|---|
| 2 Hz | 5 Hz | 10 Hz | |
| Z | -24.13 dB | -21.34 dB | -26.32 dB |
| X | -21.09 dB | -21.30 dB | -25.45 dB |
| Y | -21.58 dB | -20.90 dB | -25.57 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

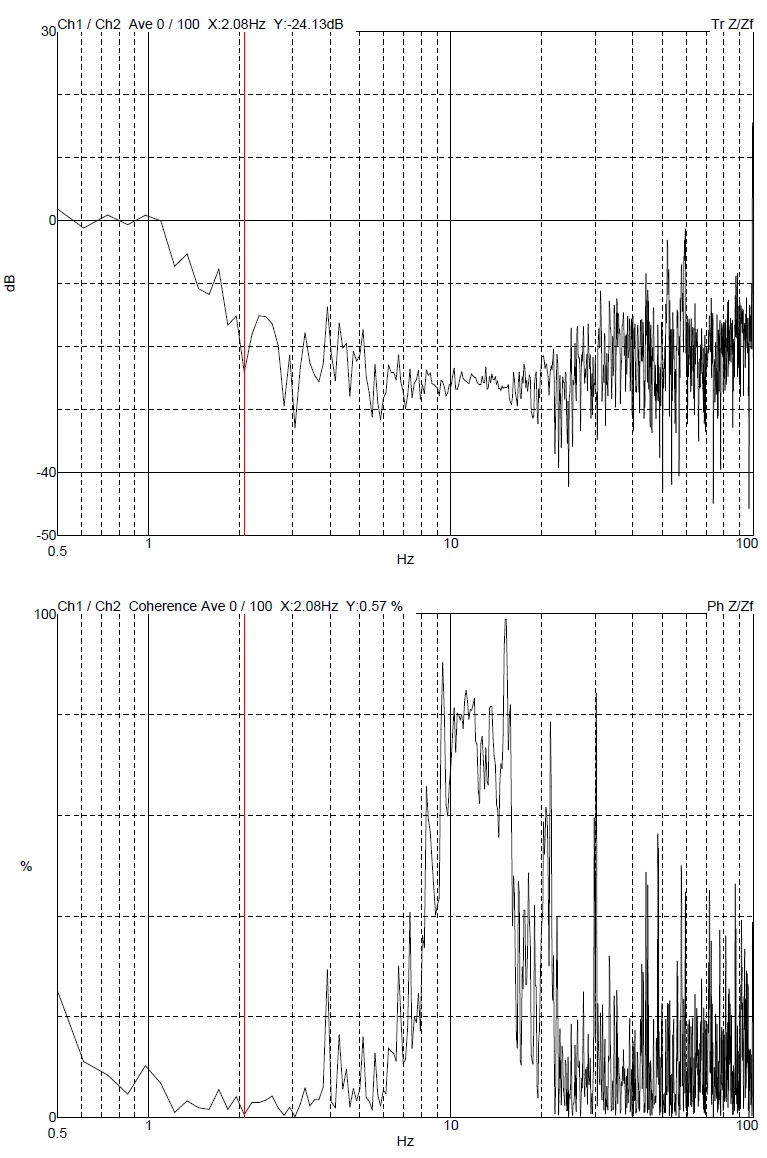

Z axis

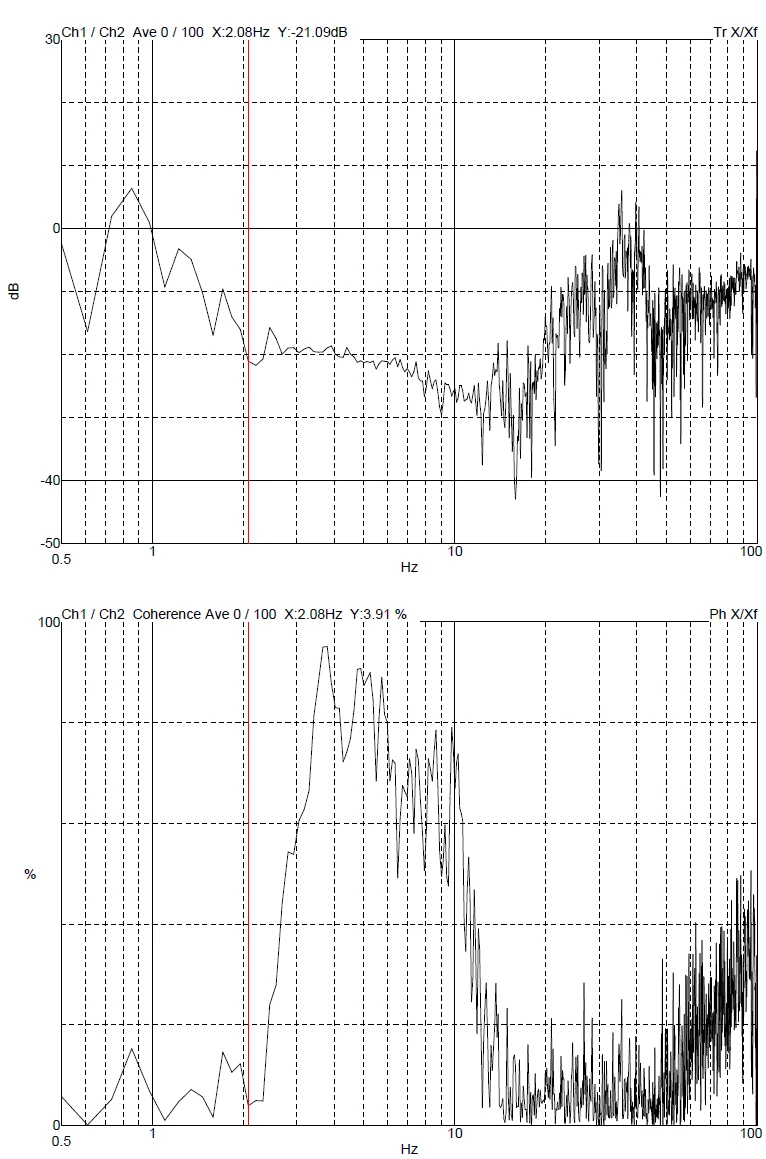

X axis

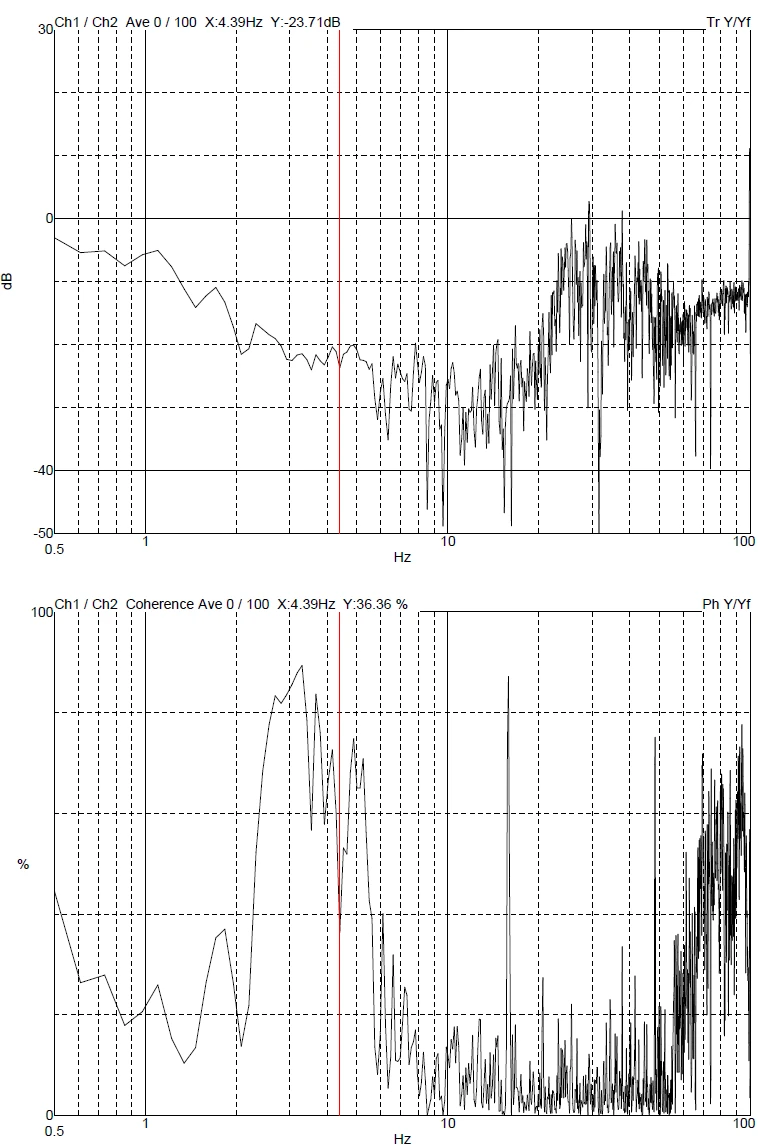

Y axis
