Installation Report
DVIA-M Series
10-18-2021
YIMO ZEISS Sigma500 DVIA-MB1000 (210701R5 P248) Installation Report — Sike New Materials
DVIA-M Series
Installation Report
YIMO
ZEISS
Sigma 500
DVIA-MB1000
210701R5
P248
Sike New Materials
Contents
MB1000 P248(210701r5)
Target equipment
Zeiss Sigma500
Place of installation
N/A
Remark
Good Performance
END USER
斯迪克新材料
Operator
Kim, Doohyun
Date of setup
21.10.18
Date of reporting
21.10.21
Date of business trip
17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 21.10.18 (MON)
Operator: Daeil System, Research engineer Kim, Doohyun
Place of measurement
N/A
Equipment Model
Zeiss Sigma500
Measurement conditions and results
Summary of measurement results
Test Condition
Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -23 dB | -33 dB | -32 dB |
| X | -34 dB | -20 dB | -31 dB |
| Y | -27 dB | -28 dB | -24 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

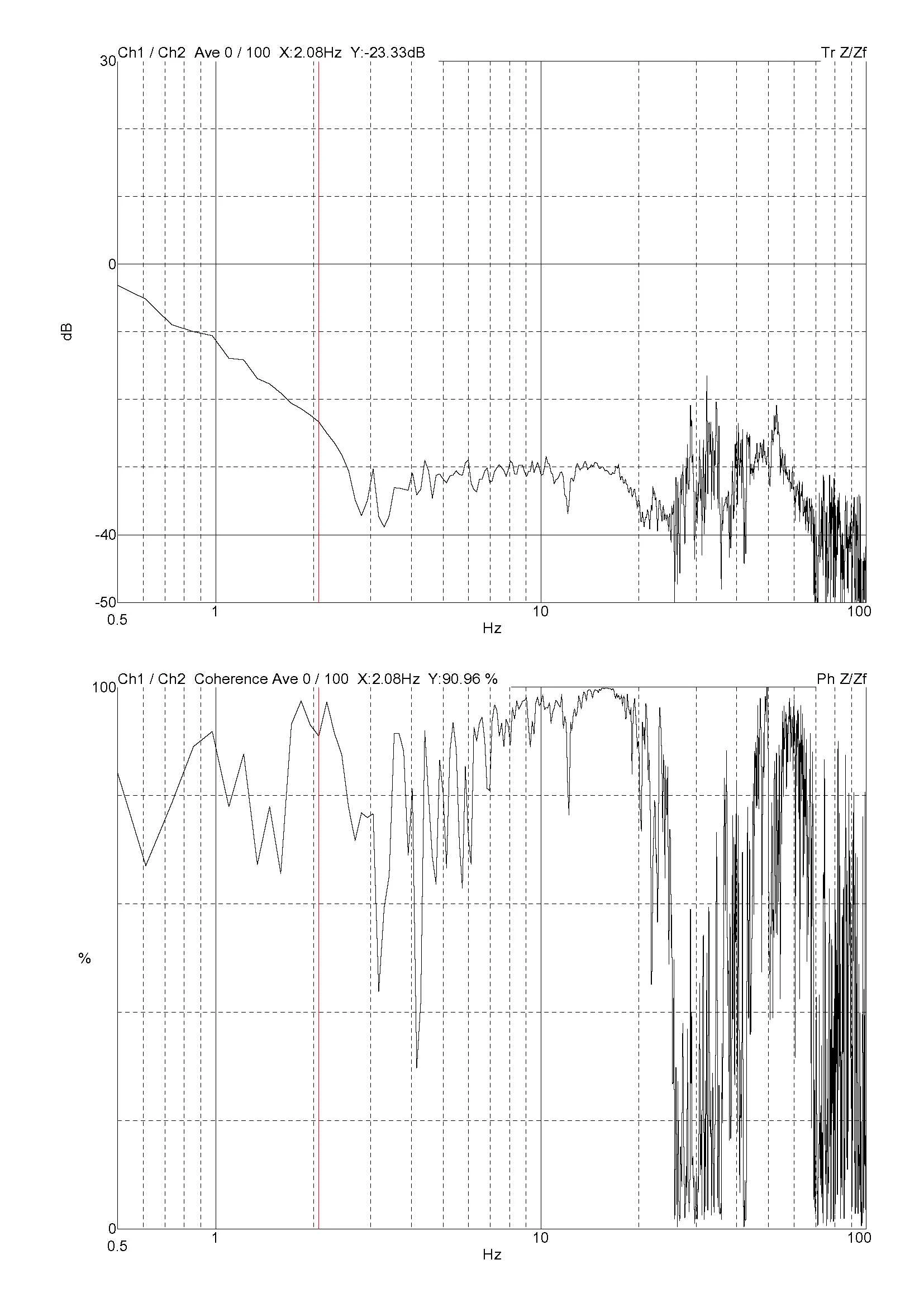

Z axis

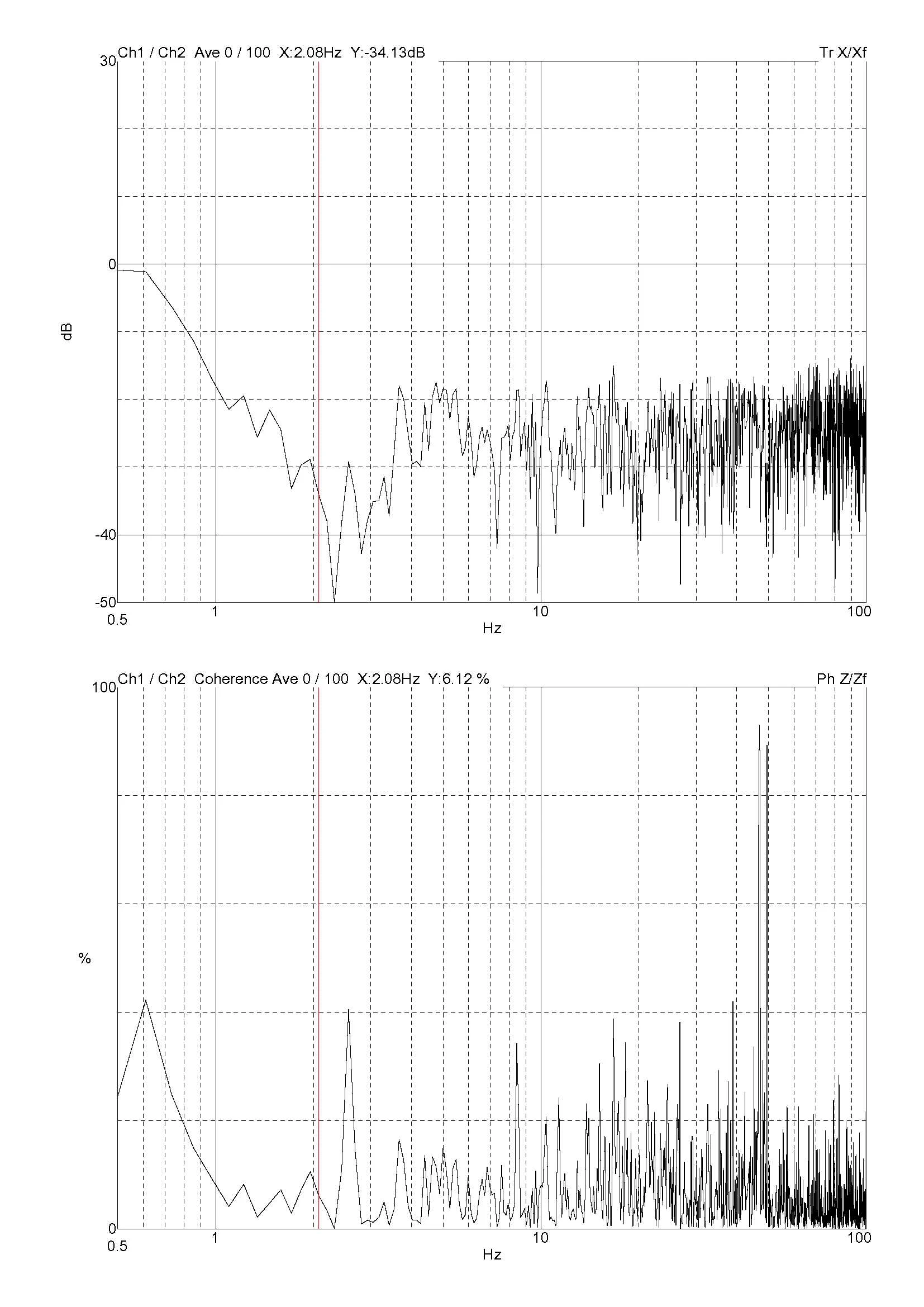

X axis

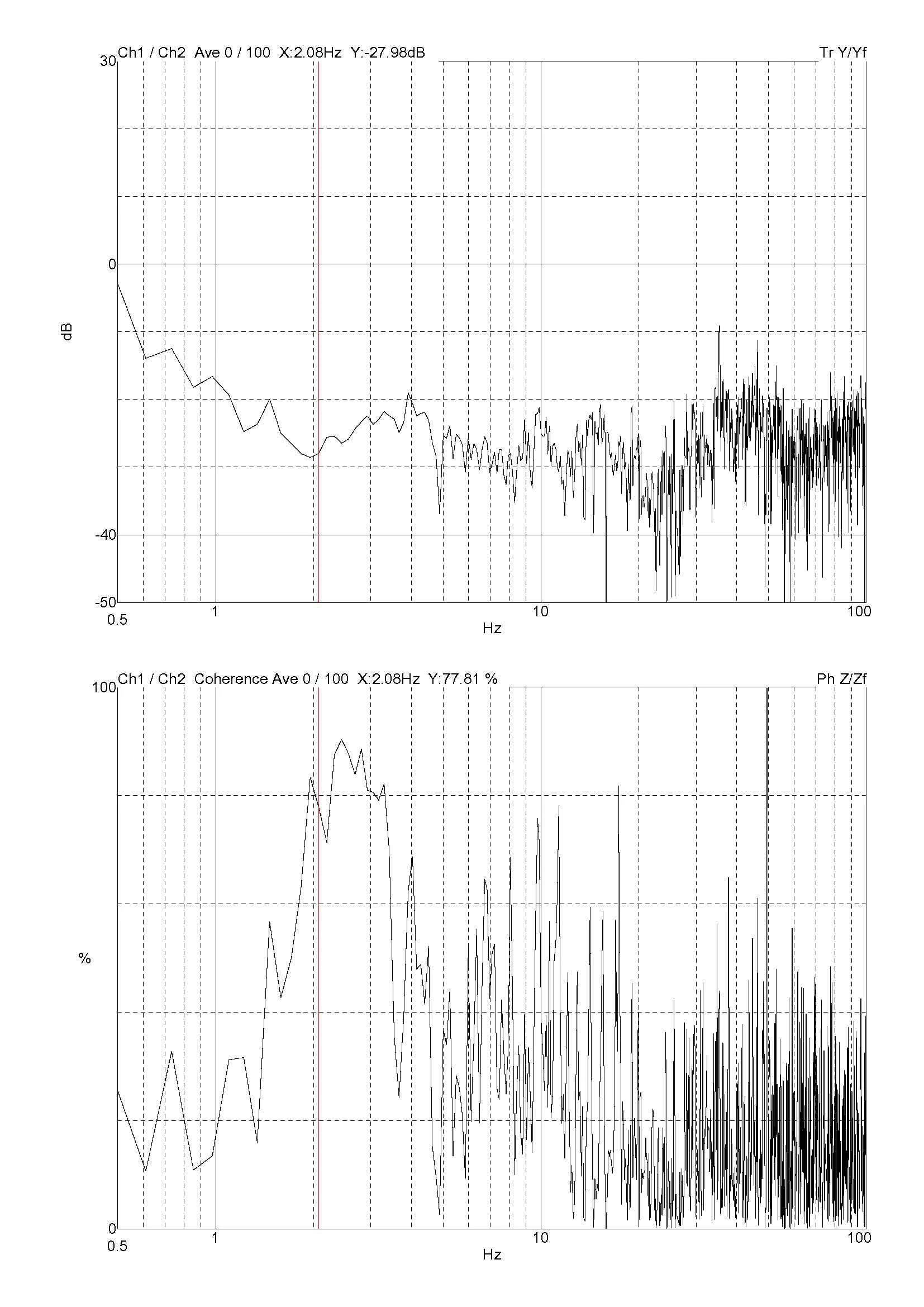

Y axis
